wallBoundedParticle Class Reference

Particle class that tracks on triangles of boundary faces. Use trackToEdge similar to trackToFace on particle. More...

Inheritance diagram for wallBoundedParticle:

Collaboration diagram for wallBoundedParticle:

Classes
class	iNew
class	trackingData

Public Member Functions
	wallBoundedParticle (const polyMesh &c, const point &position, const label celli, const label tetFacei, const label tetPti, const label meshEdgeStart, const label diagEdge)
	wallBoundedParticle (const polyMesh &c, Istream &is, bool readFields=true, bool newFormat=true)
	wallBoundedParticle (const wallBoundedParticle &p)
autoPtr< particle >	clone () const
label	meshEdgeStart () const
label	diagEdge () const
template<class TrackCloudType >
scalar	trackToEdge (TrackCloudType &cloud, trackingData &td, const vector &endPosition)
template<class TrackCloudType >
void	patchInteraction (TrackCloudType &cloud, trackingData &td, const scalar trackFraction)
template<class TrackCloudType >
void	hitProcessorPatch (TrackCloudType &cloud, trackingData &td)
template<class TrackCloudType >
void	hitWallPatch (TrackCloudType &cloud, trackingData &td)
InfoProxy< wallBoundedParticle >	info () const
template<class TrackCloudType >
Foam::scalar	trackToEdge (TrackCloudType &cloud, trackingData &td, const vector &endPosition)
template<class TrackCloudType >
void	readFields (TrackCloudType &c)
template<class TrackCloudType >
void	writeFields (const TrackCloudType &c)
Public Member Functions inherited from particle< Type >
	TypeName ("particle")
	particle (const polyMesh &mesh, const barycentric &coordinates, const label celli, const label tetFacei, const label tetPti)
	particle (const polyMesh &mesh, const vector &position, const label celli=-1)
	particle (const polyMesh &mesh, const vector &position, const label celli, const label tetFacei, const label tetPti, const bool doLocate=true)
	particle (const polyMesh &mesh, Istream &, bool readFields=true, bool newFormat=true)
	particle (const particle &p)
	particle (const particle &p, const polyMesh &mesh)
virtual	~particle ()=default
label	getNewParticleID () const
const polyMesh &	mesh () const
const barycentric &	coordinates () const
label	cell () const
label &	cell ()
label	tetFace () const
label &	tetFace ()
label	tetPt () const
label &	tetPt ()
label	face () const
label &	face ()
scalar	stepFraction () const
scalar &	stepFraction ()
label	origProc () const
label &	origProc ()
label	origId () const
label &	origId ()
Pair< scalar >	stepFractionSpan () const
scalar	currentTimeFraction () const
tetIndices	currentTetIndices () const
barycentricTensor	currentTetTransform () const
vector	normal () const
bool	onFace () const
bool	onInternalFace () const
bool	onBoundaryFace () const
label	patch () const
vector	position () const
void	reset ()
scalar	track (const vector &displacement, const scalar fraction)
scalar	trackToFace (const vector &displacement, const scalar fraction)
scalar	trackToTri (const vector &displacement, const scalar fraction, label &tetTriI)
scalar	trackToStationaryTri (const vector &displacement, const scalar fraction, label &tetTriI)
scalar	trackToMovingTri (const vector &displacement, const scalar fraction, label &tetTriI)
template<class TrackCloudType >
void	hitFace (const vector &direction, TrackCloudType &cloud, trackingData &td)
template<class TrackCloudType >
void	trackToAndHitFace (const vector &direction, const scalar fraction, TrackCloudType &cloud, trackingData &td)
vector	deviationFromMeshCentre () const
void	patchData (vector &n, vector &U) const
virtual void	transformProperties (const tensor &T)
virtual void	transformProperties (const vector &separation)
void	prepareForParallelTransfer ()
void	correctAfterParallelTransfer (const label patchi, trackingData &td)
void	prepareForInteractionListReferral (const vectorTensorTransform &transform)
void	correctAfterInteractionListReferral (const label celli)
label	procTetPt (const polyMesh &procMesh, const label procCell, const label procTetFace) const
void	autoMap (const vector &position, const mapPolyMesh &mapper)
void	relocate (const point &position, const label celli=-1)
void	writeProperties (Ostream &os, const wordRes &filters, const word &delim, const bool namesOnly) const
void	writeCoordinates (Ostream &os) const
virtual void	writePosition (Ostream &os) const

Static Public Member Functions
template<class CloudType >
static void	readFields (CloudType &)
template<class CloudType >
static void	writeFields (const CloudType &)
Static Public Member Functions inherited from particle< Type >
static string	propertyList ()
template<class Type >
static void	writePropertyName (Ostream &os, const word &name, const word &delim)
template<class Type >
static void	writeProperty (Ostream &os, const word &name, const Type &value, const bool nameOnly, const word &delim, const wordRes &filters=wordRes::null())
template<class Type >
static void	writeProperty (Ostream &os, const word &name, const Field< Type > &values, const bool nameOnly, const word &delim, const wordRes &filters=wordRes::null())
template<class TrackCloudType >
static void	readFields (TrackCloudType &c)
template<class TrackCloudType >
static void	writeFields (const TrackCloudType &c)
template<class CloudType >
static void	readObjects (CloudType &c, const objectRegistry &obr)
template<class CloudType >
static void	writeObjects (const CloudType &c, objectRegistry &obr)

Static Public Attributes
static const std::size_t	sizeofFields_
Static Public Attributes inherited from particle< Type >
static string	propertyList_ = Foam::particle::propertyList()
static label	particleCount_ = 0
static bool	writeLagrangianCoordinates = true
static bool	writeLagrangianPositions

Protected Member Functions
edge	currentEdge () const
void	crossEdgeConnectedFace (const label &celli, label &tetFacei, label &tetPti, const edge &e)
void	crossEdgeConnectedFace (const edge &meshEdge)
void	crossDiagonalEdge ()
scalar	trackFaceTri (const vector &n, const vector &endPosition, label &)
bool	isTriAlongTrack (const vector &n, const point &endPosition) const
Protected Member Functions inherited from particle< Type >
template<class TrackCloudType >
bool	hitPatch (TrackCloudType &, trackingData &)
template<class TrackCloudType >
void	hitWedgePatch (TrackCloudType &, trackingData &)
template<class TrackCloudType >
void	hitSymmetryPlanePatch (TrackCloudType &, trackingData &)
template<class TrackCloudType >
void	hitSymmetryPatch (TrackCloudType &, trackingData &)
template<class TrackCloudType >
void	hitCyclicPatch (TrackCloudType &, trackingData &)
template<class TrackCloudType >
void	hitCyclicAMIPatch (TrackCloudType &, trackingData &, const vector &)
template<class TrackCloudType >
void	hitCyclicACMIPatch (TrackCloudType &, trackingData &, const vector &)
template<class TrackCloudType >
void	hitProcessorPatch (TrackCloudType &, trackingData &)
template<class TrackCloudType >
void	hitWallPatch (TrackCloudType &, trackingData &)

Protected Attributes
point	localPosition_
label	meshEdgeStart_
label	diagEdge_

Friends
Ostream &	operator<< (Ostream &, const wallBoundedParticle &)
Ostream &	operator<< (Ostream &, const InfoProxy< wallBoundedParticle > &)

Detailed Description

Particle class that tracks on triangles of boundary faces. Use trackToEdge similar to trackToFace on particle.

Source files

• wallBoundedParticle.H
• wallBoundedParticle.C
• wallBoundedParticleTemplates.C

Definition at line 59 of file wallBoundedParticle.H.

Constructor & Destructor Documentation

wallBoundedParticle() [1/3]

wallBoundedParticle	(	const polyMesh &	c,
		const point &	position,
		const label	celli,
		const label	tetFacei,
		const label	tetPti,
		const label	meshEdgeStart,
		const label	diagEdge
	)

Definition at line 405 of file wallBoundedParticle.C.

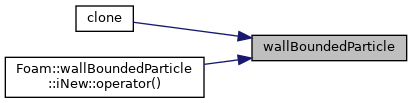

Referenced by wallBoundedParticle::clone(), and wallBoundedParticle::iNew::operator()().

Here is the caller graph for this function:

wallBoundedParticle() [2/3]

wallBoundedParticle	(	const polyMesh &	c,
		Istream &	is,
		bool	readFields = true,
		bool	newFormat = true
	)

Definition at line 423 of file wallBoundedParticle.C.

References IOstreamOption::ASCII, Istream::beginRawRead(), IOstream::check(), IOstream::checkLabelSize(), IOstream::checkScalarSize(), Istream::endRawRead(), IOstreamOption::format(), FUNCTION_NAME, VectorSpace< Vector< scalar >, scalar, 3 >::nComponents, Istream::read(), Foam::readFields(), and Foam::readRawLabel().

Here is the call graph for this function:

wallBoundedParticle() [3/3]

wallBoundedParticle

(

const wallBoundedParticle &

p

)

Definition at line 461 of file wallBoundedParticle.C.

Member Function Documentation

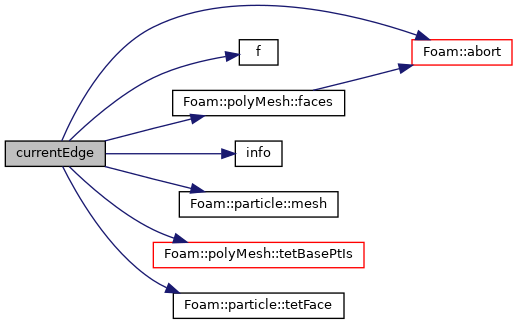

currentEdge()

Foam::edge currentEdge ( ) const

protected

Definition at line 34 of file wallBoundedParticle.C.

References Foam::abort(), wallBoundedParticle::diagEdge_, f(), polyMesh::faces(), Foam::FatalError, FatalErrorInFunction, wallBoundedParticle::info(), particle< Type >::mesh(), wallBoundedParticle::meshEdgeStart_, polyMesh::tetBasePtIs(), and particle< Type >::tetFace().

Here is the call graph for this function:

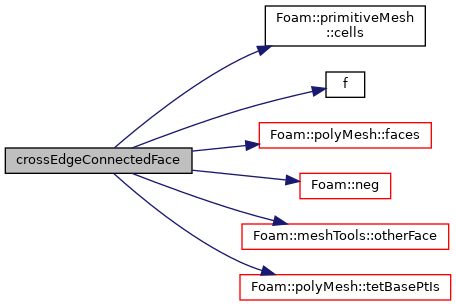

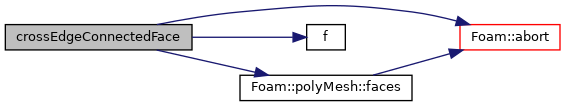

crossEdgeConnectedFace() [1/2]

void crossEdgeConnectedFace ( const label &  celli, label &  tetFacei, label &  tetPti, const edge &  e  )

protected

Definition at line 76 of file wallBoundedParticle.C.

References primitiveMesh::cells(), Foam::constant::electromagnetic::e, f(), polyMesh::faces(), mesh, Foam::neg(), Foam::meshTools::otherFace(), pFaces, and polyMesh::tetBasePtIs().

Here is the call graph for this function:

crossEdgeConnectedFace() [2/2]

void crossEdgeConnectedFace ( const edge &  meshEdge )

protected

Definition at line 183 of file wallBoundedParticle.C.

References Foam::abort(), f(), polyMesh::faces(), Foam::FatalError, FatalErrorInFunction, and mesh.

Here is the call graph for this function:

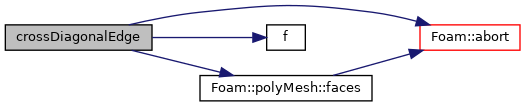

crossDiagonalEdge()

void crossDiagonalEdge ( )

protected

Definition at line 232 of file wallBoundedParticle.C.

References Foam::abort(), f(), polyMesh::faces(), Foam::FatalError, FatalErrorInFunction, and mesh.

Here is the call graph for this function:

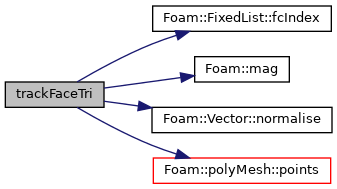

trackFaceTri()

Foam::scalar trackFaceTri ( const vector &  n, const vector &  endPosition, label &  minEdgei  )

protected

Definition at line 279 of file wallBoundedParticle.C.

References FixedList::fcIndex(), forAll, Foam::mag(), mesh, n, Vector< Cmpt >::normalise(), polyMesh::points(), and s.

Here is the call graph for this function:

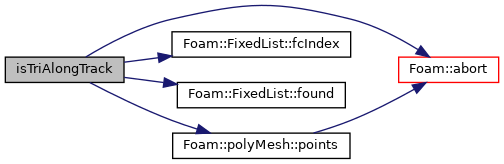

isTriAlongTrack()

bool isTriAlongTrack ( const vector &  n, const point &  endPosition  ) const

protected

Definition at line 358 of file wallBoundedParticle.C.

References Foam::abort(), Foam::FatalError, FatalErrorInFunction, FixedList::fcIndex(), forAll, FixedList::found(), mesh, n, and polyMesh::points().

Here is the call graph for this function:

clone()

autoPtr<particle> clone ( ) const

inlinevirtual

Reimplemented from particle< Type >.

Reimplemented in wallBoundedStreamLineParticle.

Definition at line 177 of file wallBoundedParticle.H.

References wallBoundedParticle::wallBoundedParticle().

Here is the call graph for this function:

meshEdgeStart()

label meshEdgeStart ( ) const

inline

Definition at line 213 of file wallBoundedParticle.H.

References wallBoundedParticle::meshEdgeStart_.

Referenced by wallBoundedParticle::readFields().

Here is the caller graph for this function:

diagEdge()

label diagEdge ( ) const

inline

Definition at line 219 of file wallBoundedParticle.H.

References wallBoundedParticle::diagEdge_.

Referenced by wallBoundedParticle::readFields().

Here is the caller graph for this function:

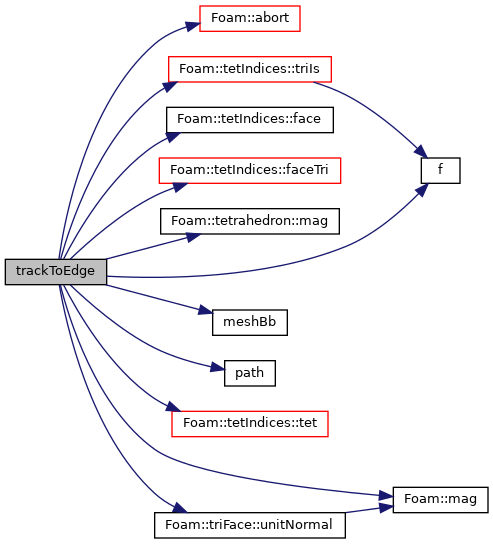

trackToEdge() [1/2]

scalar trackToEdge	(	TrackCloudType &	cloud,
		trackingData &	td,
		const vector &	endPosition
	)

patchInteraction()

void patchInteraction	(	TrackCloudType &	cloud,
		trackingData &	td,
		const scalar	trackFraction
	)

Definition at line 28 of file wallBoundedParticleTemplates.C.

References particle< Type >::trackingData::keepParticle, mesh, p, and Foam::foamVersion::patch.

hitProcessorPatch()

void hitProcessorPatch	(	TrackCloudType &	cloud,
		trackingData &	td
	)

Definition at line 375 of file wallBoundedParticleTemplates.C.

References f(), mesh, and particle< Type >::trackingData::switchProcessor.

Here is the call graph for this function:

hitWallPatch()

void hitWallPatch	(	TrackCloudType &	cloud,
		trackingData &	td
	)

Definition at line 404 of file wallBoundedParticleTemplates.C.

info()

InfoProxy<wallBoundedParticle> info ( ) const

inline

Definition at line 270 of file wallBoundedParticle.H.

Referenced by wallBoundedParticle::currentEdge().

Here is the caller graph for this function:

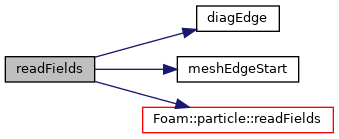

readFields() [1/2]

static void readFields ( CloudType &  )

static

writeFields() [1/2]

static void writeFields ( const CloudType &  )

static

trackToEdge() [2/2]

Foam::scalar trackToEdge	(	TrackCloudType &	cloud,
		trackingData &	td,
		const vector &	endPosition
	)

Definition at line 73 of file wallBoundedParticleTemplates.C.

References Foam::abort(), f(), tetIndices::face(), tetIndices::faceTri(), Foam::FatalError, FatalErrorInFunction, wallBoundedParticle::trackingData::isWallPatch_, tetrahedron::mag(), Foam::mag(), mesh, meshBb(), n, path(), points, tetIndices::tet(), tetIndices::triIs(), and triFace::unitNormal().

Here is the call graph for this function:

readFields() [2/2]

void readFields

(

TrackCloudType &

c

)

Definition at line 412 of file wallBoundedParticleTemplates.C.

References Foam::constant::universal::c, wallBoundedParticle::diagEdge(), wallBoundedParticle::meshEdgeStart(), IOobject::MUST_READ, p, and particle< Type >::readFields().

Here is the call graph for this function:

writeFields() [2/2]

void writeFields

(

const TrackCloudType &

c

)

Definition at line 452 of file wallBoundedParticleTemplates.C.

References Foam::constant::universal::c, IOobject::NO_READ, p, and particle< Type >::writeFields().

Here is the call graph for this function:

Friends And Related Function Documentation

operator<< [1/2]

Ostream& operator<< ( Ostream &  , const wallBoundedParticle &    )

friend

operator<< [2/2]

Ostream& operator<< ( Ostream &  , const InfoProxy< wallBoundedParticle > &    )

friend

Member Data Documentation

localPosition_

point localPosition_

protected

Definition at line 96 of file wallBoundedParticle.H.

meshEdgeStart_

label meshEdgeStart_

protected

Definition at line 104 of file wallBoundedParticle.H.

Referenced by wallBoundedParticle::currentEdge(), and wallBoundedParticle::meshEdgeStart().

diagEdge_

label diagEdge_

protected

Definition at line 111 of file wallBoundedParticle.H.

Referenced by wallBoundedParticle::currentEdge(), and wallBoundedParticle::diagEdge().

sizeofFields_

const std::size_t sizeofFields_

static

Definition at line 147 of file wallBoundedParticle.H.

Referenced by Foam::operator<<().

---

The documentation for this class was generated from the following files:

• src/functionObjects/field/wallBoundedStreamLine/wallBoundedParticle.H
• src/functionObjects/field/wallBoundedStreamLine/wallBoundedParticle.C
• src/functionObjects/field/wallBoundedStreamLine/wallBoundedParticleTemplates.C
