Write surfaces fields (as PointData) in VTP format. Legacy VTK format is intentionally not supported. More...

Inheritance diagram for surfaceFieldWriter:

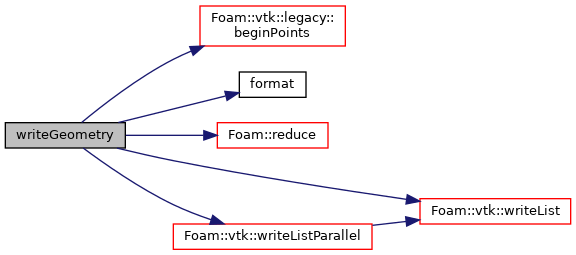

Collaboration diagram for surfaceFieldWriter:

Public Member Functions
	surfaceFieldWriter (const fvMesh &mesh, const vtk::outputOptions opts=vtk::formatType::INLINE_BASE64)

	surfaceFieldWriter (const fvMesh &mesh, const fileName &file, bool parallel=Pstream::parRun())

	surfaceFieldWriter (const fvMesh &mesh, const vtk::outputOptions opts, const fileName &file, bool parallel=Pstream::parRun())

virtual	~surfaceFieldWriter ()=default

virtual bool	beginFile (std::string title="")

virtual bool	writeGeometry ()

virtual bool	beginCellData (label nFields=0)

virtual bool	beginPointData (label nFields=0)

void	write (const surfaceVectorField &field)

Public Member Functions inherited from fileWriter
	fileWriter (const vtk::fileTag contentType, const vtk::outputOptions opts)

virtual	~fileWriter ()

vtk::fileTag	contentType () const

vtk::outputOptions	opts () const

word	ext () const

bool	legacy () const

bool	parallel () const noexcept

const word &	state () const

const fileName &	output () const noexcept

bool	open (const fileName &file, bool parallel=Pstream::parRun())

void	close ()

bool	beginFieldData (label nFields=0)

label	nCellData () const noexcept

label	nPointData () const noexcept

bool	endFieldData ()

bool	endCellData ()

bool	endPointData ()

void	writeTimeValue (scalar timeValue)

Static Public Member Functions
static word	ext (vtk::outputOptions)

Additional Inherited Members
Protected Types inherited from fileWriter
enum	outputState { CLOSED = 0, OPENED, DECLARED, FIELD_DATA, PIECE, CELL_DATA, POINT_DATA }

Protected Member Functions inherited from fileWriter
void	checkFormatterValidity () const

Ostream &	reportBadState (Ostream &, outputState expected) const

Ostream &	reportBadState (Ostream &, outputState, outputState) const

std::ofstream &	os () noexcept

vtk::formatter &	format ()

bool	isState (outputState test) const noexcept

bool	notState (outputState test) const noexcept

template<class Type >
void	beginDataArray (const word &fieldName, const label nValues)

void	endDataArray ()

void	beginPoints (const label nPoints)

void	endPoints ()

bool	enter_Piece ()

bool	endPiece ()

bool	enter_CellData (label nEntries, label nFields)

bool	enter_PointData (label nEntries, label nFields)

bool	exit_File ()

template<class Type >
void	writeUniform (const word &fieldName, const Type &val, const label nValues)

template<class Type >
void	writeBasicField (const word &fieldName, const UList< Type > &field)

bool	writeProcIDs (const label nValues)

	fileWriter (const fileWriter &)=delete

void	operator= (const fileWriter &)=delete

Protected Attributes inherited from fileWriter
vtk::fileTag	contentType_

outputOptions	opts_

bool	parallel_

outputState	state_

label	nCellData_

label	nPointData_

fileName	outputFile_

autoPtr< vtk::formatter >	format_

std::ofstream	os_

Static Protected Attributes inherited from fileWriter
static const Enum< outputState >	stateNames

Detailed Description

Write surfaces fields (as PointData) in VTP format. Legacy VTK format is intentionally not supported.

The file output is structured as HEAD, FIELD_DATA, PIECE followed by any CELL_DATA or POINT_DATA. These states are tracked internally to help detect logic errors.

The FieldData element is to be placed prior to writing any geometry Piece. This moves the information to the front of the output file for visibility and simplifies the logic.

Note: Parallel output is combined into a single Piece without point merging, which is similar to using multi-piece data sets, but allows more convenient creation as a streaming process. In the future, the duplicate points at processor connections may be addressed using ghost points.

Source files

Definition at line 67 of file foamVtkSurfaceFieldWriter.H.
