Write OpenFOAM patches and patch fields in VTP or legacy vtk format. More...

Inheritance diagram for patchMeshWriter:

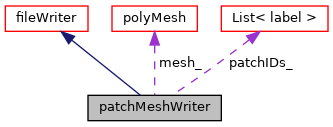

Collaboration diagram for patchMeshWriter:

[legend]

Public Member Functions
	patchMeshWriter (const polyMesh &mesh, const labelList &patchIDs, const vtk::outputOptions opts=vtk::formatType::INLINE_BASE64)

	patchMeshWriter (const polyMesh &mesh, const labelList &patchIDs, const fileName &file, bool parallel=Pstream::parRun())

	patchMeshWriter (const polyMesh &mesh, const labelList &patchIDs, const vtk::outputOptions opts, const fileName &file, bool parallel=Pstream::parRun())

virtual	~patchMeshWriter ()=default

const labelList &	patchIDs () const noexcept

virtual bool	beginFile (std::string title="")

virtual bool	writeGeometry ()

virtual bool	beginCellData (label nFields=0)

virtual bool	beginPointData (label nFields=0)

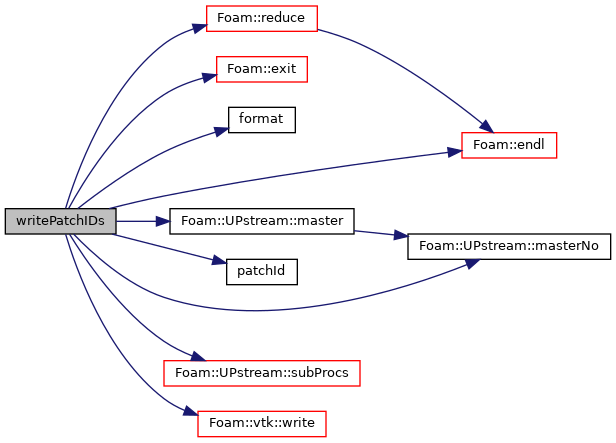

void	writePatchIDs ()

bool	writeProcIDs ()

bool	writeNeighIDs ()

template<class Type >
void	writeUniform (const word &fieldName, const Type &val)

Public Member Functions inherited from fileWriter
	fileWriter (const vtk::fileTag contentType, const vtk::outputOptions opts)

virtual	~fileWriter ()

vtk::fileTag	contentType () const

vtk::outputOptions	opts () const

word	ext () const

bool	legacy () const

bool	parallel () const noexcept

const word &	state () const

const fileName &	output () const noexcept

bool	open (const fileName &file, bool parallel=Pstream::parRun())

void	close ()

bool	beginFieldData (label nFields=0)

label	nCellData () const noexcept

label	nPointData () const noexcept

bool	endFieldData ()

bool	endCellData ()

bool	endPointData ()

void	writeTimeValue (scalar timeValue)

Static Public Member Functions

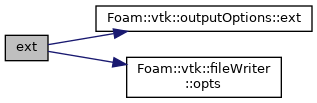

static word	ext (vtk::outputOptions opts)

Protected Member Functions

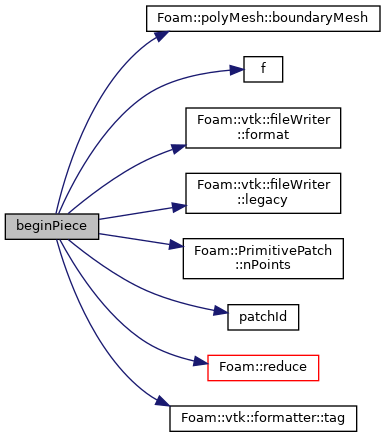

void	beginPiece ()

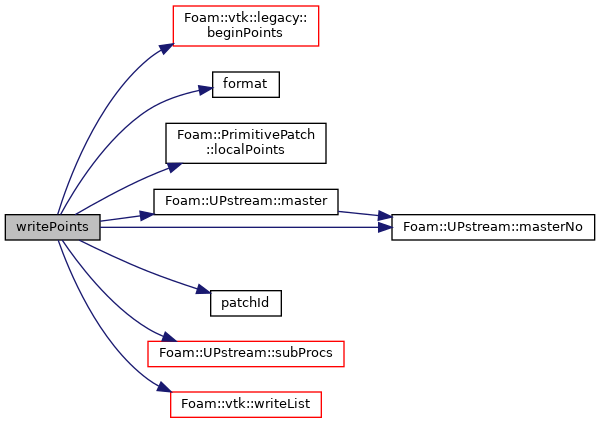

void	writePoints ()

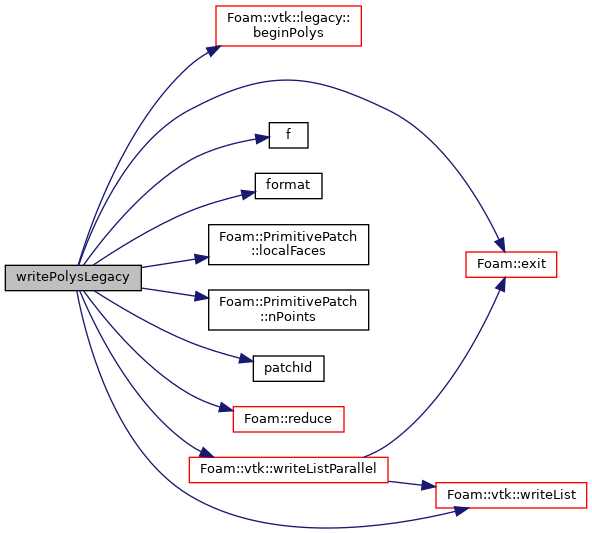

void	writePolysLegacy (const label pointOffset)

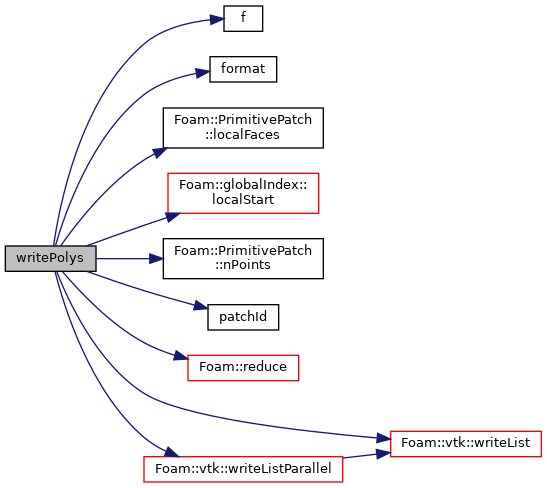

void	writePolys (const label pointOffset)

	patchMeshWriter (const patchMeshWriter &)=delete

void	operator= (const patchMeshWriter &)=delete

Protected Member Functions inherited from fileWriter
void	checkFormatterValidity () const

Ostream &	reportBadState (Ostream &, outputState expected) const

Ostream &	reportBadState (Ostream &, outputState, outputState) const

std::ofstream &	os () noexcept

vtk::formatter &	format ()

bool	isState (outputState test) const noexcept

bool	notState (outputState test) const noexcept

template<class Type >
void	beginDataArray (const word &fieldName, const label nValues)

void	endDataArray ()

void	beginPoints (const label nPoints)

void	endPoints ()

bool	enter_Piece ()

bool	endPiece ()

bool	enter_CellData (label nEntries, label nFields)

bool	enter_PointData (label nEntries, label nFields)

bool	exit_File ()

template<class Type >
void	writeUniform (const word &fieldName, const Type &val, const label nValues)

template<class Type >
void	writeBasicField (const word &fieldName, const UList< Type > &field)

bool	writeProcIDs (const label nValues)

	fileWriter (const fileWriter &)=delete

void	operator= (const fileWriter &)=delete

Protected Attributes
label	numberOfPoints_

label	numberOfCells_

label	nLocalPoints_

label	nLocalPolys_

label	nLocalVerts_

const polyMesh &	mesh_

labelList	patchIDs_

Protected Attributes inherited from fileWriter
vtk::fileTag	contentType_

outputOptions	opts_

bool	parallel_

outputState	state_

label	nCellData_

label	nPointData_

fileName	outputFile_

autoPtr< vtk::formatter >	format_

std::ofstream	os_

Additional Inherited Members
Protected Types inherited from fileWriter
enum	outputState { CLOSED = 0, OPENED, DECLARED, FIELD_DATA, PIECE, CELL_DATA, POINT_DATA }

Static Protected Attributes inherited from fileWriter
static const Enum< outputState >	stateNames

Detailed Description

Write OpenFOAM patches and patch fields in VTP or legacy vtk format.

The file output states are managed by the Foam::vtk::fileWriter class. FieldData (eg, TimeValue) must appear before any geometry pieces.

Note: Parallel output is combined into a single Piece without point merging, which is similar to using multi-piece data sets, but allows more convenient creation as a streaming process. In the future, the duplicate points at processor connections may be addressed using ghost points.

Source files

Definition at line 63 of file foamVtkPatchMeshWriter.H.

Constructor & Destructor Documentation

patchMeshWriter ( const patchMeshWriter & )

protecteddelete

patchMeshWriter	(	const polyMesh &	mesh,
		const labelList &	patchIDs,
		const vtk::outputOptions	opts = `vtk::formatType::INLINE_BASE64`
	)

Definition at line 354 of file foamVtkPatchMeshWriter.C.

Definition at line 376 of file foamVtkPatchMeshWriter.C.
