Write an OpenFOAM volume (internal) geometry and internal fields as a vtu file or a legacy vtk file. More...

Inheritance diagram for internalMeshWriter:

Collaboration diagram for internalMeshWriter:

[legend]

Public Member Functions
	internalMeshWriter (const polyMesh &mesh, const vtk::vtuCells &cells, const vtk::outputOptions opts=vtk::formatType::INLINE_BASE64)

	internalMeshWriter (const polyMesh &mesh, const vtk::vtuCells &cells, const fileName &file, bool parallel=Pstream::parRun())

	internalMeshWriter (const polyMesh &mesh, const vtk::vtuCells &cells, const vtk::outputOptions opts, const fileName &file, bool parallel=Pstream::parRun())

virtual	~internalMeshWriter ()=default

virtual bool	beginFile (std::string title="")

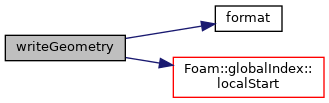

virtual bool	writeGeometry ()

virtual bool	beginCellData (label nFields=0)

virtual bool	beginPointData (label nFields=0)

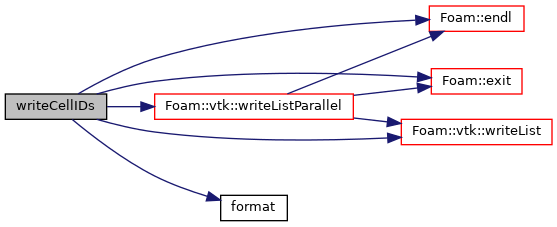

void	writeCellIDs ()

bool	writeProcIDs ()

void	writePointIDs ()

template<class Type >
void	writeUniform (const word &fieldName, const Type &val)

template<class Type >
void	writeCellData (const word &fieldName, const UList< Type > &field)

template<class Type >

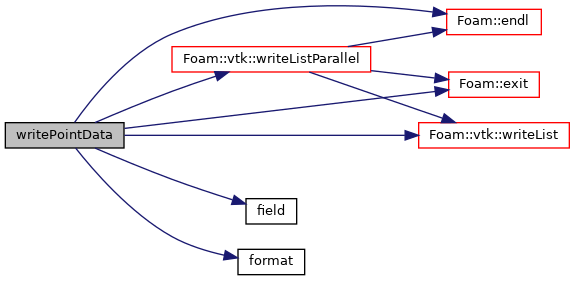

void	writePointData (const word &fieldName, const UList< Type > &field)

Public Member Functions inherited from fileWriter
	fileWriter (const vtk::fileTag contentType, const vtk::outputOptions opts)

virtual	~fileWriter ()

vtk::fileTag	contentType () const

vtk::outputOptions	opts () const

word	ext () const

bool	legacy () const

bool	parallel () const noexcept

const word &	state () const

const fileName &	output () const noexcept

bool	open (const fileName &file, bool parallel=Pstream::parRun())

void	close ()

bool	beginFieldData (label nFields=0)

label	nCellData () const noexcept

label	nPointData () const noexcept

bool	endFieldData ()

bool	endCellData ()

bool	endPointData ()

void	writeTimeValue (scalar timeValue)

Static Public Member Functions

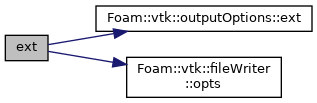

static word	ext (vtk::outputOptions opts)

Static Public Attributes
static int	debug = 0

Protected Attributes
label	numberOfPoints_

label	numberOfCells_

const polyMesh &	mesh_

const vtuCells &	vtuCells_

Protected Attributes inherited from fileWriter
vtk::fileTag	contentType_

outputOptions	opts_

bool	parallel_

outputState	state_

label	nCellData_

label	nPointData_

fileName	outputFile_

autoPtr< vtk::formatter >	format_

std::ofstream	os_

Additional Inherited Members
Protected Types inherited from fileWriter
enum	outputState { CLOSED = 0, OPENED, DECLARED, FIELD_DATA, PIECE, CELL_DATA, POINT_DATA }

Protected Member Functions inherited from fileWriter
void	checkFormatterValidity () const

Ostream &	reportBadState (Ostream &, outputState expected) const

Ostream &	reportBadState (Ostream &, outputState, outputState) const

std::ofstream &	os () noexcept

vtk::formatter &	format ()

bool	isState (outputState test) const noexcept

bool	notState (outputState test) const noexcept

template<class Type >
void	beginDataArray (const word &fieldName, const label nValues)

void	endDataArray ()

void	beginPoints (const label nPoints)

void	endPoints ()

bool	enter_Piece ()

bool	endPiece ()

bool	enter_CellData (label nEntries, label nFields)

bool	enter_PointData (label nEntries, label nFields)

bool	exit_File ()

template<class Type >
void	writeUniform (const word &fieldName, const Type &val, const label nValues)

template<class Type >
void	writeBasicField (const word &fieldName, const UList< Type > &field)

bool	writeProcIDs (const label nValues)

	fileWriter (const fileWriter &)=delete

void	operator= (const fileWriter &)=delete

Static Protected Attributes inherited from fileWriter
static const Enum< outputState >	stateNames

Detailed Description

Write an OpenFOAM volume (internal) geometry and internal fields as a vtu file or a legacy vtk file.

The file output states are managed by the Foam::vtk::fileWriter class. FieldData (eg, TimeValue) must appear before any geometry pieces.

Note: Parallel output is combined into a single Piece without point merging, which is similar to using multi-piece data sets, but allows more convenient creation as a streaming process. In the future, the duplicate points at processor connections may be addressed using ghost points.

See also: Foam::vtk::internalWriter

Source files

Definition at line 65 of file foamVtkInternalMeshWriter.H.

Constructor & Destructor Documentation

◆ internalMeshWriter() [1/3]

internalMeshWriter	(	const polyMesh &	mesh,
		const vtk::vtuCells &	cells,
		const vtk::outputOptions	opts = `vtk::formatType::INLINE_BASE64`
	)

Definition at line 465 of file foamVtkInternalMeshWriter.C.

◆ internalMeshWriter() [2/3]

internalMeshWriter	(	const polyMesh &	mesh,
		const vtk::vtuCells &	cells,
		const fileName &	file,
		bool	parallel = `Pstream::parRun()`
	)

Definition at line 484 of file foamVtkInternalMeshWriter.C.

◆ internalMeshWriter() [3/3]

internalMeshWriter	(	const polyMesh &	mesh,
		const vtk::vtuCells &	cells,
		const vtk::outputOptions	opts,
		const fileName &	file,
		bool	parallel = `Pstream::parRun()`
	)
