variableHeightFlowRateInletVelocityFvPatchVectorField Class Reference

This boundary condition provides a velocity boundary condition for multphase flow based on a user-specified volumetric flow rate. More...

Inheritance diagram for variableHeightFlowRateInletVelocityFvPatchVectorField:

Collaboration diagram for variableHeightFlowRateInletVelocityFvPatchVectorField:

Public Member Functions
	TypeName ("variableHeightFlowRateInletVelocity")
	variableHeightFlowRateInletVelocityFvPatchVectorField (const fvPatch &, const DimensionedField< vector, volMesh > &)
	variableHeightFlowRateInletVelocityFvPatchVectorField (const fvPatch &, const DimensionedField< vector, volMesh > &, const dictionary &)
	variableHeightFlowRateInletVelocityFvPatchVectorField (const variableHeightFlowRateInletVelocityFvPatchVectorField &, const fvPatch &, const DimensionedField< vector, volMesh > &, const fvPatchFieldMapper &)
	variableHeightFlowRateInletVelocityFvPatchVectorField (const variableHeightFlowRateInletVelocityFvPatchVectorField &)
virtual tmp< fvPatchVectorField >	clone () const
	variableHeightFlowRateInletVelocityFvPatchVectorField (const variableHeightFlowRateInletVelocityFvPatchVectorField &, const DimensionedField< vector, volMesh > &)
virtual tmp< fvPatchVectorField >	clone (const DimensionedField< vector, volMesh > &iF) const
virtual void	updateCoeffs ()
virtual void	write (Ostream &) const

Detailed Description

This boundary condition provides a velocity boundary condition for multphase flow based on a user-specified volumetric flow rate.

The flow rate is made proportional to the phase fraction alpha at each face of the patch and alpha is ensured to be bound between 0 and 1.

Usage

Property	Description	Required	Default value
flowRate	volumetric flow rate [m3/s]	yes
alpha	phase-fraction field	yes

Example of the boundary condition specification:

    <patchName>
    {
        type            variableHeightFlowRateInletVelocity;
        flowRate        0.2;
        alpha           alpha.water;
        value           uniform (0 0 0); // placeholder
    }

The flowRate entry is a Function1 of time, see Foam::Function1Types.

Note

• the value is positive into the domain
• may not work correctly for transonic inlets
• strange behaviour with potentialFoam since the momentum equation is not solved

See also

Foam::fixedValueFvPatchField Foam::Function1Types

Source files

• variableHeightFlowRateInletVelocityFvPatchVectorField.H
• variableHeightFlowRateInletVelocityFvPatchVectorField.C

Definition at line 98 of file variableHeightFlowRateInletVelocityFvPatchVectorField.H.

Constructor & Destructor Documentation

variableHeightFlowRateInletVelocityFvPatchVectorField() [1/5]

variableHeightFlowRateInletVelocityFvPatchVectorField	(	const fvPatch &	p,
		const DimensionedField< vector, volMesh > &	iF
	)

Definition at line 30 of file variableHeightFlowRateInletVelocityFvPatchVectorField.C.

Referenced by variableHeightFlowRateInletVelocityFvPatchVectorField::clone().

Here is the caller graph for this function:

variableHeightFlowRateInletVelocityFvPatchVectorField() [2/5]

variableHeightFlowRateInletVelocityFvPatchVectorField	(	const fvPatch &	p,
		const DimensionedField< vector, volMesh > &	iF,
		const dictionary &	dict
	)

Definition at line 43 of file variableHeightFlowRateInletVelocityFvPatchVectorField.C.

variableHeightFlowRateInletVelocityFvPatchVectorField() [3/5]

variableHeightFlowRateInletVelocityFvPatchVectorField	(	const variableHeightFlowRateInletVelocityFvPatchVectorField &	ptf,
		const fvPatch &	p,
		const DimensionedField< vector, volMesh > &	iF,
		const fvPatchFieldMapper &	mapper
	)

Definition at line 57 of file variableHeightFlowRateInletVelocityFvPatchVectorField.C.

variableHeightFlowRateInletVelocityFvPatchVectorField() [4/5]

variableHeightFlowRateInletVelocityFvPatchVectorField

(

const variableHeightFlowRateInletVelocityFvPatchVectorField &

ptf

)

Definition at line 72 of file variableHeightFlowRateInletVelocityFvPatchVectorField.C.

variableHeightFlowRateInletVelocityFvPatchVectorField() [5/5]

variableHeightFlowRateInletVelocityFvPatchVectorField	(	const variableHeightFlowRateInletVelocityFvPatchVectorField &	ptf,
		const DimensionedField< vector, volMesh > &	iF
	)

Definition at line 84 of file variableHeightFlowRateInletVelocityFvPatchVectorField.C.

Member Function Documentation

TypeName()

TypeName

(

"variableHeightFlowRateInletVelocity"

)

clone() [1/2]

virtual tmp<fvPatchVectorField> clone ( ) const

inlinevirtual

Definition at line 152 of file variableHeightFlowRateInletVelocityFvPatchVectorField.H.

References variableHeightFlowRateInletVelocityFvPatchVectorField::variableHeightFlowRateInletVelocityFvPatchVectorField().

Here is the call graph for this function:

clone() [2/2]

virtual tmp<fvPatchVectorField> clone ( const DimensionedField< vector, volMesh > &  iF ) const

inlinevirtual

Definition at line 169 of file variableHeightFlowRateInletVelocityFvPatchVectorField.H.

updateCoeffs()

void updateCoeffs ( )

virtual

Definition at line 98 of file variableHeightFlowRateInletVelocityFvPatchVectorField.C.

References Foam::gSum(), Foam::max(), Foam::min(), n, Foam::operator==(), and Foam::foamVersion::patch.

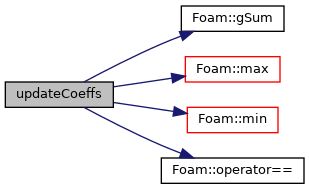

Here is the call graph for this function:

write()

void write ( Ostream &  os ) const

virtual

Definition at line 126 of file variableHeightFlowRateInletVelocityFvPatchVectorField.C.

References os(), and Foam::vtk::write().

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/finiteVolume/fields/fvPatchFields/derived/variableHeightFlowRateInletVelocity/variableHeightFlowRateInletVelocityFvPatchVectorField.H
• src/finiteVolume/fields/fvPatchFields/derived/variableHeightFlowRateInletVelocity/variableHeightFlowRateInletVelocityFvPatchVectorField.C
