Standard boundBox with extra functionality for use in octree. More...

Inheritance diagram for treeBoundBox:

Collaboration diagram for treeBoundBox:

Public Types
enum	octantBit : direction { RIGHTHALF = 0x1, TOPHALF = 0x2, FRONTHALF = 0x4 }

enum	faceId { LEFT = 0, RIGHT = 1, BOTTOM = 2, TOP = 3, BACK = 4, FRONT = 5 }

enum	faceBit : direction { NOFACE = 0, LEFTBIT = 0x1 << LEFT, RIGHTBIT = 0x1 << RIGHT, BOTTOMBIT = 0x1 << BOTTOM, TOPBIT = 0x1 << TOP, BACKBIT = 0x1 << BACK, FRONTBIT = 0x1 << FRONT }

enum	edgeId { E01 = 0, E13 = 1, E23 = 2, E02 = 3, E45 = 4, E57 = 5, E67 = 6, E46 = 7, E04 = 8, E15 = 9, E37 = 10, E26 = 11 }

Public Types inherited from boundBox
enum	directionBit : direction { XDIR = 0x1, YDIR = 0x2, ZDIR = 0x4 }

Public Member Functions
	treeBoundBox ()

	treeBoundBox (const boundBox &bb)

	treeBoundBox (const point &pt)

	treeBoundBox (const point &min, const point &max)

	treeBoundBox (const UList< point > &points)

	treeBoundBox (const UList< point > &points, const labelUList &indices)

template<unsigned N>
	treeBoundBox (const UList< point > &points, const FixedList< label, N > &indices)

	treeBoundBox (Istream &is)

scalar	typDim () const

tmp< pointField >	points () const

point	corner (const direction octant) const

treeBoundBox	subBbox (const direction octant) const

treeBoundBox	subBbox (const point &mid, const direction) const

direction	subOctant (const point &pt) const

direction	subOctant (const point &pt, bool &onEdge) const

void	searchOrder (const point &pt, FixedList< direction, 8 > &octantOrder) const

bool	intersects (const point &overallStart, const vector &overallVec, const point &start, const point &end, point &pt, direction &ptBits) const

bool	intersects (const point &start, const point &end, point &pt) const

bool	contains (const vector &dir, const point &) const

direction	faceBits (const point &pt) const

direction	posBits (const point &pt) const

void	calcExtremities (const point &pt, point &nearest, point &furthest) const

scalar	maxDist (const point &pt) const

label	distanceCmp (const point &pt, const treeBoundBox &other) const

treeBoundBox	extend (Random &rndGen, const scalar s) const

bool	overlaps (const boundBox &bb) const

bool	overlaps (const point &centre, const scalar radiusSqr) const

bool	contains (const point &pt) const

bool	contains (const boundBox &bb) const

bool	contains (const UList< point > &points) const

template<unsigned N>
bool	contains (const UList< point > &points, const FixedList< label, N > &indices) const

template<class IntContainer >
bool	contains (const UList< point > &points, const IntContainer &indices) const

Public Member Functions inherited from boundBox
	boundBox ()

	boundBox (const point &pt)

	boundBox (const point &min, const point &max)

	boundBox (const UList< point > &points, bool doReduce=true)

	boundBox (const tmp< pointField > &tpoints, bool doReduce=true)

	boundBox (const UList< point > &points, const labelUList &indices, bool doReduce=true)

template<unsigned N>
	boundBox (const UList< point > &points, const FixedList< label, N > &indices, bool doReduce=true)

	boundBox (Istream &is)

bool	empty () const

bool	valid () const

const point &	min () const

const point &	max () const

point &	min ()

point &	max ()

point	centre () const

point	midpoint () const

vector	span () const

scalar	mag () const

scalar	volume () const

scalar	minDim () const

scalar	maxDim () const

scalar	avgDim () const

label	nDim () const

tmp< pointField >	points () const

tmp< pointField >	faceCentres () const

point	faceCentre (const direction facei) const

void	clear ()

void	add (const boundBox &bb)

void	add (const point &pt)

void	add (const UList< point > &points)

void	add (const tmp< pointField > &tpoints)

template<unsigned N>
void	add (const FixedList< point, N > &points)

template<unsigned N>
void	add (const UList< point > &points, const FixedList< label, N > &indices)

template<class IntContainer >
void	add (const UList< point > &points, const IntContainer &indices)

void	inflate (const scalar s)

void	reduce ()

bool	intersect (const boundBox &bb)

bool	intersects (const plane &pln) const

bool	overlaps (const boundBox &bb) const

bool	overlaps (const point &centre, const scalar radiusSqr) const

bool	contains (const point &pt) const

bool	contains (const boundBox &bb) const

bool	containsInside (const point &pt) const

bool	contains (const UList< point > &points) const

template<unsigned N>
bool	contains (const UList< point > &points, const FixedList< label, N > &indices) const

template<class IntContainer >
bool	contains (const UList< point > &points, const IntContainer &indices) const

bool	containsAny (const UList< point > &points) const

template<unsigned N>
bool	containsAny (const UList< point > &points, const FixedList< label, N > &indices) const

template<class IntContainer >
bool	containsAny (const UList< point > &points, const IntContainer &indices) const

point	nearest (const point &pt) const

void	operator+= (const boundBox &bb)

Static Public Member Functions
static direction	subOctant (const point &mid, const point &pt)

static direction	subOctant (const point &mid, const point &pt, bool &onEdge)

static direction	subOctant (const point &mid, const vector &dir, const point &pt, bool &onEdge)

Static Public Attributes
static const faceList	faces

static const edgeList	edges

Static Public Attributes inherited from boundBox
static const boundBox	greatBox

static const boundBox	invertedBox

static const faceList	faces

static const FixedList< vector, 6 >	faceNormals

Friends
Istream &	operator>> (Istream &is, treeBoundBox &bb)

Ostream &	operator<< (Ostream &os, const treeBoundBox &bb)

Detailed Description

Standard boundBox with extra functionality for use in octree.

Numbering of corner points is according to octant numbering.

On the back plane (z=0):

    Y
    ^
    |
    +--------+
    |2      3|
    |        |
    |        |
    |        |
    |0      1|
    +--------+->X

For the front plane add 4 to the point labels.

Note: When a bounding box is created without any points, it creates an inverted bounding box. Points can be added later and the bounding box will grow to include them.

Source files

Definition at line 82 of file treeBoundBox.H.

Member Enumeration Documentation

◆ octantBit

enum octantBit : direction

Enumerator
RIGHTHALF	1: positive x-direction
TOPHALF	2: positive y-direction
FRONTHALF	4: positive z-direction

Definition at line 92 of file treeBoundBox.H.

◆ faceId

enum faceId

Enumerator
LEFT	0: x-min, left
RIGHT	1: x-max, right
BOTTOM	2: y-min, bottom
TOP	3: y-max, top
BACK	4: z-min, back
FRONT	5: z-max, front

Definition at line 101 of file treeBoundBox.H.

◆ faceBit

enum faceBit : direction

Enumerator
NOFACE
LEFTBIT	1: x-min, left
RIGHTBIT	2: x-max, right
BOTTOMBIT	4: y-min, bottom
TOPBIT	8: y-max, top
BACKBIT	16: z-min, back
FRONTBIT	32: z-max, front

Definition at line 112 of file treeBoundBox.H.

◆ edgeId

enum edgeId

Enumerator
E01
E13
E23
E02
E45
E57
E67
E46
E04
E15
E37
E26

Definition at line 125 of file treeBoundBox.H.

Constructor & Destructor Documentation

◆ treeBoundBox() [1/8]

treeBoundBox ( )

inline

Definition at line 27 of file treeBoundBoxI.H.

◆ treeBoundBox() [2/8]

treeBoundBox ( const boundBox & bb )

inlineexplicit

Definition at line 33 of file treeBoundBoxI.H.

◆ treeBoundBox() [3/8]

treeBoundBox ( const point & pt )

inlineexplicit

Definition at line 39 of file treeBoundBoxI.H.

◆ treeBoundBox() [4/8]

treeBoundBox	(	const point &	min,
		const point &	max
	)

inline

Definition at line 45 of file treeBoundBoxI.H.

◆ treeBoundBox() [5/8]

treeBoundBox ( const UList< point > & points )

explicit

Definition at line 55 of file treeBoundBox.C.

References Foam::nl, treeBoundBox::points(), and WarningInFunction.

Here is the call graph for this function:

◆ treeBoundBox() [6/8]

treeBoundBox	(	const UList< point > &	points,
		const labelUList &	indices
	)

Definition at line 68 of file treeBoundBox.C.

References UList::empty(), Foam::nl, points, and WarningInFunction.

Here is the call graph for this function:

◆ treeBoundBox() [7/8]

treeBoundBox	(	const UList< point > &	points,
		const FixedList< label, N > &	indices
	)

Definition at line 28 of file treeBoundBoxTemplates.C.

References Foam::nl, points, and WarningInFunction.

◆ treeBoundBox() [8/8]

treeBoundBox ( Istream & is )

inline

Definition at line 51 of file treeBoundBoxI.H.

Member Function Documentation

◆ typDim()

Foam::scalar typDim ( ) const

inline

Definition at line 59 of file treeBoundBoxI.H.

◆ points()

Foam::tmp< Foam::pointField > points ( ) const

Definition at line 85 of file treeBoundBox.C.

References forAll, and tmp::New().

Referenced by searchableBox::boundingSpheres(), searchableBox::coordinates(), triangleFuncs::intersectBb(), searchableBox::points(), treeBoundBox::treeBoundBox(), OBJstream::write(), box::writeBoxes(), AABBTree::writeOBJ(), and Foam::meshTools::writeOBJ().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ corner()

Foam::point corner ( const direction octant ) const

inline

Definition at line 65 of file treeBoundBoxI.H.

References Foam::max(), Foam::min(), x, and y.

Here is the call graph for this function:

◆ subBbox() [1/2]

Foam::treeBoundBox subBbox ( const direction octant ) const

Definition at line 99 of file treeBoundBox.C.

Referenced by dynamicIndexedOctree::insertIndex(), dynamicIndexedOctree::print(), indexedOctree< Foam::treeDataPrimitivePatch< PatchType > >::print(), box::refineBox(), and dynamicIndexedOctree::removeIndex().

Here is the caller graph for this function:

◆ subBbox() [2/2]

Foam::treeBoundBox subBbox	(	const point &	mid,
		const direction	octant
	)		const

Definition at line 106 of file treeBoundBox.C.

References Foam::abort(), Foam::FatalError, FatalErrorInFunction, treeBoundBox::FRONTHALF, boundBox::max(), boundBox::min(), treeBoundBox::RIGHTHALF, treeBoundBox::TOPHALF, Vector< Cmpt >::x(), Vector< Cmpt >::y(), and Vector< Cmpt >::z().

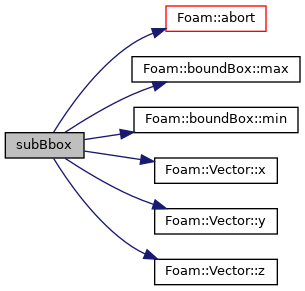

Here is the call graph for this function:

◆ subOctant() [1/5]

Foam::direction subOctant ( const point & pt ) const

inline

Definition at line 77 of file treeBoundBoxI.H.

Referenced by dynamicIndexedOctree::findNode().

Here is the caller graph for this function:

◆ subOctant() [2/5]

Foam::direction subOctant	(	const point &	mid,
		const point &	pt
	)

inlinestatic

Definition at line 86 of file treeBoundBoxI.H.

References treeBoundBox::FRONTHALF, treeBoundBox::RIGHTHALF, treeBoundBox::TOPHALF, Vector< Cmpt >::x(), Vector< Cmpt >::y(), and Vector< Cmpt >::z().

Here is the call graph for this function:

◆ subOctant() [3/5]

Foam::direction subOctant	(	const point &	pt,
		bool &	onEdge
	)		const

inline

Definition at line 115 of file treeBoundBoxI.H.

◆ subOctant() [4/5]

Foam::direction subOctant	(	const point &	mid,
		const point &	pt,
		bool &	onEdge
	)

inlinestatic

Definition at line 127 of file treeBoundBoxI.H.

References treeBoundBox::FRONTHALF, treeBoundBox::RIGHTHALF, treeBoundBox::TOPHALF, Vector< Cmpt >::x(), Vector< Cmpt >::y(), and Vector< Cmpt >::z().

Here is the call graph for this function:

◆ subOctant() [5/5]

Foam::direction subOctant	(	const point &	mid,
		const vector &	dir,
		const point &	pt,
		bool &	onEdge
	)

inlinestatic

Definition at line 172 of file treeBoundBoxI.H.

References treeBoundBox::FRONTHALF, treeBoundBox::RIGHTHALF, treeBoundBox::TOPHALF, Vector< Cmpt >::x(), Vector< Cmpt >::y(), and Vector< Cmpt >::z().

Here is the call graph for this function:

◆ searchOrder()

void searchOrder	(	const point &	pt,
		FixedList< direction, 8 > &	octantOrder
	)		const

inline

Definition at line 228 of file treeBoundBoxI.H.

References treeBoundBox::FRONTHALF, Foam::max(), Foam::min(), treeBoundBox::RIGHTHALF, treeBoundBox::TOPHALF, Vector< Cmpt >::x(), Vector< Cmpt >::y(), and Vector< Cmpt >::z().

Here is the call graph for this function:

◆ intersects() [1/2]

bool intersects	(	const point &	overallStart,
		const vector &	overallVec,
		const point &	start,
		const point &	end,
		point &	pt,
		direction &	ptBits
	)		const

Definition at line 155 of file treeBoundBox.C.

References stdFoam::end(), Foam::mag(), Foam::max(), Foam::min(), s, Vector< Cmpt >::x(), Vector< Cmpt >::y(), and Vector< Cmpt >::z().

Referenced by indexedOctree< Foam::treeDataPrimitivePatch< PatchType > >::findLine(), triangleFuncs::intersectBb(), searchableRotatedBox::overlaps(), treeDataEdge::overlaps(), and streamLineBase::trimToBox().

Here is the call graph for this function:

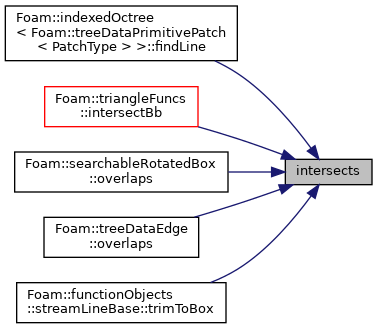

Here is the caller graph for this function:

◆ intersects() [2/2]

bool intersects	(	const point &	start,
		const point &	end,
		point &	pt
	)		const

Definition at line 302 of file treeBoundBox.C.

References stdFoam::end().

Here is the call graph for this function:

◆ contains() [1/6]

bool contains	(	const vector &	dir,
		const point &	pt
	)		const

Definition at line 313 of file treeBoundBox.C.

References Foam::max(), Foam::min(), and VectorSpace< Vector< scalar >, scalar, 3 >::nComponents.

Referenced by waveMethod::calculate(), surfaceFeatures::deleteBox(), dynamicTreeDataPoint::findNearest(), dynamicIndexedOctree::findNode(), dynamicTreeDataPoint::overlaps(), treeDataPoint::overlaps(), AABBTree::pointInside(), streamLineBase::trimToBox(), and propellerInfo::updateSampleDiskCells().

Here is the call graph for this function:

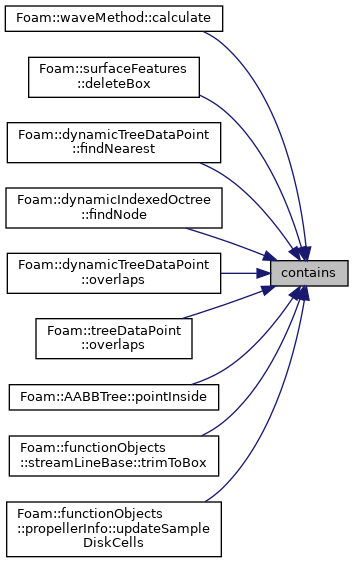

Here is the caller graph for this function:

◆ faceBits()

Foam::direction faceBits ( const point & pt ) const

Definition at line 351 of file treeBoundBox.C.

References Foam::max(), Foam::min(), x, Vector< Cmpt >::x(), y, Vector< Cmpt >::y(), and Vector< Cmpt >::z().

Referenced by indexedOctree< Foam::treeDataPrimitivePatch< PatchType > >::findLine().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ posBits()

Foam::direction posBits ( const point & pt ) const

Definition at line 386 of file treeBoundBox.C.

References Foam::max(), Foam::min(), x, Vector< Cmpt >::x(), y, Vector< Cmpt >::y(), and Vector< Cmpt >::z().

Referenced by treeDataPrimitivePatch< PatchType >::findIntersection(), indexedOctree< Foam::treeDataPrimitivePatch< PatchType > >::findLine(), treeDataCell::findIntersectOp::operator()(), and treeDataFace::findIntersectOp::operator()().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ calcExtremities()

void calcExtremities	(	const point &	pt,
		point &	nearest,
		point &	furthest
	)		const

Definition at line 422 of file treeBoundBox.C.

References Foam::mag(), Foam::max(), Foam::min(), and VectorSpace< Vector< scalar >, scalar, 3 >::nComponents.

Referenced by treeBoundBox::distanceCmp().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ maxDist()

Foam::scalar maxDist ( const point & pt ) const

Definition at line 448 of file treeBoundBox.C.

References Foam::mag().

Here is the call graph for this function:

◆ distanceCmp()

Foam::label distanceCmp	(	const point &	pt,
		const treeBoundBox &	other
	)		const

Definition at line 458 of file treeBoundBox.C.

References treeBoundBox::calcExtremities(), Foam::sqr(), Vector< Cmpt >::x(), Vector< Cmpt >::y(), and Vector< Cmpt >::z().

Here is the call graph for this function:

◆ extend()

Foam::treeBoundBox extend	(	Random &	rndGen,
		const scalar	s
	)		const

inline

Definition at line 318 of file treeBoundBoxI.H.

References Foam::cmptMultiply(), Foam::mag(), boundBox::max(), Foam::max(), boundBox::min(), VectorSpace< Vector< scalar >, scalar, 3 >::nComponents, rndGen, s, Random::sample01(), and boundBox::span().

Referenced by polyMesh::cellTree(), meshRefinement::distribute(), triSurfaceMesh::edgeTree(), patchProbes::findElements(), mappedPatchBase::findLocalSamples(), refinementFeatures::regionEdgeTrees(), triSurfaceSearch::tree(), and triSurfaceRegionSearch::treeByRegion().

Here is the call graph for this function:

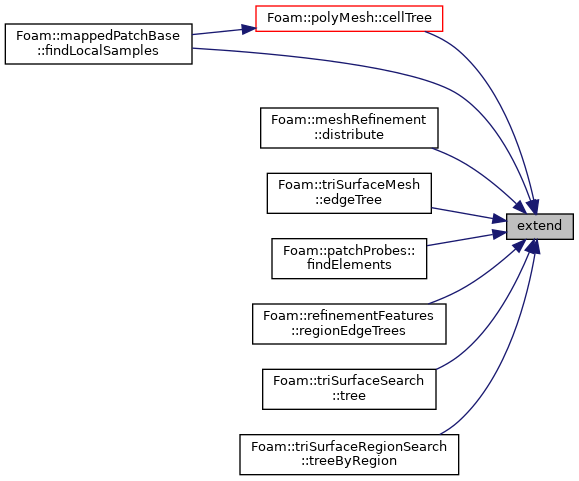

Here is the caller graph for this function:

◆ overlaps() [1/2]

bool overlaps

inline

Definition at line 214 of file boundBoxI.H.

Referenced by trackingInverseDistance::markDonors(), inverseDistance::markDonors(), trackingInverseDistance::markPatchesAsHoles(), inverseDistance::markPatchesAsHoles(), AABBTree::overlaps(), treeDataFace::overlaps(), treeDataCell::overlaps(), treeDataPrimitivePatch< PatchType >::overlaps(), and box::refineBox().

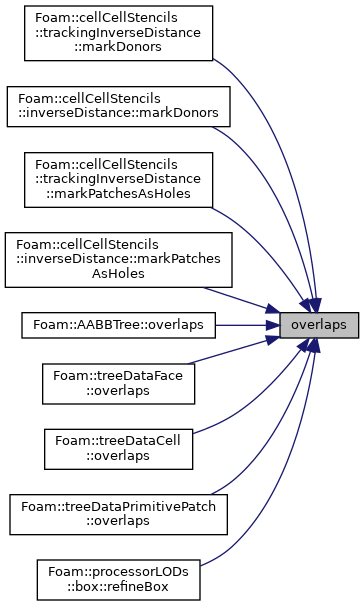

Here is the caller graph for this function:

◆ overlaps() [2/2]

bool overlaps

inline

Definition at line 226 of file boundBoxI.H.

◆ contains() [2/6]

bool contains

inline

Definition at line 264 of file boundBoxI.H.

◆ contains() [3/6]

bool contains

inline

Definition at line 275 of file boundBoxI.H.

◆ contains() [4/6]

bool contains

Definition at line 223 of file boundBox.C.

◆ contains() [5/6]

bool contains ( unsigned N )

inline

Definition at line 113 of file boundBoxTemplates.C.

◆ contains() [6/6]

bool contains ( class IntContainer )

inline

Definition at line 142 of file boundBoxTemplates.C.

Friends And Related Function Documentation

◆ operator>>

Istream& operator>>	(	Istream &	is,
		treeBoundBox &	bb
	)

friend

◆ operator<<

Ostream& operator<<	(	Ostream &	os,
		const treeBoundBox &	bb
	)

friend

Member Data Documentation

◆ faces

const Foam::faceList faces

static

Definition at line 147 of file treeBoundBox.H.

Referenced by searchableBox::boundingSpheres(), searchableBox::coordinates(), searchableRotatedBox::overlaps(), OBJstream::write(), box::writeBoxes(), and AABBTree::writeOBJ().

◆ edges

const Foam::edgeList edges

static

Definition at line 150 of file treeBoundBox.H.

Referenced by distributedTriSurfaceMesh::distribute(), triangleFuncs::intersectBb(), searchableRotatedBox::overlaps(), OBJstream::write(), and AABBTree::writeOBJ().

The documentation for this class was generated from the following files:

src/OpenFOAM/meshes/treeBoundBox/treeBoundBox.H
src/OpenFOAM/meshes/treeBoundBox/treeBoundBox.C
src/OpenFOAM/meshes/treeBoundBox/treeBoundBoxI.H
src/OpenFOAM/meshes/treeBoundBox/treeBoundBoxTemplates.C

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Friends

Detailed Description

Member Enumeration Documentation

◆ octantBit

◆ faceId

◆ faceBit

◆ edgeId

Constructor & Destructor Documentation

◆ treeBoundBox() [1/8]

◆ treeBoundBox() [2/8]

◆ treeBoundBox() [3/8]

◆ treeBoundBox() [4/8]

◆ treeBoundBox() [5/8]

◆ treeBoundBox() [6/8]

◆ treeBoundBox() [7/8]

◆ treeBoundBox() [8/8]

Member Function Documentation

◆ typDim()

◆ points()

◆ corner()

◆ subBbox() [1/2]

◆ subBbox() [2/2]

◆ subOctant() [1/5]

◆ subOctant() [2/5]

◆ subOctant() [3/5]

◆ subOctant() [4/5]

◆ subOctant() [5/5]

◆ searchOrder()

◆ intersects() [1/2]

◆ intersects() [2/2]

◆ contains() [1/6]

◆ faceBits()

◆ posBits()

◆ calcExtremities()

◆ maxDist()

◆ distanceCmp()

◆ extend()

◆ overlaps() [1/2]

◆ overlaps() [2/2]

◆ contains() [2/6]

◆ contains() [3/6]

◆ contains() [4/6]

◆ contains() [5/6]

◆ contains() [6/6]

Friends And Related Function Documentation

◆ operator>>

◆ operator<<

Member Data Documentation

◆ faces

◆ edges
