A surfaceWriter for STARCD files. More...

Inheritance diagram for starcdWriter:

Collaboration diagram for starcdWriter:

Public Member Functions
	TypeNameNoDebug ("starcd")

	starcdWriter ()

	starcdWriter (const dictionary &options)

	starcdWriter (const meshedSurf &surf, const fileName &outputPath, bool parallel=Pstream::parRun(), const dictionary &options=dictionary())

	starcdWriter (const pointField &points, const faceList &faces, const fileName &outputPath, bool parallel=Pstream::parRun(), const dictionary &options=dictionary())

virtual	~starcdWriter ()=default

virtual bool	separateGeometry () const

virtual bool	usesFaceIds () const

virtual fileName	write ()

	declareSurfaceWriterWriteMethod (label)

	declareSurfaceWriterWriteMethod (scalar)

	declareSurfaceWriterWriteMethod (vector)

	declareSurfaceWriterWriteMethod (sphericalTensor)

	declareSurfaceWriterWriteMethod (symmTensor)

	declareSurfaceWriterWriteMethod (tensor)

template<class Type >
Foam::fileName	writeTemplate (const word &fieldName, const Field< Type > &localValues)

Public Member Functions inherited from surfaceWriter
	TypeName ("surfaceWriter")

	declareRunTimeSelectionTable (autoPtr, surfaceWriter, word,(),())

	declareRunTimeSelectionTable (autoPtr, surfaceWriter, wordDict,(const dictionary &writeOpts),(writeOpts))

	surfaceWriter ()

	surfaceWriter (const dictionary &options)

	surfaceWriter (const meshedSurf &surf, bool parallel=Pstream::parRun(), const dictionary &options=dictionary())

	surfaceWriter (const pointField &points, const faceList &faces, bool parallel=Pstream::parRun(), const dictionary &options=dictionary())

virtual	~surfaceWriter ()

virtual bool	enabled () const

virtual bool	needsUpdate () const

virtual bool	wroteData () const

virtual bool	expire ()

virtual void	clear ()

virtual void	setSurface (const meshedSurf &surf, bool parallel)

virtual void	setSurface (const pointField &points, const faceList &faces, bool parallel)

virtual void	setSurface (const meshedSurf &surf)

virtual void	setSurface (const pointField &points, const faceList &faces)

bool	hasSurface () const

bool	empty () const

label	size () const

label	nFields () const

label	nFields (const label n)

bool	isPointData () const

bool	isPointData (const bool on)

bool	useTimeDir () const

bool	useTimeDir (const bool on)

bool	verbose () const

bool	verbose (const bool on)

scalar	mergeDim () const

scalar	mergeDim (const scalar dist)

bool	hasTime () const

const word &	timeName () const

scalar	timeValue () const

void	setTime (const instant &inst)

void	setTime (scalar timeValue)

void	setTime (scalar timeValue, const word &timeName)

void	unsetTime ()

virtual void	beginTime (const Time &t)

virtual void	beginTime (const instant &inst)

virtual void	endTime ()

virtual void	open (const fileName &outputPath)

virtual void	open (const pointField &points, const faceList &faces, const fileName &outputPath, bool parallel)

virtual void	open (const meshedSurf &surf, const fileName &outputPath, bool parallel)

virtual void	open (const pointField &points, const faceList &faces, const fileName &outputPath)

virtual void	open (const meshedSurf &surf, const fileName &outputPath)

virtual void	close ()

virtual fileName	write (const word &fieldName, const Field< label > &values)=0
	Write field of label (per face or vertex) More...

virtual fileName	write (const word &fieldName, const Field< scalar > &values)=0
	Write field of scalar (per face or vertex) More...

virtual fileName	write (const word &fieldName, const Field< vector > &values)=0
	Write field of vector (per face or vertex) More...

virtual fileName	write (const word &fieldName, const Field< sphericalTensor > &values)=0
	Write field of sphericalTensor (per face or vertex) More...

virtual fileName	write (const word &fieldName, const Field< symmTensor > &values)=0
	Write field of symmTensor (per face or vertex) More...

virtual fileName	write (const word &fieldName, const Field< tensor > &values)=0
	Write field of tensor (per face or vertex) More...

virtual InfoProxy< surfaceWriter >	info () const

template<class Type >
Foam::tmp< Foam::Field< Type > >	mergeFieldTemplate (const Field< Type > &fld) const

Additional Inherited Members
Static Public Member Functions inherited from surfaceWriter
static bool	supportedType (const word &writeType)

static autoPtr< surfaceWriter >	New (const word &writeType)

static autoPtr< surfaceWriter >	New (const word &writeType, const dictionary &writeOptions)

Static Public Attributes inherited from surfaceWriter
static scalar	defaultMergeDim = 1e-8

Protected Member Functions inherited from surfaceWriter
bool	checkOpen () const

virtual bool	merge () const

const meshedSurf &	surface () const

template<class Type >
tmp< Field< Type > >	mergeFieldTemplate (const Field< Type > &fld) const

tmp< Field< label > >	mergeField (const Field< label > &fld) const

tmp< Field< scalar > >	mergeField (const Field< scalar > &fld) const

tmp< Field< vector > >	mergeField (const Field< vector > &fld) const

tmp< Field< sphericalTensor > >	mergeField (const Field< sphericalTensor > &fld) const

tmp< Field< symmTensor > >	mergeField (const Field< symmTensor > &fld) const

tmp< Field< tensor > >	mergeField (const Field< tensor > &fld) const

template<class Type >
fileName	writeTemplate (const word &fieldName, const Field< Type > &localValues)

Protected Attributes inherited from surfaceWriter
std::reference_wrapper< const meshedSurf >	surf_

meshedSurfRef	surfComp_

bool	useComponents_

bool	upToDate_

bool	wroteGeom_

bool	parallel_

bool	useTimeDir_

bool	isPointData_

bool	verbose_

label	nFields_

scalar	mergeDim_

mergedSurf	merged_

instant	currTime_

fileName	outputPath_

Static Protected Attributes inherited from surfaceWriter
static const meshedSurf::emptySurface	emptySurface_

Detailed Description

A surfaceWriter for STARCD files.

The formatOptions for starcd:

Property	Description	Required	Default
`compression`	Use file compression	no	false
`fieldScale`	output field scaling (dictionary)	no	empty

The geometry is written via the MeshedSurfaceProxy, the fields are written in a trivial ASCII format with ID and VALUE as so-called user data. These .usr files can be read into proSTAR with these types of commands. For element data:

        getuser FILENAME.usr cell scalar free
        getuser FILENAME.usr cell vector free

and for vertex data:

        getuser FILENAME.usr vertex scalar free
        getuser FILENAME.usr vertex vector free

file locations

The rootdir normally corresponds to something like postProcessing/<name>

Geometry

    rootdir
    `-- timeName
        `-- surfaceName.{cel,vrt,inp}

Fields

    rootdir
    `-- timeName
        |-- <field0>_surfaceName.{usr}
        `-- <field1>_surfaceName.{usr}

Source files

Definition at line 105 of file starcdSurfaceWriter.H.

Constructor & Destructor Documentation

◆ starcdWriter() [1/4]

starcdWriter ( )

Definition at line 62 of file starcdSurfaceWriter.C.

◆ starcdWriter() [2/4]

starcdWriter ( const dictionary & options )

explicit

Definition at line 71 of file starcdSurfaceWriter.C.

◆ starcdWriter() [3/4]

starcdWriter	(	const meshedSurf &	surf,
		const fileName &	outputPath,
		bool	parallel = `Pstream::parRun()`,
		const dictionary &	options = `dictionary()`
	)

Definition at line 86 of file starcdSurfaceWriter.C.

◆ starcdWriter() [4/4]

starcdWriter	(	const pointField &	points,
		const faceList &	faces,
		const fileName &	outputPath,
		bool	parallel = `Pstream::parRun()`,
		const dictionary &	options = `dictionary()`
	)

Definition at line 100 of file starcdSurfaceWriter.C.

References points.

◆ ~starcdWriter()

virtual ~starcdWriter ( )

virtualdefault

Member Function Documentation

◆ TypeNameNoDebug()

TypeNameNoDebug ( "starcd" )

◆ separateGeometry()

virtual bool separateGeometry ( ) const

inlinevirtual

Reimplemented from surfaceWriter.

Definition at line 171 of file starcdSurfaceWriter.H.

◆ usesFaceIds()

virtual bool usesFaceIds ( ) const

inlinevirtual

Reimplemented from surfaceWriter.

Definition at line 177 of file starcdSurfaceWriter.H.

◆ write()

Foam::fileName write ( )

virtual

Implements surfaceWriter.

Definition at line 116 of file starcdSurfaceWriter.C.

References Foam::endl(), fileName::ext(), meshedSurf::faceIds(), meshedSurf::faces(), Foam::ListOps::found(), Foam::Info, Foam::isDir(), UPstream::master(), Foam::mkDir(), UList::null(), fileName::path(), meshedSurf::points(), timeName, and MeshedSurfaceProxy::write().

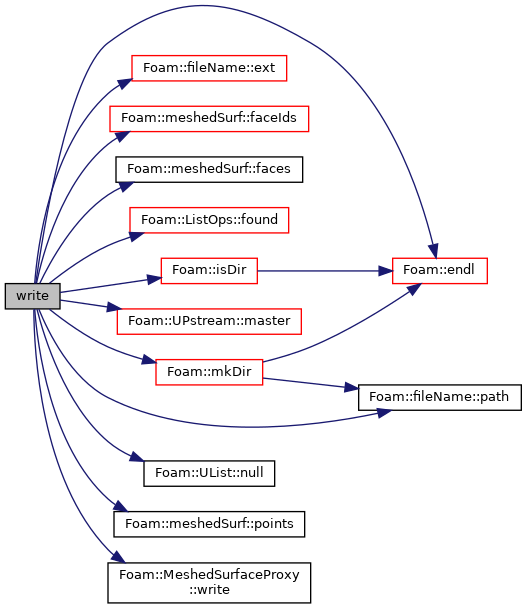

Here is the call graph for this function:
