Base class for surface writers. More...

Inheritance diagram for surfaceWriter:

[legend]

Collaboration diagram for surfaceWriter:

[legend]

Public Member Functions
	TypeName ("surfaceWriter")

	declareRunTimeSelectionTable (autoPtr, surfaceWriter, word,(),())

	declareRunTimeSelectionTable (autoPtr, surfaceWriter, wordDict,(const dictionary &writeOpts),(writeOpts))

	surfaceWriter ()

	surfaceWriter (const dictionary &options)

	surfaceWriter (const meshedSurf &surf, bool parallel=Pstream::parRun(), const dictionary &options=dictionary())

	surfaceWriter (const pointField &points, const faceList &faces, bool parallel=Pstream::parRun(), const dictionary &options=dictionary())

virtual	~surfaceWriter ()

virtual bool	enabled () const

virtual bool	separateGeometry () const

virtual bool	usesFaceIds () const

virtual bool	needsUpdate () const

virtual bool	wroteData () const

virtual bool	expire ()

virtual void	clear ()

virtual void	setSurface (const meshedSurf &surf, bool parallel)

virtual void	setSurface (const pointField &points, const faceList &faces, bool parallel)

virtual void	setSurface (const meshedSurf &surf)

virtual void	setSurface (const pointField &points, const faceList &faces)

bool	hasSurface () const

bool	empty () const

label	size () const

label	nFields () const

label	nFields (const label n)

bool	isPointData () const

bool	isPointData (const bool on)

bool	useTimeDir () const

bool	useTimeDir (const bool on)

bool	verbose () const

bool	verbose (const bool on)

scalar	mergeDim () const

scalar	mergeDim (const scalar dist)

bool	hasTime () const

const word &	timeName () const

scalar	timeValue () const

void	setTime (const instant &inst)

void	setTime (scalar timeValue)

void	setTime (scalar timeValue, const word &timeName)

void	unsetTime ()

virtual void	beginTime (const Time &t)

virtual void	beginTime (const instant &inst)

virtual void	endTime ()

virtual void	open (const fileName &outputPath)

virtual void	open (const pointField &points, const faceList &faces, const fileName &outputPath, bool parallel)

virtual void	open (const meshedSurf &surf, const fileName &outputPath, bool parallel)

virtual void	open (const pointField &points, const faceList &faces, const fileName &outputPath)

virtual void	open (const meshedSurf &surf, const fileName &outputPath)

virtual void	close ()

virtual fileName	write ()=0

virtual fileName	write (const word &fieldName, const Field< label > &values)=0
	Write field of label (per face or vertex) More...

virtual fileName	write (const word &fieldName, const Field< scalar > &values)=0
	Write field of scalar (per face or vertex) More...

virtual fileName	write (const word &fieldName, const Field< vector > &values)=0
	Write field of vector (per face or vertex) More...

virtual fileName	write (const word &fieldName, const Field< sphericalTensor > &values)=0
	Write field of sphericalTensor (per face or vertex) More...

virtual fileName	write (const word &fieldName, const Field< symmTensor > &values)=0
	Write field of symmTensor (per face or vertex) More...

virtual fileName	write (const word &fieldName, const Field< tensor > &values)=0
	Write field of tensor (per face or vertex) More...

virtual InfoProxy< surfaceWriter >	info () const

template<class Type >
Foam::tmp< Foam::Field< Type > >	mergeFieldTemplate (const Field< Type > &fld) const

Static Public Member Functions
static bool	supportedType (const word &writeType)

static autoPtr< surfaceWriter >	New (const word &writeType)

static autoPtr< surfaceWriter >	New (const word &writeType, const dictionary &writeOptions)

Static Public Attributes
static scalar	defaultMergeDim = 1e-8

Protected Member Functions
bool	checkOpen () const

virtual bool	merge () const

const meshedSurf &	surface () const

template<class Type >
tmp< Field< Type > >	mergeFieldTemplate (const Field< Type > &fld) const

tmp< Field< label > >	mergeField (const Field< label > &fld) const

tmp< Field< scalar > >	mergeField (const Field< scalar > &fld) const

tmp< Field< vector > >	mergeField (const Field< vector > &fld) const

tmp< Field< sphericalTensor > >	mergeField (const Field< sphericalTensor > &fld) const

tmp< Field< symmTensor > >	mergeField (const Field< symmTensor > &fld) const

tmp< Field< tensor > >	mergeField (const Field< tensor > &fld) const

template<class Type >
fileName	writeTemplate (const word &fieldName, const Field< Type > &localValues)

Protected Attributes
std::reference_wrapper< const meshedSurf >	surf_

meshedSurfRef	surfComp_

bool	useComponents_

bool	upToDate_

bool	wroteGeom_

bool	parallel_

bool	useTimeDir_

bool	isPointData_

bool	verbose_

label	nFields_

scalar	mergeDim_

mergedSurf	merged_

instant	currTime_

fileName	outputPath_

Static Protected Attributes
static const meshedSurf::emptySurface	emptySurface_

Friends
Ostream &	operator<< (Ostream &os, const InfoProxy< surfaceWriter > &ip)

Detailed Description

Base class for surface writers.

The surfaceWriter interface is rather large since we need a writer that can either be initially defined without a surface association and have that added at a later stage, or be defined with a surface association.

formatOptions
{
    someFormat // Eg, ensight, vtk, etc
    {
        verbose         true;
    }
}

Format options:

Property	Description	Required	Default
`verbose`	Additional output verbosity	no	no

Note: For surface formats that require geometry in a separate file, it is the responsibility of the implementation (not the caller) to ensure that this occurs.

Source files

Definition at line 111 of file surfaceWriter.H.

Constructor & Destructor Documentation

◆ surfaceWriter() [1/4]

surfaceWriter ( )

Definition at line 133 of file surfaceWriter.C.

References surfaceWriter::close().

Here is the call graph for this function:

◆ surfaceWriter() [2/4]

surfaceWriter ( const dictionary & options )

explicit

Definition at line 154 of file surfaceWriter.C.

References dictionary::readIfPresent(), and surfaceWriter::verbose_.

Here is the call graph for this function:

◆ surfaceWriter() [3/4]

surfaceWriter	(	const meshedSurf &	surf,
		bool	parallel = `Pstream::parRun()`,
		const dictionary &	options = `dictionary()`
	)

explicit

Definition at line 163 of file surfaceWriter.C.

◆ surfaceWriter() [4/4]

surfaceWriter	(	const pointField &	points,
		const faceList &	faces,
		bool	parallel = `Pstream::parRun()`,
		const dictionary &	options = `dictionary()`
	)

Definition at line 176 of file surfaceWriter.C.

References points.

◆ ~surfaceWriter()

~surfaceWriter ( )

virtual

Definition at line 191 of file surfaceWriter.C.

Member Function Documentation

◆ checkOpen()

bool checkOpen ( ) const

protected

Definition at line 426 of file surfaceWriter.C.

References Foam::exit(), Foam::FatalError, FatalErrorInFunction, Foam::nl, and Foam::type().

Here is the call graph for this function:

◆ merge()

bool merge ( ) const

protectedvirtual

Definition at line 439 of file surfaceWriter.C.

References UPstream::parRun().

Here is the call graph for this function:

◆ surface()

const Foam::meshedSurf & surface ( ) const

protected

Definition at line 465 of file surfaceWriter.C.

References UPstream::parRun().

Here is the call graph for this function:

◆ mergeFieldTemplate() [1/2]

tmp<Field<Type> > mergeFieldTemplate ( const Field< Type > & fld ) const

protected

◆ mergeField() [1/6]

tmp<Field< label > > mergeField ( const Field< label > & fld ) const

protected

◆ mergeField() [2/6]

tmp<Field< scalar > > mergeField ( const Field< scalar > & fld ) const

protected

◆ mergeField() [3/6]

Foam::tmp< Foam::Field< Foam::vector > > mergeField ( const Field< vector > & fld ) const

protected

Definition at line 535 of file surfaceWriter.C.

◆ mergeField() [4/6]

Foam::tmp< Foam::Field< Foam::sphericalTensor > > mergeField ( const Field< sphericalTensor > & fld ) const

protected

Definition at line 536 of file surfaceWriter.C.

◆ mergeField() [5/6]

Foam::tmp< Foam::Field< Foam::symmTensor > > mergeField ( const Field< symmTensor > & fld ) const

protected

Definition at line 537 of file surfaceWriter.C.

◆ mergeField() [6/6]

Foam::tmp< Foam::Field< Foam::tensor > > mergeField ( const Field< tensor > & fld ) const

protected

Definition at line 538 of file surfaceWriter.C.

◆ writeTemplate()

fileName writeTemplate	(	const word &	fieldName,
		const Field< Type > &	localValues
	)

inlineprotected

Parameters

fieldName	Name of field
localValues	Local field values to write

Definition at line 200 of file surfaceWriter.H.

References fileName::null, surfaceWriter::write(), and surfaceWriter::wroteGeom_.

Here is the call graph for this function:

◆ TypeName()

TypeName ( "surfaceWriter" )

◆ declareRunTimeSelectionTable() [1/2]

declareRunTimeSelectionTable	(	autoPtr	,
		surfaceWriter	,
		word	,
		()	,
		()
	)

◆ declareRunTimeSelectionTable() [2/2]

declareRunTimeSelectionTable	(	autoPtr	,
		surfaceWriter	,
		wordDict	,
		(const dictionary &writeOpts)	,
		(writeOpts)
	)

◆ supportedType()

bool supportedType ( const word & writeType )

static

Definition at line 45 of file surfaceWriter.C.

◆ New() [1/2]

Foam::autoPtr< Foam::surfaceWriter > New ( const word & writeType )

static

Definition at line 57 of file surfaceWriter.C.

References Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, Foam::flatOutput(), Foam::nl, and MeshedSurfaceProxy::writeTypes().

Referenced by averageNeighbourFvGeometryScheme::movePoints(), surfaceNoise::read(), areaWrite::read(), Curle::read(), surfaceFieldValue::read(), and propellerInfo::setSampleDiskSurface().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ New() [2/2]

Foam::autoPtr< Foam::surfaceWriter > New	(	const word &	writeType,
		const dictionary &	writeOptions
	)

static

Definition at line 88 of file surfaceWriter.C.

References Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, Foam::nl, and MeshedSurfaceProxy::writeTypes().

Here is the call graph for this function:

◆ enabled()

virtual bool enabled ( ) const

inlinevirtual

Reimplemented in nullWriter.

Definition at line 301 of file surfaceWriter.H.

◆ separateGeometry()

virtual bool separateGeometry ( ) const

inlinevirtual

Reimplemented in ensightWriter, foamWriter, starcdWriter, and proxyWriter.

Definition at line 307 of file surfaceWriter.H.

◆ usesFaceIds()

virtual bool usesFaceIds ( ) const

inlinevirtual

Reimplemented in nastranWriter, abaqusWriter, and starcdWriter.

Definition at line 315 of file surfaceWriter.H.

◆ needsUpdate()

bool needsUpdate ( ) const

virtual

Reimplemented in nullWriter.

Definition at line 367 of file surfaceWriter.C.

Referenced by areaWrite::write().

Here is the caller graph for this function:

◆ wroteData()

bool wroteData ( ) const

virtual

Reimplemented in nullWriter.

Definition at line 373 of file surfaceWriter.C.

Referenced by areaWrite::write().

Here is the caller graph for this function:

◆ expire()

bool expire ( )

virtual

Definition at line 379 of file surfaceWriter.C.

◆ clear()

void clear ( )

virtual

Definition at line 309 of file surfaceWriter.C.

◆ setSurface() [1/4]

void setSurface	(	const meshedSurf &	surf,
		bool	parallel
	)

virtual

Reimplemented in nullWriter.

Definition at line 320 of file surfaceWriter.C.

References UPstream::parRun().

Referenced by areaWrite::write().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setSurface() [2/4]

void setSurface	(	const pointField &	points,
		const faceList &	faces,
		bool	parallel
	)

virtual

Reimplemented in nullWriter.

Definition at line 334 of file surfaceWriter.C.

References UPstream::parRun(), and points.

Here is the call graph for this function:

◆ setSurface() [3/4]

void setSurface ( const meshedSurf & surf )

virtual

Definition at line 349 of file surfaceWriter.C.

◆ setSurface() [4/4]

void setSurface	(	const pointField &	points,
		const faceList &	faces
	)

virtual

Definition at line 358 of file surfaceWriter.C.

References points.

◆ hasSurface()

bool hasSurface ( ) const

Definition at line 394 of file surfaceWriter.C.

◆ empty()

bool empty ( ) const

Definition at line 400 of file surfaceWriter.C.

References Foam::returnReduce().

Here is the call graph for this function:

◆ size()

Foam::label size ( ) const

Definition at line 413 of file surfaceWriter.C.

References Foam::returnReduce().

Here is the call graph for this function:

◆ nFields() [1/2]

Foam::label nFields ( ) const

inline

Definition at line 23 of file surfaceWriterI.H.

References surfaceWriter::nFields_.

Referenced by areaWrite::write().

Here is the caller graph for this function:

◆ nFields() [2/2]

Foam::label nFields ( const label n )

inline

Definition at line 29 of file surfaceWriterI.H.

References n.

◆ isPointData() [1/2]

bool isPointData ( ) const

inline

Definition at line 37 of file surfaceWriterI.H.

◆ isPointData() [2/2]

bool isPointData ( const bool on )

inline

Definition at line 43 of file surfaceWriterI.H.

◆ useTimeDir() [1/2]

bool useTimeDir ( ) const

inline

Definition at line 51 of file surfaceWriterI.H.

◆ useTimeDir() [2/2]

bool useTimeDir ( const bool on )

inline

Definition at line 57 of file surfaceWriterI.H.

◆ verbose() [1/2]

bool verbose ( ) const

inline

Definition at line 65 of file surfaceWriterI.H.

◆ verbose() [2/2]

bool verbose ( const bool on )

inline

Definition at line 71 of file surfaceWriterI.H.

◆ mergeDim() [1/2]

Foam::scalar mergeDim ( ) const

inline

Definition at line 79 of file surfaceWriterI.H.

◆ mergeDim() [2/2]

Foam::scalar mergeDim ( const scalar dist )

inline

Definition at line 85 of file surfaceWriterI.H.

◆ hasTime()

bool hasTime ( ) const

inline

Definition at line 93 of file surfaceWriterI.H.

◆ timeName()

const Foam::word & timeName ( ) const

inline

Definition at line 99 of file surfaceWriterI.H.

◆ timeValue()

Foam::scalar timeValue ( ) const

inline

Definition at line 105 of file surfaceWriterI.H.

◆ setTime() [1/3]

void setTime ( const instant & inst )

Definition at line 199 of file surfaceWriter.C.

◆ setTime() [2/3]

void setTime ( scalar timeValue )

Definition at line 205 of file surfaceWriter.C.

◆ setTime() [3/3]

void setTime	(	scalar	timeValue,
		const word &	timeName
	)

Definition at line 211 of file surfaceWriter.C.

References timeName.

◆ unsetTime()

void unsetTime ( )

Definition at line 218 of file surfaceWriter.C.

◆ beginTime() [1/2]

void beginTime ( const Time & t )

virtual

Reimplemented in vtkWriter.

Definition at line 225 of file surfaceWriter.C.

References setTime(), Time::timeName(), and dimensioned::value().

Referenced by vtkWriter::beginTime(), and areaWrite::write().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ beginTime() [2/2]

void beginTime ( const instant & inst )

virtual

Reimplemented in vtkWriter.

Definition at line 231 of file surfaceWriter.C.

References setTime().

Here is the call graph for this function:

◆ endTime()

void endTime ( )

virtual

Reimplemented in vtkWriter.

Definition at line 237 of file surfaceWriter.C.

Referenced by vtkWriter::endTime(), and areaWrite::write().

Here is the caller graph for this function:

◆ open() [1/5]

void open ( const fileName & outputPath )

virtual

Reimplemented in nullWriter.

Definition at line 243 of file surfaceWriter.C.

Referenced by proxyWriter::proxyWriter(), and areaWrite::write().

Here is the caller graph for this function:

◆ open() [2/5]

void open	(	const pointField &	points,
		const faceList &	faces,
		const fileName &	outputPath,
		bool	parallel
	)

virtual

Definition at line 264 of file surfaceWriter.C.

References points.

◆ open() [3/5]

void open	(	const meshedSurf &	surf,
		const fileName &	outputPath,
		bool	parallel
	)

virtual

Definition at line 251 of file surfaceWriter.C.

◆ open() [4/5]

void open	(	const pointField &	points,
		const faceList &	faces,
		const fileName &	outputPath
	)

virtual

Definition at line 290 of file surfaceWriter.C.

References points.

◆ open() [5/5]

void open	(	const meshedSurf &	surf,
		const fileName &	outputPath
	)

virtual

Definition at line 278 of file surfaceWriter.C.

◆ close()

void close ( )

virtual

Reimplemented in ensightWriter, and vtkWriter.

Definition at line 302 of file surfaceWriter.C.

Referenced by vtkWriter::close(), ensightWriter::close(), and surfaceWriter::surfaceWriter().

Here is the caller graph for this function:

◆ write() [1/7]

virtual fileName write ( )

pure virtual

Implemented in nastranWriter, boundaryDataWriter, ensightWriter, abaqusWriter, vtkWriter, rawWriter, foamWriter, starcdWriter, x3dWriter, proxyWriter, and nullWriter.

Referenced by areaWrite::write(), and surfaceWriter::writeTemplate().

Here is the caller graph for this function:

◆ write() [2/7]

virtual fileName write	(	const word &	fieldName,
		const Field< label > &	values
	)

pure virtual

Write field of label (per face or vertex)

Parameters

fieldName	Name of field
values	Field values to write

◆ write() [3/7]

virtual fileName write	(	const word &	fieldName,
		const Field< scalar > &	values
	)

pure virtual

Write field of scalar (per face or vertex)

Parameters

fieldName	Name of field
values	Field values to write

◆ write() [4/7]

virtual fileName write	(	const word &	fieldName,
		const Field< vector > &	values
	)

pure virtual

Write field of vector (per face or vertex)

Parameters

fieldName	Name of field
values	Field values to write

◆ write() [5/7]

virtual fileName write	(	const word &	fieldName,
		const Field< sphericalTensor > &	values
	)

pure virtual

Write field of sphericalTensor (per face or vertex)

Parameters

fieldName	Name of field
values	Field values to write

◆ write() [6/7]

virtual fileName write	(	const word &	fieldName,
		const Field< symmTensor > &	values
	)

pure virtual

Write field of symmTensor (per face or vertex)

Parameters

fieldName	Name of field
values	Field values to write

◆ write() [7/7]

virtual fileName write	(	const word &	fieldName,
		const Field< tensor > &	values
	)

pure virtual

Write field of tensor (per face or vertex)

Parameters

fieldName	Name of field
values	Field values to write

◆ info()

virtual InfoProxy<surfaceWriter> info ( ) const

inlinevirtual

Definition at line 537 of file surfaceWriter.H.

◆ mergeFieldTemplate() [2/2]

Foam::tmp<Foam::Field<Type> > mergeFieldTemplate ( const Field< Type > & fld ) const

Definition at line 489 of file surfaceWriter.C.

References fld, globalIndex::gatherOp(), Foam::inplaceReorder(), UPstream::master(), Foam::New(), and UPstream::parRun().

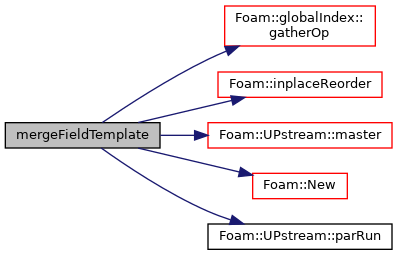

Here is the call graph for this function:

Friends And Related Function Documentation

◆ operator<<

Ostream& operator<<	(	Ostream &	os,
		const InfoProxy< surfaceWriter > &	ip
	)

friend

Member Data Documentation

◆ emptySurface_

const Foam::meshedSurf::emptySurface emptySurface_

staticprotected

Definition at line 118 of file surfaceWriter.H.

◆ surf_

std::reference_wrapper<const meshedSurf> surf_

protected

Definition at line 124 of file surfaceWriter.H.

◆ surfComp_

meshedSurfRef surfComp_

protected

Definition at line 127 of file surfaceWriter.H.

◆ useComponents_

bool useComponents_

protected

Definition at line 130 of file surfaceWriter.H.

◆ upToDate_

bool upToDate_

mutableprotected

Definition at line 133 of file surfaceWriter.H.

Referenced by Foam::operator<<().

◆ wroteGeom_

bool wroteGeom_

mutableprotected

Definition at line 136 of file surfaceWriter.H.

Referenced by surfaceWriter::writeTemplate().

◆ parallel_

bool parallel_

protected

Definition at line 139 of file surfaceWriter.H.

◆ useTimeDir_

bool useTimeDir_

protected

Definition at line 142 of file surfaceWriter.H.

◆ isPointData_

bool isPointData_

protected

Definition at line 145 of file surfaceWriter.H.

Referenced by Foam::operator<<().

◆ verbose_

bool verbose_

protected

Definition at line 148 of file surfaceWriter.H.

Referenced by surfaceWriter::surfaceWriter().

◆ nFields_

label nFields_

protected

Definition at line 151 of file surfaceWriter.H.

Referenced by surfaceWriter::nFields(), and Foam::operator<<().

◆ mergeDim_

scalar mergeDim_

protected

Definition at line 154 of file surfaceWriter.H.

◆ merged_

mergedSurf merged_

mutableprotected

Definition at line 157 of file surfaceWriter.H.

◆ currTime_

instant currTime_

protected

Definition at line 160 of file surfaceWriter.H.

Referenced by Foam::operator<<().

◆ outputPath_

fileName outputPath_

protected

Definition at line 163 of file surfaceWriter.H.

Referenced by Foam::operator<<().

◆ defaultMergeDim

Foam::scalar defaultMergeDim = 1e-8

static

Definition at line 218 of file surfaceWriter.H.

The documentation for this class was generated from the following files:

src/surfMesh/writers/surfaceWriter.H
src/surfMesh/writers/surfaceWriter.C
src/surfMesh/writers/surfaceWriterI.H

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Static Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ surfaceWriter() [1/4]

◆ surfaceWriter() [2/4]

◆ surfaceWriter() [3/4]

◆ surfaceWriter() [4/4]

◆ ~surfaceWriter()

Member Function Documentation

◆ checkOpen()

◆ merge()

◆ surface()

◆ mergeFieldTemplate() [1/2]

◆ mergeField() [1/6]

◆ mergeField() [2/6]

◆ mergeField() [3/6]

◆ mergeField() [4/6]

◆ mergeField() [5/6]

◆ mergeField() [6/6]

◆ writeTemplate()

◆ TypeName()

◆ declareRunTimeSelectionTable() [1/2]

◆ declareRunTimeSelectionTable() [2/2]

◆ supportedType()

◆ New() [1/2]

◆ New() [2/2]

◆ enabled()

◆ separateGeometry()

◆ usesFaceIds()

◆ needsUpdate()

◆ wroteData()

◆ expire()

◆ clear()

◆ setSurface() [1/4]

◆ setSurface() [2/4]

◆ setSurface() [3/4]

◆ setSurface() [4/4]

◆ hasSurface()

◆ empty()

◆ size()

◆ nFields() [1/2]

◆ nFields() [2/2]

◆ isPointData() [1/2]

◆ isPointData() [2/2]

◆ useTimeDir() [1/2]

◆ useTimeDir() [2/2]

◆ verbose() [1/2]

◆ verbose() [2/2]

◆ mergeDim() [1/2]

◆ mergeDim() [2/2]

◆ hasTime()

◆ timeName()

◆ timeValue()

◆ setTime() [1/3]

◆ setTime() [2/3]

◆ setTime() [3/3]

◆ unsetTime()

◆ beginTime() [1/2]

◆ beginTime() [2/2]

◆ endTime()

◆ open() [1/5]

◆ open() [2/5]

◆ open() [3/5]

◆ open() [4/5]

◆ open() [5/5]

◆ close()

◆ write() [1/7]

◆ write() [2/7]

◆ write() [3/7]

◆ write() [4/7]

◆ write() [5/7]

◆ write() [6/7]

◆ write() [7/7]

◆ info()
