Holds feature edges/points of surface. More...

Public Types
enum	edgeStatus { NONE, REGION, EXTERNAL, INTERNAL }

Public Member Functions
	ClassName ("surfaceFeatures")

	surfaceFeatures (const triSurface &surf)

	surfaceFeatures (const triSurface &surf, const labelList &featurePoints, const labelList &featureEdges, const label externalStart, const label internalStart)

	surfaceFeatures (const triSurface &surf, const scalar includedAngle, const scalar minLen=0, const label minElems=0, const bool geometricTestOnly=false)

	surfaceFeatures (const triSurface &surf, const dictionary &dict)

	surfaceFeatures (const triSurface &surf, const fileName &fName)

	surfaceFeatures (const triSurface &surf, const pointField &points, const edgeList &edges, const scalar mergeTol=1e-6, const bool geometricTestOnly=false)

	surfaceFeatures (const surfaceFeatures &sf)

const triSurface &	surface () const

const labelList &	featurePoints () const

const labelList &	featureEdges () const

label	externalStart () const

label	internalStart () const

label	nRegionEdges () const

label	nExternalEdges () const

label	nInternalEdges () const

labelList	selectFeatureEdges (const bool regionEdges, const bool externalEdges, const bool internalEdges) const

void	findFeatures (const scalar includedAngle, const bool geometricTestOnly)

labelList	trimFeatures (const scalar minLen, const label minElems, const scalar includedAngle)

void	excludeBox (List< edgeStatus > &edgeStat, const treeBoundBox &bb) const

void	subsetBox (List< edgeStatus > &edgeStat, const treeBoundBox &bb) const

void	deleteBox (List< edgeStatus > &edgeStat, const treeBoundBox &bb, const bool removeInside) const

void	subsetPlane (List< edgeStatus > &edgeStat, const plane &cutPlane) const

void	excludeOpen (List< edgeStatus > &edgeStat) const

void	checkFlatRegionEdge (List< edgeStatus > &edgeStat, const scalar tol, const scalar includedAngle) const

List< edgeStatus >	toStatus () const

void	setFromStatus (const List< edgeStatus > &edgeStat, const scalar includedAngle)

Map< label >	nearestSamples (const labelList &selectedPoints, const pointField &samples, const scalarField &maxDistSqr) const

Map< label >	nearestSamples (const labelList &selectedEdges, const pointField &samples, const scalarField &sampleDist, const scalarField &maxDistSqr, const scalar minSampleDist=0.1) const

Map< pointIndexHit >	nearestEdges (const labelList &selectedEdges, const edgeList &sampleEdges, const labelList &selectedSampleEdges, const pointField &samplePoints, const scalarField &sampleDist, const scalarField &maxDistSqr, const scalar minSampleDist=0.1) const

void	nearestSurfEdge (const labelList &selectedEdges, const pointField &samples, scalar searchSpanSqr, labelList &edgeLabel, labelList &edgeEndPoint, pointField &edgePoint) const

void	nearestSurfEdge (const labelList &selectedEdges, const edgeList &sampleEdges, const labelList &selectedSampleEdges, const pointField &samplePoints, const vector &searchSpan, labelList &edgeLabel, pointField &pointOnEdge, pointField &pointOnFeature) const

void	nearestFeatEdge (const edgeList &edges, const pointField &points, scalar searchSpanSqr, labelList &edgeLabel) const

void	writeDict (Ostream &os) const

void	write (const fileName &fName) const

void	writeObj (const fileName &prefix) const

void	writeStats (Ostream &os) const

void	operator= (const surfaceFeatures &rhs)

Detailed Description

Holds feature edges/points of surface.

Feature edges are stored in one list and sorted: 0 .. externalStart_-1 : region edges externalStart_ .. internalStart_-1 : external edges internalStart_ .. size-1 : internal edges

NOTE: angle is included angle, not feature angle and is in degrees. The included angle is the smallest angle between two planes. For coplanar faces it is 180, for straight angles it is 90. To pick up straight edges only use included angle of 91 degrees

Source files

Definition at line 69 of file surfaceFeatures.H.

Member Enumeration Documentation

◆ edgeStatus

enum edgeStatus

Enumerator
NONE	Not a classified feature edge.
REGION
EXTERNAL	"Convex" edge
INTERNAL	"Concave" edge

Definition at line 74 of file surfaceFeatures.H.

Constructor & Destructor Documentation

◆ surfaceFeatures() [1/7]

surfaceFeatures ( const triSurface & surf )

Definition at line 647 of file surfaceFeatures.C.

◆ surfaceFeatures() [2/7]

surfaceFeatures	(	const triSurface &	surf,
		const labelList &	featurePoints,
		const labelList &	featureEdges,
		const label	externalStart,
		const label	internalStart
	)

Definition at line 659 of file surfaceFeatures.C.

◆ surfaceFeatures() [3/7]

surfaceFeatures	(	const triSurface &	surf,
		const scalar	includedAngle,
		const scalar	minLen = `0`,
		const label	minElems = `0`,
		const bool	geometricTestOnly = `false`
	)

Definition at line 677 of file surfaceFeatures.C.

◆ surfaceFeatures() [4/7]

surfaceFeatures	(	const triSurface &	surf,
		const dictionary &	dict
	)

Definition at line 701 of file surfaceFeatures.C.

◆ surfaceFeatures() [5/7]

surfaceFeatures	(	const triSurface &	surf,
		const fileName &	fName
	)

Definition at line 715 of file surfaceFeatures.C.

References dictionary::readEntry().

Here is the call graph for this function:

◆ surfaceFeatures() [6/7]

surfaceFeatures	(	const triSurface &	surf,
		const pointField &	points,
		const edgeList &	edges,
		const scalar	mergeTol = `1e-6`,
		const bool	geometricTestOnly = `false`
	)

Definition at line 738 of file surfaceFeatures.C.

References DynamicList::append(), HashTable::cfind(), List::clear(), HashTable::clear(), Foam::BitOps::count(), forAll, HashTable::insert(), points, HashTable::size(), and Foam::sqr().

Here is the call graph for this function:

◆ surfaceFeatures() [7/7]

surfaceFeatures ( const surfaceFeatures & sf )

Definition at line 818 of file surfaceFeatures.C.

Member Function Documentation

◆ ClassName()

ClassName ( "surfaceFeatures" )

◆ surface()

const triSurface& surface ( ) const

inline

Definition at line 240 of file surfaceFeatures.H.

Referenced by surfaceFeatures::operator=().

Here is the caller graph for this function:

◆ featurePoints()

const labelList& featurePoints ( ) const

inline

Definition at line 246 of file surfaceFeatures.H.

Referenced by surfaceFeatures::operator=().

Here is the caller graph for this function:

◆ featureEdges()

const labelList& featureEdges ( ) const

inline

Definition at line 252 of file surfaceFeatures.H.

Referenced by surfaceFeatures::operator=().

Here is the caller graph for this function:

◆ externalStart()

label externalStart ( ) const

inline

Definition at line 258 of file surfaceFeatures.H.

Referenced by surfaceFeatures::operator=().

Here is the caller graph for this function:

◆ internalStart()

label internalStart ( ) const

inline

Definition at line 264 of file surfaceFeatures.H.

Referenced by surfaceFeatures::operator=().

Here is the caller graph for this function:

◆ nRegionEdges()

label nRegionEdges ( ) const

inline

Definition at line 270 of file surfaceFeatures.H.

◆ nExternalEdges()

label nExternalEdges ( ) const

inline

Definition at line 276 of file surfaceFeatures.H.

◆ nInternalEdges()

label nInternalEdges ( ) const

inline

Definition at line 282 of file surfaceFeatures.H.

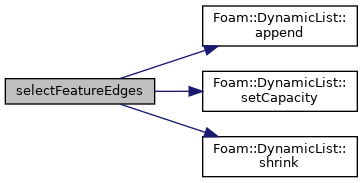

◆ selectFeatureEdges()

Foam::labelList selectFeatureEdges	(	const bool	regionEdges,
		const bool	externalEdges,
		const bool	internalEdges
	)		const

Definition at line 831 of file surfaceFeatures.C.

References DynamicList::append(), DynamicList::setCapacity(), and DynamicList::shrink().

Here is the call graph for this function:

◆ findFeatures()

void findFeatures	(	const scalar	includedAngle,
		const bool	geometricTestOnly
	)

Definition at line 874 of file surfaceFeatures.C.

References Foam::cos(), and Foam::degToRad().

Here is the call graph for this function:

◆ trimFeatures()

Foam::labelList trimFeatures	(	const scalar	minLen,
		const label	minElems,
		const scalar	includedAngle
	)

Definition at line 899 of file surfaceFeatures.C.

References forAll, and edge::mag().

Here is the call graph for this function:

◆ excludeBox()

void excludeBox	(	List< edgeStatus > &	edgeStat,
		const treeBoundBox &	bb
	)		const

Definition at line 1033 of file surfaceFeatures.C.

◆ subsetBox()

void subsetBox	(	List< edgeStatus > &	edgeStat,
		const treeBoundBox &	bb
	)		const

Definition at line 1043 of file surfaceFeatures.C.

◆ deleteBox()

void deleteBox	(	List< edgeStatus > &	edgeStat,
		const treeBoundBox &	bb,
		const bool	removeInside
	)		const

Definition at line 1053 of file surfaceFeatures.C.

References treeBoundBox::contains(), forAll, and surfaceFeatures::NONE.

Here is the call graph for this function:

◆ subsetPlane()

void subsetPlane	(	List< edgeStatus > &	edgeStat,
		const plane &	cutPlane
	)		const

Definition at line 1075 of file surfaceFeatures.C.

References Foam::constant::electromagnetic::e, forAll, plane::lineIntersect(), surfaceFeatures::NONE, and p0.

Here is the call graph for this function:

◆ excludeOpen()

void excludeOpen ( List< edgeStatus > & edgeStat ) const

Definition at line 1106 of file surfaceFeatures.C.

References forAll, and surfaceFeatures::NONE.

◆ checkFlatRegionEdge()

void checkFlatRegionEdge	(	List< edgeStatus > &	edgeStat,
		const scalar	tol,
		const scalar	includedAngle
	)		const

Definition at line 1128 of file surfaceFeatures.C.

References forAll, and surfaceFeatures::REGION.

◆ toStatus()

Foam::List< Foam::surfaceFeatures::edgeStatus > toStatus ( ) const

Definition at line 110 of file surfaceFeatures.C.

◆ setFromStatus()

void setFromStatus	(	const List< edgeStatus > &	edgeStat,
		const scalar	includedAngle
	)

Definition at line 139 of file surfaceFeatures.C.

References Foam::cos(), Foam::degToRad(), and forAll.

Here is the call graph for this function:

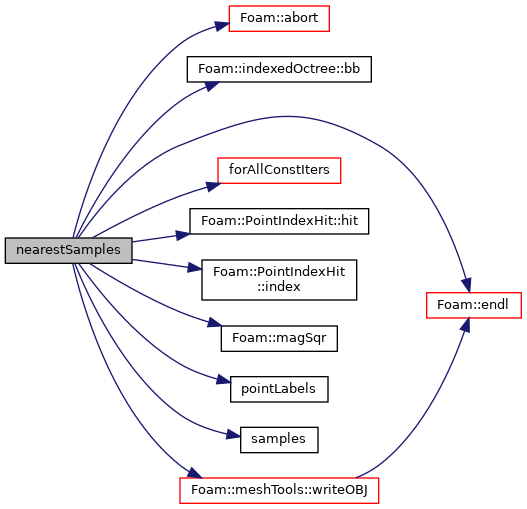

◆ nearestSamples() [1/2]

Foam::Map< Foam::label > nearestSamples	(	const labelList &	selectedPoints,
		const pointField &	samples,
		const scalarField &	maxDistSqr
	)		const

Definition at line 1239 of file surfaceFeatures.C.

References Foam::abort(), indexedOctree::bb(), Foam::expressions::patchExpr::debug, Foam::endl(), Foam::FatalError, FatalErrorInFunction, forAll, forAllConstIters(), PointIndexHit::hit(), PointIndexHit::index(), Foam::magSqr(), pointLabels(), Foam::Pout, samples(), and Foam::meshTools::writeOBJ().

Here is the call graph for this function:

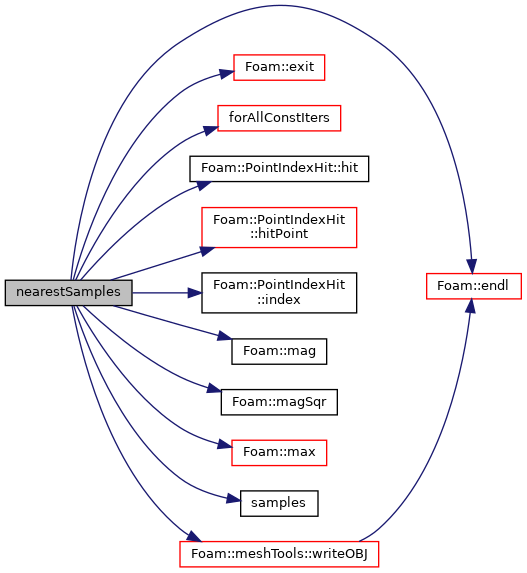

◆ nearestSamples() [2/2]

Foam::Map< Foam::label > nearestSamples	(	const labelList &	selectedEdges,
		const pointField &	samples,
		const scalarField &	sampleDist,
		const scalarField &	maxDistSqr,
		const scalar	minSampleDist = `0.1`
	)		const

Definition at line 1320 of file surfaceFeatures.C.

References Foam::expressions::patchExpr::debug, Foam::constant::electromagnetic::e, Foam::endl(), Foam::exit(), forAll, forAllConstIters(), PointIndexHit::hit(), PointIndexHit::hitPoint(), PointIndexHit::index(), Foam::mag(), Foam::magSqr(), Foam::max(), Foam::Pout, s, samples(), and Foam::meshTools::writeOBJ().

Here is the call graph for this function:

◆ nearestEdges()

Foam::Map< Foam::pointIndexHit > nearestEdges	(	const labelList &	selectedEdges,
		const edgeList &	sampleEdges,
		const labelList &	selectedSampleEdges,
		const pointField &	samplePoints,
		const scalarField &	sampleDist,
		const scalarField &	maxDistSqr,
		const scalar	minSampleDist = `0.1`
	)		const

Definition at line 1456 of file surfaceFeatures.C.

References edge::centre(), Foam::expressions::patchExpr::debug, Foam::constant::electromagnetic::e, Foam::endl(), Foam::exit(), forAll, forAllConstIters(), PointIndexHit::hit(), PointIndexHit::hitPoint(), PointIndexHit::index(), Foam::mag(), Foam::magSqr(), Foam::max(), Foam::Pout, s, indexedOctree::shapes(), and Foam::meshTools::writeOBJ().

Here is the call graph for this function:

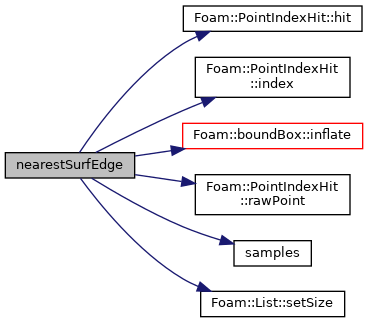

◆ nearestSurfEdge() [1/2]

void nearestSurfEdge	(	const labelList &	selectedEdges,
		const pointField &	samples,
		scalar	searchSpanSqr,
		labelList &	edgeLabel,
		labelList &	edgeEndPoint,
		pointField &	edgePoint
	)		const

Definition at line 1607 of file surfaceFeatures.C.

References Foam::constant::electromagnetic::e, forAll, PointIndexHit::hit(), PointIndexHit::index(), boundBox::inflate(), PointIndexHit::rawPoint(), samples(), and List::setSize().

Here is the call graph for this function:

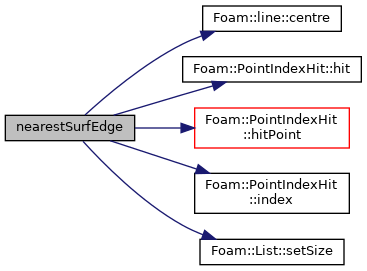

◆ nearestSurfEdge() [2/2]

void nearestSurfEdge	(	const labelList &	selectedEdges,
		const edgeList &	sampleEdges,
		const labelList &	selectedSampleEdges,
		const pointField &	samplePoints,
		const vector &	searchSpan,
		labelList &	edgeLabel,
		pointField &	pointOnEdge,
		pointField &	pointOnFeature
	)		const
