Curvature film separation model. More...

Inheritance diagram for curvatureSeparation:

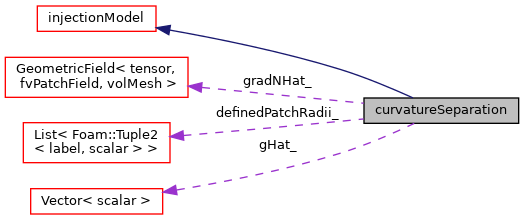

Collaboration diagram for curvatureSeparation:

[legend]

Public Member Functions
	TypeName ("curvatureSeparation")

	curvatureSeparation (surfaceFilmRegionModel &film, const dictionary &dict)

virtual	~curvatureSeparation ()

virtual void	correct (scalarField &availableMass, scalarField &massToInject, scalarField &diameterToInject)

Public Member Functions inherited from injectionModel
	TypeName ("injectionModel")

	declareRunTimeSelectionTable (autoPtr, injectionModel, dictionary,(surfaceFilmRegionModel &film, const dictionary &dict),(film, dict))

	injectionModel (surfaceFilmRegionModel &film)

	injectionModel (const word &modelType, surfaceFilmRegionModel &film, const dictionary &dict)

virtual	~injectionModel ()

virtual scalar	injectedMassTotal () const

virtual void	patchInjectedMassTotals (scalarField &patchMasses) const

Public Member Functions inherited from filmSubModelBase
	filmSubModelBase (surfaceFilmRegionModel &film)

	filmSubModelBase (surfaceFilmRegionModel &film, const dictionary &dict, const word &baseName, const word &modelType, const word &dictExt="Coeffs")

	filmSubModelBase (const word &modelName, surfaceFilmRegionModel &film, const dictionary &dict, const word &baseName, const word &modelType)

virtual	~filmSubModelBase ()

virtual bool	writeTime () const

const surfaceFilmRegionModel &	film () const

surfaceFilmRegionModel &	film ()

template<class FilmType >
const FilmType &	filmType () const

Public Member Functions inherited from subModelBase
	subModelBase (dictionary &properties)

	subModelBase (dictionary &properties, const dictionary &dict, const word &baseName, const word &modelType, const word &dictExt="Coeffs")

	subModelBase (const word &modelName, dictionary &properties, const dictionary &dict, const word &baseName, const word &modelType)

	subModelBase (const subModelBase &smb)

virtual	~subModelBase ()

const word &	modelName () const

const dictionary &	dict () const

const word &	baseName () const

const word &	modelType () const

const dictionary &	coeffDict () const

const dictionary &	properties () const

virtual bool	defaultCoeffs (const bool printMsg) const

virtual bool	active () const

virtual void	cacheFields (const bool store)

virtual fileName	localPath () const

template<class Type >
Type	getBaseProperty (const word &entryName, const Type &defaultValue=Type(Zero)) const

template<class Type >
void	getBaseProperty (const word &entryName, Type &value) const

template<class Type >
void	setBaseProperty (const word &entryName, const Type &value)

bool	getModelDict (const word &entryName, dictionary &dict) const

template<class Type >
void	getModelProperty (const word &entryName, Type &value) const

template<class Type >
Type	getModelProperty (const word &entryName, const Type &defaultValue=Type(Zero)) const

template<class Type >
void	setModelProperty (const word &entryName, const Type &value)

virtual void	write (Ostream &os) const

Protected Member Functions
tmp< volScalarField >	calcInvR1 (const volVectorField &U) const

tmp< scalarField >	calcCosAngle (const surfaceScalarField &phi) const

Protected Member Functions inherited from injectionModel
void	addToInjectedMass (const scalar dMass)

void	correct ()

Protected Member Functions inherited from subModelBase
bool	inLine () const

Protected Attributes
volTensorField	gradNHat_

scalar	deltaByR1Min_

List< Tuple2< label, scalar > >	definedPatchRadii_

scalar	magG_

vector	gHat_

Protected Attributes inherited from filmSubModelBase
surfaceFilmRegionModel &	filmModel_

Protected Attributes inherited from subModelBase
const word	modelName_

dictionary &	properties_

const dictionary	dict_

const word	baseName_

const word	modelType_

const dictionary	coeffDict_

Additional Inherited Members
Static Public Member Functions inherited from injectionModel
static autoPtr< injectionModel >	New (surfaceFilmRegionModel &film, const dictionary &dict, const word &mdoelType)

Detailed Description

Curvature film separation model.

Assesses film curvature via the mesh geometry and calculates a force balance of the form:

F_sum = F_inertial + F_body + F_surface

If F_sum < 0, the film separates. Similarly, if F_sum > 0 the film will remain attached.

Based on description given by Owen and D. J. Ryley. The flow of thin liquid films around corners. International Journal of Multiphase Flow, 11(1):51-62, 1985.

Source files

Definition at line 64 of file curvatureSeparation.H.

Constructor & Destructor Documentation

◆ curvatureSeparation()

curvatureSeparation	(	surfaceFilmRegionModel &	film,
		const dictionary &	dict
	)

Definition at line 218 of file curvatureSeparation.C.

References DynamicList::append(), polyMesh::boundaryMesh(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, Foam::findIndices(), forAll, forAllReverse, surfaceFilmRegionModel::g(), HashSet::insert(), polyBoundaryMesh::names(), regionModel::regionMesh(), and dimensioned::value().

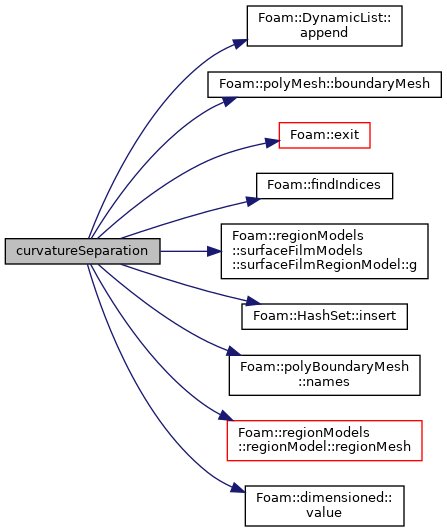

Here is the call graph for this function:

◆ ~curvatureSeparation()

~curvatureSeparation ( )

virtual

Definition at line 269 of file curvatureSeparation.C.

Member Function Documentation

◆ calcInvR1()

tmp< volScalarField > calcInvR1 ( const volVectorField & U ) const

protected

Definition at line 56 of file curvatureSeparation.C.

References Foam::expressions::patchExpr::debug, Foam::dimVelocity, Foam::constant::electromagnetic::e, forAll, Foam::mag(), Foam::max(), mesh, tmp::ref(), and U.

Here is the call graph for this function:

◆ calcCosAngle()

tmp< scalarField > calcCosAngle ( const surfaceScalarField & phi ) const

protected

Definition at line 110 of file curvatureSeparation.C.

References GeometricField::correctBoundaryConditions(), Foam::expressions::patchExpr::debug, Foam::dimless, fvPatch::faceCells(), forAll, Foam::max(), mesh, Foam::min(), fvPatch::nf(), IOobject::NO_READ, fvsPatchField::patch(), phi, GeometricField::primitiveFieldRef(), and Foam::Zero.

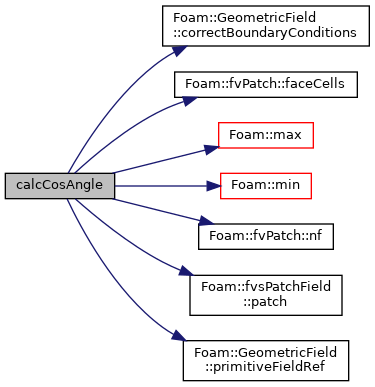

Here is the call graph for this function:

◆ TypeName()

TypeName ( "curvatureSeparation" )

◆ correct()

void correct	(	scalarField &	availableMass,
		scalarField &	massToInject,
		scalarField &	diameterToInject
	)

virtual

Implements injectionModel.

Definition at line 276 of file curvatureSeparation.C.

References injectionModel::correct(), GeometricField::correctBoundaryConditions(), Foam::expressions::patchExpr::debug, delta, kinematicSingleLayer::delta(), Foam::dimForce, Foam::constant::electromagnetic::e, forAll, Foam::magSqr(), mesh, IOobject::NO_READ, phi, kinematicSingleLayer::phi(), GeometricField::primitiveFieldRef(), regionModel::regionMesh(), rho, kinematicSingleLayer::rho(), sigma(), kinematicSingleLayer::sigma(), Foam::sqr(), Foam::sum(), U, kinematicSingleLayer::U(), and Foam::Zero.

Here is the call graph for this function:

Member Data Documentation

◆ gradNHat_

volTensorField gradNHat_

protected

Definition at line 84 of file curvatureSeparation.H.

◆ deltaByR1Min_

scalar deltaByR1Min_

protected

Definition at line 87 of file curvatureSeparation.H.

◆ definedPatchRadii_

List<Tuple2<label, scalar> > definedPatchRadii_

protected

Definition at line 91 of file curvatureSeparation.H.

◆ magG_

scalar magG_

protected

Definition at line 94 of file curvatureSeparation.H.

◆ gHat_

vector gHat_

protected

Definition at line 97 of file curvatureSeparation.H.

The documentation for this class was generated from the following files:

src/regionModels/surfaceFilmModels/submodels/kinematic/injectionModel/curvatureSeparation/curvatureSeparation.H
src/regionModels/surfaceFilmModels/submodels/kinematic/injectionModel/curvatureSeparation/curvatureSeparation.C
