Curvature film separation model. More...

Inheritance diagram for curvatureSeparation:

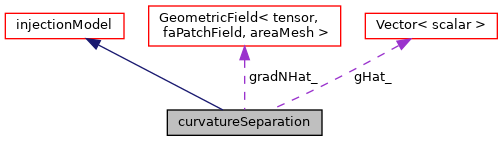

Collaboration diagram for curvatureSeparation:

[legend]

Public Member Functions
	TypeName ("curvatureSeparation")

	curvatureSeparation (liquidFilmBase &film, const dictionary &dict)

virtual	~curvatureSeparation ()=default

virtual void	correct (scalarField &availableMass, scalarField &massToInject, scalarField &diameterToInject)

Public Member Functions inherited from injectionModel
	TypeName ("injectionModel")

	declareRunTimeSelectionTable (autoPtr, injectionModel, dictionary,(liquidFilmBase &film, const dictionary &dict),(film, dict))

	injectionModel (liquidFilmBase &film)

	injectionModel (const word &modelType, liquidFilmBase &film, const dictionary &dict)

virtual	~injectionModel ()

virtual scalar	injectedMassTotal () const

virtual void	patchInjectedMassTotals (scalar &patchMasses) const

Public Member Functions inherited from filmSubModelBase
	filmSubModelBase (liquidFilmBase &film)

	filmSubModelBase (liquidFilmBase &film, const dictionary &dict, const word &baseName, const word &modelType, const word &dictExt="Coeffs")

	filmSubModelBase (const word &modelName, liquidFilmBase &film, const dictionary &dict, const word &baseName, const word &modelType)

virtual	~filmSubModelBase ()

virtual bool	writeTime () const

const liquidFilmBase &	film () const

liquidFilmBase &	film ()

template<class FilmType >
const FilmType &	filmType () const

Public Member Functions inherited from subModelBase
	subModelBase (dictionary &properties)

	subModelBase (dictionary &properties, const dictionary &dict, const word &baseName, const word &modelType, const word &dictExt="Coeffs")

	subModelBase (const word &modelName, dictionary &properties, const dictionary &dict, const word &baseName, const word &modelType)

	subModelBase (const subModelBase &smb)

virtual	~subModelBase ()

const word &	modelName () const

const dictionary &	dict () const

const word &	baseName () const

const word &	modelType () const

const dictionary &	coeffDict () const

const dictionary &	properties () const

virtual bool	defaultCoeffs (const bool printMsg) const

virtual bool	active () const

virtual void	cacheFields (const bool store)

virtual fileName	localPath () const

template<class Type >
Type	getBaseProperty (const word &entryName, const Type &defaultValue=Type(Zero)) const

template<class Type >
void	getBaseProperty (const word &entryName, Type &value) const

template<class Type >
void	setBaseProperty (const word &entryName, const Type &value)

bool	getModelDict (const word &entryName, dictionary &dict) const

template<class Type >
void	getModelProperty (const word &entryName, Type &value) const

template<class Type >
Type	getModelProperty (const word &entryName, const Type &defaultValue=Type(Zero)) const

template<class Type >
void	setModelProperty (const word &entryName, const Type &value)

virtual void	write (Ostream &os) const

Protected Member Functions
tmp< areaScalarField >	calcInvR1 (const areaVectorField &U, const scalarField &calcCosAngle) const

tmp< scalarField >	calcCosAngle (const edgeScalarField &phi) const

Protected Member Functions inherited from injectionModel
void	addToInjectedMass (const scalar dMass)

void	correct ()

Protected Member Functions inherited from subModelBase
bool	inLine () const

Protected Attributes
areaTensorField	gradNHat_

scalar	deltaByR1Min_

scalar	definedPatchRadii_

scalar	magG_

vector	gHat_

scalar	fThreshold_

scalar	minInvR1_

Protected Attributes inherited from filmSubModelBase
liquidFilmBase &	filmModel_

Protected Attributes inherited from subModelBase
const word	modelName_

dictionary &	properties_

const dictionary	dict_

const word	baseName_

const word	modelType_

const dictionary	coeffDict_

Additional Inherited Members
Static Public Member Functions inherited from injectionModel
static autoPtr< injectionModel >	New (liquidFilmBase &film, const dictionary &dict, const word &mdoelType)

Detailed Description

Curvature film separation model.

Assesses film curvature via the mesh geometry and calculates a force balance of the form:

F_sum = F_inertial + F_body + F_surface

If F_sum < 0, the film separates. Similarly, if F_sum > 0 the film will remain attached.

Based on description given by Owen and D. J. Ryley. The flow of thin liquid films around corners. International Journal of Multiphase Flow, 11(1):51-62, 1985.

Source files

Definition at line 64 of file curvatureSeparation.H.

Constructor & Destructor Documentation

◆ curvatureSeparation()

curvatureSeparation	(	liquidFilmBase &	film,
		const dictionary &	dict
	)

Definition at line 151 of file curvatureSeparation.C.

References Foam::exit(), Foam::FatalError, FatalErrorInFunction, liquidFilmBase::g(), and dimensioned::value().

Here is the call graph for this function:

◆ ~curvatureSeparation()

virtual ~curvatureSeparation ( )

virtualdefault

Member Function Documentation

◆ calcInvR1()

tmp< areaScalarField > calcInvR1	(	const areaVectorField &	U,
		const scalarField &	calcCosAngle
	)		const

protected

Definition at line 50 of file curvatureSeparation.C.

References Foam::dimVelocity, Foam::constant::electromagnetic::e, forAll, Foam::mag(), Foam::max(), tmp::ref(), and U.

Here is the call graph for this function:

◆ calcCosAngle()

tmp< scalarField > calcCosAngle ( const edgeScalarField & phi ) const

protected

Definition at line 88 of file curvatureSeparation.C.

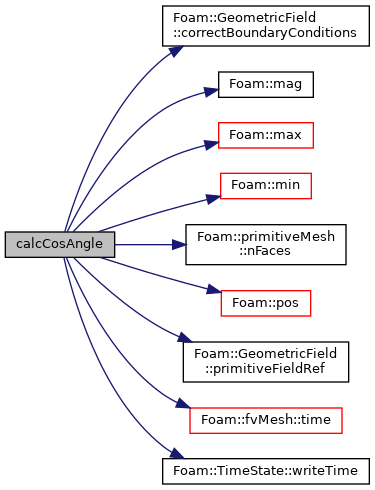

References GeometricField::correctBoundaryConditions(), Foam::expressions::patchExpr::debug, Foam::dimless, Foam::dimVelocity, forAll, Foam::mag(), Foam::max(), mesh, Foam::min(), primitiveMesh::nFaces(), IOobject::NO_READ, phi, Foam::pos(), GeometricField::primitiveFieldRef(), fvMesh::time(), timeName, U, TimeState::writeTime(), and Foam::Zero.

Here is the call graph for this function:

◆ TypeName()

TypeName ( "curvatureSeparation" )

◆ correct()

void correct	(	scalarField &	availableMass,
		scalarField &	massToInject,
		scalarField &	diameterToInject
	)

virtual

Implements injectionModel.

Definition at line 188 of file curvatureSeparation.C.

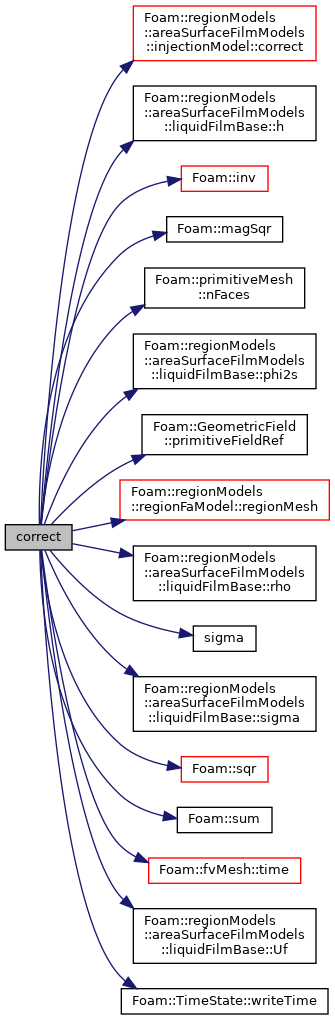

References injectionModel::correct(), Foam::expressions::patchExpr::debug, delta, Foam::dimForce, Foam::dimLength, Foam::dimMass, forAll, liquidFilmBase::h(), Foam::inv(), Foam::magSqr(), mesh, primitiveMesh::nFaces(), IOobject::NO_READ, phi, liquidFilmBase::phi2s(), GeometricField::primitiveFieldRef(), regionFaModel::regionMesh(), rho, liquidFilmBase::rho(), sigma(), liquidFilmBase::sigma(), Foam::sqr(), Foam::sum(), fvMesh::time(), timeName, U, Uf, liquidFilmBase::Uf(), TimeState::writeTime(), and Foam::Zero.

Here is the call graph for this function:

Member Data Documentation

◆ gradNHat_

areaTensorField gradNHat_

protected

Definition at line 82 of file curvatureSeparation.H.

◆ deltaByR1Min_

scalar deltaByR1Min_

protected

Definition at line 85 of file curvatureSeparation.H.

◆ definedPatchRadii_

scalar definedPatchRadii_

protected

Definition at line 89 of file curvatureSeparation.H.

◆ magG_

scalar magG_

protected

Definition at line 92 of file curvatureSeparation.H.

◆ gHat_

vector gHat_

protected

Definition at line 95 of file curvatureSeparation.H.

◆ fThreshold_

scalar fThreshold_

protected

Definition at line 98 of file curvatureSeparation.H.

◆ minInvR1_

scalar minInvR1_

protected

Definition at line 101 of file curvatureSeparation.H.

The documentation for this class was generated from the following files:

src/regionFaModels/liquidFilm/subModels/kinematic/injectionModel/curvatureSeparation/curvatureSeparation.H
src/regionFaModels/liquidFilm/subModels/kinematic/injectionModel/curvatureSeparation/curvatureSeparation.C
