pressureInletOutletVelocityFvPatchVectorField Class Reference

This velocity inlet/outlet boundary condition is applied to velocity boundaries where the pressure is specified. A zero-gradient condition is applied for outflow (as defined by the flux); for inflow, the velocity is obtained from the patch-face normal component of the internal-cell value. More...

Inheritance diagram for pressureInletOutletVelocityFvPatchVectorField:

Collaboration diagram for pressureInletOutletVelocityFvPatchVectorField:

Public Member Functions
	TypeName ("pressureInletOutletVelocity")
	pressureInletOutletVelocityFvPatchVectorField (const fvPatch &, const DimensionedField< vector, volMesh > &)
	pressureInletOutletVelocityFvPatchVectorField (const fvPatch &, const DimensionedField< vector, volMesh > &, const dictionary &)
	pressureInletOutletVelocityFvPatchVectorField (const pressureInletOutletVelocityFvPatchVectorField &, const fvPatch &, const DimensionedField< vector, volMesh > &, const fvPatchFieldMapper &)
	pressureInletOutletVelocityFvPatchVectorField (const pressureInletOutletVelocityFvPatchVectorField &)
virtual tmp< fvPatchVectorField >	clone () const
	pressureInletOutletVelocityFvPatchVectorField (const pressureInletOutletVelocityFvPatchVectorField &, const DimensionedField< vector, volMesh > &)
virtual tmp< fvPatchVectorField >	clone (const DimensionedField< vector, volMesh > &iF) const
virtual bool	assignable () const
const word &	phiName () const
word &	phiName ()
const vectorField &	tangentialVelocity () const
void	setTangentialVelocity (const vectorField &tangentialVelocity)
virtual void	autoMap (const fvPatchFieldMapper &)
virtual void	rmap (const fvPatchVectorField &, const labelList &)
virtual void	updateCoeffs ()
virtual void	write (Ostream &) const
virtual void	operator= (const fvPatchField< vector > &pvf)

Detailed Description

This velocity inlet/outlet boundary condition is applied to velocity boundaries where the pressure is specified. A zero-gradient condition is applied for outflow (as defined by the flux); for inflow, the velocity is obtained from the patch-face normal component of the internal-cell value.

The tangential patch velocity can be optionally specified.

Usage

Property	Description	Required	Default value
phi	flux field name	no	phi
tangentialVelocity	tangential velocity field	no

Example of the boundary condition specification:

    <patchName>
    {
        type            pressureInletOutletVelocity;
        phi             phi;
        tangentialVelocity uniform (0 0 0);
        value           uniform (0 0 0);
    }

Note

Sign conventions:

• positive flux (out of domain): apply zero-gradient condition
• negative flux (into of domain): derive from the flux in the patch-normal direction

Source files

• pressureInletOutletVelocityFvPatchVectorField.H
• pressureInletOutletVelocityFvPatchVectorField.C

Definition at line 94 of file pressureInletOutletVelocityFvPatchVectorField.H.

Constructor & Destructor Documentation

pressureInletOutletVelocityFvPatchVectorField() [1/5]

pressureInletOutletVelocityFvPatchVectorField	(	const fvPatch &	p,
		const DimensionedField< vector, volMesh > &	iF
	)

Definition at line 32 of file pressureInletOutletVelocityFvPatchVectorField.C.

References Foam::Zero.

Referenced by pressureInletOutletVelocityFvPatchVectorField::clone().

Here is the caller graph for this function:

pressureInletOutletVelocityFvPatchVectorField() [2/5]

pressureInletOutletVelocityFvPatchVectorField	(	const fvPatch &	p,
		const DimensionedField< vector, volMesh > &	iF,
		const dictionary &	dict
	)

Definition at line 67 of file pressureInletOutletVelocityFvPatchVectorField.C.

References dict, p, and Foam::Zero.

pressureInletOutletVelocityFvPatchVectorField() [3/5]

pressureInletOutletVelocityFvPatchVectorField	(	const pressureInletOutletVelocityFvPatchVectorField &	ptf,
		const fvPatch &	p,
		const DimensionedField< vector, volMesh > &	iF,
		const fvPatchFieldMapper &	mapper
	)

Definition at line 48 of file pressureInletOutletVelocityFvPatchVectorField.C.

pressureInletOutletVelocityFvPatchVectorField() [4/5]

pressureInletOutletVelocityFvPatchVectorField

(

const pressureInletOutletVelocityFvPatchVectorField &

pivpvf

)

Definition at line 98 of file pressureInletOutletVelocityFvPatchVectorField.C.

pressureInletOutletVelocityFvPatchVectorField() [5/5]

pressureInletOutletVelocityFvPatchVectorField	(	const pressureInletOutletVelocityFvPatchVectorField &	pivpvf,
		const DimensionedField< vector, volMesh > &	iF
	)

Definition at line 110 of file pressureInletOutletVelocityFvPatchVectorField.C.

Member Function Documentation

TypeName()

TypeName

(

"pressureInletOutletVelocity"

)

clone() [1/2]

virtual tmp<fvPatchVectorField> clone ( ) const

inlinevirtual

Reimplemented in rotatingPressureInletOutletVelocityFvPatchVectorField.

Definition at line 147 of file pressureInletOutletVelocityFvPatchVectorField.H.

References pressureInletOutletVelocityFvPatchVectorField::pressureInletOutletVelocityFvPatchVectorField().

Here is the call graph for this function:

clone() [2/2]

virtual tmp<fvPatchVectorField> clone ( const DimensionedField< vector, volMesh > &  iF ) const

inlinevirtual

Reimplemented in rotatingPressureInletOutletVelocityFvPatchVectorField.

Definition at line 164 of file pressureInletOutletVelocityFvPatchVectorField.H.

References pressureInletOutletVelocityFvPatchVectorField::pressureInletOutletVelocityFvPatchVectorField().

Here is the call graph for this function:

assignable()

virtual bool assignable ( ) const

inlinevirtual

Definition at line 180 of file pressureInletOutletVelocityFvPatchVectorField.H.

phiName() [1/2]

const word& phiName ( ) const

inline

Definition at line 189 of file pressureInletOutletVelocityFvPatchVectorField.H.

phiName() [2/2]

word& phiName ( )

inline

Definition at line 195 of file pressureInletOutletVelocityFvPatchVectorField.H.

tangentialVelocity()

const vectorField& tangentialVelocity ( ) const

inline

Definition at line 201 of file pressureInletOutletVelocityFvPatchVectorField.H.

Referenced by pressureInletOutletVelocityFvPatchVectorField::setTangentialVelocity().

Here is the caller graph for this function:

setTangentialVelocity()

void setTangentialVelocity

(

const vectorField &

tangentialVelocity

)

Definition at line 124 of file pressureInletOutletVelocityFvPatchVectorField.C.

References n, Foam::foamVersion::patch, and pressureInletOutletVelocityFvPatchVectorField::tangentialVelocity().

Here is the call graph for this function:

autoMap()

void autoMap ( const fvPatchFieldMapper &  m )

virtual

Definition at line 133 of file pressureInletOutletVelocityFvPatchVectorField.C.

rmap()

void rmap ( const fvPatchVectorField &  ptf, const labelList &  addr  )

virtual

Definition at line 146 of file pressureInletOutletVelocityFvPatchVectorField.C.

updateCoeffs()

void updateCoeffs ( )

virtual

Definition at line 163 of file pressureInletOutletVelocityFvPatchVectorField.C.

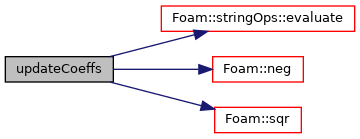

References Foam::stringOps::evaluate(), Foam::I, Foam::neg(), Foam::foamVersion::patch, and Foam::sqr().

Here is the call graph for this function:

write()

void write ( Ostream &  os ) const

virtual

Reimplemented in rotatingPressureInletOutletVelocityFvPatchVectorField.

Definition at line 181 of file pressureInletOutletVelocityFvPatchVectorField.C.

References os(), fvPatchField::write(), and Ostream::writeEntryIfDifferent().

Here is the call graph for this function:

operator=()

void operator= ( const fvPatchField< vector > &  pvf )

virtual

Definition at line 199 of file pressureInletOutletVelocityFvPatchVectorField.C.

References Foam::I, fvPatchField::operator=(), and Foam::transform().

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/finiteVolume/fields/fvPatchFields/derived/pressureInletOutletVelocity/pressureInletOutletVelocityFvPatchVectorField.H
• src/finiteVolume/fields/fvPatchFields/derived/pressureInletOutletVelocity/pressureInletOutletVelocityFvPatchVectorField.C
