polyMeshGeometry Class Reference

Updateable mesh geometry and checking routines. More...

Public Member Functions

 ClassName ("polyMeshGeometry")

 polyMeshGeometry (const polyMesh &)

const polyMesh & mesh () const

const vectorField & faceAreas () const

const vectorField & faceCentres () const

const vectorField & cellCentres () const

const scalarField & cellVolumes () const

void correct ()

void correct (const pointField &p, const labelList &changedFaces)

bool checkFaceDotProduct (const bool report, const scalar orthWarn, const labelList &checkFaces, const List< labelPair > &baffles, labelHashSet *setPtr) const

bool checkFacePyramids (const bool report, const scalar minPyrVol, const pointField &p, const labelList &checkFaces, const List< labelPair > &baffles, labelHashSet *setPtr) const

bool checkFaceTets (const bool report, const scalar minTetQuality, const pointField &p, const labelList &checkFaces, const List< labelPair > &baffles, labelHashSet *setPtr) const

bool checkFaceWeights (const bool report, const scalar warnWeight, const labelList &checkFaces, const List< labelPair > &baffles, labelHashSet *setPtr) const

bool checkVolRatio (const bool report, const scalar warnRatio, const labelList &checkFaces, const List< labelPair > &baffles, labelHashSet *setPtr) const

bool checkFaceAngles (const bool report, const scalar maxDeg, const pointField &p, const labelList &checkFaces, labelHashSet *setPtr) const

bool checkFaceTwist (const bool report, const scalar minTwist, const pointField &p, const labelList &checkFaces, labelHashSet *setPtr) const

bool checkTriangleTwist (const bool report, const scalar minTwist, const pointField &p, const labelList &checkFaces, labelHashSet *setPtr) const

bool checkFaceFlatness (const bool report, const scalar minFlatness, const pointField &p, const labelList &checkFaces, labelHashSet *setPtr) const

bool checkFaceArea (const bool report, const scalar minArea, const labelList &checkFaces, labelHashSet *setPtr) const

bool checkCellDeterminant (const bool report, const scalar warnDet, const labelList &checkFaces, const labelList &affectedCells, labelHashSet *setPtr) const


Static Public Member Functions

static labelList affectedCells (const polyMesh &, const labelList &changedFaces)

static bool checkFaceDotProduct (const bool report, const scalar orthWarn, const polyMesh &, const vectorField &cellCentres, const vectorField &faceAreas, const labelList &checkFaces, const List< labelPair > &baffles, labelHashSet *setPtr)

static bool checkFacePyramids (const bool report, const scalar minPyrVol, const polyMesh &, const vectorField &cellCentres, const pointField &p, const labelList &checkFaces, const List< labelPair > &baffles, labelHashSet *)

static bool checkFaceTets (const bool report, const scalar minPyrVol, const polyMesh &, const vectorField &cellCentres, const vectorField &faceCentres, const pointField &p, const labelList &checkFaces, const List< labelPair > &baffles, labelHashSet *)

static bool checkFaceSkewness (const bool report, const scalar internalSkew, const scalar boundarySkew, const polyMesh &mesh, const pointField &points, const vectorField &cellCentres, const vectorField &faceCentres, const vectorField &faceAreas, const labelList &checkFaces, const List< labelPair > &baffles, labelHashSet *setPtr)

static bool checkFaceWeights (const bool report, const scalar warnWeight, const polyMesh &mesh, const vectorField &cellCentres, const vectorField &faceCentres, const vectorField &faceAreas, const labelList &checkFaces, const List< labelPair > &baffles, labelHashSet *setPtr)

static bool checkVolRatio (const bool report, const scalar warnRatio, const polyMesh &mesh, const scalarField &cellVolumes, const labelList &checkFaces, const List< labelPair > &baffles, labelHashSet *setPtr)

static bool checkFaceAngles (const bool report, const scalar maxDeg, const polyMesh &mesh, const vectorField &faceAreas, const pointField &p, const labelList &checkFaces, labelHashSet *setPtr)

static bool checkFaceTwist (const bool report, const scalar minTwist, const polyMesh &, const vectorField &cellCentres, const vectorField &faceAreas, const vectorField &faceCentres, const pointField &p, const labelList &checkFaces, labelHashSet *setPtr)

static bool checkTriangleTwist (const bool report, const scalar minTwist, const polyMesh &, const vectorField &faceAreas, const vectorField &faceCentres, const pointField &p, const labelList &checkFaces, labelHashSet *setPtr)

static bool checkFaceFlatness (const bool report, const scalar minFlatness, const polyMesh &, const vectorField &faceAreas, const vectorField &faceCentres, const pointField &p, const labelList &checkFaces, labelHashSet *setPtr)

static bool checkFaceArea (const bool report, const scalar minArea, const polyMesh &, const vectorField &faceAreas, const labelList &checkFaces, labelHashSet *setPtr)

static bool checkCellDeterminant (const bool report, const scalar minDet, const polyMesh &, const vectorField &faceAreas, const labelList &checkFaces, const labelList &affectedCells, labelHashSet *setPtr)


Detailed Description

Updateable mesh geometry and checking routines.

Source files

Definition at line 51 of file polyMeshGeometry.H.

Constructor & Destructor Documentation

◆ polyMeshGeometry()

polyMeshGeometry ( const polyMesh &  mesh)
explicit

Definition at line 320 of file polyMeshGeometry.C.

References polyMeshGeometry::correct().

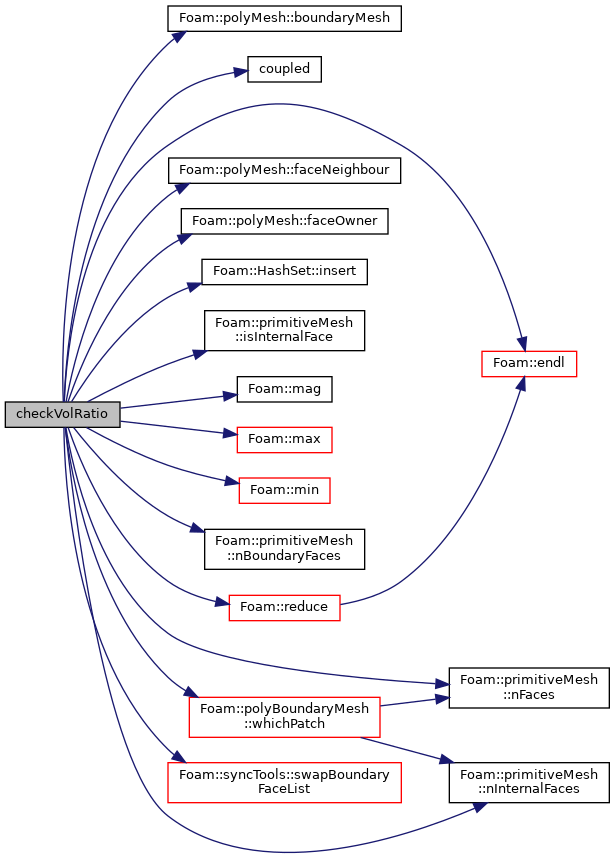

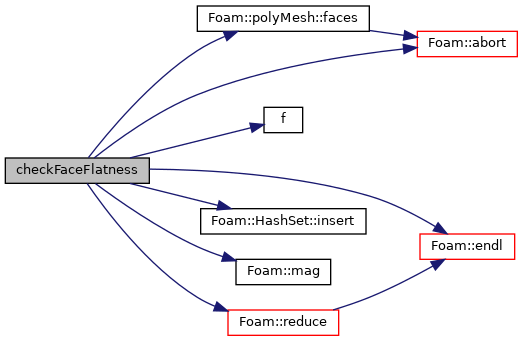

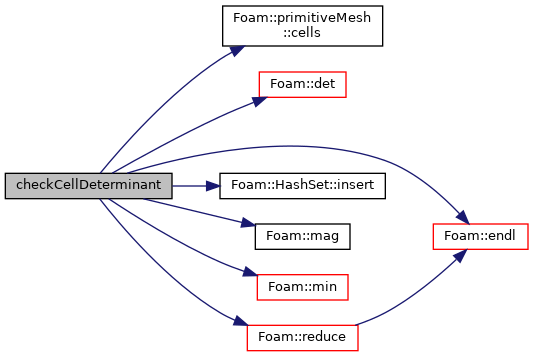

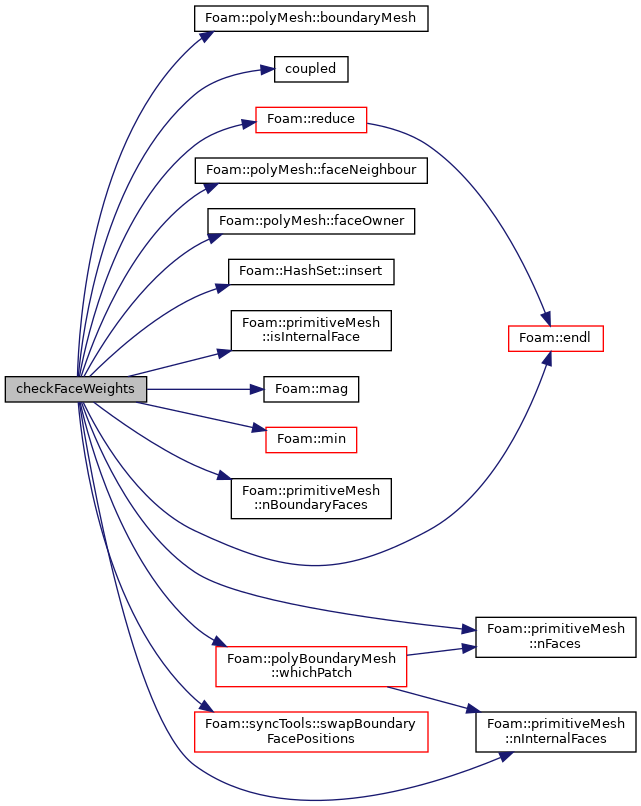

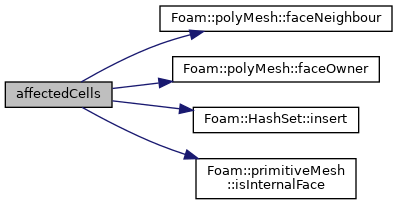

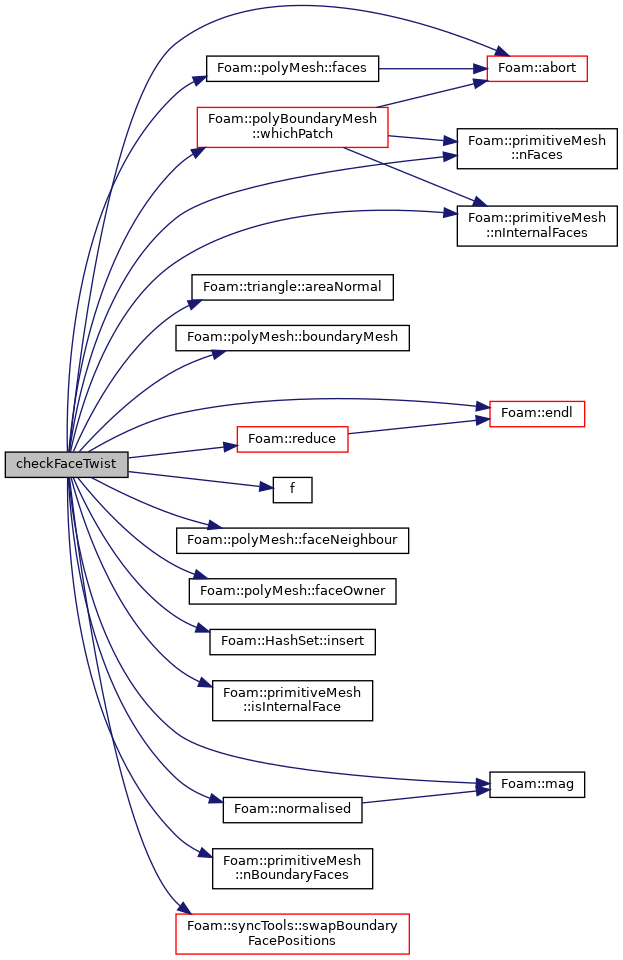

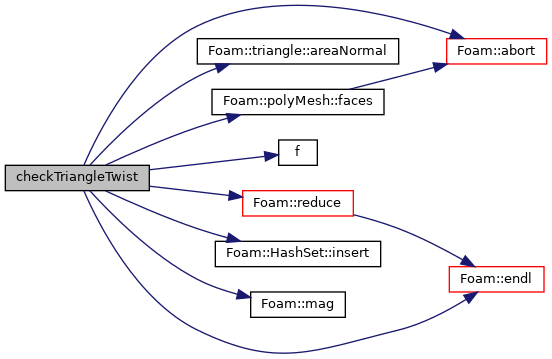

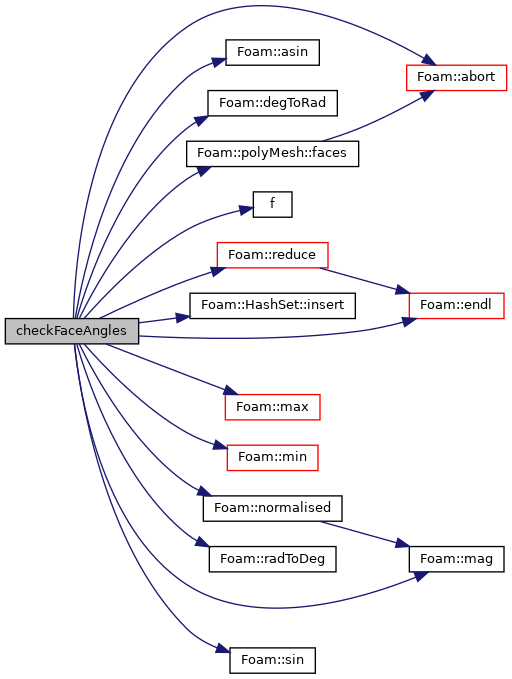

Here is the call graph for this function:

Member Function Documentation

◆ ClassName()

ClassName ( "polyMeshGeometry"  )

◆ mesh()

const polyMesh& mesh ( ) const
inline

Definition at line 137 of file polyMeshGeometry.H.

Referenced by motionSmootherAlgo::checkMesh().

Here is the caller graph for this function:

◆ faceAreas()

const vectorField& faceAreas ( ) const
inline

Definition at line 142 of file polyMeshGeometry.H.

Referenced by motionSmootherAlgo::checkMesh().

Here is the caller graph for this function:

◆ faceCentres()

const vectorField& faceCentres ( ) const
inline

Definition at line 146 of file polyMeshGeometry.H.

Referenced by motionSmootherAlgo::checkMesh().

Here is the caller graph for this function:

◆ cellCentres()

const vectorField& cellCentres ( ) const
inline

Definition at line 150 of file polyMeshGeometry.H.

Referenced by motionSmootherAlgo::checkMesh().

Here is the caller graph for this function:

◆ cellVolumes()

const scalarField& cellVolumes ( ) const
inline

Definition at line 154 of file polyMeshGeometry.H.

◆ correct() [1/2]

void correct ( )

Definition at line 330 of file polyMeshGeometry.C.

Referenced by polyMeshGeometry::polyMeshGeometry().

Here is the caller graph for this function:

◆ correct() [2/2]

void correct ( const pointField &  p,
const labelList &  changedFaces
)

Definition at line 340 of file polyMeshGeometry.C.

References p.

◆ affectedCells()

Foam::labelList affectedCells ( const polyMesh &  mesh,
const labelList &  changedFaces
)
static

Definition at line 176 of file polyMeshGeometry.C.

References polyMesh::faceNeighbour(), polyMesh::faceOwner(), HashSet::insert(), primitiveMesh::isInternalFace(), and mesh.

Here is the call graph for this function:

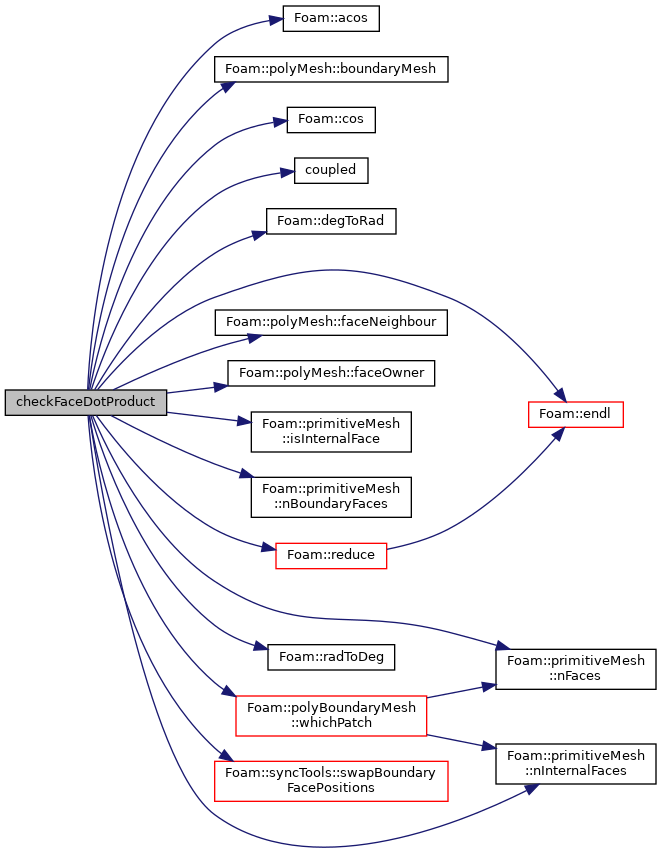

◆ checkFaceDotProduct() [1/2]

bool checkFaceDotProduct ( const bool  report,
const scalar  orthWarn,
const polyMesh &  mesh,
const vectorField &  cellCentres,
const vectorField &  faceAreas,
const labelList &  checkFaces,
const List< labelPair > &  baffles,
labelHashSet *  setPtr
)
static

Definition at line 353 of file polyMeshGeometry.C.

References Foam::acos(), polyMesh::boundaryMesh(), Foam::cos(), coupled(), Foam::degToRad(), Foam::endl(), polyMesh::faceNeighbour(), polyMesh::faceOwner(), Foam::Info, primitiveMesh::isInternalFace(), mesh, primitiveMesh::nBoundaryFaces(), primitiveMesh::nFaces(), primitiveMesh::nInternalFaces(), patches, Foam::radToDeg(), Foam::reduce(), SeriousErrorInFunction, syncTools::swapBoundaryFacePositions(), and polyBoundaryMesh::whichPatch().

Referenced by motionSmootherAlgo::checkMesh().

Here is the call graph for this function:
Here is the caller graph for this function:

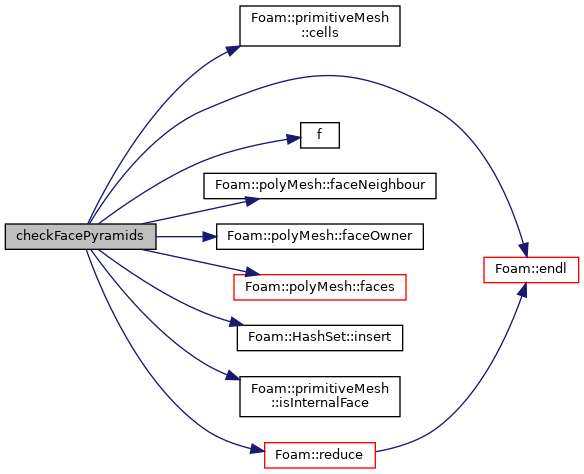

◆ checkFacePyramids() [1/2]

bool checkFacePyramids ( const bool  report,
const scalar  minPyrVol,
const polyMesh &  mesh,
const vectorField &  cellCentres,
const pointField &  p,
const labelList &  checkFaces,
const List< labelPair > &  baffles,
labelHashSet *  setPtr
)
static

Definition at line 531 of file polyMeshGeometry.C.

References primitiveMesh::cells(), Foam::endl(), f(), polyMesh::faceNeighbour(), polyMesh::faceOwner(), polyMesh::faces(), Foam::Info, HashSet::insert(), primitiveMesh::isInternalFace(), mesh, p, Foam::Pout, Foam::reduce(), and SeriousErrorInFunction.

Referenced by motionSmootherAlgo::checkMesh().

Here is the call graph for this function:
Here is the caller graph for this function:

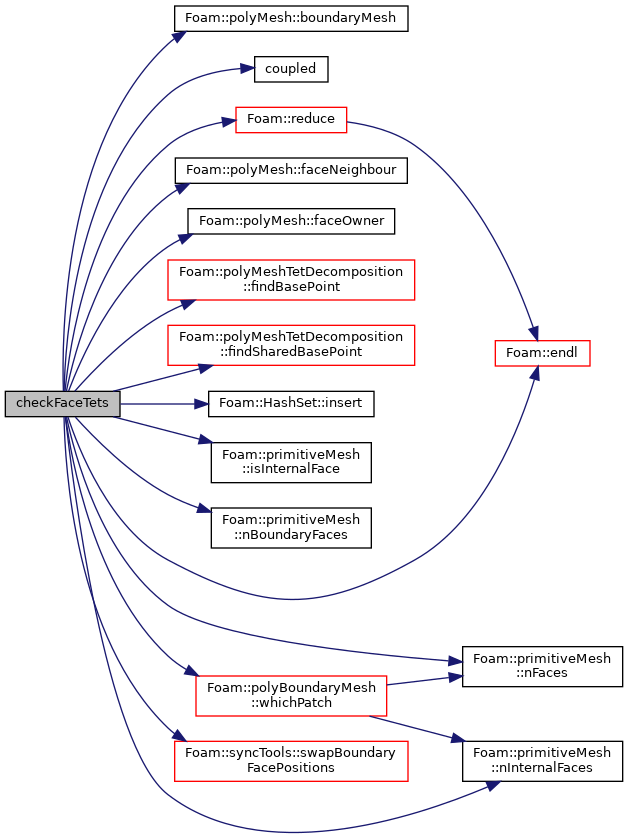

◆ checkFaceTets() [1/2]

bool checkFaceTets ( const bool  report,
const scalar  minPyrVol,
const polyMesh &  mesh,
const vectorField &  cellCentres,
const vectorField &  faceCentres,
const pointField &  p,
const labelList &  checkFaces,
const List< labelPair > &  baffles,
labelHashSet *  setPtr
)
static

Definition at line 702 of file polyMeshGeometry.C.

References polyMesh::boundaryMesh(), coupled(), Foam::endl(), polyMesh::faceNeighbour(), polyMesh::faceOwner(), polyMeshTetDecomposition::findBasePoint(), polyMeshTetDecomposition::findSharedBasePoint(), Foam::Info, HashSet::insert(), primitiveMesh::isInternalFace(), mesh, primitiveMesh::nBoundaryFaces(), primitiveMesh::nFaces(), primitiveMesh::nInternalFaces(), p, patches, Foam::reduce(), SeriousErrorInFunction, syncTools::swapBoundaryFacePositions(), and polyBoundaryMesh::whichPatch().

Referenced by motionSmootherAlgo::checkMesh().

Here is the call graph for this function:
Here is the caller graph for this function:

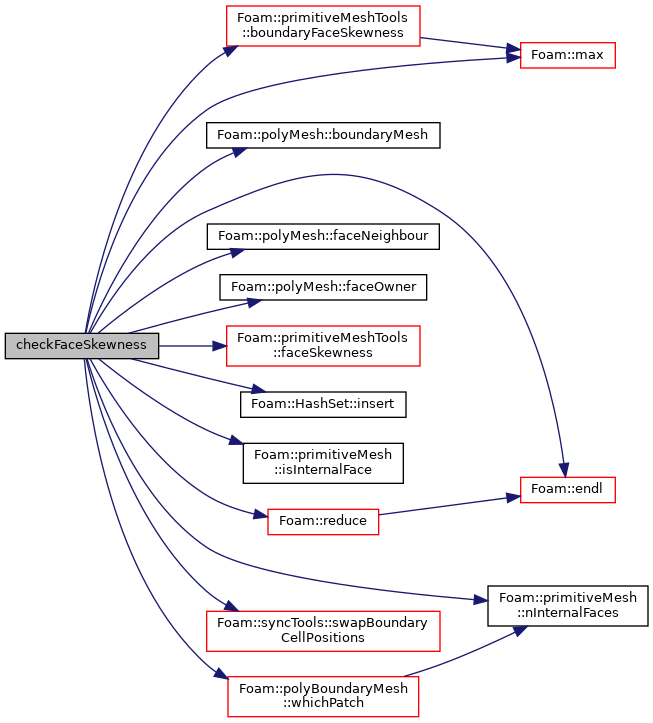

◆ checkFaceSkewness()

bool checkFaceSkewness ( const bool  report,
const scalar  internalSkew,
const scalar  boundarySkew,
const polyMesh &  mesh,
const pointField &  points,
const vectorField &  cellCentres,
const vectorField &  faceCentres,
const vectorField &  faceAreas,
const labelList &  checkFaces,
const List< labelPair > &  baffles,
labelHashSet *  setPtr
)
static

Definition at line 923 of file polyMeshGeometry.C.

References primitiveMeshTools::boundaryFaceSkewness(), polyMesh::boundaryMesh(), Foam::endl(), polyMesh::faceNeighbour(), polyMesh::faceOwner(), primitiveMeshTools::faceSkewness(), Foam::Info, HashSet::insert(), primitiveMesh::isInternalFace(), Foam::max(), mesh, primitiveMesh::nInternalFaces(), Foam::nl, patches, points, Foam::Pout, Foam::reduce(), syncTools::swapBoundaryCellPositions(), WarningInFunction, and polyBoundaryMesh::whichPatch().

Here is the call graph for this function:

◆ checkFaceWeights() [1/2]

bool checkFaceWeights ( const bool  report,
const scalar  warnWeight,
const polyMesh &  mesh,
const vectorField &  cellCentres,
const vectorField &  faceCentres,
const vectorField &  faceAreas,
const labelList &  checkFaces,
const List< labelPair > &  baffles,
labelHashSet *  setPtr
)
static

Definition at line 1128 of file polyMeshGeometry.C.

References polyMesh::boundaryMesh(), coupled(), Foam::endl(), polyMesh::faceNeighbour(), polyMesh::faceOwner(), Foam::Info, HashSet::insert(), primitiveMesh::isInternalFace(), Foam::mag(), mesh, Foam::min(), primitiveMesh::nBoundaryFaces(), primitiveMesh::nFaces(), primitiveMesh::nInternalFaces(), Foam::nl, patches, Foam::Pout, Foam::reduce(), syncTools::swapBoundaryFacePositions(), WarningInFunction, and polyBoundaryMesh::whichPatch().

Referenced by motionSmootherAlgo::checkMesh().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ checkVolRatio() [1/2]

bool checkVolRatio ( const bool  report,
const scalar  warnRatio,
const polyMesh &  mesh,
const scalarField &  cellVolumes,
const labelList &  checkFaces,
const List< labelPair > &  baffles,
labelHashSet *  setPtr
)
static

Definition at line 1276 of file polyMeshGeometry.C.

References polyMesh::boundaryMesh(), coupled(), Foam::endl(), polyMesh::faceNeighbour(), polyMesh::faceOwner(), Foam::Info, HashSet::insert(), primitiveMesh::isInternalFace(), Foam::mag(), Foam::max(), mesh, Foam::min(), primitiveMesh::nBoundaryFaces(), primitiveMesh::nFaces(), primitiveMesh::nInternalFaces(), Foam::nl, patches, Foam::Pout, Foam::reduce(), syncTools::swapBoundaryFaceList(), WarningInFunction, and polyBoundaryMesh::whichPatch().

Referenced by motionSmootherAlgo::checkMesh().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ checkFaceAngles() [1/2]

bool checkFaceAngles ( const bool  report,
const scalar  maxDeg,
const polyMesh &  mesh,
const vectorField &  faceAreas,
const pointField &  p,
const labelList &  checkFaces,
labelHashSet *  setPtr
)
static

Definition at line 1412 of file polyMeshGeometry.C.

References Foam::abort(), Foam::asin(), Foam::degToRad(), Foam::endl(), f(), polyMesh::faces(), Foam::FatalError, FatalErrorInFunction, forAll, Foam::Info, HashSet::insert(), Foam::mag(), Foam::max(), mesh, Foam::min(), Foam::normalised(), p, Foam::radToDeg(), Foam::reduce(), Foam::sin(), and WarningInFunction.

Referenced by motionSmootherAlgo::checkMesh().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ checkFaceTwist() [1/2]

bool checkFaceTwist ( const bool  report,
const scalar  minTwist,
const polyMesh &  mesh,
const vectorField &  cellCentres,
const vectorField &  faceAreas,
const vectorField &  faceCentres,
const pointField &  p,
const labelList &  checkFaces,
labelHashSet *  setPtr
)
static

Definition at line 1540 of file polyMeshGeometry.C.

References Foam::abort(), triangle::areaNormal(), polyMesh::boundaryMesh(), Foam::endl(), f(), polyMesh::faceNeighbour(), polyMesh::faceOwner(), polyMesh::faces(), Foam::FatalError, FatalErrorInFunction, forAll, Foam::Info, HashSet::insert(), primitiveMesh::isInternalFace(), Foam::mag(), mesh, primitiveMesh::nBoundaryFaces(), primitiveMesh::nFaces(), primitiveMesh::nInternalFaces(), Foam::nl, Foam::normalised(), p, patches, Foam::reduce(), syncTools::swapBoundaryFacePositions(), WarningInFunction, polyBoundaryMesh::whichPatch(), VectorSpace< Vector< scalar >, scalar, 3 >::zero, and Foam::Zero.

Referenced by motionSmootherAlgo::checkMesh().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ checkTriangleTwist() [1/2]

bool checkTriangleTwist ( const bool  report,
const scalar  minTwist,
const polyMesh &  mesh,
const vectorField &  faceAreas,
const vectorField &  faceCentres,
const pointField &  p,
const labelList &  checkFaces,
labelHashSet *  setPtr
)
static

Definition at line 1686 of file polyMeshGeometry.C.

References Foam::abort(), triangle::areaNormal(), Foam::endl(), f(), polyMesh::faces(), Foam::FatalError, FatalErrorInFunction, forAll, Foam::Info, HashSet::insert(), Foam::mag(), mesh, Foam::nl, p, Foam::reduce(), and WarningInFunction.

Referenced by motionSmootherAlgo::checkMesh().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ checkFaceFlatness() [1/2]

bool checkFaceFlatness ( const bool  report,
const scalar  minFlatness,
const polyMesh &  mesh,
const vectorField &  faceAreas,
const vectorField &  faceCentres,
const pointField &  p,
const labelList &  checkFaces,
labelHashSet *  setPtr
)
static

Definition at line 1832 of file polyMeshGeometry.C.

References Foam::abort(), Foam::endl(), f(), polyMesh::faces(), Foam::FatalError, FatalErrorInFunction, forAll, Foam::Info, HashSet::insert(), Foam::mag(), mesh, Foam::nl, p, Foam::reduce(), and WarningInFunction.

Referenced by motionSmootherAlgo::checkMesh().

Here is the call graph for this function:
Here is the caller graph for this function:

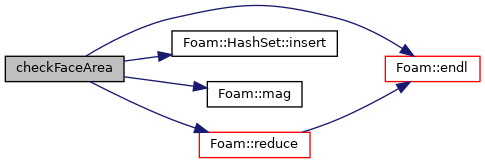

◆ checkFaceArea() [1/2]

bool checkFaceArea ( const bool  report,
const scalar  minArea,
const polyMesh &  mesh,
const vectorField &  faceAreas,
const labelList &  checkFaces,
labelHashSet *  setPtr
)
static

Definition at line 1925 of file polyMeshGeometry.C.

References Foam::endl(), Foam::Info, HashSet::insert(), Foam::mag(), Foam::nl, Foam::reduce(), and WarningInFunction.

Referenced by motionSmootherAlgo::checkMesh().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ checkCellDeterminant() [1/2]

bool checkCellDeterminant ( const bool  report,
const scalar  minDet,
const polyMesh &  mesh,
const vectorField &  faceAreas,
const labelList &  checkFaces,
const labelList &  affectedCells,
labelHashSet *  setPtr
)
static

Definition at line 1982 of file polyMeshGeometry.C.

References cells, primitiveMesh::cells(), Foam::det(), Foam::endl(), Foam::Info, HashSet::insert(), Foam::mag(), mesh, Foam::min(), Foam::nl, Foam::reduce(), WarningInFunction, and Foam::Zero.

Referenced by motionSmootherAlgo::checkMesh().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ checkFaceDotProduct() [2/2]

bool checkFaceDotProduct ( const bool  report,
const scalar  orthWarn,
const labelList &  checkFaces,
const List< labelPair > &  baffles,
labelHashSet *  setPtr
) const

Definition at line 2074 of file polyMeshGeometry.C.

◆ checkFacePyramids() [2/2]

bool checkFacePyramids ( const bool  report,
const scalar  minPyrVol,
const pointField &  p,
const labelList &  checkFaces,
const List< labelPair > &  baffles,
labelHashSet *  setPtr
) const

Definition at line 2097 of file polyMeshGeometry.C.

References p.

◆ checkFaceTets() [2/2]

bool checkFaceTets ( const bool  report,
const scalar  minTetQuality,
const pointField &  p,
const labelList &  checkFaces,
const List< labelPair > &  baffles,
labelHashSet *  setPtr
) const

Definition at line 2121 of file polyMeshGeometry.C.

References p.

◆ checkFaceWeights() [2/2]

bool checkFaceWeights ( const bool  report,
const scalar  warnWeight,
const labelList &  checkFaces,
const List< labelPair > &  baffles,
labelHashSet *  setPtr
) const

Definition at line 2172 of file polyMeshGeometry.C.

◆ checkVolRatio() [2/2]

bool checkVolRatio ( const bool  report,
const scalar  warnRatio,
const labelList &  checkFaces,
const List< labelPair > &  baffles,
labelHashSet *  setPtr
) const

Definition at line 2196 of file polyMeshGeometry.C.

◆ checkFaceAngles() [2/2]

bool checkFaceAngles ( const bool  report,
const scalar  maxDeg,
const pointField &  p,
const labelList &  checkFaces,
labelHashSet *  setPtr
) const

Definition at line 2218 of file polyMeshGeometry.C.

References p.

◆ checkFaceTwist() [2/2]

bool checkFaceTwist ( const bool  report,
const scalar  minTwist,
const pointField &  p,
const labelList &  checkFaces,
labelHashSet *  setPtr
) const

Definition at line 2240 of file polyMeshGeometry.C.

References p.

◆ checkTriangleTwist() [2/2]

bool checkTriangleTwist ( const bool  report,
const scalar  minTwist,
const pointField &  p,
const labelList &  checkFaces,
labelHashSet *  setPtr
) const

Definition at line 2264 of file polyMeshGeometry.C.

References p.

◆ checkFaceFlatness() [2/2]

bool checkFaceFlatness ( const bool  report,
const scalar  minFlatness,
const pointField &  p,
const labelList &  checkFaces,
labelHashSet *  setPtr
) const

Definition at line 2287 of file polyMeshGeometry.C.

References p.

◆ checkFaceArea() [2/2]

bool checkFaceArea ( const bool  report,
const scalar  minArea,
const labelList &  checkFaces,
labelHashSet *  setPtr
) const

Definition at line 2310 of file polyMeshGeometry.C.

◆ checkCellDeterminant() [2/2]

bool checkCellDeterminant ( const bool  report,
const scalar  warnDet,
const labelList &  checkFaces,
const labelList &  affectedCells,
labelHashSet *  setPtr
) const

Definition at line 2330 of file polyMeshGeometry.C.

The documentation for this class was generated from the following files:

Copyright © 2011-2018  OpenFOAM | OPENFOAM® is a registered trademark of OpenCFD Ltd.

Generated by   doxygen 1.8.17
