optMeshMovementVolumetricBSplinesExternalMotionSolver Class Reference

Converts NURBS volume control points update to actual mesh movement. Internal points are moved based on a motionSolver other than volumetricBSplinesExternalMotionSolver. More...

Inheritance diagram for optMeshMovementVolumetricBSplinesExternalMotionSolver:

Collaboration diagram for optMeshMovementVolumetricBSplinesExternalMotionSolver:

Public Member Functions
	TypeName ("volumetricBSplinesExternalMotionSolver")
	optMeshMovementVolumetricBSplinesExternalMotionSolver (fvMesh &mesh, const dictionary &dict, const labelList &patchIDs)
virtual	~optMeshMovementVolumetricBSplinesExternalMotionSolver ()=default
void	moveMesh ()
virtual scalar	computeEta (const scalarField &correction)
virtual labelList	getActiveDesignVariables () const
Public Member Functions inherited from optMeshMovement
	TypeName ("optMeshMovement")
	declareRunTimeSelectionTable (autoPtr, optMeshMovement, dictionary,(fvMesh &mesh, const dictionary &dict, const labelList &patchIDs),(mesh, dict, patchIDs))
	optMeshMovement (fvMesh &mesh, const dictionary &dict, const labelList &patchIDs)
virtual	~optMeshMovement ()=default
void	setCorrection (const scalarField &correction)
autoPtr< displacementMethod > &	returnDisplacementMethod ()
const labelList &	getPatchIDs ()
void	writeMeshQualityMetrics ()
virtual void	storeDesignVariables ()
virtual void	resetDesignVariables ()
bool	maxAllowedDisplacementSet () const

Protected Member Functions
void	computeBoundaryMovement (const scalarField &correction)
Protected Member Functions inherited from optMeshMovement
scalar	getMaxAllowedDisplacement () const

Protected Attributes
volBSplinesBase &	volBSplinesBase_
pointVectorField	dx_
vectorField	cpMovement_
Protected Attributes inherited from optMeshMovement
fvMesh &	mesh_
const dictionary &	dict_
scalarField	correction_
labelList	patchIDs_
vectorField	pointsInit_
autoPtr< displacementMethod >	displMethodPtr_
bool	writeMeshQualityMetrics_

Additional Inherited Members
Static Public Member Functions inherited from optMeshMovement
static autoPtr< optMeshMovement >	New (fvMesh &mesh, const dictionary &dict, const labelList &patchIDs)

Detailed Description

Converts NURBS volume control points update to actual mesh movement. Internal points are moved based on a motionSolver other than volumetricBSplinesExternalMotionSolver.

Source files

• optMeshMovementVolumetricBSplinesExternalMotionSolver.H
• optMeshMovementVolumetricBSplinesExternalMotionSolver.C

Definition at line 51 of file optMeshMovementVolumetricBSplinesExternalMotionSolver.H.

Constructor & Destructor Documentation

optMeshMovementVolumetricBSplinesExternalMotionSolver()

optMeshMovementVolumetricBSplinesExternalMotionSolver	(	fvMesh &	mesh,
		const dictionary &	dict,
		const labelList &	patchIDs
	)

Definition at line 102 of file optMeshMovementVolumetricBSplinesExternalMotionSolver.C.

~optMeshMovementVolumetricBSplinesExternalMotionSolver()

virtual ~optMeshMovementVolumetricBSplinesExternalMotionSolver ( )

virtualdefault

Member Function Documentation

computeBoundaryMovement()

void computeBoundaryMovement ( const scalarField &  correction )

protected

Definition at line 49 of file optMeshMovementVolumetricBSplinesExternalMotionSolver.C.

References Foam::correction(), and forAll.

Referenced by optMeshMovementVolumetricBSplinesExternalMotionSolver::moveMesh().

Here is the call graph for this function:

Here is the caller graph for this function:

TypeName()

TypeName

(

"volumetricBSplinesExternalMotionSolver"

)

moveMesh()

void moveMesh ( )

virtual

Reimplemented from optMeshMovement.

Definition at line 133 of file optMeshMovementVolumetricBSplinesExternalMotionSolver.C.

References optMeshMovementVolumetricBSplinesExternalMotionSolver::computeBoundaryMovement(), optMeshMovement::correction_, optMeshMovementVolumetricBSplinesExternalMotionSolver::cpMovement_, optMeshMovement::displMethodPtr_, optMeshMovementVolumetricBSplinesExternalMotionSolver::dx_, volBSplinesBase::moveControlPoints(), optMeshMovement::moveMesh(), optMeshMovementVolumetricBSplinesExternalMotionSolver::volBSplinesBase_, and volBSplinesBase::writeControlPoints().

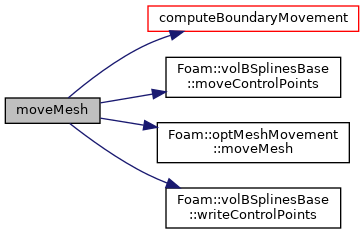

Here is the call graph for this function:

computeEta()

Foam::scalar computeEta ( const scalarField &  correction )

virtual

Implements optMeshMovement.

Definition at line 156 of file optMeshMovementVolumetricBSplinesExternalMotionSolver.C.

References Foam::correction(), Foam::endl(), Foam::gMax(), Foam::Info, and Foam::mag().

Here is the call graph for this function:

getActiveDesignVariables()

Foam::labelList getActiveDesignVariables ( ) const

virtual

Reimplemented from optMeshMovement.

Definition at line 176 of file optMeshMovementVolumetricBSplinesExternalMotionSolver.C.

Member Data Documentation

volBSplinesBase_

volBSplinesBase& volBSplinesBase_

protected

Definition at line 60 of file optMeshMovementVolumetricBSplinesExternalMotionSolver.H.

Referenced by optMeshMovementVolumetricBSplinesExternalMotionSolver::moveMesh().

dx_

pointVectorField dx_

protected

Definition at line 63 of file optMeshMovementVolumetricBSplinesExternalMotionSolver.H.

Referenced by optMeshMovementVolumetricBSplinesExternalMotionSolver::moveMesh().

cpMovement_

vectorField cpMovement_

protected

Definition at line 66 of file optMeshMovementVolumetricBSplinesExternalMotionSolver.H.

Referenced by optMeshMovementVolumetricBSplinesExternalMotionSolver::moveMesh().

---

The documentation for this class was generated from the following files:

• src/optimisation/adjointOptimisation/adjoint/optimisation/optMeshMovement/optMeshMovementVolumetricBSplinesExternalMotionSolver/optMeshMovementVolumetricBSplinesExternalMotionSolver.H
• src/optimisation/adjointOptimisation/adjoint/optimisation/optMeshMovement/optMeshMovementVolumetricBSplinesExternalMotionSolver/optMeshMovementVolumetricBSplinesExternalMotionSolver.C
