optMeshMovement Class Reference

Abstract base class for translating an update of the design variables into mesh movement. More...

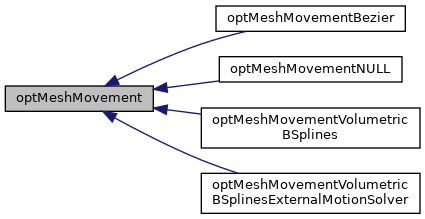

Inheritance diagram for optMeshMovement:

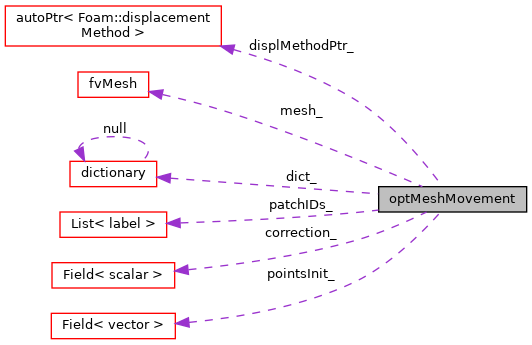

Collaboration diagram for optMeshMovement:

Public Member Functions
	TypeName ("optMeshMovement")
	declareRunTimeSelectionTable (autoPtr, optMeshMovement, dictionary,(fvMesh &mesh, const dictionary &dict, const labelList &patchIDs),(mesh, dict, patchIDs))
	optMeshMovement (fvMesh &mesh, const dictionary &dict, const labelList &patchIDs)
virtual	~optMeshMovement ()=default
void	setCorrection (const scalarField &correction)
virtual void	moveMesh ()
autoPtr< displacementMethod > &	returnDisplacementMethod ()
const labelList &	getPatchIDs ()
void	writeMeshQualityMetrics ()
virtual void	storeDesignVariables ()
virtual void	resetDesignVariables ()
virtual scalar	computeEta (const scalarField &correction)=0
bool	maxAllowedDisplacementSet () const
virtual labelList	getActiveDesignVariables () const

Static Public Member Functions
static autoPtr< optMeshMovement >	New (fvMesh &mesh, const dictionary &dict, const labelList &patchIDs)

Protected Member Functions
scalar	getMaxAllowedDisplacement () const

Protected Attributes
fvMesh &	mesh_
const dictionary &	dict_
scalarField	correction_
labelList	patchIDs_
vectorField	pointsInit_
autoPtr< displacementMethod >	displMethodPtr_
bool	writeMeshQualityMetrics_

Detailed Description

Abstract base class for translating an update of the design variables into mesh movement.

Source files

• optMeshMovement.H
• optMeshMovement.C

Definition at line 50 of file optMeshMovement.H.

Constructor & Destructor Documentation

optMeshMovement()

optMeshMovement	(	fvMesh &	mesh,
		const dictionary &	dict,
		const labelList &	patchIDs
	)

Definition at line 54 of file optMeshMovement.C.

References dict, dictionary::found(), and dictionary::get().

Here is the call graph for this function:

~optMeshMovement()

virtual ~optMeshMovement ( )

virtualdefault

Member Function Documentation

getMaxAllowedDisplacement()

Foam::scalar getMaxAllowedDisplacement ( ) const

protected

Definition at line 38 of file optMeshMovement.C.

References Foam::exit(), Foam::FatalError, FatalErrorInFunction, and Foam::nl.

Here is the call graph for this function:

TypeName()

TypeName

(

"optMeshMovement"

)

declareRunTimeSelectionTable()

declareRunTimeSelectionTable	(	autoPtr	,
		optMeshMovement	,
		dictionary	,
		(fvMesh &mesh, const dictionary &dict, const labelList &patchIDs)	,
		(mesh, dict, patchIDs)
	)

New()

Foam::autoPtr< Foam::optMeshMovement > New ( fvMesh &  mesh, const dictionary &  dict, const labelList &  patchIDs  )

static

Definition at line 86 of file optMeshMovement.C.

References dict, Foam::endl(), Foam::exit(), Foam::FatalIOError, FatalIOErrorInLookup, dictionary::get(), Foam::Info, and mesh.

Referenced by shapeOptimisation::shapeOptimisation().

Here is the call graph for this function:

Here is the caller graph for this function:

setCorrection()

void setCorrection

(

const scalarField &

correction

)

Definition at line 115 of file optMeshMovement.C.

References Foam::correction().

Here is the call graph for this function:

moveMesh()

void moveMesh ( )

virtual

Reimplemented in optMeshMovementVolumetricBSplinesExternalMotionSolver, optMeshMovementBezier, optMeshMovementVolumetricBSplines, and optMeshMovementNULL.

Definition at line 121 of file optMeshMovement.C.

Referenced by optMeshMovementBezier::moveMesh(), optMeshMovementVolumetricBSplines::moveMesh(), and optMeshMovementVolumetricBSplinesExternalMotionSolver::moveMesh().

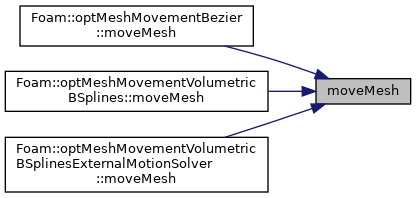

Here is the caller graph for this function:

returnDisplacementMethod()

Foam::autoPtr< Foam::displacementMethod > & returnDisplacementMethod

(

)

Definition at line 135 of file optMeshMovement.C.

getPatchIDs()

const Foam::labelList & getPatchIDs

(

)

Definition at line 141 of file optMeshMovement.C.

writeMeshQualityMetrics()

void writeMeshQualityMetrics

(

)

Definition at line 147 of file optMeshMovement.C.

References Foam::dimless, Foam::endl(), Foam::gAverage(), Foam::gMax(), Foam::Info, cellQuality::nonOrthogonality(), and cellQuality::skewness().

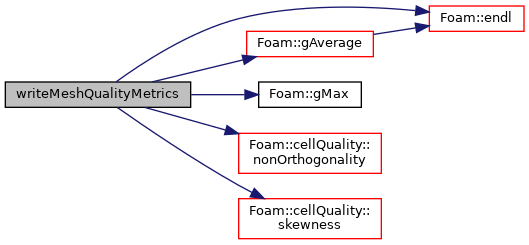

Here is the call graph for this function:

storeDesignVariables()

void storeDesignVariables ( )

virtual

Reimplemented in optMeshMovementVolumetricBSplines.

Definition at line 175 of file optMeshMovement.C.

Referenced by optMeshMovementVolumetricBSplines::storeDesignVariables().

Here is the caller graph for this function:

resetDesignVariables()

void resetDesignVariables ( )

virtual

Reimplemented in optMeshMovementVolumetricBSplines.

Definition at line 181 of file optMeshMovement.C.

References Foam::endl(), and Foam::Info.

Referenced by optMeshMovementVolumetricBSplines::resetDesignVariables().

Here is the call graph for this function:

Here is the caller graph for this function:

computeEta()

virtual scalar computeEta ( const scalarField &  correction )

pure virtual

Implemented in optMeshMovementVolumetricBSplines, optMeshMovementVolumetricBSplinesExternalMotionSolver, optMeshMovementBezier, and optMeshMovementNULL.

maxAllowedDisplacementSet()

bool maxAllowedDisplacementSet

(

)

const

Definition at line 188 of file optMeshMovement.C.

getActiveDesignVariables()

Foam::labelList getActiveDesignVariables ( ) const

virtual

Reimplemented in optMeshMovementVolumetricBSplines, optMeshMovementVolumetricBSplinesExternalMotionSolver, and optMeshMovementBezier.

Definition at line 194 of file optMeshMovement.C.

References NotImplemented.

Member Data Documentation

mesh_

fvMesh& mesh_

protected

Definition at line 73 of file optMeshMovement.H.

dict_

const dictionary& dict_

protected

Definition at line 74 of file optMeshMovement.H.

correction_

scalarField correction_

protected

Definition at line 77 of file optMeshMovement.H.

Referenced by optMeshMovementBezier::moveMesh(), optMeshMovementVolumetricBSplines::moveMesh(), and optMeshMovementVolumetricBSplinesExternalMotionSolver::moveMesh().

patchIDs_

labelList patchIDs_

protected

Definition at line 80 of file optMeshMovement.H.

pointsInit_

vectorField pointsInit_

protected

Definition at line 83 of file optMeshMovement.H.

displMethodPtr_

autoPtr<displacementMethod> displMethodPtr_

protected

Definition at line 87 of file optMeshMovement.H.

Referenced by optMeshMovementBezier::moveMesh(), optMeshMovementVolumetricBSplines::moveMesh(), and optMeshMovementVolumetricBSplinesExternalMotionSolver::moveMesh().

writeMeshQualityMetrics_

bool writeMeshQualityMetrics_

protected

Definition at line 91 of file optMeshMovement.H.

---

The documentation for this class was generated from the following files:

• src/optimisation/adjointOptimisation/adjoint/optimisation/optMeshMovement/optMeshMovement/optMeshMovement.H
• src/optimisation/adjointOptimisation/adjoint/optimisation/optMeshMovement/optMeshMovement/optMeshMovement.C
