The class nutWallFunction is a base class that parents the derived boundary conditions which provide a wall constraint on various fields, such as turbulent viscosity, i.e. nut, or turbulent kinetic energy dissipation rate, i.e. epsilon, for low- and high-Reynolds number turbulence models. The class is not an executable itself, yet a provider for common entries to its derived boundary conditions. More...

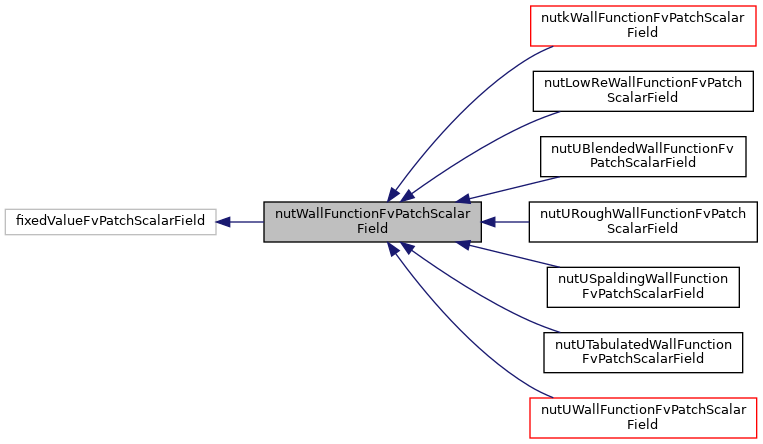

Inheritance diagram for nutWallFunctionFvPatchScalarField:

[legend]

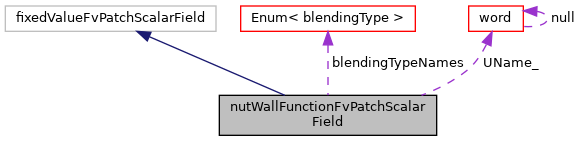

Collaboration diagram for nutWallFunctionFvPatchScalarField:

[legend]

Public Member Functions
	TypeName ("nutWallFunction")

	nutWallFunctionFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &)

	nutWallFunctionFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)

	nutWallFunctionFvPatchScalarField (const nutWallFunctionFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fvPatchFieldMapper &)

	nutWallFunctionFvPatchScalarField (const nutWallFunctionFvPatchScalarField &)

	nutWallFunctionFvPatchScalarField (const nutWallFunctionFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)

scalar	Cmu () const

scalar	kappa () const

scalar	E () const

scalar	yPlusLam () const

scalar	blend (const scalar nutVis, const scalar nutLog, const scalar yPlus) const

virtual tmp< scalarField >	yPlus () const =0

virtual void	updateCoeffs ()

virtual void	write (Ostream &) const

Static Public Member Functions
static const nutWallFunctionFvPatchScalarField &	nutw (const turbulenceModel &turbModel, const label patchi)

static scalar	yPlusLam (const scalar kappa, const scalar E)

Protected Types
enum	blendingType { STEPWISE, MAX, BINOMIAL, EXPONENTIAL }

Protected Member Functions
virtual const volVectorField &	U (const turbulenceModel &turb) const

virtual void	checkType ()

virtual tmp< scalarField >	calcNut () const =0

virtual void	writeLocalEntries (Ostream &) const

Protected Attributes
enum blendingType	blending_

const scalar	n_

word	UName_

scalar	Cmu_

scalar	kappa_

scalar	E_

scalar	yPlusLam_

Static Protected Attributes
static const Enum< blendingType >	blendingTypeNames

Detailed Description

The class nutWallFunction is a base class that parents the derived boundary conditions which provide a wall constraint on various fields, such as turbulent viscosity, i.e. nut, or turbulent kinetic energy dissipation rate, i.e. epsilon, for low- and high-Reynolds number turbulence models. The class is not an executable itself, yet a provider for common entries to its derived boundary conditions.

Reference:

    Default model coefficients (tag:VM):
        Versteeg, H. K., & Malalasekera, W. (2011).
        An introduction to computational fluid dynamics: The finite
        volume method. Harlow: Pearson Education.
        Subsection "3.5.2 k-epsilon model".

    Binomial blending of the viscous and inertial sublayers (tag:ME):
        Menter, F., & Esch, T. (2001).
        Elements of industrial heat transfer prediction.
        In Proceedings of the 16th Brazilian Congress of Mechanical
        Engineering (COBEM), November 2001. vol. 20, p. 117-127.

    Exponential/Max blending of the viscous and inertial sublayers (tag:PH):
        Popovac, M., & Hanjalić, K. (2007).
        Compound wall treatment for RANS computation of complex
        turbulent flows and heat transfer.
        Flow, turbulence and combustion, 78(2), 177-202.
        DOI:10.1007/s10494-006-9067-x

Usage

Example of the boundary condition specification:

<patchName>
{
    // Mandatory and other optional entries
    ...

    // Optional (inherited) entries
    Cmu             0.09;
    kappa           0.41;
    E               9.8;
    blending        stepwise;
    n               4.0;
    U               U;

    // Optional (inherited) entries
    ...
}

where the entries mean:

Property	Description	Type	Req'd	Dflt
`Cmu`	Empirical model coefficient	scalar	no	0.09
`kappa`	von Kármán constant	scalar	no	0.41
`E`	Wall roughness parameter	scalar	no	9.8
`blending`	Viscous/inertial sublayer blending	word	no	stepwise
`n`	Binomial blending exponent	scalar	no	2.0
`U`	Name of the velocity field	word	no	U

The inherited entries are elaborated in:

fixedValueFvPatchFields.H

Options for the blending entry:

      stepwise    | Stepwise switch (discontinuous)
      max         | Maximum value switch (discontinuous)
      binomial    | Binomial blending (smooth)
      exponential | Exponential blending (smooth)

wherein nut predictions for the viscous and inertial sublayers are blended according to the following expressions:

stepwise (default):

$\nu_t = {\nu_t}_{log} \qquad if \quad y^+ > y^+_{lam}$

$\nu_t = {\nu_t}_{vis} \qquad if \quad y^+ <= y^+_{lam}$

where

${\nu_t}_{vis}$	=	$\nu_t$ prediction in the viscous sublayer
${\nu_t}_{log}$	=	$\nu_t$ prediction in the inertial sublayer
	=	estimated wall-normal height of the cell centre in wall units
$y^+_{lam}$	=	estimated intersection of the viscous and inertial sublayers

max (PH:Eq. 27):

$\nu_t = max({\nu_t}_{vis}, {\nu_t}_{log})$

binomial (ME:Eqs. 15-16):

$\nu_t = (({\nu_t}_{vis})^n + ({\nu_t}_{log})^n)^{1/n}$

where

=

Binomial blending exponent

exponential (PH:Eq. 32):

$\nu_t = {\nu_t}_{vis} \exp[-\Gamma] + {\nu_t}_{log} \exp[-1/\Gamma]$

where (PH:Eq. 31)

$\Gamma$	=	Blending expression
$\Gamma$	=

See also

Foam::fixedValueFvPatchField

Source files

Definition at line 247 of file nutWallFunctionFvPatchScalarField.H.

Member Enumeration Documentation

◆ blendingType

enum blendingType

protected

Enumerator
STEPWISE	"Stepwise switch (discontinuous)"
MAX	"Maximum value switch (discontinuous)"
BINOMIAL	"Binomial blending (smooth)"
EXPONENTIAL	"Exponential blending (smooth)"

Definition at line 256 of file nutWallFunctionFvPatchScalarField.H.

Constructor & Destructor Documentation

◆ nutWallFunctionFvPatchScalarField() [1/5]

nutWallFunctionFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF
	)

Definition at line 109 of file nutWallFunctionFvPatchScalarField.C.

◆ nutWallFunctionFvPatchScalarField() [2/5]

nutWallFunctionFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const dictionary &	dict
	)

Definition at line 149 of file nutWallFunctionFvPatchScalarField.C.

◆ nutWallFunctionFvPatchScalarField() [3/5]

nutWallFunctionFvPatchScalarField	(	const nutWallFunctionFvPatchScalarField &	ptf,
		const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const fvPatchFieldMapper &	mapper
	)

Definition at line 128 of file nutWallFunctionFvPatchScalarField.C.

◆ nutWallFunctionFvPatchScalarField() [4/5]

nutWallFunctionFvPatchScalarField ( const nutWallFunctionFvPatchScalarField & wfpsf )

Definition at line 188 of file nutWallFunctionFvPatchScalarField.C.

◆ nutWallFunctionFvPatchScalarField() [5/5]

nutWallFunctionFvPatchScalarField	(	const nutWallFunctionFvPatchScalarField &	wfpsf,
		const DimensionedField< scalar, volMesh > &	iF
	)

Definition at line 206 of file nutWallFunctionFvPatchScalarField.C.

Member Function Documentation

◆ U()

const Foam::volVectorField & U ( const turbulenceModel & turb ) const

protectedvirtual

Definition at line 68 of file nutWallFunctionFvPatchScalarField.C.

References word::null, and turb.

Referenced by nutUWallFunctionFvPatchScalarField::calcNut(), nutUTabulatedWallFunctionFvPatchScalarField::calcNut(), nutUBlendedWallFunctionFvPatchScalarField::calcNut(), nutUSpaldingWallFunctionFvPatchScalarField::calcNut(), and atmNutUWallFunctionFvPatchScalarField::calcNut().

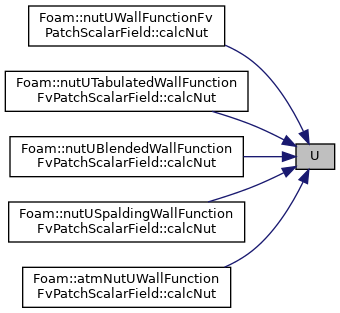

Here is the caller graph for this function:

◆ checkType()

void checkType ( )

protectedvirtual

Definition at line 53 of file nutWallFunctionFvPatchScalarField.C.

References Foam::abort(), Foam::endl(), Foam::FatalError, FatalErrorInFunction, Foam::nl, and Foam::foamVersion::patch.

Here is the call graph for this function:

◆ calcNut()

virtual tmp<scalarField> calcNut ( ) const

protectedpure virtual

Implemented in atmNutWallFunctionFvPatchScalarField, atmNutkWallFunctionFvPatchScalarField, atmNutUWallFunctionFvPatchScalarField, nutUSpaldingWallFunctionFvPatchScalarField, nutUBlendedWallFunctionFvPatchScalarField, nutkRoughWallFunctionFvPatchScalarField, nutUTabulatedWallFunctionFvPatchScalarField, nutUWallFunctionFvPatchScalarField, nutkWallFunctionFvPatchScalarField, nutLowReWallFunctionFvPatchScalarField, and nutkFilmWallFunctionFvPatchScalarField.

◆ writeLocalEntries()

void writeLocalEntries ( Ostream & os ) const

protectedvirtual

Reimplemented in nutUSpaldingWallFunctionFvPatchScalarField.

Definition at line 84 of file nutWallFunctionFvPatchScalarField.C.

References word::null, os(), and Ostream::writeEntry().

Referenced by nutkFilmWallFunctionFvPatchScalarField::write(), atmNutUWallFunctionFvPatchScalarField::write(), atmNutkWallFunctionFvPatchScalarField::write(), atmNutWallFunctionFvPatchScalarField::write(), and nutUSpaldingWallFunctionFvPatchScalarField::writeLocalEntries().

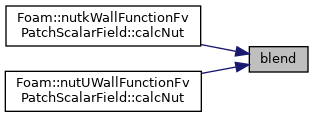

Here is the call graph for this function:

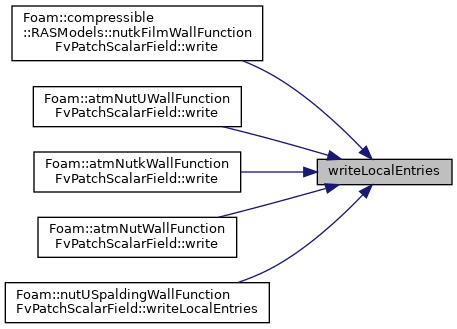

Here is the caller graph for this function:

◆ TypeName()

TypeName ( "nutWallFunction" )

◆ Cmu()

scalar Cmu ( ) const

inline

Definition at line 365 of file nutWallFunctionFvPatchScalarField.H.

References nutWallFunctionFvPatchScalarField::Cmu_.

Referenced by atmOmegaWallFunctionFvPatchScalarField::calculate(), atmEpsilonWallFunctionFvPatchScalarField::calculate(), epsilonWallFunctionFvPatchScalarField::calculate(), and omegaWallFunctionFvPatchScalarField::calculate().

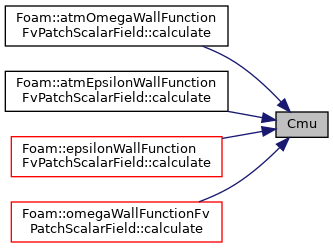

Here is the caller graph for this function:

◆ kappa()

scalar kappa ( ) const

inline

Definition at line 371 of file nutWallFunctionFvPatchScalarField.H.

References nutWallFunctionFvPatchScalarField::kappa_.

Referenced by atmOmegaWallFunctionFvPatchScalarField::calculate(), atmEpsilonWallFunctionFvPatchScalarField::calculate(), epsilonWallFunctionFvPatchScalarField::calculate(), and omegaWallFunctionFvPatchScalarField::calculate().

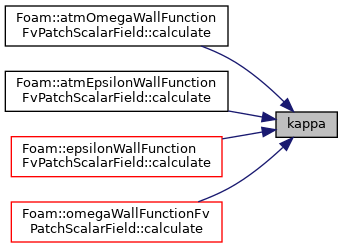

Here is the caller graph for this function:

◆ E()

scalar E ( ) const

inline

Definition at line 377 of file nutWallFunctionFvPatchScalarField.H.

References nutWallFunctionFvPatchScalarField::E_.

◆ nutw()

const Foam::nutWallFunctionFvPatchScalarField & nutw	(	const turbulenceModel &	turbModel,
		const label	patchi
	)

static

Definition at line 228 of file nutWallFunctionFvPatchScalarField.C.

References turbulenceModel::nut().

Here is the call graph for this function:

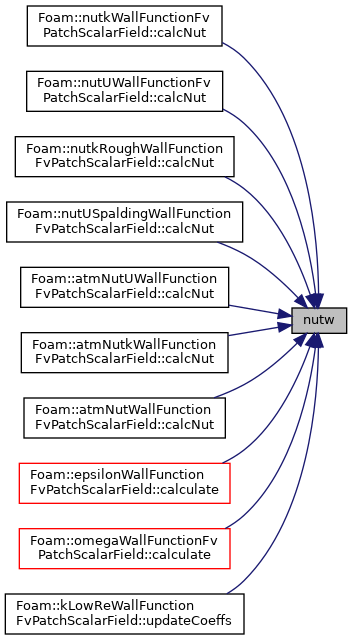

Here is the caller graph for this function:

◆ yPlusLam() [1/2]

Foam::scalar yPlusLam	(	const scalar	kappa,
		const scalar	E
	)

static

Definition at line 243 of file nutWallFunctionFvPatchScalarField.C.

References Foam::constant::electromagnetic::kappa, Foam::log(), and Foam::max().

Referenced by atmEpsilonWallFunctionFvPatchScalarField::calculate(), epsilonWallFunctionFvPatchScalarField::calculate(), and omegaWallFunctionFvPatchScalarField::calculate().

Here is the call graph for this function:

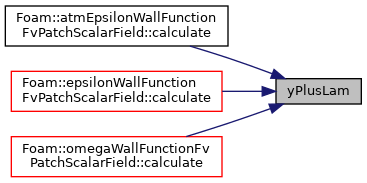

Here is the caller graph for this function:

◆ yPlusLam() [2/2]

Foam::scalar yPlusLam ( ) const

Definition at line 317 of file nutWallFunctionFvPatchScalarField.C.

◆ blend()

Foam::scalar blend	(	const scalar	nutVis,
		const scalar	nutLog,
		const scalar	yPlus
	)		const

Definition at line 260 of file nutWallFunctionFvPatchScalarField.C.

References Foam::exp(), Foam::max(), Foam::pow(), Foam::pow4(), and yPlus.

Referenced by nutkWallFunctionFvPatchScalarField::calcNut(), and nutUWallFunctionFvPatchScalarField::calcNut().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ yPlus()

virtual tmp<scalarField> yPlus ( ) const

pure virtual

Implemented in nutURoughWallFunctionFvPatchScalarField, nutUSpaldingWallFunctionFvPatchScalarField, nutUBlendedWallFunctionFvPatchScalarField, nutUTabulatedWallFunctionFvPatchScalarField, nutUWallFunctionFvPatchScalarField, nutkWallFunctionFvPatchScalarField, nutLowReWallFunctionFvPatchScalarField, and nutkFilmWallFunctionFvPatchScalarField.

Referenced by yPlus::execute(), and alphatJayatillekeWallFunctionFvPatchScalarField::yPlus().

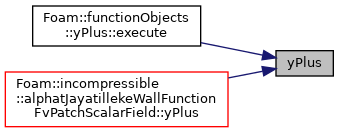

Here is the caller graph for this function:

◆ updateCoeffs()

void updateCoeffs ( )

virtual

Definition at line 323 of file nutWallFunctionFvPatchScalarField.C.

References Foam::operator==().

Here is the call graph for this function:

◆ write()

void write ( Ostream & os ) const

virtual

Reimplemented in nutURoughWallFunctionFvPatchScalarField, nutUSpaldingWallFunctionFvPatchScalarField, nutUBlendedWallFunctionFvPatchScalarField, nutUTabulatedWallFunctionFvPatchScalarField, nutUWallFunctionFvPatchScalarField, nutkFilmWallFunctionFvPatchScalarField, atmNutWallFunctionFvPatchScalarField, atmNutkWallFunctionFvPatchScalarField, atmNutUWallFunctionFvPatchScalarField, and nutkRoughWallFunctionFvPatchScalarField.

Definition at line 337 of file nutWallFunctionFvPatchScalarField.C.

References os(), and fvPatchField::write().

Here is the call graph for this function:

Member Data Documentation

◆ blendingTypeNames

const Foam::Enum< Foam::nutWallFunctionFvPatchScalarField::blendingType > blendingTypeNames

staticprotected

Definition at line 265 of file nutWallFunctionFvPatchScalarField.H.

◆ blending_

enum blendingType blending_

protected

Definition at line 271 of file nutWallFunctionFvPatchScalarField.H.

◆ n_

const scalar n_

protected

Definition at line 275 of file nutWallFunctionFvPatchScalarField.H.

◆ UName_

word UName_

protected

Definition at line 280 of file nutWallFunctionFvPatchScalarField.H.

◆ Cmu_

scalar Cmu_

protected

Definition at line 283 of file nutWallFunctionFvPatchScalarField.H.

Referenced by nutkWallFunctionFvPatchScalarField::calcNut(), nutkRoughWallFunctionFvPatchScalarField::calcNut(), atmNutkWallFunctionFvPatchScalarField::calcNut(), atmNutWallFunctionFvPatchScalarField::calcNut(), and nutWallFunctionFvPatchScalarField::Cmu().

◆ kappa_

scalar kappa_

protected

Definition at line 286 of file nutWallFunctionFvPatchScalarField.H.

Referenced by nutkWallFunctionFvPatchScalarField::calcNut(), nutUWallFunctionFvPatchScalarField::calcNut(), nutkRoughWallFunctionFvPatchScalarField::calcNut(), atmNutUWallFunctionFvPatchScalarField::calcNut(), atmNutkWallFunctionFvPatchScalarField::calcNut(), atmNutWallFunctionFvPatchScalarField::calcNut(), and nutWallFunctionFvPatchScalarField::kappa().

◆ E_

scalar E_

protected

Definition at line 289 of file nutWallFunctionFvPatchScalarField.H.

Referenced by nutkWallFunctionFvPatchScalarField::calcNut(), nutUWallFunctionFvPatchScalarField::calcNut(), nutkRoughWallFunctionFvPatchScalarField::calcNut(), and nutWallFunctionFvPatchScalarField::E().

◆ yPlusLam_

scalar yPlusLam_

protected

Definition at line 293 of file nutWallFunctionFvPatchScalarField.H.

The documentation for this class was generated from the following files:

src/TurbulenceModels/turbulenceModels/derivedFvPatchFields/wallFunctions/nutWallFunctions/nutWallFunction/nutWallFunctionFvPatchScalarField.H
src/TurbulenceModels/turbulenceModels/derivedFvPatchFields/wallFunctions/nutWallFunctions/nutWallFunction/nutWallFunctionFvPatchScalarField.C

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Member Enumeration Documentation

◆ blendingType

Constructor & Destructor Documentation

◆ nutWallFunctionFvPatchScalarField() [1/5]

◆ nutWallFunctionFvPatchScalarField() [2/5]

◆ nutWallFunctionFvPatchScalarField() [3/5]

◆ nutWallFunctionFvPatchScalarField() [4/5]

◆ nutWallFunctionFvPatchScalarField() [5/5]

Member Function Documentation

◆ U()

◆ checkType()

◆ calcNut()

◆ writeLocalEntries()

◆ TypeName()

◆ Cmu()

◆ kappa()

◆ E()

◆ nutw()

◆ yPlusLam() [1/2]

◆ yPlusLam() [2/2]

◆ blend()

◆ yPlus()

◆ updateCoeffs()

◆ write()

Member Data Documentation

◆ blendingTypeNames

◆ blending_

◆ n_

◆ UName_

◆ Cmu_

◆ kappa_

◆ E_

◆ yPlusLam_
