nutUWallFunctionFvPatchScalarField Class Reference

This boundary condition provides a wall constraint on the turbulent viscosity, i.e. nut, based on velocity, i.e. U, for low- and high-Reynolds number turbulence models. More...

Inheritance diagram for nutUWallFunctionFvPatchScalarField:

Collaboration diagram for nutUWallFunctionFvPatchScalarField:

Public Member Functions
	TypeName ("nutUWallFunction")
	nutUWallFunctionFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &)
	nutUWallFunctionFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
	nutUWallFunctionFvPatchScalarField (const nutUWallFunctionFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fvPatchFieldMapper &)
	nutUWallFunctionFvPatchScalarField (const nutUWallFunctionFvPatchScalarField &)
virtual tmp< fvPatchScalarField >	clone () const
	nutUWallFunctionFvPatchScalarField (const nutUWallFunctionFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)
virtual tmp< fvPatchScalarField >	clone (const DimensionedField< scalar, volMesh > &iF) const
virtual tmp< scalarField >	yPlus () const
virtual void	write (Ostream &os) const
Public Member Functions inherited from nutWallFunctionFvPatchScalarField
	TypeName ("nutWallFunction")
	nutWallFunctionFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &)
	nutWallFunctionFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
	nutWallFunctionFvPatchScalarField (const nutWallFunctionFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fvPatchFieldMapper &)
	nutWallFunctionFvPatchScalarField (const nutWallFunctionFvPatchScalarField &)
	nutWallFunctionFvPatchScalarField (const nutWallFunctionFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)
scalar	Cmu () const
scalar	kappa () const
scalar	E () const
scalar	yPlusLam () const
scalar	blend (const scalar nutVis, const scalar nutLog, const scalar yPlus) const
virtual void	updateCoeffs ()

Protected Member Functions
virtual tmp< scalarField >	calcYPlus (const scalarField &magUp) const
virtual tmp< scalarField >	calcNut () const
Protected Member Functions inherited from nutWallFunctionFvPatchScalarField
virtual const volVectorField &	U (const turbulenceModel &turb) const
virtual void	checkType ()
virtual void	writeLocalEntries (Ostream &) const

Additional Inherited Members
Static Public Member Functions inherited from nutWallFunctionFvPatchScalarField
static const nutWallFunctionFvPatchScalarField &	nutw (const turbulenceModel &turbModel, const label patchi)
static scalar	yPlusLam (const scalar kappa, const scalar E)
Protected Types inherited from nutWallFunctionFvPatchScalarField
enum	blendingType { STEPWISE, MAX, BINOMIAL, EXPONENTIAL }
Protected Attributes inherited from nutWallFunctionFvPatchScalarField
enum blendingType	blending_
const scalar	n_
word	UName_
scalar	Cmu_
scalar	kappa_
scalar	E_
scalar	yPlusLam_
Static Protected Attributes inherited from nutWallFunctionFvPatchScalarField
static const Enum< blendingType >	blendingTypeNames

Detailed Description

This boundary condition provides a wall constraint on the turbulent viscosity, i.e. nut, based on velocity, i.e. U, for low- and high-Reynolds number turbulence models.

Usage

Example of the boundary condition specification:

<patchName>
{
    // Mandatory entries (unmodifiable)
    type            nutUWallFunction;

    // Optional (inherited) entries
    ...
}

where the entries mean:

Property	Description	Type	Req'd	Dflt
type	Type name: nutUWallFunction	word	yes	-

The inherited entries are elaborated in:

• nutWallFunctionFvPatchScalarField.H

Note

• Suffers from non-exact restart since correctNut() (called through turbulence->validate) returns a slightly different value every time it is called. See nutUSpaldingWallFunctionFvPatchScalarField.C.
• See nutWallFunctionFvPatchScalarField.H for the wall function blending treatments.

Source files

• nutUWallFunctionFvPatchScalarField.H
• nutUWallFunctionFvPatchScalarField.C

Definition at line 94 of file nutUWallFunctionFvPatchScalarField.H.

Constructor & Destructor Documentation

nutUWallFunctionFvPatchScalarField() [1/5]

nutUWallFunctionFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF
	)

Definition at line 122 of file nutUWallFunctionFvPatchScalarField.C.

Referenced by nutUWallFunctionFvPatchScalarField::clone().

Here is the caller graph for this function:

nutUWallFunctionFvPatchScalarField() [2/5]

nutUWallFunctionFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const dictionary &	dict
	)

Definition at line 144 of file nutUWallFunctionFvPatchScalarField.C.

nutUWallFunctionFvPatchScalarField() [3/5]

nutUWallFunctionFvPatchScalarField	(	const nutUWallFunctionFvPatchScalarField &	ptf,
		const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const fvPatchFieldMapper &	mapper
	)

Definition at line 132 of file nutUWallFunctionFvPatchScalarField.C.

nutUWallFunctionFvPatchScalarField() [4/5]

nutUWallFunctionFvPatchScalarField

(

const nutUWallFunctionFvPatchScalarField &

sawfpsf

)

Definition at line 155 of file nutUWallFunctionFvPatchScalarField.C.

nutUWallFunctionFvPatchScalarField() [5/5]

nutUWallFunctionFvPatchScalarField	(	const nutUWallFunctionFvPatchScalarField &	sawfpsf,
		const DimensionedField< scalar, volMesh > &	iF
	)

Definition at line 164 of file nutUWallFunctionFvPatchScalarField.C.

Member Function Documentation

calcYPlus()

Foam::tmp< Foam::scalarField > calcYPlus ( const scalarField &  magUp ) const

protectedvirtual

Definition at line 74 of file nutUWallFunctionFvPatchScalarField.C.

References forAll, Foam::constant::atomic::group, IOobject::groupName(), Foam::log(), Foam::mag(), magUp, Foam::max(), turbulenceModel::nu(), Foam::foamVersion::patch, turbulenceModel::propertiesName, tmp::ref(), y, turbulenceModel::y(), yPlus, and Foam::Zero.

Referenced by nutUWallFunctionFvPatchScalarField::calcNut().

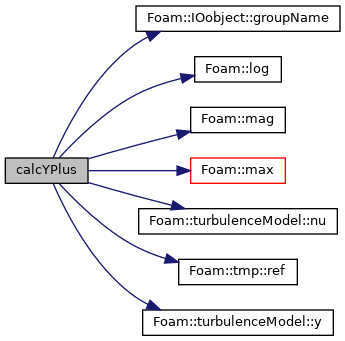

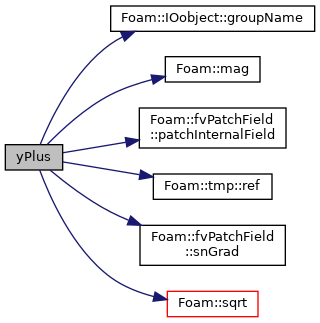

Here is the call graph for this function:

Here is the caller graph for this function:

calcNut()

Foam::tmp< Foam::scalarField > calcNut ( ) const

protectedvirtual

Implements nutWallFunctionFvPatchScalarField.

Reimplemented in atmNutUWallFunctionFvPatchScalarField.

Definition at line 32 of file nutUWallFunctionFvPatchScalarField.C.

References nutWallFunctionFvPatchScalarField::blend(), GeometricField::boundaryField(), nutUWallFunctionFvPatchScalarField::calcYPlus(), Foam::constant::electromagnetic::e, nutWallFunctionFvPatchScalarField::E_, forAll, Foam::constant::atomic::group, IOobject::groupName(), nutWallFunctionFvPatchScalarField::kappa_, Foam::log(), Foam::mag(), magUp, Foam::max(), turbulenceModel::nu(), nutWallFunctionFvPatchScalarField::nutw(), Foam::foamVersion::patch, turbulenceModel::propertiesName, tmp::ref(), nutWallFunctionFvPatchScalarField::U(), nutUWallFunctionFvPatchScalarField::yPlus(), and Foam::Zero.

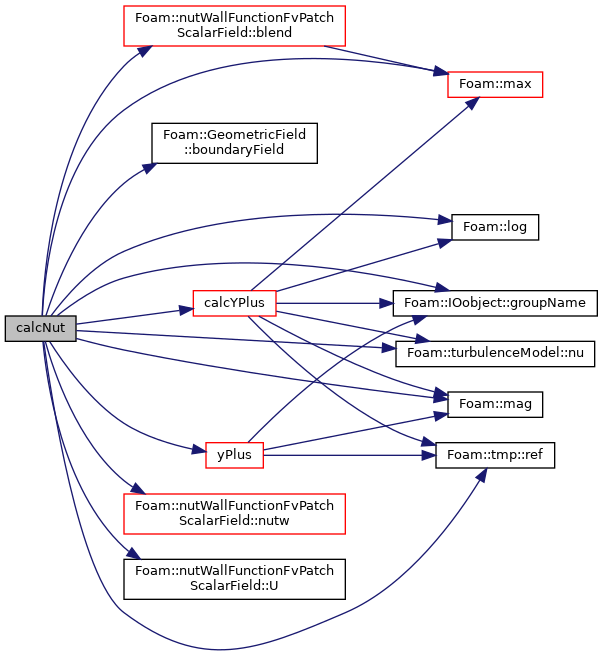

Here is the call graph for this function:

TypeName()

TypeName

(

"nutUWallFunction"

)

clone() [1/2]

virtual tmp<fvPatchScalarField> clone ( ) const

inlinevirtual

Reimplemented in atmNutUWallFunctionFvPatchScalarField.

Definition at line 150 of file nutUWallFunctionFvPatchScalarField.H.

References nutUWallFunctionFvPatchScalarField::nutUWallFunctionFvPatchScalarField().

Here is the call graph for this function:

clone() [2/2]

virtual tmp<fvPatchScalarField> clone ( const DimensionedField< scalar, volMesh > &  iF ) const

inlinevirtual

Reimplemented in atmNutUWallFunctionFvPatchScalarField.

Definition at line 167 of file nutUWallFunctionFvPatchScalarField.H.

References nutUWallFunctionFvPatchScalarField::nutUWallFunctionFvPatchScalarField().

Here is the call graph for this function:

yPlus()

Foam::tmp< Foam::scalarField > yPlus ( ) const

virtual

Implements nutWallFunctionFvPatchScalarField.

Definition at line 176 of file nutUWallFunctionFvPatchScalarField.C.

References forAll, Foam::constant::atomic::group, IOobject::groupName(), Foam::mag(), magUp, Foam::foamVersion::patch, fvPatchField::patchInternalField(), turbulenceModel::propertiesName, tmp::ref(), fvPatchField::snGrad(), Foam::sqrt(), U, y, and yPlus.

Referenced by nutUWallFunctionFvPatchScalarField::calcNut().

Here is the call graph for this function:

Here is the caller graph for this function:

write()

void write ( Ostream &  os ) const

virtual

Reimplemented from nutWallFunctionFvPatchScalarField.

Reimplemented in atmNutUWallFunctionFvPatchScalarField.

Definition at line 219 of file nutUWallFunctionFvPatchScalarField.C.

References os(), and fvPatchField::write().

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/TurbulenceModels/turbulenceModels/derivedFvPatchFields/wallFunctions/nutWallFunctions/nutUWallFunction/nutUWallFunctionFvPatchScalarField.H
• src/TurbulenceModels/turbulenceModels/derivedFvPatchFields/wallFunctions/nutWallFunctions/nutUWallFunction/nutUWallFunctionFvPatchScalarField.C
