Given a displacement moves the mesh by scaling the displacement back until there are no more mesh errors. More...

Inheritance diagram for motionSmootherAlgo:

Public Member Functions
	ClassName ("motionSmootherAlgo")

	motionSmootherAlgo (polyMesh &, pointMesh &, indirectPrimitivePatch &pp, pointVectorField &displacement, pointScalarField &scale, pointField &oldPoints, const labelList &adaptPatchIDs, const dictionary &paramDict, const bool dryRun=false)

	~motionSmootherAlgo ()

const polyMesh &	mesh () const

const pointMesh &	pMesh () const

const indirectPrimitivePatch &	patch () const

const labelList &	adaptPatchIDs () const

const dictionary &	paramDict () const

pointVectorField &	pointDisplacement ()

const pointVectorField &	pointDisplacement () const

void	correct ()

void	setDisplacementPatchFields ()

void	setDisplacement (pointField &patchDisp)

void	correctBoundaryConditions (pointVectorField &) const

void	modifyMotionPoints (pointField &newPoints) const

tmp< pointField >	curPoints () const

scalar	setErrorReduction (const scalar)

bool	scaleMesh (labelList &checkFaces, const bool smoothMesh=true, const label nAllow=0)

bool	scaleMesh (labelList &checkFaces, const List< labelPair > &baffles, const bool smoothMesh=true, const label nAllow=0)

bool	scaleMesh (labelList &checkFaces, const List< labelPair > &baffles, const dictionary &paramDict, const dictionary &meshQualityDict, const bool smoothMesh=true, const label nAllow=0)

void	movePoints ()

void	updateMesh ()

template<class Type >
void	smooth (const GeometricField< Type, pointPatchField, pointMesh > &fld, const scalarField &edgeWeight, GeometricField< Type, pointPatchField, pointMesh > &newFld) const

template<class Type >
Foam::tmp< Foam::GeometricField< Type, Foam::pointPatchField, Foam::pointMesh > >	avg (const GeometricField< Type, pointPatchField, pointMesh > &fld, const scalarField &edgeWeight) const

Static Public Member Functions
static void	setDisplacementPatchFields (const labelList &patchIDs, pointVectorField &pointDisplacement)

static void	setDisplacement (const labelList &patchIDs, const indirectPrimitivePatch &pp, pointField &patchDisp, pointVectorField &displacement)

static bool	checkMesh (const bool report, const polyMesh &mesh, const dictionary &dict, labelHashSet &wrongFaces, const bool dryRun=false)

static bool	checkMesh (const bool report, const polyMesh &mesh, const dictionary &dict, const labelList &checkFaces, labelHashSet &wrongFaces, const bool dryRun=false)

static bool	checkMesh (const bool report, const polyMesh &mesh, const dictionary &dict, const labelList &checkFaces, const List< labelPair > &baffles, labelHashSet &wrongFaces, const bool dryRun=false)

static bool	checkMesh (const bool report, const dictionary &dict, const polyMeshGeometry &, const pointField &, const labelList &checkFaces, labelHashSet &wrongFaces, const bool dryRun=false)

static bool	checkMesh (const bool report, const dictionary &dict, const polyMeshGeometry &, const pointField &, const labelList &checkFaces, const List< labelPair > &baffles, labelHashSet &wrongFaces, const bool dryRun=false)

template<class Type >
static Type	get (const dictionary &dict, const word &keyword, const bool noExit, enum keyType::option matchOpt, const Type &defaultValue=Zero)

Detailed Description

Given a displacement moves the mesh by scaling the displacement back until there are no more mesh errors.

Holds displacement field (read upon construction since need boundary conditions) and scaling factor and optional patch number on which to scale back displacement.

E.g.

    // Construct iterative mesh mover.
    motionSmoother meshMover(mesh, labelList(1, patchi));

    // Set desired displacement:
    meshMover.displacement() = ..

    for (label iter = 0; iter < maxIter; iter++)
    {
        if (meshMover.scaleMesh(true))
        {
            Info<< "Successfully moved mesh" << endl;
            return true;
        }
    }

Note

Shared points (parallel): a processor can have points which are part of pp on another processor but have no pp itself (i.e. it has points and/or edges but no faces of pp). Hence we have to be careful when e.g. synchronising displacements that the value from the processor which has faces of pp get priority. This is currently handled in setDisplacement by resetting the internal displacement to zero on coupled points that are coupled to patch points before doing anything else. The combine operator used will give preference to non-zero values.
Various routines take baffles. These are sets of boundary faces that are treated as a single internal face. This is a hack used to apply movement to internal faces.
Mesh constraints are looked up from the supplied dictionary. (uses recursive lookup)

Source files

Definition at line 96 of file motionSmootherAlgo.H.

Constructor & Destructor Documentation

◆ motionSmootherAlgo()

motionSmootherAlgo	(	polyMesh &	mesh,
		pointMesh &	pMesh,
		indirectPrimitivePatch &	pp,
		pointVectorField &	displacement,
		pointScalarField &	scale,
		pointField &	oldPoints,
		const labelList &	adaptPatchIDs,
		const dictionary &	paramDict,
		const bool	dryRun = `false`
	)

Definition at line 319 of file motionSmootherAlgo.C.

◆ ~motionSmootherAlgo()

~motionSmootherAlgo ( )

Definition at line 348 of file motionSmootherAlgo.C.

Member Function Documentation

◆ ClassName()

ClassName ( "motionSmootherAlgo" )

◆ mesh()

const Foam::polyMesh & mesh ( ) const

Definition at line 354 of file motionSmootherAlgo.C.

◆ pMesh()

const Foam::pointMesh & pMesh ( ) const

Definition at line 360 of file motionSmootherAlgo.C.

Referenced by snappySnapDriver::smoothDisplacement().

Here is the caller graph for this function:

◆ patch()

const Foam::indirectPrimitivePatch & patch ( ) const

Definition at line 366 of file motionSmootherAlgo.C.

Referenced by snappySnapDriver::smoothDisplacement().

Here is the caller graph for this function:

◆ adaptPatchIDs()

const Foam::labelList & adaptPatchIDs ( ) const

Definition at line 372 of file motionSmootherAlgo.C.

◆ paramDict()

const Foam::dictionary & paramDict ( ) const

Definition at line 378 of file motionSmootherAlgo.C.

◆ pointDisplacement() [1/2]

pointVectorField& pointDisplacement ( )

inline

Definition at line 335 of file motionSmootherAlgo.H.

Referenced by snappySnapDriver::preSmoothPatch().

Here is the caller graph for this function:

◆ pointDisplacement() [2/2]

const pointVectorField& pointDisplacement ( ) const

inline

Definition at line 341 of file motionSmootherAlgo.H.

◆ correct()

void correct ( )

Definition at line 384 of file motionSmootherAlgo.C.

Referenced by snappySnapDriver::doSnap(), and snappySnapDriver::preSmoothPatch().

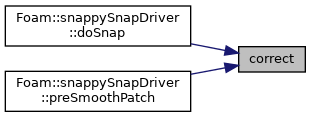

Here is the caller graph for this function:

◆ setDisplacementPatchFields() [1/2]

void setDisplacementPatchFields	(	const labelList &	patchIDs,
		pointVectorField &	pointDisplacement
	)

static

Definition at line 397 of file motionSmootherAlgo.C.

References GeometricField::boundaryFieldRef(), pointConstraints::constrainCorners(), GeometricField::Boundary::evaluate(), forAll, init(), MeshObject< pointMesh, UpdateableMeshObject, pointConstraints >::New(), and UPstream::scheduled.

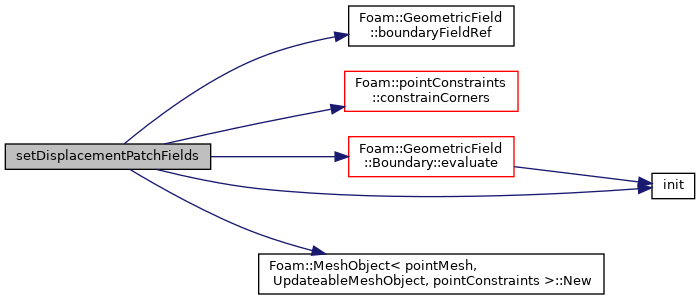

Here is the call graph for this function:

◆ setDisplacementPatchFields() [2/2]

void setDisplacementPatchFields ( )

Definition at line 454 of file motionSmootherAlgo.C.

◆ setDisplacement() [1/2]

void setDisplacement	(	const labelList &	patchIDs,
		const indirectPrimitivePatch &	pp,
		pointField &	patchDisp,
		pointVectorField &	displacement
	)

static

Definition at line 461 of file motionSmootherAlgo.C.

References globalMeshData::coupledPatch(), IOobject::db(), Foam::expressions::patchExpr::debug, Foam::endl(), forAll, polyMesh::globalData(), Foam::mag(), mesh, PrimitivePatch< FaceList, PointField >::meshPoints(), OFstream::name(), primitiveMesh::nPoints(), IOobject::path(), polyMesh::points(), Foam::Pout, syncTools::syncPointList(), bitSet::test(), Foam::meshTools::writeOBJ(), VectorSpace< Vector< scalar >, scalar, 3 >::zero, and Foam::Zero.

Referenced by snappyLayerDriver::addLayers(), snappySnapDriver::doSnap(), and snappySnapDriver::preSmoothPatch().

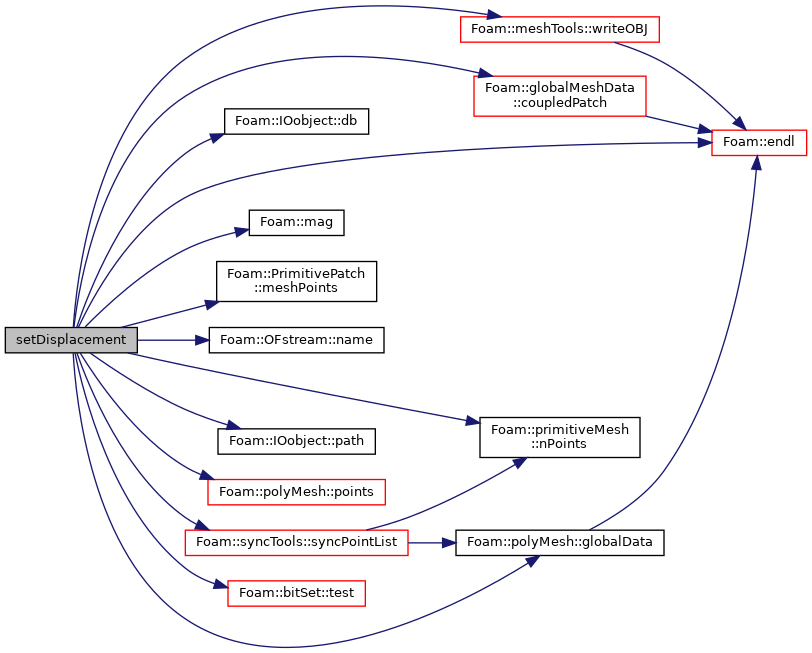

Here is the call graph for this function:

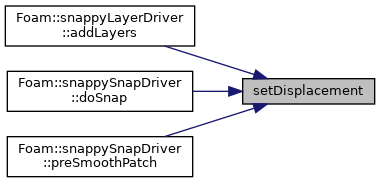

Here is the caller graph for this function:

◆ setDisplacement() [2/2]

void setDisplacement ( pointField & patchDisp )

Definition at line 555 of file motionSmootherAlgo.C.

◆ correctBoundaryConditions()

void correctBoundaryConditions ( pointVectorField & displacement ) const

Definition at line 563 of file motionSmootherAlgo.C.

References UPstream::blocking, GeometricField::boundaryFieldRef(), pointConstraints::constrainCorners(), GeometricField::Boundary::evaluate(), forAll, init(), MeshObject< pointMesh, UpdateableMeshObject, pointConstraints >::New(), syncTools::syncPointList(), and VectorSpace< Vector< scalar >, scalar, 3 >::zero.

Here is the call graph for this function:

◆ modifyMotionPoints()

void modifyMotionPoints ( pointField & newPoints ) const

Definition at line 630 of file motionSmootherAlgo.C.

References twoDPointCorrector::correctPoints(), Foam::expressions::patchExpr::debug, Foam::constant::electromagnetic::e, Foam::endl(), forAll, Foam::Info, MeshObject< polyMesh, UpdateableMeshObject, twoDPointCorrector >::New(), twoDPointCorrector::normalEdgeIndices(), twoDPointCorrector::planeNormal(), Foam::Pout, twoDPointCorrector::required(), and WarningInFunction.

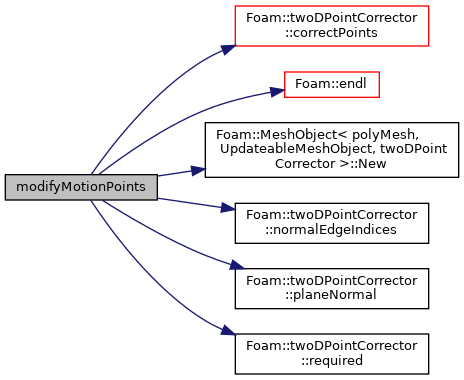

Here is the call graph for this function:

◆ curPoints()

Foam::tmp< Foam::pointField > curPoints ( ) const

Definition at line 742 of file motionSmootherAlgo.C.

References pointMesh::boundary(), correctBoundaryConditions(), Foam::expressions::patchExpr::debug, Foam::constant::electromagnetic::e, Foam::endl(), forAll, Foam::isA(), pointBoundaryMesh::mesh(), IOobject::NO_READ, IOobject::NO_WRITE, Foam::Pout, GeometricField::primitiveField(), tmp::ref(), List::setSize(), and VectorSpace< Vector< scalar >, scalar, 3 >::zero.

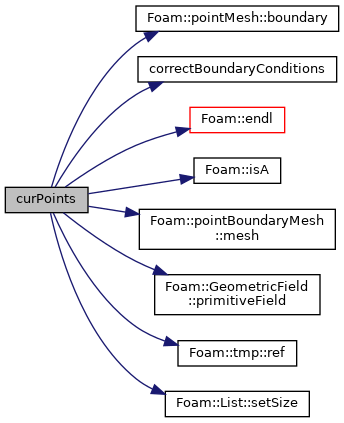

Here is the call graph for this function:

◆ setErrorReduction()

Foam::scalar setErrorReduction ( const scalar errorReduction )

Definition at line 691 of file motionSmootherAlgo.C.

Referenced by snappySnapDriver::preSmoothPatch(), and snappySnapDriver::scaleMesh().

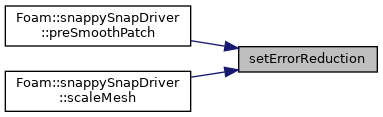

Here is the caller graph for this function:

◆ scaleMesh() [1/3]

bool scaleMesh	(	labelList &	checkFaces,
		const bool	smoothMesh = `true`,
		const label	nAllow = `0`
	)

Definition at line 705 of file motionSmootherAlgo.C.

Referenced by snappySnapDriver::preSmoothPatch(), and snappySnapDriver::scaleMesh().

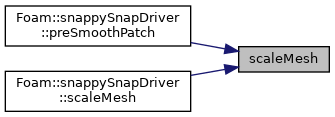

Here is the caller graph for this function:

◆ scaleMesh() [2/3]

bool scaleMesh	(	labelList &	checkFaces,
		const List< labelPair > &	baffles,
		const bool	smoothMesh = `true`,
		const label	nAllow = `0`
	)

Definition at line 723 of file motionSmootherAlgo.C.

◆ scaleMesh() [3/3]

bool scaleMesh	(	labelList &	checkFaces,
		const List< labelPair > &	baffles,
		const dictionary &	paramDict,
		const dictionary &	meshQualityDict,
		const bool	smoothMesh = `true`,
		const label	nAllow = `0`
	)

Definition at line 816 of file motionSmootherAlgo.C.

References coupled(), Foam::expressions::patchExpr::debug, Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, forAll, coupledPolyPatch::forwardT(), Foam::gMax(), Foam::gMin(), Foam::Info, HashSet::insert(), Foam::mag(), patchIdentifier::name(), Foam::nl, coupledPolyPatch::parallel(), patches, Foam::Pout, keyType::REGEX_RECURSIVE, Foam::returnReduce(), coupledPolyPatch::separated(), pointSet::sync(), faceSet::sync(), syncTools::syncPointList(), and VectorSpace< Vector< scalar >, scalar, 3 >::zero.

Here is the call graph for this function:

◆ movePoints()

void movePoints ( )

Definition at line 681 of file motionSmootherAlgo.C.

◆ updateMesh()

void updateMesh ( )

Definition at line 1026 of file motionSmootherAlgo.C.

References Foam::exit(), Foam::FatalError, FatalErrorInFunction, syncTools::getMasterEdges(), IOobject::name(), Foam::nl, and patches.

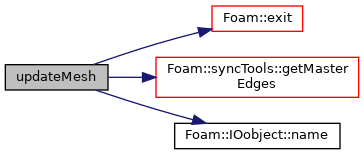

Here is the call graph for this function:

◆ checkMesh() [1/5]

bool checkMesh	(	const bool	report,
		const polyMesh &	mesh,
		const dictionary &	dict,
		labelHashSet &	wrongFaces,
		const bool	dryRun = `false`
	)

static

Definition at line 455 of file motionSmootherAlgoCheck.C.

References dict, Foam::identity(), and mesh.

Referenced by snappyLayerDriver::doLayers(), snappySnapDriver::doSnap(), and meshRefinement::splitFacesUndo().

Here is the call graph for this function:

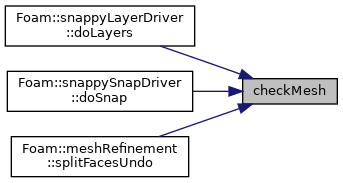

Here is the caller graph for this function:

◆ checkMesh() [2/5]

bool checkMesh	(	const bool	report,
		const polyMesh &	mesh,
		const dictionary &	dict,
		const labelList &	checkFaces,
		labelHashSet &	wrongFaces,
		const bool	dryRun = `false`
	)

static

Definition at line 29 of file motionSmootherAlgoCheck.C.

References dict, and mesh.

◆ checkMesh() [3/5]

bool checkMesh	(	const bool	report,
		const polyMesh &	mesh,
		const dictionary &	dict,
		const labelList &	checkFaces,
		const List< labelPair > &	baffles,
		labelHashSet &	wrongFaces,
		const bool	dryRun = `false`
	)

static

Definition at line 52 of file motionSmootherAlgoCheck.C.

References error::clear(), dict, Foam::endl(), Foam::FatalError, Foam::FatalIOError, Foam::Info, IOWarningInFunction, mesh, error::message(), Foam::nl, Foam::returnReduce(), and Foam::setw().

Here is the call graph for this function:

◆ checkMesh() [4/5]

bool checkMesh	(	const bool	report,
		const dictionary &	dict,
		const polyMeshGeometry &	meshGeom,
		const pointField &	points,
		const labelList &	checkFaces,
		labelHashSet &	wrongFaces,
		const bool	dryRun = `false`
	)

static

Definition at line 475 of file motionSmootherAlgoCheck.C.

References dict, and points.

◆ checkMesh() [5/5]

bool checkMesh	(	const bool	report,
		const dictionary &	dict,
		const polyMeshGeometry &	meshGeom,
		const pointField &	points,
		const labelList &	checkFaces,
		const List< labelPair > &	baffles,
		labelHashSet &	wrongFaces,
		const bool	dryRun = `false`
	)

static

Definition at line 502 of file motionSmootherAlgoCheck.C.

Here is the call graph for this function:

◆ smooth()

void smooth	(	const GeometricField< Type, pointPatchField, pointMesh > &	fld,
		const scalarField &	edgeWeight,
		GeometricField< Type, pointPatchField, pointMesh > &	newFld
	)		const

Definition at line 226 of file motionSmootherAlgoTemplates.C.

References pointConstraints::constrain(), fld, forAll, and MeshObject< pointMesh, UpdateableMeshObject, pointConstraints >::New().

Referenced by snappySnapDriver::smoothDisplacement().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get()

Type get	(	const dictionary &	dict,
		const word &	keyword,
		const bool	noExit,
		enum keyType::option	matchOpt,
		const Type &	defaultValue = `Zero`
	)

static

Definition at line 288 of file motionSmootherAlgoTemplates.C.

References dict, Foam::endl(), Foam::FatalIOError, dictionary::name(), and dictionary::readEntry().

Here is the call graph for this function:

◆ avg()

Foam::tmp<Foam::GeometricField<Type, Foam::pointPatchField, Foam::pointMesh> > avg	(	const GeometricField< Type, pointPatchField, pointMesh > &	fld,
		const scalarField &	edgeWeight
	)		const

Definition at line 135 of file motionSmootherAlgoTemplates.C.

References pointConstraints::constrain(), Foam::constant::electromagnetic::e, primitiveMesh::edges(), fld, forAll, Foam::mag(), mesh, Foam::New(), MeshObject< pointMesh, UpdateableMeshObject, pointConstraints >::New(), IOobject::NO_READ, IOobject::NO_WRITE, primitiveMesh::nPoints(), syncTools::syncPointList(), and Foam::Zero.

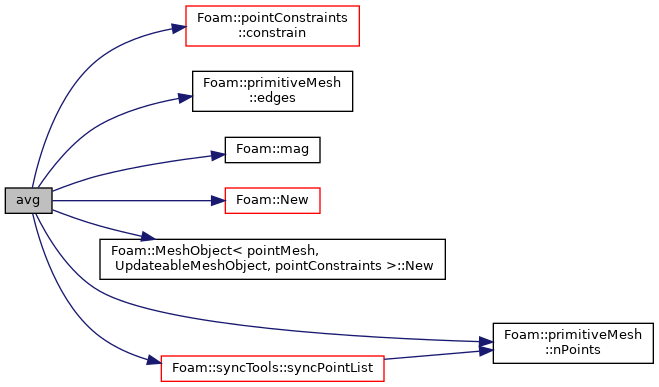

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/dynamicMesh/motionSmoother/motionSmootherAlgo.H
src/dynamicMesh/motionSmoother/motionSmootherAlgo.C
src/dynamicMesh/motionSmoother/motionSmootherAlgoCheck.C
src/dynamicMesh/motionSmoother/motionSmootherAlgoTemplates.C

Public Member Functions

Static Public Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ motionSmootherAlgo()

◆ ~motionSmootherAlgo()

Member Function Documentation

◆ ClassName()

◆ mesh()

◆ pMesh()

◆ patch()

◆ adaptPatchIDs()

◆ paramDict()

◆ pointDisplacement() [1/2]

◆ pointDisplacement() [2/2]

◆ correct()

◆ setDisplacementPatchFields() [1/2]

◆ setDisplacementPatchFields() [2/2]

◆ setDisplacement() [1/2]

◆ setDisplacement() [2/2]

◆ correctBoundaryConditions()

◆ modifyMotionPoints()

◆ curPoints()

◆ setErrorReduction()

◆ scaleMesh() [1/3]

◆ scaleMesh() [2/3]

◆ scaleMesh() [3/3]

◆ movePoints()

◆ updateMesh()

◆ checkMesh() [1/5]

◆ checkMesh() [2/5]

◆ checkMesh() [3/5]

◆ checkMesh() [4/5]

◆ checkMesh() [5/5]

◆ smooth()

◆ get()

◆ avg()
