mapPolyMesh Class Reference

Class containing mesh-to-mesh mapping information after a change in polyMesh topology. More...

Public Member Functions
	mapPolyMesh (const polyMesh &mesh)
	mapPolyMesh (const polyMesh &mesh, const label nOldPoints, const label nOldFaces, const label nOldCells, const labelList &pointMap, const List< objectMap > &pointsFromPoints, const labelList &faceMap, const List< objectMap > &facesFromPoints, const List< objectMap > &facesFromEdges, const List< objectMap > &facesFromFaces, const labelList &cellMap, const List< objectMap > &cellsFromPoints, const List< objectMap > &cellsFromEdges, const List< objectMap > &cellsFromFaces, const List< objectMap > &cellsFromCells, const labelList &reversePointMap, const labelList &reverseFaceMap, const labelList &reverseCellMap, const labelHashSet &flipFaceFlux, const labelListList &patchPointMap, const labelListList &pointZoneMap, const labelListList &faceZonePointMap, const labelListList &faceZoneFaceMap, const labelListList &cellZoneMap, const pointField &preMotionPoints, const labelList &oldPatchStarts, const labelList &oldPatchNMeshPoints, const autoPtr< scalarField > &oldCellVolumesPtr)
	mapPolyMesh (const polyMesh &mesh, const label nOldPoints, const label nOldFaces, const label nOldCells, labelList &pointMap, List< objectMap > &pointsFromPoints, labelList &faceMap, List< objectMap > &facesFromPoints, List< objectMap > &facesFromEdges, List< objectMap > &facesFromFaces, labelList &cellMap, List< objectMap > &cellsFromPoints, List< objectMap > &cellsFromEdges, List< objectMap > &cellsFromFaces, List< objectMap > &cellsFromCells, labelList &reversePointMap, labelList &reverseFaceMap, labelList &reverseCellMap, labelHashSet &flipFaceFlux, labelListList &patchPointMap, labelListList &pointZoneMap, labelListList &faceZonePointMap, labelListList &faceZoneFaceMap, labelListList &cellZoneMap, pointField &preMotionPoints, labelList &oldPatchStarts, labelList &oldPatchNMeshPoints, autoPtr< scalarField > &oldCellVolumesPtr, const bool reuse)
const polyMesh &	mesh () const
label	nOldPoints () const
label	nOldInternalFaces () const
label	nOldFaces () const
label	nOldCells () const
const labelList &	pointMap () const
const List< objectMap > &	pointsFromPointsMap () const
const labelList &	faceMap () const
const List< objectMap > &	facesFromPointsMap () const
const List< objectMap > &	facesFromEdgesMap () const
const List< objectMap > &	facesFromFacesMap () const
const labelList &	cellMap () const
const List< objectMap > &	cellsFromPointsMap () const
const List< objectMap > &	cellsFromEdgesMap () const
const List< objectMap > &	cellsFromFacesMap () const
const List< objectMap > &	cellsFromCellsMap () const
const labelList &	reversePointMap () const
label	mergedPoint (const label oldPointi) const
const labelList &	reverseFaceMap () const
label	mergedFace (const label oldFacei) const
const labelList &	reverseCellMap () const
label	mergedCell (const label oldCelli) const
const labelHashSet &	flipFaceFlux () const
const labelListList &	patchPointMap () const
const labelListList &	pointZoneMap () const
const labelListList &	faceZonePointMap () const
const labelListList &	faceZoneFaceMap () const
const labelListList &	cellZoneMap () const
const pointField &	preMotionPoints () const
bool	hasMotionPoints () const
const labelList &	oldPatchSizes () const
const labelList &	oldPatchStarts () const
const labelList &	oldPatchNMeshPoints () const
bool	hasOldCellVolumes () const
const scalarField &	oldCellVolumes () const

Detailed Description

Class containing mesh-to-mesh mapping information after a change in polyMesh topology.

General:

• pointMap/faceMap/cellMap:
  from current mesh back to previous mesh. (so to 'pull' the information onto the current mesh)
• reversePointMap/faceMap/cellMap:
  from previous mesh to current. (so to 'push' information)

In the topology change points/faces/cells

• can be unchanged. (faces might be renumbered though)
• can be removed (into nothing)
• can be removed into/merged with existing same entity (so point merged with other point, face with other face, cell with other cell. Note that probably only cell with cell is relevant)
• can be added from existing same 'master' entity (so point from point, face from face and cell from cell)
• can be inflated: face out of edge or point, cell out of face, edge or point.
• can be appended: added 'out of nothing'.

All this information is necessary to correctly map fields.

points

• unchanged:
  • pointMap[pointi] contains old point label
  • reversePointMap[oldPointi] contains new point label
• removed:
  • reversePointMap[oldPointi] contains -1
• merged into point:
  • reversePointMap[oldPointi] contains <-1 : -newPointi-2
  • pointMap[pointi] contains the old master point label
  • pointsFromPoints gives for pointi all the old point labels (including the old master point!)
• added-from-same:
  • pointMap[pointi] contains the old master point label
• appended:
  • pointMap[pointi] contains -1

faces

• unchanged:
  • faceMap[facei] contains old face label
  • reverseFaceMap[oldFacei] contains new face label
• removed:
  • reverseFaceMap[oldFacei] contains -1
• merged into face:
  • reverseFaceMap[oldFacei] contains <-1 : -newFacei-2
  • faceMap[facei] contains the old master face label
  • facesFromFaces gives for facei all the old face labels (including the old master face!)
• added-from-same:
  • faceMap[facei] contains the old master face label
• inflated-from-edge:
  • faceMap[facei] contains -1
  • facesFromEdges contains an entry with
    • facei
    • list of faces(*) on old mesh that connected to the old edge
• inflated-from-point:
  • faceMap[facei] contains -1
  • facesFromPoints contains an entry with
    • facei
    • list of faces(*) on old mesh that connected to the old point
• appended:
  • faceMap[facei] contains -1

Note (*)
if the newly inflated face is a boundary face the list of faces will only be boundary faces; if the new face is an internal face they will only be internal faces.

cells

• unchanged:
  • cellMap[celli] contains old cell label
  • reverseCellMap[oldCelli] contains new cell label
• removed:
  • reverseCellMap[oldCelli] contains -1
• merged into cell:
  • reverseCellMap[oldCelli] contains <-1 : -newCelli-2
  • cellMap[celli] contains the old master cell label
  • cellsFromCells gives for celli all the old cell labels (including the old master cell!)
• added-from-same:
  • cellMap[celli] contains the old master cell label
• inflated-from-face:
  • cellMap[celli] contains -1
  • cellsFromFaces contains an entry with
    • celli
    • list of cells on old mesh that connected to the old face
• inflated-from-edge:
  • cellMap[celli] contains -1
  • cellsFromEdges contains an entry with
    • celli
    • list of cells on old mesh that connected to the old edge
• inflated-from-point:
  • cellMap[celli] contains -1
  • cellsFromPoints contains an entry with
    • celli
    • list of cells on old mesh that connected to the old point
• appended:
  • cellMap[celli] contains -1

Source files

• mapPolyMesh.H
• mapPolyMesh.C

Definition at line 157 of file mapPolyMesh.H.

Constructor & Destructor Documentation

mapPolyMesh() [1/3]

mapPolyMesh

(

const polyMesh &

mesh

)

Definition at line 27 of file mapPolyMesh.C.

References polyMesh::boundaryMesh(), polyMesh::cellZones(), polyMesh::faceZones(), forAll, Foam::identity(), mapPolyMesh::mesh(), nPoints, and polyMesh::pointZones().

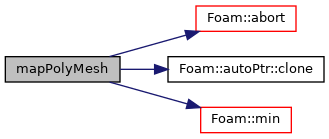

Here is the call graph for this function:

mapPolyMesh() [2/3]

mapPolyMesh	(	const polyMesh &	mesh,
		const label	nOldPoints,
		const label	nOldFaces,
		const label	nOldCells,
		const labelList &	pointMap,
		const List< objectMap > &	pointsFromPoints,
		const labelList &	faceMap,
		const List< objectMap > &	facesFromPoints,
		const List< objectMap > &	facesFromEdges,
		const List< objectMap > &	facesFromFaces,
		const labelList &	cellMap,
		const List< objectMap > &	cellsFromPoints,
		const List< objectMap > &	cellsFromEdges,
		const List< objectMap > &	cellsFromFaces,
		const List< objectMap > &	cellsFromCells,
		const labelList &	reversePointMap,
		const labelList &	reverseFaceMap,
		const labelList &	reverseCellMap,
		const labelHashSet &	flipFaceFlux,
		const labelListList &	patchPointMap,
		const labelListList &	pointZoneMap,
		const labelListList &	faceZonePointMap,
		const labelListList &	faceZoneFaceMap,
		const labelListList &	cellZoneMap,
		const pointField &	preMotionPoints,
		const labelList &	oldPatchStarts,
		const labelList &	oldPatchNMeshPoints,
		const autoPtr< scalarField > &	oldCellVolumesPtr
	)

Definition at line 93 of file mapPolyMesh.C.

References Foam::abort(), Foam::expressions::patchExpr::debug, Foam::FatalError, FatalErrorInFunction, and Foam::min().

Here is the call graph for this function:

mapPolyMesh() [3/3]

mapPolyMesh	(	const polyMesh &	mesh,
		const label	nOldPoints,
		const label	nOldFaces,
		const label	nOldCells,
		labelList &	pointMap,
		List< objectMap > &	pointsFromPoints,
		labelList &	faceMap,
		List< objectMap > &	facesFromPoints,
		List< objectMap > &	facesFromEdges,
		List< objectMap > &	facesFromFaces,
		labelList &	cellMap,
		List< objectMap > &	cellsFromPoints,
		List< objectMap > &	cellsFromEdges,
		List< objectMap > &	cellsFromFaces,
		List< objectMap > &	cellsFromCells,
		labelList &	reversePointMap,
		labelList &	reverseFaceMap,
		labelList &	reverseCellMap,
		labelHashSet &	flipFaceFlux,
		labelListList &	patchPointMap,
		labelListList &	pointZoneMap,
		labelListList &	faceZonePointMap,
		labelListList &	faceZoneFaceMap,
		labelListList &	cellZoneMap,
		pointField &	preMotionPoints,
		labelList &	oldPatchStarts,
		labelList &	oldPatchNMeshPoints,
		autoPtr< scalarField > &	oldCellVolumesPtr,
		const bool	reuse
	)

Definition at line 181 of file mapPolyMesh.C.

References Foam::abort(), autoPtr::clone(), Foam::expressions::patchExpr::debug, Foam::FatalError, FatalErrorInFunction, and Foam::min().

Here is the call graph for this function:

Member Function Documentation

mesh()

const polyMesh& mesh ( ) const

inline

Definition at line 359 of file mapPolyMesh.H.

Referenced by mapPolyMesh::mapPolyMesh(), hexRef8Data::updateMesh(), derivedFields::updateMesh(), streamLineBase::updateMesh(), areaWrite::updateMesh(), sampledSets::updateMesh(), probes::updateMesh(), ObukhovLength::updateMesh(), and sampledSurfaces::updateMesh().

Here is the caller graph for this function:

nOldPoints()

label nOldPoints ( ) const

inline

Definition at line 365 of file mapPolyMesh.H.

Referenced by hexRef8Data::updateMesh(), and hexRef8::updateMesh().

Here is the caller graph for this function:

nOldInternalFaces()

label nOldInternalFaces ( ) const

inline

Definition at line 371 of file mapPolyMesh.H.

nOldFaces()

label nOldFaces ( ) const

inline

Definition at line 377 of file mapPolyMesh.H.

Referenced by snappyLayerDriver::addLayers(), and fvMesh::mapFields().

Here is the caller graph for this function:

nOldCells()

label nOldCells ( ) const

inline

Definition at line 383 of file mapPolyMesh.H.

Referenced by fvMesh::mapFields(), hexRef8Data::updateMesh(), fvMesh::updateMesh(), and hexRef8::updateMesh().

Here is the caller graph for this function:

pointMap()

const labelList& pointMap ( ) const

inline

Definition at line 392 of file mapPolyMesh.H.

Referenced by snappyLayerDriver::addLayers(), pointMapper::pointMapper(), hexRef8Data::updateMesh(), points0MotionSolver::updateMesh(), componentDisplacementMotionSolver::updateMesh(), displacementLayeredMotionMotionSolver::updateMesh(), hexRef8::updateMesh(), and polyMesh::updateMesh().

Here is the caller graph for this function:

pointsFromPointsMap()

const List<objectMap>& pointsFromPointsMap ( ) const

inline

Definition at line 398 of file mapPolyMesh.H.

Referenced by pointMapper::pointMapper().

Here is the caller graph for this function:

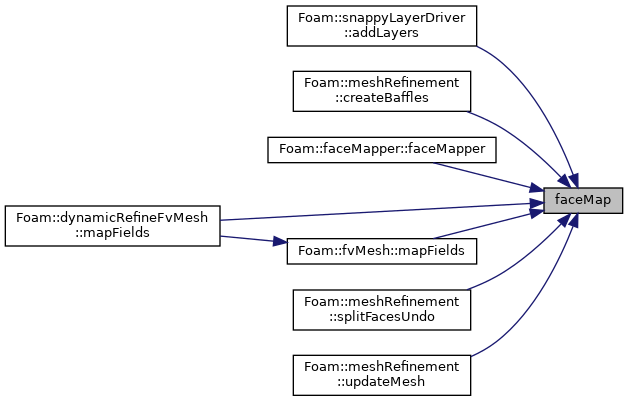

faceMap()

const labelList& faceMap ( ) const

inline

Definition at line 406 of file mapPolyMesh.H.

Referenced by snappyLayerDriver::addLayers(), meshRefinement::createBaffles(), faceMapper::faceMapper(), dynamicRefineFvMesh::mapFields(), fvMesh::mapFields(), meshRefinement::splitFacesUndo(), and meshRefinement::updateMesh().

Here is the caller graph for this function:

facesFromPointsMap()

const List<objectMap>& facesFromPointsMap ( ) const

inline

Definition at line 412 of file mapPolyMesh.H.

Referenced by faceMapper::faceMapper().

Here is the caller graph for this function:

facesFromEdgesMap()

const List<objectMap>& facesFromEdgesMap ( ) const

inline

Definition at line 418 of file mapPolyMesh.H.

Referenced by faceMapper::faceMapper().

Here is the caller graph for this function:

facesFromFacesMap()

const List<objectMap>& facesFromFacesMap ( ) const

inline

Definition at line 424 of file mapPolyMesh.H.

Referenced by faceMapper::faceMapper().

Here is the caller graph for this function:

cellMap()

const labelList& cellMap ( ) const

inline

Definition at line 431 of file mapPolyMesh.H.

Referenced by cellMapper::cellMapper(), fvMesh::mapFields(), hexRef8Data::updateMesh(), refinementHistory::updateMesh(), hexRef8::updateMesh(), and polyMesh::updateMesh().

Here is the caller graph for this function:

cellsFromPointsMap()

const List<objectMap>& cellsFromPointsMap ( ) const

inline

Definition at line 437 of file mapPolyMesh.H.

Referenced by cellMapper::cellMapper().

Here is the caller graph for this function:

cellsFromEdgesMap()

const List<objectMap>& cellsFromEdgesMap ( ) const

inline

Definition at line 443 of file mapPolyMesh.H.

Referenced by cellMapper::cellMapper().

Here is the caller graph for this function:

cellsFromFacesMap()

const List<objectMap>& cellsFromFacesMap ( ) const

inline

Definition at line 449 of file mapPolyMesh.H.

Referenced by cellMapper::cellMapper().

Here is the caller graph for this function:

cellsFromCellsMap()

const List<objectMap>& cellsFromCellsMap ( ) const

inline

Definition at line 455 of file mapPolyMesh.H.

Referenced by cellMapper::cellMapper().

Here is the caller graph for this function:

reversePointMap()

const labelList& reversePointMap ( ) const

inline

Definition at line 465 of file mapPolyMesh.H.

Referenced by meshRefinement::splitFacesUndo(), pointBitSet::updateMesh(), duplicatePoints::updateMesh(), points0MotionSolver::updateMesh(), componentDisplacementMotionSolver::updateMesh(), pointSet::updateMesh(), removePoints::updateMesh(), pointZoneSet::updateMesh(), boundaryCutter::updateMesh(), displacementLayeredMotionMotionSolver::updateMesh(), createShellMesh::updateMesh(), combineFaces::updateMesh(), tetDecomposer::updateMesh(), localPointRegion::updateMesh(), meshCutAndRemove::updateMesh(), meshCutter::updateMesh(), addPatchCellLayer::updateMesh(), hexRef8::updateMesh(), and polyMesh::updateMesh().

Here is the caller graph for this function:

mergedPoint()

label mergedPoint ( const label  oldPointi ) const

inline

Definition at line 472 of file mapPolyMesh.H.

References Foam::abort(), Foam::endl(), Foam::FatalError, and FatalErrorInFunction.

Here is the call graph for this function:

reverseFaceMap()

const labelList& reverseFaceMap ( ) const

inline

Definition at line 497 of file mapPolyMesh.H.

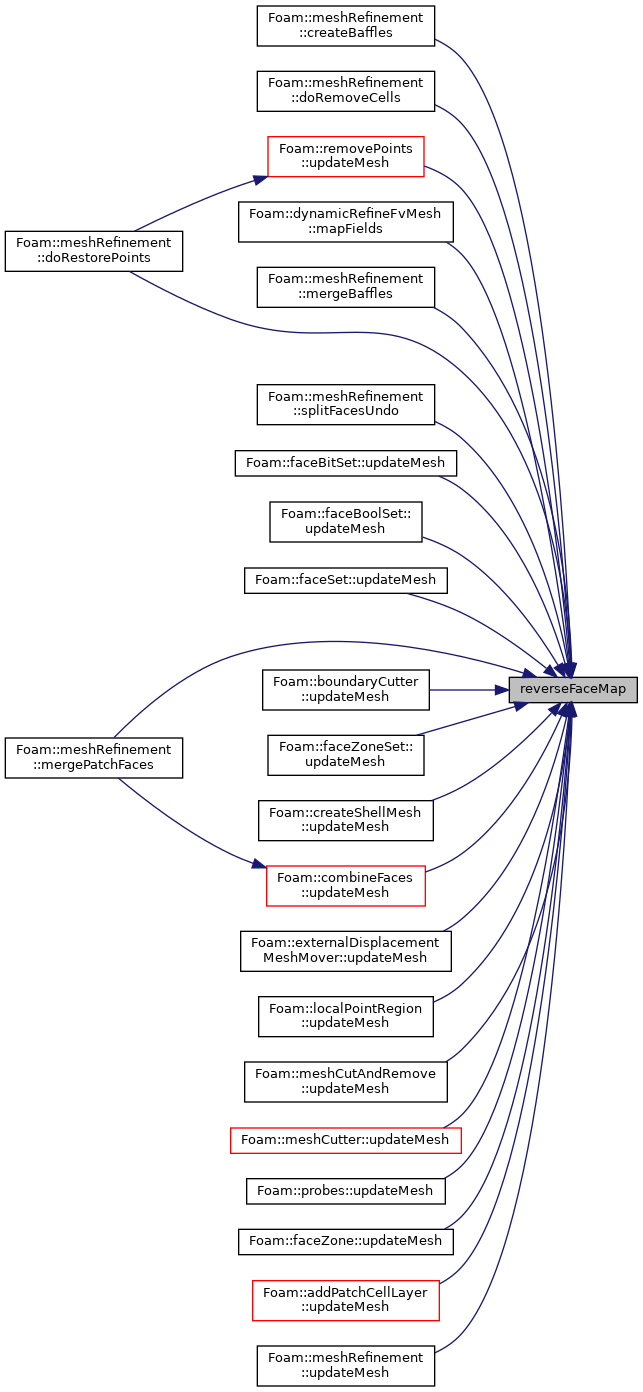

Referenced by meshRefinement::createBaffles(), meshRefinement::doRemoveCells(), meshRefinement::doRestorePoints(), dynamicRefineFvMesh::mapFields(), meshRefinement::mergeBaffles(), meshRefinement::mergePatchFaces(), meshRefinement::splitFacesUndo(), faceBitSet::updateMesh(), faceBoolSet::updateMesh(), faceSet::updateMesh(), removePoints::updateMesh(), boundaryCutter::updateMesh(), faceZoneSet::updateMesh(), createShellMesh::updateMesh(), combineFaces::updateMesh(), externalDisplacementMeshMover::updateMesh(), localPointRegion::updateMesh(), meshCutAndRemove::updateMesh(), meshCutter::updateMesh(), probes::updateMesh(), faceZone::updateMesh(), addPatchCellLayer::updateMesh(), and meshRefinement::updateMesh().

Here is the caller graph for this function:

mergedFace()

label mergedFace ( const label  oldFacei ) const

inline

Definition at line 503 of file mapPolyMesh.H.

References Foam::abort(), Foam::endl(), Foam::FatalError, and FatalErrorInFunction.

Here is the call graph for this function:

reverseCellMap()

const labelList& reverseCellMap ( ) const

inline

Definition at line 528 of file mapPolyMesh.H.

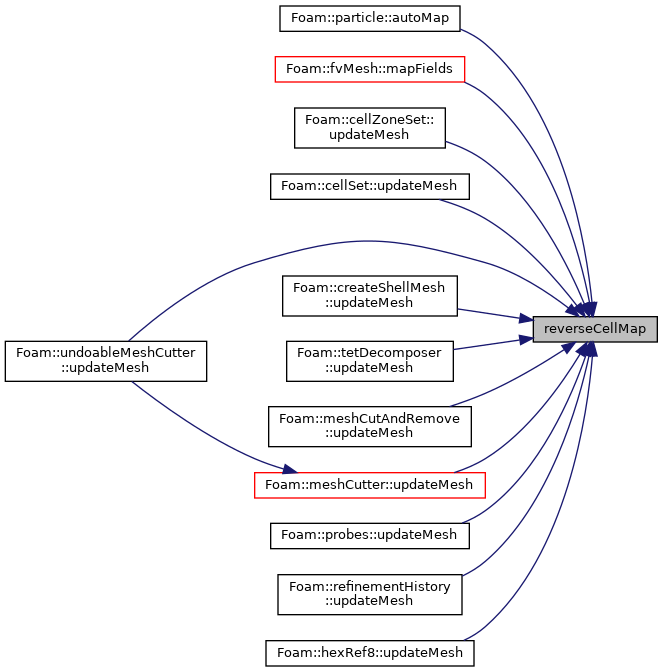

Referenced by particle< Type >::autoMap(), fvMesh::mapFields(), cellZoneSet::updateMesh(), cellSet::updateMesh(), undoableMeshCutter::updateMesh(), createShellMesh::updateMesh(), tetDecomposer::updateMesh(), meshCutAndRemove::updateMesh(), meshCutter::updateMesh(), probes::updateMesh(), refinementHistory::updateMesh(), and hexRef8::updateMesh().

Here is the caller graph for this function:

mergedCell()

label mergedCell ( const label  oldCelli ) const

inline

Definition at line 534 of file mapPolyMesh.H.

References Foam::abort(), Foam::endl(), Foam::FatalError, and FatalErrorInFunction.

Here is the call graph for this function:

flipFaceFlux()

const labelHashSet& flipFaceFlux ( ) const

inline

Definition at line 558 of file mapPolyMesh.H.

patchPointMap()

const labelListList& patchPointMap ( ) const

inline

Definition at line 566 of file mapPolyMesh.H.

pointZoneMap()

const labelListList& pointZoneMap ( ) const

inline

Definition at line 577 of file mapPolyMesh.H.

faceZonePointMap()

const labelListList& faceZonePointMap ( ) const

inline

Definition at line 585 of file mapPolyMesh.H.

faceZoneFaceMap()

const labelListList& faceZoneFaceMap ( ) const

inline

Definition at line 593 of file mapPolyMesh.H.

cellZoneMap()

const labelListList& cellZoneMap ( ) const

inline

Definition at line 601 of file mapPolyMesh.H.

preMotionPoints()

const pointField& preMotionPoints ( ) const

inline

Definition at line 609 of file mapPolyMesh.H.

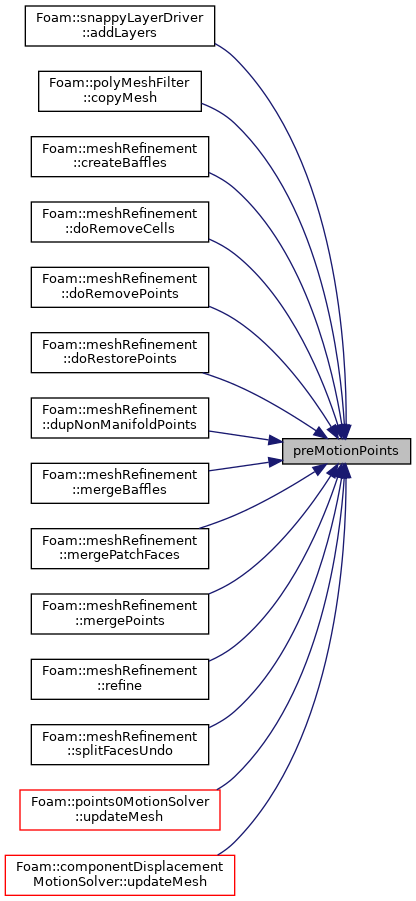

Referenced by snappyLayerDriver::addLayers(), polyMeshFilter::copyMesh(), meshRefinement::createBaffles(), meshRefinement::doRemoveCells(), meshRefinement::doRemovePoints(), meshRefinement::doRestorePoints(), meshRefinement::dupNonManifoldPoints(), meshRefinement::mergeBaffles(), meshRefinement::mergePatchFaces(), meshRefinement::mergePoints(), meshRefinement::refine(), meshRefinement::splitFacesUndo(), points0MotionSolver::updateMesh(), and componentDisplacementMotionSolver::updateMesh().

Here is the caller graph for this function:

hasMotionPoints()

bool hasMotionPoints ( ) const

inline

Definition at line 615 of file mapPolyMesh.H.

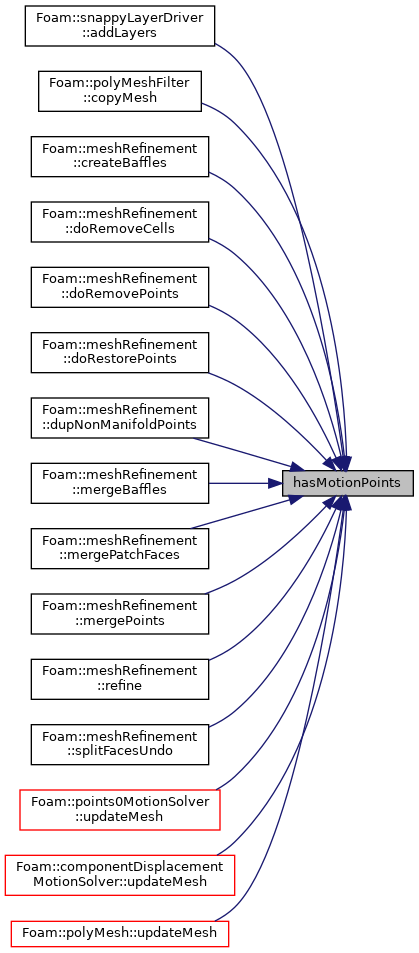

Referenced by snappyLayerDriver::addLayers(), polyMeshFilter::copyMesh(), meshRefinement::createBaffles(), meshRefinement::doRemoveCells(), meshRefinement::doRemovePoints(), meshRefinement::doRestorePoints(), meshRefinement::dupNonManifoldPoints(), meshRefinement::mergeBaffles(), meshRefinement::mergePatchFaces(), meshRefinement::mergePoints(), meshRefinement::refine(), meshRefinement::splitFacesUndo(), points0MotionSolver::updateMesh(), componentDisplacementMotionSolver::updateMesh(), and polyMesh::updateMesh().

Here is the caller graph for this function:

oldPatchSizes()

const labelList& oldPatchSizes ( ) const

inline

Definition at line 622 of file mapPolyMesh.H.

oldPatchStarts()

const labelList& oldPatchStarts ( ) const

inline

Definition at line 628 of file mapPolyMesh.H.

oldPatchNMeshPoints()

const labelList& oldPatchNMeshPoints ( ) const

inline

Definition at line 634 of file mapPolyMesh.H.

hasOldCellVolumes()

bool hasOldCellVolumes ( ) const

inline

Definition at line 642 of file mapPolyMesh.H.

References bool.

oldCellVolumes()

const scalarField& oldCellVolumes ( ) const

inline

Definition at line 647 of file mapPolyMesh.H.

Referenced by fvMesh::updateMesh().

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• src/OpenFOAM/meshes/polyMesh/mapPolyMesh/mapPolyMesh.H
• src/OpenFOAM/meshes/polyMesh/mapPolyMesh/mapPolyMesh.C
