The movement driver that describes initial point locations, the current state of the points/rotations, and forwarding to the externalFileCoupler communication coordinator. More...

Inheritance diagram for lumpedPointMovement:

[legend]

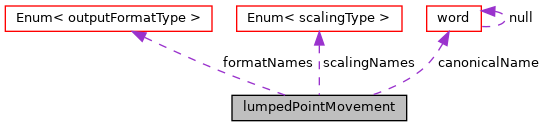

Collaboration diagram for lumpedPointMovement:

[legend]

Public Types
enum	outputFormatType { PLAIN, DICTIONARY }

enum	scalingType { LENGTH = 0, FORCE, MOMENT }

Public Member Functions
	lumpedPointMovement ()

	lumpedPointMovement (const dictionary &dict, label ownerId=-1)

virtual	~lumpedPointMovement ()=default

void	readDict (const dictionary &dict)

bool	empty () const

label	size () const

label	ownerId () const

void	ownerId (label id)

const externalFileCoupler &	coupler () const

externalFileCoupler &	coupler ()

bool	couplingPending (const label timeIndex) const

void	couplingCompleted (const label timeIndex) const

const lumpedPointState &	state0 () const

const lumpedPointState &	state () const

const point &	origin () const

void	scalePoints (lumpedPointState &state) const

scalar	relax () const

scalar &	relax ()

const word &	inputName () const

const word &	outputName () const

const word &	logName () const

lumpedPointState::inputFormatType	inputFormat () const

lumpedPointMovement::outputFormatType	outputFormat () const

quaternion::eulerOrder	rotationOrder () const

bool	degrees () const

bool	hasPatchControl (const label patchIndex) const

bool	hasPatchControl (const polyPatch &pp) const

bool	hasInterpolator (const pointPatch &fpatch) const

void	checkPatchControl (const polyPatch &pp) const

void	setPatchControl (const polyPatch &pp, const wordList &ctrlNames, const pointField &points0)

void	setMapping (const polyMesh &mesh, const labelUList &patchIds, const pointField &points0)

void	setInterpolator (const pointPatch &fpatch, const pointField &points0)

bool	hasMapping () const

bool	hasInterpolator (const label patchIndex) const

List< scalar >	areas (const polyMesh &pmesh) const

bool	forcesAndMoments (const polyMesh &pmesh, List< vector > &forces, List< vector > &moments) const

tmp< pointField >	pointsDisplacement (const pointPatch &fpatch, const pointField &points0) const

tmp< pointField >	pointsDisplacement (const lumpedPointState &state, const pointPatch &fpatch, const pointField &points0) const

tmp< pointField >	pointsPosition (const lumpedPointState &state, const pointPatch &fpatch, const pointField &points0) const

void	writeDict (Ostream &os) const

bool	writeData (Ostream &os, const UList< vector > &forces, const UList< vector > &moments, const outputFormatType fmt=outputFormatType::PLAIN, const Tuple2< scalar, scalar > *timesWritten=nullptr) const

bool	writeData (const UList< vector > &forces, const UList< vector > &moments=List< vector >(), const Tuple2< scalar, scalar > *timesWritten=nullptr) const

bool	readState ()

void	writeStateVTP (const lumpedPointState &state, const fileName &file) const

void	writeStateVTP (const fileName &file) const

void	writeForcesAndMomentsVTP (const fileName &file, const UList< vector > &forces, const UList< vector > &moments) const

void	writeZonesVTP (const fileName &file, const polyMesh &mesh, const pointField &points0) const

void	writeVTP (const fileName &file, const polyMesh &mesh, const pointField &points0) const

void	writeVTP (const fileName &file, const lumpedPointState &state, const polyMesh &mesh, const pointField &points0) const

Static Public Attributes
static const Enum< outputFormatType >	formatNames

static const Enum< scalingType >	scalingNames

static int	debug

static const word	canonicalName

Detailed Description

The movement driver that describes initial point locations, the current state of the points/rotations, and forwarding to the externalFileCoupler communication coordinator.

The lumpedPointIOMovement class is simply a registered version of the same.

See externalFileCoupler for more information about some of the communication parameters and setup.

Dictionary parameters

Property	Description	Required	Default
`points`	Initial locations of lumped points	yes
`pointLabels`	The FEA ids for the points	no
`origin`	Shift offset when reading points	no	(0 0 0)
`rotationOrder`	The Euler rotation order	no	zxz
`degrees`	Input rotations in degrees	no	false
`relax`	Relaxation/scaling for updating positions	no	1
`controllers`	Motion controllers (dictionary)	yes
`forces`	Force settings (dictionary)	no
`communication`	Communication settings (dictionary)	yes

Parameters for communication dictionary

Property	Description	Required	Default
`inputName`	Name of positions input file	yes
`outputName`	Name of forces output file	yes
`logName`	Name of log file	no	movement.log
`inputFormat`	Input format: dictionary/plain	yes
`outputFormat`	Output format: dictionary/plain	yes
`scaleInput`	Input scaling parameter dictionary	no
`scaleOutput`	Output scaling parameter dictionary	no
`calcFrequency`	Calculation/coupling frequency	no	1

Parameters for optional communication/scaleInput dictionary

Property	Description	Required	Default
`length`	Scaling for input positions	no	1

Parameters for optional communication/scaleOutput dictionary

Property	Description	Required	Default
`length`	Scaling for output positions	no	1
`force`	Scaling for force	no	1
`moment`	Scaling for moment	no	1

Parameters for optional forces dictionary

Property	Description	Required	Default
`p`	Name of the pressure field	no	p
`pRef`	Reference pressure in Pa	no	0
`rhoRef`	Reference density for incompressible	no	1

Source files

Definition at line 265 of file lumpedPointMovement.H.

Member Enumeration Documentation

◆ outputFormatType

enum outputFormatType

strong

Enumerator
PLAIN	"plain" is a simple ASCII format
DICTIONARY	"dictionary" is the OpenFOAM dictionary format

Definition at line 272 of file lumpedPointMovement.H.

◆ scalingType

enum scalingType

Enumerator
LENGTH	The "length" scaling.
FORCE	The "force" scaling.
MOMENT	The "moment" scaling.

Definition at line 279 of file lumpedPointMovement.H.

Constructor & Destructor Documentation

◆ lumpedPointMovement() [1/2]

lumpedPointMovement ( )

Definition at line 119 of file lumpedPointMovement.C.

◆ lumpedPointMovement() [2/2]

lumpedPointMovement	(	const dictionary &	dict,
		label	ownerId = `-1`
	)

explicit

Definition at line 144 of file lumpedPointMovement.C.

References dict.

◆ ~lumpedPointMovement()

virtual ~lumpedPointMovement ( )

virtualdefault

Member Function Documentation

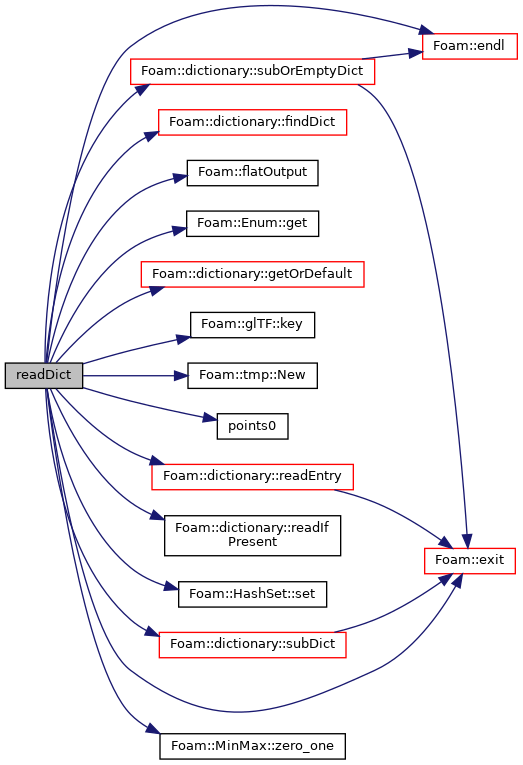

◆ readDict()

void readDict ( const dictionary & dict )

Definition at line 185 of file lumpedPointMovement.C.

References dict, Foam::endl(), quaternion::eulerOrderNames, Foam::exit(), Foam::FatalIOError, FatalIOErrorInFunction, dictionary::findDict(), Foam::flatOutput(), forAllIters, lumpedPointState::formatNames, Enum::get(), dictionary::getOrDefault(), Foam::Info, Foam::glTF::key(), tmp::New(), Foam::nl, points0(), dictionary::readEntry(), dictionary::readIfPresent(), HashSet::set(), dictionary::subDict(), dictionary::subOrEmptyDict(), Foam::Zero, and MinMax::zero_one().

Here is the call graph for this function:

◆ empty()

bool empty ( ) const

inline

Definition at line 21 of file lumpedPointMovementI.H.

References lumpedPointState::empty().

Here is the call graph for this function:

◆ size()

Foam::label size ( ) const

inline

Definition at line 27 of file lumpedPointMovementI.H.

◆ ownerId() [1/2]

Foam::label ownerId ( ) const

inline

Definition at line 33 of file lumpedPointMovementI.H.

Referenced by lumpedPointDisplacementPointPatchVectorField::~lumpedPointDisplacementPointPatchVectorField().

Here is the caller graph for this function:

◆ ownerId() [2/2]

void ownerId ( label id )

inline

Definition at line 39 of file lumpedPointMovementI.H.

◆ coupler() [1/2]

Foam::externalFileCoupler & coupler ( ) const

inline

Definition at line 62 of file lumpedPointMovementI.H.

◆ coupler() [2/2]

externalFileCoupler& coupler ( )

inline

◆ couplingPending()

bool couplingPending ( const label timeIndex ) const

Definition at line 173 of file lumpedPointMovement.C.

References timeIndex.

◆ couplingCompleted()

void couplingCompleted ( const label timeIndex ) const

Definition at line 179 of file lumpedPointMovement.C.

References timeIndex.

Referenced by lumpedPointDisplacementPointPatchVectorField::updateCoeffs().

Here is the caller graph for this function:

◆ state0()

const Foam::lumpedPointState & state0 ( ) const

inline

Definition at line 74 of file lumpedPointMovementI.H.

◆ state()

const Foam::lumpedPointState & state ( ) const

inline

Definition at line 80 of file lumpedPointMovementI.H.

Referenced by lumpedPointMovement::writeStateVTP().

Here is the caller graph for this function:

◆ origin()

const Foam::point & origin ( ) const

inline

Definition at line 86 of file lumpedPointMovementI.H.

◆ scalePoints()

void scalePoints ( lumpedPointState & state ) const

inline

Definition at line 93 of file lumpedPointMovementI.H.

References lumpedPointState::scalePoints().

Here is the call graph for this function:

◆ relax() [1/2]

Foam::scalar & relax ( ) const

inline

Definition at line 101 of file lumpedPointMovementI.H.

◆ relax() [2/2]

scalar& relax ( )

inline

◆ inputName()

const Foam::word & inputName ( ) const

inline

Definition at line 113 of file lumpedPointMovementI.H.

◆ outputName()

const Foam::word & outputName ( ) const

inline

Definition at line 119 of file lumpedPointMovementI.H.

◆ logName()

const Foam::word & logName ( ) const

inline

Definition at line 125 of file lumpedPointMovementI.H.

◆ inputFormat()

Foam::lumpedPointState::inputFormatType inputFormat ( ) const

inline

Definition at line 132 of file lumpedPointMovementI.H.

◆ outputFormat()

Foam::lumpedPointMovement::outputFormatType outputFormat ( ) const

inline

Definition at line 139 of file lumpedPointMovementI.H.

◆ rotationOrder()

Foam::quaternion::eulerOrder rotationOrder ( ) const

inline

Definition at line 146 of file lumpedPointMovementI.H.

◆ degrees()

bool degrees ( ) const

inline

Definition at line 152 of file lumpedPointMovementI.H.

◆ hasPatchControl() [1/2]

bool hasPatchControl ( const label patchIndex ) const

inline

Definition at line 46 of file lumpedPointMovementI.H.

◆ hasPatchControl() [2/2]

bool hasPatchControl ( const polyPatch & pp ) const

Definition at line 336 of file lumpedPointMovement.C.

References patchIdentifier::index().

Here is the call graph for this function:

◆ hasInterpolator() [1/2]

bool hasInterpolator ( const pointPatch & fpatch ) const

Definition at line 345 of file lumpedPointMovement.C.

References pointPatch::index().

Here is the call graph for this function:

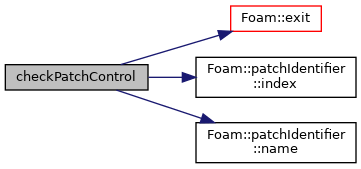

◆ checkPatchControl()

void checkPatchControl ( const polyPatch & pp ) const

Definition at line 354 of file lumpedPointMovement.C.

References Foam::exit(), Foam::FatalError, FatalErrorInFunction, patchIdentifier::index(), patchIdentifier::name(), and Foam::nl.

Here is the call graph for this function:

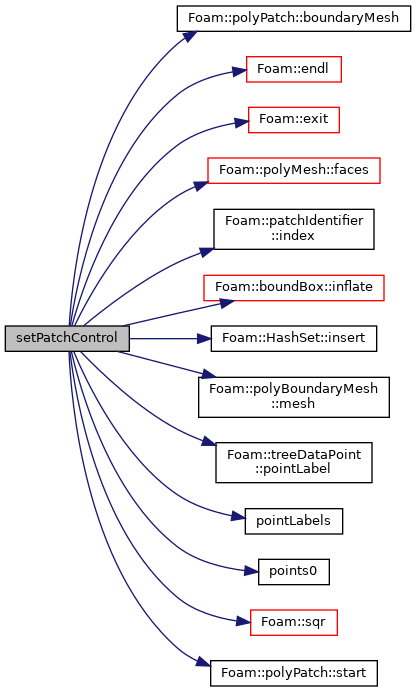

◆ setPatchControl()

void setPatchControl	(	const polyPatch &	pp,
		const wordList &	ctrlNames,
		const pointField &	points0
	)

Definition at line 385 of file lumpedPointMovement.C.

References polyPatch::boundaryMesh(), Foam::expressions::patchExpr::debug, Foam::endl(), Foam::exit(), polyMesh::faces(), Foam::FatalError, FatalErrorInFunction, forAll, patchIdentifier::index(), boundBox::inflate(), HashSet::insert(), polyBoundaryMesh::mesh(), Foam::nl, treeDataPoint::pointLabel(), pointLabels(), points0(), Foam::Pout, Foam::sqr(), and polyPatch::start().

Here is the call graph for this function:

◆ setMapping()

void setMapping	(	const polyMesh &	mesh,
		const labelUList &	patchIds,
		const pointField &	points0
	)

◆ setInterpolator()

void setInterpolator	(	const pointPatch &	fpatch,
		const pointField &	points0
	)

Definition at line 479 of file lumpedPointMovement.C.

References triangle::a(), DynamicList::append(), triangle::b(), triangle::c(), List::clear(), DynamicList::clear(), Foam::expressions::patchExpr::debug, Foam::exit(), Foam::FatalError, FatalErrorInFunction, Foam::flatOutput(), forAll, forAllConstIters(), pointPatch::index(), boundBox::inflate(), Foam::Info, Foam::inplaceReorder(), HashSet::insert(), line::mag(), Foam::magSqr(), pointPatch::meshPoints(), pointPatch::name(), Foam::nl, Foam::normalised(), Barycentric2D< Cmpt >::outside(), treeDataPoint::pointLabel(), pointLabels(), points0(), triangle::pointToBarycentric(), List::resize(), DynamicList::resize(), Pair::second(), bitSet::set(), List::set(), Foam::sortedOrder(), Foam::sqr(), bitSet::test(), triFace::tri(), line::unitVec(), and line::vec().

Here is the call graph for this function:

◆ hasMapping()

bool hasMapping ( ) const

inline

Definition at line 158 of file lumpedPointMovementI.H.

◆ hasInterpolator() [2/2]

bool hasInterpolator ( const label patchIndex ) const

inline

Definition at line 53 of file lumpedPointMovementI.H.

◆ areas()

Foam::List< Foam::scalar > areas ( const polyMesh & pmesh ) const

Definition at line 828 of file lumpedPointMovement.C.

References GeometricField::boundaryField(), polyMesh::boundaryMesh(), Foam::endl(), forAll, forAllConstIters(), Pstream::listCombineGather(), Pstream::listCombineScatter(), Foam::mag(), mesh, Foam::nl, patches, fvMesh::Sf(), WarningInFunction, and Foam::Zero.

Here is the call graph for this function:

◆ forcesAndMoments()

bool forcesAndMoments	(	const polyMesh &	pmesh,
		List< vector > &	forces,
		List< vector > &	moments
	)		const

Definition at line 889 of file lumpedPointMovement.C.

References GeometricField::boundaryField(), polyMesh::boundaryMesh(), fvMesh::Cf(), Foam::dimPressure, Foam::endl(), objectRegistry::findObject(), forAll, forAllConstIters(), Foam::Info, Pstream::listCombineGather(), Pstream::listCombineScatter(), mesh, Foam::nl, p, patches, List::resize(), fvMesh::Sf(), WarningInFunction, and Foam::Zero.

Here is the call graph for this function:

◆ pointsDisplacement() [1/2]

Foam::tmp< Foam::pointField > pointsDisplacement	(	const pointPatch &	fpatch,
		const pointField &	points0
	)		const

Definition at line 1022 of file lumpedPointMovement.C.

References points0().

Here is the call graph for this function:

◆ pointsDisplacement() [2/2]

Foam::tmp< Foam::pointField > pointsDisplacement	(	const lumpedPointState &	state,
		const pointPatch &	fpatch,
		const pointField &	points0
	)		const

Definition at line 1033 of file lumpedPointMovement.C.

References forAll, pointPatch::index(), lumpedPointInterpolator::interpolate(), pointPatch::meshPoints(), tmp::New(), p0, lumpedPointState::points(), points0(), lumpedPointState::rotations(), and pointPatch::size().

Here is the call graph for this function:

◆ pointsPosition()

Foam::tmp< Foam::pointField > pointsPosition	(	const lumpedPointState &	state,
		const pointPatch &	fpatch,
		const pointField &	points0
	)		const

Definition at line 1080 of file lumpedPointMovement.C.

References forAll, pointPatch::index(), lumpedPointInterpolator::interpolate(), pointPatch::meshPoints(), tmp::New(), p0, lumpedPointState::points(), points0(), lumpedPointState::rotations(), and pointPatch::size().

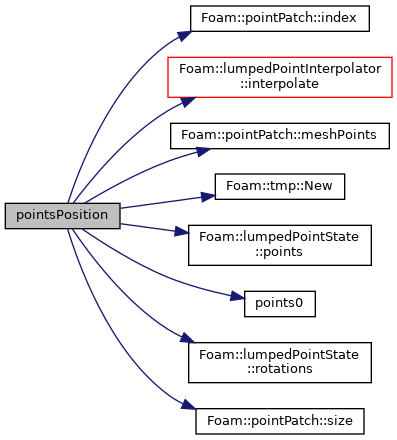

Here is the call graph for this function:

◆ writeDict()

void writeDict ( Ostream & os ) const

Definition at line 1125 of file lumpedPointMovement.C.

Referenced by Foam::operator<<().

Here is the caller graph for this function:

◆ writeData() [1/2]

bool writeData	(	Ostream &	os,
		const UList< vector > &	forces,
		const UList< vector > &	moments,
		const outputFormatType	fmt = `outputFormatType::PLAIN`,
		const Tuple2< scalar, scalar > *	timesWritten = `nullptr`
	)		const

Definition at line 1153 of file lumpedPointMovement.C.

References Tuple2::first(), forAll, Foam::nl, os(), points, Tuple2::second(), UList::size(), Ostream::writeEntry(), Foam::vtk::writeList(), and VectorSpace< Vector< scalar >, scalar, 3 >::zero.

Here is the call graph for this function:

◆ writeData() [2/2]

bool writeData	(	const UList< vector > &	forces,
		const UList< vector > &	moments = `List<vector>()`,
		const Tuple2< scalar, scalar > *	timesWritten = `nullptr`
	)		const
