isoSurfaceParams Class Reference

Preferences for controlling iso-surface algorithms. More...

Inheritance diagram for isoSurfaceParams:

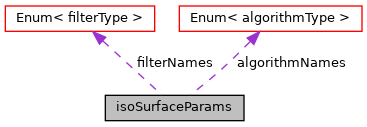

Collaboration diagram for isoSurfaceParams:

Public Types
enum	algorithmType : uint8_t { ALGO_DEFAULT = 0, ALGO_TOPO, ALGO_CELL, ALGO_POINT }
enum	filterType : uint8_t {   NONE = 0, CELL, DIAGCELL, NONMANIFOLD,   PARTIAL = CELL, FULL = DIAGCELL, CLEAN = NONMANIFOLD }

Public Member Functions
	isoSurfaceParams (const algorithmType algo=algorithmType::ALGO_DEFAULT, const filterType filter=filterType::DIAGCELL) noexcept
	isoSurfaceParams (const dictionary &dict, const isoSurfaceParams &params=isoSurfaceParams())
	isoSurfaceParams (const dictionary &dict, const algorithmType algo, const filterType filter=filterType::DIAGCELL)
algorithmType	algorithm () const noexcept
void	algorithm (algorithmType algo) noexcept
filterType	filter () const noexcept
void	filter (filterType fltr) noexcept
bool	snap () const noexcept
void	snap (bool on) noexcept
scalar	mergeTol () const noexcept
void	mergeTol (const scalar relTol) noexcept
const boundBox &	getClipBounds () const noexcept
boundBox &	getClipBounds () noexcept
void	setClipBounds (const boundBox &bb)
void	print (Ostream &os) const

Static Public Member Functions
static algorithmType	getAlgorithmType (const dictionary &dict, const algorithmType deflt)
static filterType	getFilterType (const dictionary &dict, const filterType deflt)

Static Public Attributes
static const Enum< algorithmType >	algorithmNames
static const Enum< filterType >	filterNames

Detailed Description

Preferences for controlling iso-surface algorithms.

Some common dictionary properties:

Property	Description	Required	Default
isoMethod	Algorithm (cell/topo/point/default)	no	default
regularise	Face simplification (enum or bool)	no	true
mergeTol	Point merge tolerance (cell/point)	no	1e-6
snap	Point snapping (topo)	no	true
bounds	Optional clip bounds	no	inverted

The default algorithm denotes the use of the current standard algorithm.

Filtering types (for topological iso-surface)

• none : leave tet cuts untouched
• partial , cell : Combine intra-cell faces
• full , diagcell : Perform partial and remove face-diagonal points
• clean : Perform full and eliminate open edges as well. (May cause excessive erosion!)

Source files

• isoSurfaceParams.H
• isoSurfaceParams.C

Definition at line 103 of file isoSurfaceParams.H.

Member Enumeration Documentation

algorithmType

enum algorithmType : uint8_t

Enumerator
ALGO_DEFAULT	Use current 'standard' algorithm.
ALGO_TOPO
ALGO_CELL
ALGO_POINT

Definition at line 110 of file isoSurfaceParams.H.

filterType

enum filterType : uint8_t

strong

Enumerator
NONE	No filtering.
CELL	Remove pyramid edge points.
DIAGCELL	Remove pyramid edge points, face-diagonals.
NONMANIFOLD	Remove pyramid edge points, face-diagonals and non-manifold faces
PARTIAL	Same as CELL.
FULL	Same as DIAGCELL.
CLEAN	Same as NONMANIFOLD.

Definition at line 119 of file isoSurfaceParams.H.

Constructor & Destructor Documentation

isoSurfaceParams() [1/3]

isoSurfaceParams ( const algorithmType  algo = algorithmType::ALGO_DEFAULT, const filterType  filter = filterType::DIAGCELL  )

explicitnoexcept

Definition at line 128 of file isoSurfaceParams.C.

isoSurfaceParams() [2/3]

isoSurfaceParams ( const dictionary &  dict, const isoSurfaceParams &  params = isoSurfaceParams()  )

explicit

Definition at line 142 of file isoSurfaceParams.C.

References dict.

isoSurfaceParams() [3/3]

isoSurfaceParams ( const dictionary &  dict, const algorithmType  algo, const filterType  filter = filterType::DIAGCELL  )

explicit

Definition at line 158 of file isoSurfaceParams.C.

Member Function Documentation

getAlgorithmType()

Foam::isoSurfaceParams::algorithmType getAlgorithmType ( const dictionary &  dict, const algorithmType  deflt  )

static

Definition at line 61 of file isoSurfaceParams.C.

References dict.

getFilterType()

Foam::isoSurfaceParams::filterType getFilterType ( const dictionary &  dict, const filterType  deflt  )

static

Definition at line 93 of file isoSurfaceParams.C.

References dict, Foam::exit(), Foam::FatalIOError, FatalIOErrorInFunction, Foam::ListOps::find(), Switch::good(), and Foam::nl.

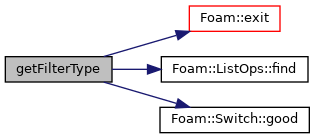

Here is the call graph for this function:

algorithm() [1/2]

algorithmType algorithm ( ) const

inlinenoexcept

Definition at line 209 of file isoSurfaceParams.H.

Referenced by distanceSurface::createGeometry(), isoSurfaceBase::New(), and sampledIsoSurface::sampledIsoSurface().

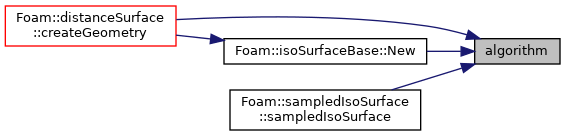

Here is the caller graph for this function:

algorithm() [2/2]

void algorithm ( algorithmType  algo )

inlinenoexcept

Definition at line 215 of file isoSurfaceParams.H.

filter() [1/2]

filterType filter ( ) const

inlinenoexcept

Definition at line 221 of file isoSurfaceParams.H.

Referenced by isoSurfaceCell::isoSurfaceCell(), isoSurfacePoint::isoSurfacePoint(), and isoSurfaceTopo::isoSurfaceTopo().

Here is the caller graph for this function:

filter() [2/2]

void filter ( filterType  fltr )

inlinenoexcept

Definition at line 227 of file isoSurfaceParams.H.

snap() [1/2]

bool snap ( ) const

inlinenoexcept

Definition at line 233 of file isoSurfaceParams.H.

snap() [2/2]

void snap ( bool  on )

inlinenoexcept

Definition at line 239 of file isoSurfaceParams.H.

mergeTol() [1/2]

scalar mergeTol ( ) const

inlinenoexcept

Definition at line 245 of file isoSurfaceParams.H.

Referenced by isoSurfaceCell::isoSurfaceCell(), and isoSurfacePoint::isoSurfacePoint().

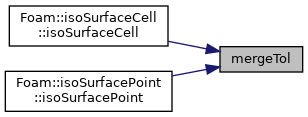

Here is the caller graph for this function:

mergeTol() [2/2]

void mergeTol ( const scalar  relTol )

inlinenoexcept

Definition at line 251 of file isoSurfaceParams.H.

getClipBounds() [1/2]

const boundBox& getClipBounds ( ) const

inlinenoexcept

Definition at line 257 of file isoSurfaceParams.H.

Referenced by isoSurfaceTopo::isoSurfaceTopo().

Here is the caller graph for this function:

getClipBounds() [2/2]

boundBox& getClipBounds ( )

inlinenoexcept

Definition at line 263 of file isoSurfaceParams.H.

setClipBounds()

void setClipBounds

(

const boundBox &

bb

)

Definition at line 170 of file isoSurfaceParams.C.

print()

void print

(

Ostream &

os

)

const

Definition at line 176 of file isoSurfaceParams.C.

References os().

Here is the call graph for this function:

Member Data Documentation

algorithmNames

const Foam::Enum< Foam::isoSurfaceParams::algorithmType > algorithmNames

static

Definition at line 158 of file isoSurfaceParams.H.

filterNames

const Foam::Enum< Foam::isoSurfaceParams::filterType > filterNames

static

Definition at line 161 of file isoSurfaceParams.H.

Referenced by isoSurfaceTopo::isoSurfaceTopo().

---

The documentation for this class was generated from the following files:

• src/sampling/surface/isoSurface/isoSurfaceParams.H
• src/sampling/surface/isoSurface/isoSurfaceParams.C
