sensitivitySurface Class Reference

Calculation of adjoint based sensitivities at wall faces. More...

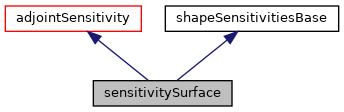

Inheritance diagram for sensitivitySurface:

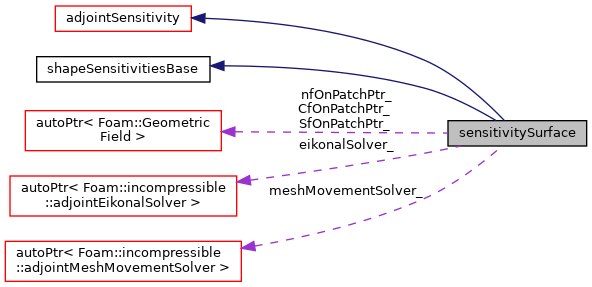

Collaboration diagram for sensitivitySurface:

Public Member Functions
	TypeName ("surface")
	sensitivitySurface (const fvMesh &mesh, const dictionary &dict, incompressibleVars &primalVars, incompressibleAdjointVars &adjointVars, objectiveManager &objectiveManager)
virtual	~sensitivitySurface ()=default
void	read ()
virtual bool	readDict (const dictionary &dict)
void	computeDerivativesSize ()
virtual void	accumulateIntegrand (const scalar dt)
virtual void	assembleSensitivities ()
virtual void	clearSensitivities ()
autoPtr< adjointEikonalSolver > &	getAdjointEikonalSolver ()
virtual void	write (const word &baseName=word::null)
bool	getIncludeObjective () const
bool	getIncludeSurfaceArea () const
void	setIncludeObjective (const bool includeObjective)
void	setIncludeSurfaceArea (const bool includeSurfaceArea)
Public Member Functions inherited from adjointSensitivity
	TypeName ("adjointSensitivity")
	declareRunTimeSelectionTable (autoPtr, adjointSensitivity, dictionary,(const fvMesh &mesh, const dictionary &dict, incompressibleVars &primalVars, incompressibleAdjointVars &adjointVars, objectiveManager &objectiveManager),(mesh, dict, primalVars, adjointVars, objectiveManager))
	adjointSensitivity (const fvMesh &mesh, const dictionary &dict, incompressibleVars &primalVars, incompressibleAdjointVars &adjointVars, objectiveManager &objectiveManager)
virtual	~adjointSensitivity ()=default
virtual const scalarField &	calculateSensitivities ()
const scalarField &	getSensitivities () const
tmp< volTensorField >	computeGradDxDbMultiplier ()
tmp< volVectorField >	adjointMeshMovementSource ()
Public Member Functions inherited from sensitivity
	TypeName ("sensitivity")
	sensitivity (const fvMesh &mesh, const dictionary &dict)
virtual	~sensitivity ()=default
const dictionary &	dict () const

Protected Member Functions
void	addGeometricSens ()
void	setSuffixName ()
void	smoothSensitivities ()
scalar	computeRadius (const faMesh &aMesh)

Protected Attributes
bool	includeSurfaceArea_
bool	includePressureTerm_
bool	includeGradStressTerm_
bool	includeTransposeStresses_
bool	useSnGradInTranposeStresses_
bool	includeDivTerm_
bool	includeDistance_
bool	includeMeshMovement_
bool	includeObjective_
bool	writeGeometricInfo_
bool	smoothSensitivities_
autoPtr< adjointEikonalSolver >	eikonalSolver_
autoPtr< adjointMeshMovementSolver >	meshMovementSolver_
autoPtr< volVectorField >	nfOnPatchPtr_
autoPtr< volVectorField >	SfOnPatchPtr_
autoPtr< volVectorField >	CfOnPatchPtr_
Protected Attributes inherited from adjointSensitivity
scalarField	derivatives_
incompressibleVars &	primalVars_
incompressibleAdjointVars &	adjointVars_
objectiveManager &	objectiveManager_
Protected Attributes inherited from sensitivity
const fvMesh &	mesh_
dictionary	dict_
autoPtr< volScalarField >	fieldSensPtr_

Additional Inherited Members
Static Public Member Functions inherited from adjointSensitivity
static autoPtr< adjointSensitivity >	New (const fvMesh &mesh, const dictionary &dict, incompressibleVars &primalVars, incompressibleAdjointVars &adjointVars, objectiveManager &objectiveManager)

Detailed Description

Calculation of adjoint based sensitivities at wall faces.

Reference:

    The computation of the sensitivity derivatives  follows the (E-)SI
    formulation of

        Kavvadias, I. S., Papoutsis-Kiachagias, E. M.,
        Giannakoglou, K. C. (2015).
        On the proper treatment of grid sensitivities in continuous adjoint
        methods for shape optimization.
        Journal of computational physics, 301, 1-18.
        https://doi.org/10.1016/j.jcp.2015.08.012

    whereas their smoothing based on the computation of the 'Sobolev
    gradient' is derived from

        Vassberg J. C., Jameson A. (2006).
        Aerodynamic Shape Optimization Part I: Theoretical Background.
        VKI Lecture Series, Introduction to Optimization and
        Multidisciplinary Design, Brussels, Belgium, 8 March, 2006.

Source files

• sensitivitySurfaceIncompressible.H
• sensitivitySurface.C

Definition at line 77 of file sensitivitySurfaceIncompressible.H.

Constructor & Destructor Documentation

sensitivitySurface()

sensitivitySurface	(	const fvMesh &	mesh,
		const dictionary &	dict,
		incompressibleVars &	primalVars,
		incompressibleAdjointVars &	adjointVars,
		objectiveManager &	objectiveManager
	)

Definition at line 398 of file sensitivitySurfaceIncompressible.C.

References IOobject::AUTO_WRITE, mesh, IOobject::NO_READ, Foam::read(), and VectorSpace< Vector< scalar >, scalar, 3 >::zero.

Here is the call graph for this function:

~sensitivitySurface()

virtual ~sensitivitySurface ( )

virtualdefault

Member Function Documentation

addGeometricSens()

void addGeometricSens ( )

protected

Definition at line 54 of file sensitivitySurfaceIncompressible.C.

References fvMesh::boundary(), polyMesh::boundaryMesh(), polyMesh::faces(), forAll, objectiveManager::getObjectiveFunctions(), Tensor::I, sensitivitySurface::includeObjective_, deltaBoundary::makeFaceCentresAndAreas_d(), sensitivity::mesh_, primitiveMesh::nPoints(), adjointSensitivity::objectiveManager_, p, Foam::foamVersion::patch, face::points(), polyMesh::points(), PrimitivePatchInterpolation< Patch >::pointToFaceInterpolate(), syncTools::syncPointList(), VectorSpace< Vector< scalar >, scalar, 3 >::zero, and Foam::Zero.

Referenced by sensitivitySurface::accumulateIntegrand().

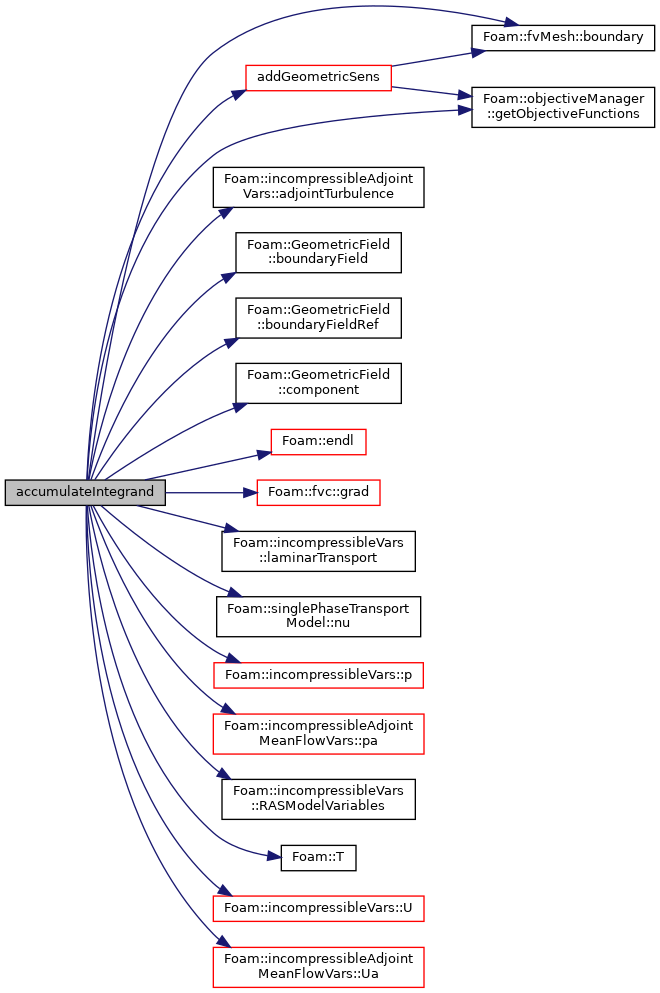

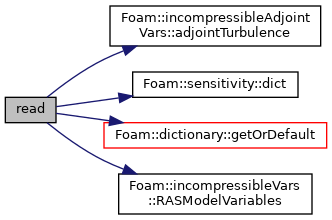

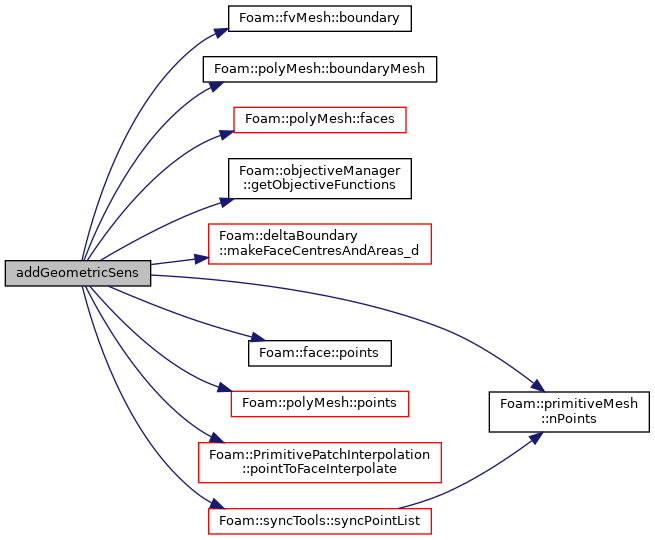

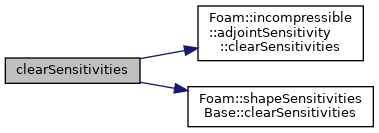

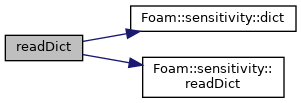

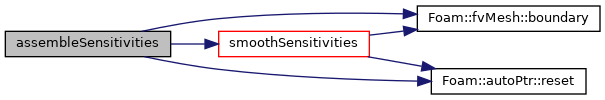

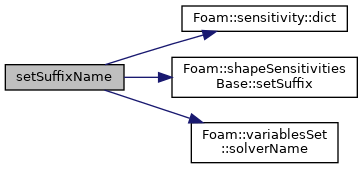

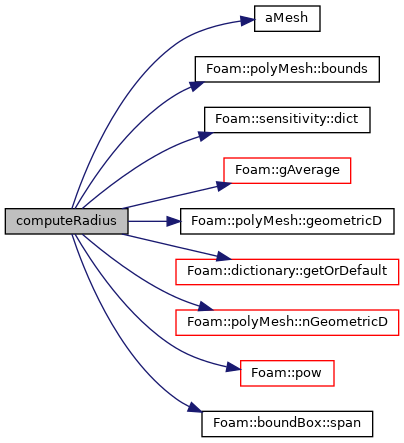

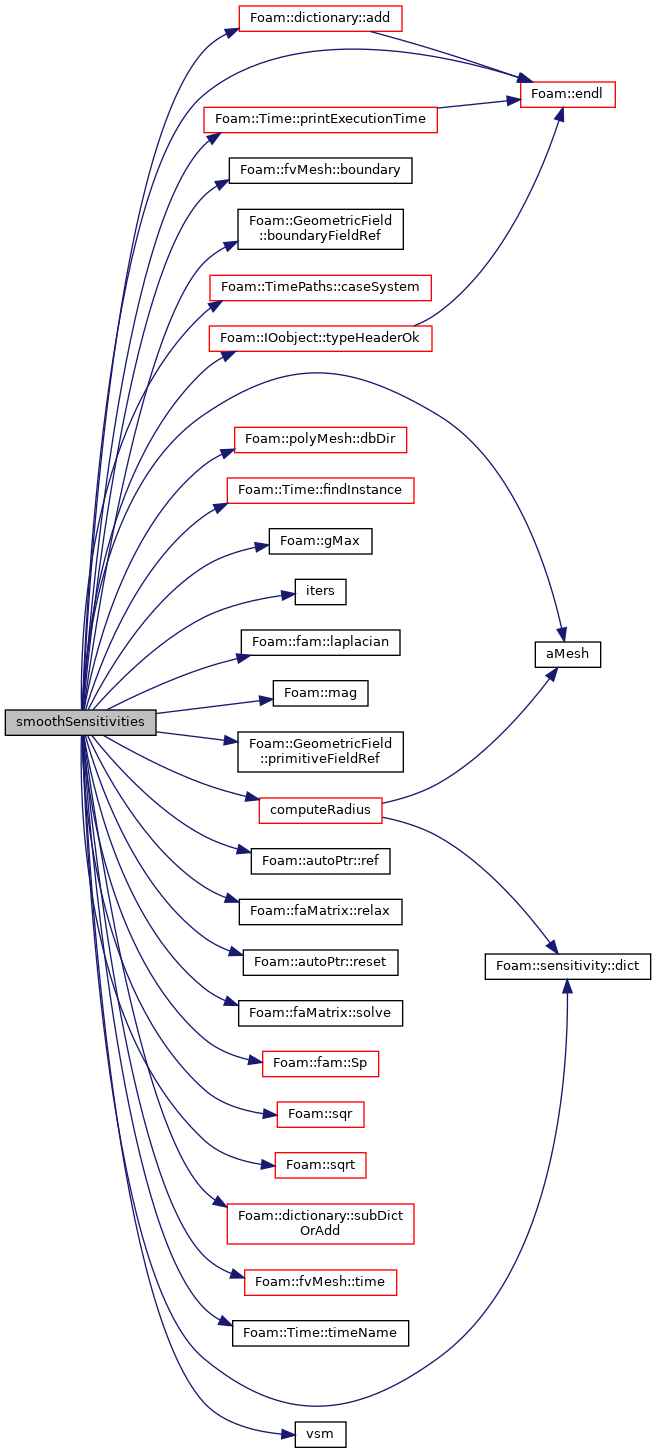

Here is the call graph for this function:

Here is the caller graph for this function:

setSuffixName()

void setSuffixName ( )

protected

Definition at line 192 of file sensitivitySurfaceIncompressible.C.

References adjointSensitivity::adjointVars_, sensitivity::dict(), sensitivitySurface::includeMeshMovement_, word::null, shapeSensitivitiesBase::setSuffix(), and variablesSet::solverName().

Referenced by sensitivitySurface::write().

Here is the call graph for this function:

Here is the caller graph for this function:

smoothSensitivities()

void smoothSensitivities ( )

protected

Definition at line 213 of file sensitivitySurfaceIncompressible.C.

References dictionary::add(), aMesh(), fvMesh::boundary(), GeometricField::boundaryFieldRef(), TimePaths::caseSystem(), sensitivitySurface::computeRadius(), polyMesh::dbDir(), DebugInfo, sensitivity::dict(), Foam::dimArea, Foam::dimless, Foam::constant::electromagnetic::e, Foam::endl(), Time::findInstance(), Foam::gMax(), Foam::Info, iters(), Foam::fam::laplacian(), Foam::mag(), sensitivity::mesh_, faMesh::meshSubDir, IOobject::MUST_READ, Foam::nl, IOobject::NO_READ, IOobject::NO_WRITE, patchID, GeometricField::primitiveFieldRef(), Time::printExecutionTime(), IOobject::READ_IF_PRESENT, autoPtr::ref(), faMatrix::relax(), autoPtr::reset(), faMatrix::solve(), Foam::fam::Sp(), Foam::sqr(), Foam::sqrt(), dictionary::subDictOrAdd(), fvMesh::time(), Time::timeName(), IOobject::typeHeaderOk(), vsm(), and Foam::Zero.

Referenced by sensitivitySurface::assembleSensitivities().

Here is the call graph for this function:

Here is the caller graph for this function:

computeRadius()

scalar computeRadius ( const faMesh &  aMesh )

protected

Definition at line 377 of file sensitivitySurfaceIncompressible.C.

References aMesh(), polyMesh::bounds(), sensitivity::dict(), forAll, Foam::gAverage(), polyMesh::geometricD(), dictionary::getOrDefault(), sensitivity::mesh_, polyMesh::nGeometricD(), Foam::pow(), and boundBox::span().

Referenced by sensitivitySurface::smoothSensitivities().

Here is the call graph for this function:

Here is the caller graph for this function:

TypeName()

TypeName

(

"surface"

)

read()

void read

(

)

Definition at line 503 of file sensitivitySurfaceIncompressible.C.

References incompressibleAdjointVars::adjointTurbulence(), adjointSensitivity::adjointVars_, sensitivity::dict(), sensitivity::dict_, sensitivitySurface::eikonalSolver_, dictionary::getOrDefault(), sensitivitySurface::includeDistance_, sensitivitySurface::includeDivTerm_, sensitivitySurface::includeGradStressTerm_, sensitivitySurface::includeMeshMovement_, sensitivitySurface::includeObjective_, sensitivitySurface::includePressureTerm_, sensitivitySurface::includeSurfaceArea_, sensitivitySurface::includeTransposeStresses_, sensitivity::mesh_, sensitivitySurface::meshMovementSolver_, adjointSensitivity::primalVars_, incompressibleVars::RASModelVariables(), sensitivitySurface::smoothSensitivities_, sensitivitySurface::useSnGradInTranposeStresses_, and sensitivitySurface::writeGeometricInfo_.

Referenced by SIBase::read().

Here is the call graph for this function:

Here is the caller graph for this function:

readDict()

bool readDict ( const dictionary &  dict )

virtual

Reimplemented from sensitivity.

Definition at line 563 of file sensitivitySurfaceIncompressible.C.

References sensitivity::dict(), sensitivitySurface::eikonalSolver_, sensitivitySurface::meshMovementSolver_, and sensitivity::readDict().

Referenced by SIBase::readDict().

Here is the call graph for this function:

Here is the caller graph for this function:

computeDerivativesSize()

void computeDerivativesSize ( )

virtual

Reimplemented from sensitivity.

Definition at line 584 of file sensitivitySurfaceIncompressible.C.

References fvMesh::boundary(), adjointSensitivity::derivatives_, and sensitivity::mesh_.

Here is the call graph for this function:

accumulateIntegrand()

void accumulateIntegrand ( const scalar  dt )

virtual

Implements adjointSensitivity.

Definition at line 595 of file sensitivitySurfaceIncompressible.C.

References sensitivitySurface::addGeometricSens(), incompressibleAdjointVars::adjointTurbulence(), adjointSensitivity::adjointVars_, fvMesh::boundary(), GeometricField::boundaryField(), GeometricField::boundaryFieldRef(), GeometricField::component(), DebugInfo, sensitivitySurface::eikonalSolver_, Foam::endl(), forAll, objectiveManager::getObjectiveFunctions(), Foam::fvc::grad(), sensitivitySurface::includeDistance_, sensitivitySurface::includeDivTerm_, sensitivitySurface::includeGradStressTerm_, sensitivitySurface::includeMeshMovement_, sensitivitySurface::includeObjective_, sensitivitySurface::includePressureTerm_, sensitivitySurface::includeTransposeStresses_, Foam::Info, incompressibleVars::laminarTransport(), sensitivity::mesh_, sensitivitySurface::meshMovementSolver_, singlePhaseTransportModel::nu(), adjointSensitivity::objectiveManager_, p, incompressibleVars::p(), incompressibleAdjointMeanFlowVars::pa(), Foam::foamVersion::patch, adjointSensitivity::primalVars_, incompressibleVars::RASModelVariables(), Foam::T(), U, incompressibleVars::U(), incompressibleAdjointMeanFlowVars::Ua(), sensitivitySurface::useSnGradInTranposeStresses_, and Foam::Zero.

Referenced by SIBase::accumulateIntegrand().

Here is the call graph for this function:

Here is the caller graph for this function:

assembleSensitivities()

void assembleSensitivities ( )

virtual

Implements adjointSensitivity.

Definition at line 800 of file sensitivitySurfaceIncompressible.C.

References fvMesh::boundary(), sensitivitySurface::CfOnPatchPtr_, adjointSensitivity::derivatives_, sensitivitySurface::eikonalSolver_, forAll, sensitivitySurface::includeDistance_, sensitivitySurface::includeMeshMovement_, sensitivitySurface::includeSurfaceArea_, sensitivity::mesh_, sensitivitySurface::meshMovementSolver_, sensitivitySurface::nfOnPatchPtr_, Foam::foamVersion::patch, autoPtr::reset(), sensitivitySurface::SfOnPatchPtr_, sensitivitySurface::smoothSensitivities(), sensitivitySurface::smoothSensitivities_, and sensitivitySurface::writeGeometricInfo_.

Referenced by sensitivityBezier::assembleSensitivities(), and sensitivityVolBSplines::assembleSensitivities().

Here is the call graph for this function:

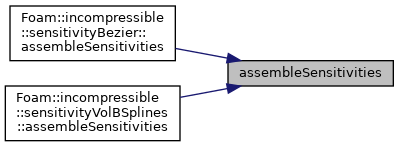

Here is the caller graph for this function:

clearSensitivities()

void clearSensitivities ( )

virtual

Reimplemented from adjointSensitivity.

Definition at line 893 of file sensitivitySurfaceIncompressible.C.

References adjointSensitivity::clearSensitivities(), shapeSensitivitiesBase::clearSensitivities(), sensitivitySurface::eikonalSolver_, sensitivitySurface::includeDistance_, sensitivitySurface::includeMeshMovement_, and sensitivitySurface::meshMovementSolver_.

Referenced by SIBase::clearSensitivities().

Here is the call graph for this function:

Here is the caller graph for this function:

getAdjointEikonalSolver()

autoPtr< adjointEikonalSolver > & getAdjointEikonalSolver

(

)

Definition at line 910 of file sensitivitySurfaceIncompressible.C.

References sensitivitySurface::eikonalSolver_.

write()

void write ( const word &  baseName = word::null )

virtual

Reimplemented from adjointSensitivity.

Definition at line 916 of file sensitivitySurfaceIncompressible.C.

References sensitivitySurface::CfOnPatchPtr_, sensitivitySurface::nfOnPatchPtr_, sensitivitySurface::setSuffixName(), sensitivitySurface::SfOnPatchPtr_, adjointSensitivity::write(), shapeSensitivitiesBase::write(), and sensitivitySurface::writeGeometricInfo_.

Referenced by SIBase::write().

Here is the call graph for this function:

Here is the caller graph for this function:

getIncludeObjective()

bool getIncludeObjective ( ) const

inline

Definition at line 31 of file sensitivitySurfaceIncompressibleI.H.

References sensitivitySurface::includeObjective_.

Referenced by SIBase::read().

Here is the caller graph for this function:

getIncludeSurfaceArea()

bool getIncludeSurfaceArea ( ) const

inline

Definition at line 37 of file sensitivitySurfaceIncompressibleI.H.

References sensitivitySurface::includeSurfaceArea_.

setIncludeObjective()

void setIncludeObjective ( const bool  includeObjective )

inline

Definition at line 44 of file sensitivitySurfaceIncompressibleI.H.

Referenced by SIBase::read().

Here is the caller graph for this function:

setIncludeSurfaceArea()

void setIncludeSurfaceArea ( const bool  includeSurfaceArea )

inline

Definition at line 53 of file sensitivitySurfaceIncompressibleI.H.

Referenced by SIBase::read().

Here is the caller graph for this function:

Member Data Documentation

includeSurfaceArea_

bool includeSurfaceArea_

protected

Definition at line 88 of file sensitivitySurfaceIncompressible.H.

Referenced by sensitivitySurface::assembleSensitivities(), sensitivitySurface::getIncludeSurfaceArea(), and sensitivitySurface::read().

includePressureTerm_

bool includePressureTerm_

protected

Definition at line 91 of file sensitivitySurfaceIncompressible.H.

Referenced by sensitivitySurface::accumulateIntegrand(), and sensitivitySurface::read().

includeGradStressTerm_

bool includeGradStressTerm_

protected

Definition at line 94 of file sensitivitySurfaceIncompressible.H.

Referenced by sensitivitySurface::accumulateIntegrand(), and sensitivitySurface::read().

includeTransposeStresses_

bool includeTransposeStresses_

protected

Definition at line 97 of file sensitivitySurfaceIncompressible.H.

Referenced by sensitivitySurface::accumulateIntegrand(), and sensitivitySurface::read().

useSnGradInTranposeStresses_

bool useSnGradInTranposeStresses_

protected

Definition at line 100 of file sensitivitySurfaceIncompressible.H.

Referenced by sensitivitySurface::accumulateIntegrand(), and sensitivitySurface::read().

includeDivTerm_

bool includeDivTerm_

protected

Definition at line 103 of file sensitivitySurfaceIncompressible.H.

Referenced by sensitivitySurface::accumulateIntegrand(), and sensitivitySurface::read().

includeDistance_

bool includeDistance_

protected

Definition at line 106 of file sensitivitySurfaceIncompressible.H.

Referenced by sensitivitySurface::accumulateIntegrand(), sensitivitySurface::assembleSensitivities(), sensitivitySurface::clearSensitivities(), and sensitivitySurface::read().

includeMeshMovement_

bool includeMeshMovement_

protected

Definition at line 109 of file sensitivitySurfaceIncompressible.H.

Referenced by sensitivitySurface::accumulateIntegrand(), sensitivitySurface::assembleSensitivities(), sensitivitySurface::clearSensitivities(), sensitivitySurface::read(), and sensitivitySurface::setSuffixName().

includeObjective_

bool includeObjective_

protected

Definition at line 112 of file sensitivitySurfaceIncompressible.H.

Referenced by sensitivitySurface::accumulateIntegrand(), sensitivitySurface::addGeometricSens(), sensitivitySurface::getIncludeObjective(), and sensitivitySurface::read().

writeGeometricInfo_

bool writeGeometricInfo_

protected

Definition at line 115 of file sensitivitySurfaceIncompressible.H.

Referenced by sensitivitySurface::assembleSensitivities(), sensitivitySurface::read(), and sensitivitySurface::write().

smoothSensitivities_

bool smoothSensitivities_

protected

Definition at line 119 of file sensitivitySurfaceIncompressible.H.

Referenced by sensitivitySurface::assembleSensitivities(), and sensitivitySurface::read().

eikonalSolver_

autoPtr<adjointEikonalSolver> eikonalSolver_

protected

Definition at line 121 of file sensitivitySurfaceIncompressible.H.

Referenced by sensitivitySurface::accumulateIntegrand(), sensitivitySurface::assembleSensitivities(), sensitivitySurface::clearSensitivities(), sensitivitySurface::getAdjointEikonalSolver(), sensitivitySurface::read(), and sensitivitySurface::readDict().

meshMovementSolver_

autoPtr<adjointMeshMovementSolver> meshMovementSolver_

protected

Definition at line 123 of file sensitivitySurfaceIncompressible.H.

Referenced by sensitivitySurface::accumulateIntegrand(), sensitivitySurface::assembleSensitivities(), sensitivitySurface::clearSensitivities(), sensitivitySurface::read(), and sensitivitySurface::readDict().

nfOnPatchPtr_

autoPtr<volVectorField> nfOnPatchPtr_

protected

Definition at line 126 of file sensitivitySurfaceIncompressible.H.

Referenced by sensitivitySurface::assembleSensitivities(), and sensitivitySurface::write().

SfOnPatchPtr_

autoPtr<volVectorField> SfOnPatchPtr_

protected

Definition at line 127 of file sensitivitySurfaceIncompressible.H.

Referenced by sensitivitySurface::assembleSensitivities(), and sensitivitySurface::write().

CfOnPatchPtr_

autoPtr<volVectorField> CfOnPatchPtr_

protected

Definition at line 128 of file sensitivitySurfaceIncompressible.H.

Referenced by sensitivitySurface::assembleSensitivities(), and sensitivitySurface::write().

---

The documentation for this class was generated from the following files:

• src/optimisation/adjointOptimisation/adjoint/optimisation/adjointSensitivity/incompressible/sensitivitySurface/sensitivitySurfaceIncompressible.H
• src/optimisation/adjointOptimisation/adjoint/optimisation/adjointSensitivity/incompressible/sensitivitySurface/sensitivitySurfaceIncompressible.C
• src/optimisation/adjointOptimisation/adjoint/optimisation/adjointSensitivity/incompressible/sensitivitySurface/sensitivitySurfaceIncompressibleI.H
