Applies cell-based momentum sources on velocity (i.e. U) within a specified cylindrical region to approximate the mean effects of rotor forces. More...

Inheritance diagram for rotorDiskSource:

[legend]

Collaboration diagram for rotorDiskSource:

[legend]

Classes
struct	flapData

Public Types
enum	geometryModeType { gmAuto, gmSpecified }

enum	inletFlowType { ifFixed, ifSurfaceNormal, ifLocal }

Public Types inherited from cellSetOption
enum	selectionModeType { smAll, smCellSet, smCellZone, smPoints }

Public Member Functions
	TypeName ("rotorDisk")

	rotorDiskSource (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh)

	rotorDiskSource (const rotorDiskSource &)=delete

void	operator= (const rotorDiskSource &)=delete

virtual	~rotorDiskSource ()=default

scalar	rhoRef () const

scalar	omega () const

const List< point > &	x () const

const coordSystem::cylindrical &	coordSys () const

template<class RhoFieldType >
void	calculate (const RhoFieldType &rho, const vectorField &U, const scalarField &thetag, vectorField &force, const bool divideVolume=true, const bool output=true) const

virtual void	addSup (fvMatrix< vector > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &rho, fvMatrix< vector > &eqn, const label fieldi)

virtual bool	read (const dictionary &dict)

Public Member Functions inherited from cellSetOption
	TypeName ("cellSetOption")

	cellSetOption (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh)

virtual	~cellSetOption ()=default

scalar	timeStart () const noexcept

scalar	duration () const noexcept

bool	inTimeLimits (const scalar timeValue) const

selectionModeType	selectionMode () const noexcept

bool	useSubMesh () const noexcept

const word &	cellSetName () const noexcept

scalar	V () const noexcept

const labelList &	cells () const noexcept

scalar	timeStart (scalar val) noexcept

scalar	duration (scalar val) noexcept

virtual bool	isActive ()

Public Member Functions inherited from option
	TypeName ("option")

	declareRunTimeSelectionTable (autoPtr, option, dictionary,(const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh),(name, modelType, dict, mesh))

	option (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh)

autoPtr< option >	clone () const

virtual	~option ()=default

const word &	name () const noexcept

const fvMesh &	mesh () const noexcept

const dictionary &	coeffs () const noexcept

bool	active () const noexcept

void	setApplied (const label fieldi)

bool	active (const bool on) noexcept

virtual label	applyToField (const word &fieldName) const

virtual void	checkApplied () const

virtual void	addSup (fvMatrix< scalar > &eqn, const label fieldi)

virtual void	addSup (fvMatrix< symmTensor > &eqn, const label fieldi)

virtual void	addSup (fvMatrix< sphericalTensor > &eqn, const label fieldi)

virtual void	addSup (fvMatrix< tensor > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &rho, fvMatrix< scalar > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &rho, fvMatrix< symmTensor > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &rho, fvMatrix< sphericalTensor > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &rho, fvMatrix< tensor > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< scalar > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< vector > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< symmTensor > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< sphericalTensor > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< tensor > &eqn, const label fieldi)

virtual void	constrain (fvMatrix< scalar > &eqn, const label fieldi)

virtual void	constrain (fvMatrix< vector > &eqn, const label fieldi)

virtual void	constrain (fvMatrix< sphericalTensor > &eqn, const label fieldi)

virtual void	constrain (fvMatrix< symmTensor > &eqn, const label fieldi)

virtual void	constrain (fvMatrix< tensor > &eqn, const label fieldi)

virtual void	correct (volScalarField &field)

virtual void	correct (volVectorField &field)

virtual void	correct (volSphericalTensorField &field)

virtual void	correct (volSymmTensorField &field)

virtual void	correct (volTensorField &field)

virtual void	postProcessSens (scalarField &sensField, const word &fieldName=word::null, const word &designVariablesName=word::null)

virtual void	postProcessSens (vectorField &sensField, const word &fieldName=word::null, const word &designVariablesName=word::null)

virtual void	postProcessSens (tensorField &sensField, const word &fieldName=word::null, const word &designVariablesName=word::null)

virtual void	writeHeader (Ostream &) const

virtual void	writeFooter (Ostream &) const

virtual void	writeData (Ostream &) const

Static Public Attributes
static const Enum< geometryModeType >	geometryModeTypeNames_

static const Enum< inletFlowType >	inletFlowTypeNames_

Static Public Attributes inherited from cellSetOption
static const Enum< selectionModeType >	selectionModeTypeNames_

Protected Member Functions
void	checkData ()

void	setFaceArea (vector &axis, const bool correct)

void	createCoordinateSystem ()

void	constructGeometry ()

tmp< vectorField >	inflowVelocity (const volVectorField &U) const

template<class Type >
void	writeField (const word &name, const List< Type > &values, const bool writeNow=false) const

Protected Member Functions inherited from cellSetOption
void	setSelection (const dictionary &dict)

void	setCellSelection ()

void	setVol ()

Protected Member Functions inherited from option
void	resetApplied ()

Protected Attributes
scalar	rhoRef_

scalar	omega_

label	nBlades_

inletFlowType	inletFlow_

vector	inletVelocity_

scalar	tipEffect_

flapData	flap_

List< point >	x_

List< tensor >	Rcone_

List< scalar >	area_

coordSystem::cylindrical	coordSys_

autoPtr< tensorField >	Rcyl_

scalar	rMax_

autoPtr< trimModel >	trim_

bladeModel	blade_

profileModelList	profiles_

Protected Attributes inherited from cellSetOption
scalar	timeStart_

scalar	duration_

selectionModeType	selectionMode_

word	cellSetName_

List< point >	points_

labelList	cells_

scalar	V_

Protected Attributes inherited from option
const word	name_

const word	modelType_

const fvMesh &	mesh_

dictionary	dict_

dictionary	coeffs_

wordList	fieldNames_

List< bool >	applied_

bool	active_

Additional Inherited Members
Static Public Member Functions inherited from option
static autoPtr< option >	New (const word &name, const dictionary &dict, const fvMesh &mesh)

Public Attributes inherited from option
bool	log

Detailed Description

Applies cell-based momentum sources on velocity (i.e. U) within a specified cylindrical region to approximate the mean effects of rotor forces.

Sources applied to:

  U         | Velocity    [m/s]

Required fields:

  U         | Velocity    [m/s]

Usage: Minimal example by using constant/fvOptions: rotorDiskSource1 { Mandatory entries (unmodifiable) type rotorDiskSource;

Mandatory entries (runtime modifiable) fields (<field1> <field2> ... <fieldN>); rhoRef 1.0; rpm 5.5; nBlades 3; inletFlowType local; geometryMode auto; tipEffect 0.96; // [0, 1] refDirection (-1 0 0 ); flapCoeffs { beta0 0.0; beta1c 0.0; beta2s 0.0; }

trimModel fixed;

blade { see bladeModel.H for documentation }

profiles { profile1 { type lookup; // lookup || series ... see lookupProfile.H or seriesProfile.H for documentation } profile2 { ... } }

Conditional mandatory entries (runtime modifiable)

when inletFlowType=fixed inletVelocity (1 0 0);

when inletFlowType=surfaceNormal inletNormalVelocity 5.0;

when geometryMode=auto pointAbove (1 0 0);

when geometryMode=specified origin (0 0 0); axis (1 0 0);

Mandatory/Optional (inherited) entries ... }

where the entries mean:

Property	Description	Type	Reqd	Dflt
`type`	Type name: rotorDiskSource	word	yes	-
`fields`	Names of operand fields	wordList	yes	-
`rhoRef`	Reference density for incompressible case	scalar	yes	-
`rpm`	Rotational speed [rad/s]	scalar	yes	-
`nBlades`	Number of rotor blades	label	yes	-
`tipEffect`	Ratio of blade radius beyond which lift=0	scalar	yes	-
`refDirection`	Reference direction used as reference for psi angle	vector	yes	-
`beta0`	Coning angle [deg]	scalar	yes	-
`beta1c`	Lateral flapping coeff (cos coeff) [deg]	scalar	yes	-
`beta2s`	Longitudinal flapping coeff (sin coeff) [deg]	scalar	yes	-
`inletFlowType`	Inlet flow type specification	word	yes	-
`inletVelocity`	Inlet velocity [m/s]	vector	cndtnl	-
`inletNormalVelocity`	Inlet normal velocity magnitude	scalar	cndtnl	-
`geometryMode`	Geometry mode specification	word	yes	-
`pointAbove`	Correct the axis direction using a point above the rotor	vector	cndtnl	-
`origin`	Origin of the specified coordinate system	vector	cndtnl	-
`axis`	Axis of the specified coordinate system	vector	cndtnl	-
`trimModel`	Trim model specification	word	yes	-
`blade`	Blade properties	dictionary	yes	-

The inherited entries are elaborated in:

Options for the inletFlowType entry:

      fixed    | Use a specified velocity
      local    | Use local flow conditions
      surfaceNormal | Use a specified normal velocity (positive towards rotor)

Options for the geometryMode entry:

      auto      | Determine rotor coordinate system from selected cells
      specified | Use a specified coordinate system

Options for the trimModel entry:

      fixed       | Fixed blade/angle characteristics
      targetForce | Target thrust/torque by using time-variant blade characs.

Note

The entry rpm is positive anti-clockwise when looking along -ve lift direction.

See also

Source files

Definition at line 326 of file rotorDiskSource.H.

Member Enumeration Documentation

◆ geometryModeType

enum geometryModeType

Enumerator
gmAuto
gmSpecified

Definition at line 335 of file rotorDiskSource.H.

◆ inletFlowType

enum inletFlowType

Enumerator
ifFixed
ifSurfaceNormal
ifLocal

Definition at line 345 of file rotorDiskSource.H.

Constructor & Destructor Documentation

◆ rotorDiskSource() [1/2]

rotorDiskSource	(	const word &	name,
		const word &	modelType,
		const dictionary &	dict,
		const fvMesh &	mesh
	)

Definition at line 439 of file rotorDiskSource.C.

References dict, and Foam::read().

Here is the call graph for this function:

◆ rotorDiskSource() [2/2]

rotorDiskSource ( const rotorDiskSource & )

delete

◆ ~rotorDiskSource()

virtual ~rotorDiskSource ( )

virtualdefault

Member Function Documentation

◆ checkData()

void checkData ( )

protected

Definition at line 69 of file rotorDiskSource.C.

References Foam::abort(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, and Foam::nl.

Here is the call graph for this function:

◆ setFaceArea()

void setFaceArea	(	vector &	axis,
		const bool	correct
	)

protected

Definition at line 121 of file rotorDiskSource.C.

References Foam::fieldTypes::area, correct(), polyPatch::coupled(), Foam::expressions::patchExpr::debug, Foam::dimArea, Foam::endl(), forAll, Foam::identity(), Foam::Info, Foam::mag(), n, IOobject::NO_READ, IOobject::NO_WRITE, Foam::reduce(), polyPatch::start(), syncTools::swapBoundaryFaceList(), Foam::type(), and Foam::Zero.

Here is the call graph for this function:

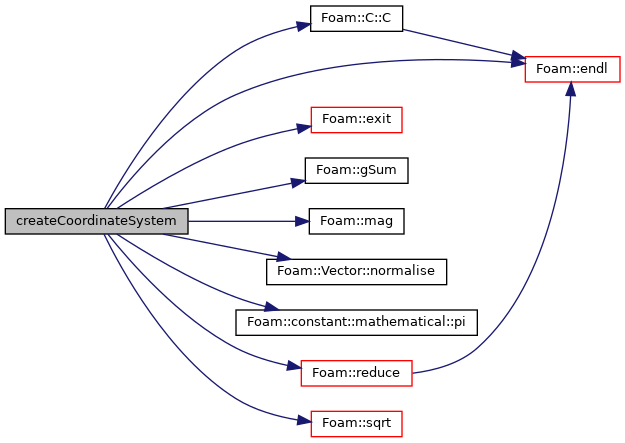

◆ createCoordinateSystem()

void createCoordinateSystem ( )

protected

Definition at line 257 of file rotorDiskSource.C.

References C::C(), Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, forAll, Foam::gSum(), Foam::Info, Foam::mag(), Foam::nl, Vector< Cmpt >::normalise(), Foam::constant::mathematical::pi(), Foam::reduce(), Foam::sqrt(), and Foam::Zero.

Here is the call graph for this function:

◆ constructGeometry()

void constructGeometry ( )

protected

Rcyl_.reset(coordSys_.R(cc).ptr());

Definition at line 371 of file rotorDiskSource.C.

References beta(), Foam::constant::universal::c, Foam::cos(), forAll, Foam::max(), psi, s, Foam::sin(), and x.

Here is the call graph for this function:

◆ inflowVelocity()

Foam::tmp< Foam::vectorField > inflowVelocity ( const volVectorField & U ) const

protected

Definition at line 406 of file rotorDiskSource.C.

References Foam::abort(), Foam::FatalError, FatalErrorInFunction, tmp::New(), U, and Foam::Zero.

Here is the call graph for this function:

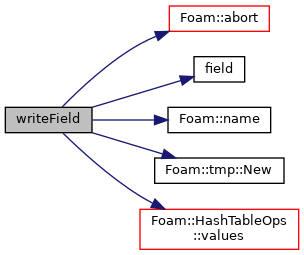

◆ writeField()

void writeField	(	const word &	name,
		const List< Type > &	values,
		const bool	writeNow = `false`
	)		const

protected

Definition at line 168 of file rotorDiskSourceTemplates.C.

References Foam::abort(), Foam::dimless, Foam::FatalError, FatalErrorInFunction, field(), forAll, Foam::name(), tmp::New(), IOobject::NO_READ, IOobject::NO_WRITE, Foam::HashTableOps::values(), and Foam::Zero.

Here is the call graph for this function:

◆ TypeName()

TypeName ( "rotorDisk" )

◆ operator=()

void operator= ( const rotorDiskSource & )

delete

◆ rhoRef()

Foam::scalar rhoRef ( ) const

inline

Definition at line 25 of file rotorDiskSourceI.H.

References rotorDiskSource::rhoRef_.

◆ omega()

Foam::scalar omega ( ) const

inline

Definition at line 31 of file rotorDiskSourceI.H.

◆ x()

const Foam::List< Foam::point > & x ( ) const

inline

Definition at line 37 of file rotorDiskSourceI.H.

◆ coordSys()

const Foam::coordSystem::cylindrical & coordSys ( ) const

inline

Definition at line 44 of file rotorDiskSourceI.H.

◆ calculate()

void calculate	(	const RhoFieldType &	rho,
		const vectorField &	U,
		const scalarField &	thetag,
		vectorField &	force,
		const bool	divideVolume = `true`,
		const bool	output = `true`
	)		const

Definition at line 32 of file rotorDiskSourceTemplates.C.

References alphaEff(), Foam::atan2(), bool, Foam::endl(), f(), forAll, Foam::Info, Foam::invTransform(), Foam::magSqr(), Foam::max(), Foam::min(), Foam::neg(), Foam::nl, Foam::output(), pDyn(), Foam::constant::mathematical::pi(), Foam::radToDeg(), Foam::reduce(), rho, Foam::transform(), Foam::constant::mathematical::twoPi(), Foam::type(), U, Vector< Cmpt >::x(), Vector< Cmpt >::y(), and Vector< Cmpt >::z().

Here is the call graph for this function:

◆ addSup() [1/2]

void addSup	(	fvMatrix< vector > &	eqn,
		const label	fieldi
	)

virtual

Reimplemented from option.

Definition at line 471 of file rotorDiskSource.C.

References fvMatrix::dimensions(), Foam::dimVolume, fvMatrix::psi(), and Foam::Zero.

Here is the call graph for this function:

◆ addSup() [2/2]

void addSup	(	const volScalarField &	rho,
		fvMatrix< vector > &	eqn,
		const label	fieldi
	)

virtual

Reimplemented from option.

Definition at line 506 of file rotorDiskSource.C.

References fvMatrix::dimensions(), Foam::dimVolume, fvMatrix::psi(), rho, and Foam::Zero.

Here is the call graph for this function:

◆ read()

bool read ( const dictionary & dict )

virtual

Reimplemented from cellSetOption.

Definition at line 538 of file rotorDiskSource.C.

References Foam::checkData(), Foam::expressions::patchExpr::debug, Foam::degToRad(), dict, dictionary::get(), cellSetOption::read(), option::resetApplied(), Foam::rpmToRads(), and Foam::ensightOutput::writeField().

Here is the call graph for this function:

Member Data Documentation

◆ geometryModeTypeNames_

const Foam::Enum< Foam::fv::rotorDiskSource::geometryModeType > geometryModeTypeNames_

static

Definition at line 342 of file rotorDiskSource.H.

◆ inletFlowTypeNames_

const Foam::Enum< Foam::fv::rotorDiskSource::inletFlowType > inletFlowTypeNames_

static

Definition at line 353 of file rotorDiskSource.H.

◆ rhoRef_

scalar rhoRef_

protected

Definition at line 372 of file rotorDiskSource.H.

Referenced by rotorDiskSource::rhoRef().

◆ omega_

scalar omega_

protected

Definition at line 376 of file rotorDiskSource.H.

◆ nBlades_

label nBlades_

protected

Definition at line 379 of file rotorDiskSource.H.

◆ inletFlow_

inletFlowType inletFlow_

protected

Definition at line 382 of file rotorDiskSource.H.

◆ inletVelocity_

vector inletVelocity_

protected

Definition at line 385 of file rotorDiskSource.H.

◆ tipEffect_

scalar tipEffect_

protected

Definition at line 389 of file rotorDiskSource.H.

◆ flap_

flapData flap_

protected

Definition at line 392 of file rotorDiskSource.H.

◆ x_

List<point> x_

protected

Definition at line 396 of file rotorDiskSource.H.

◆ Rcone_

List<tensor> Rcone_

protected

Definition at line 399 of file rotorDiskSource.H.

◆ area_

List<scalar> area_

protected

Definition at line 402 of file rotorDiskSource.H.

◆ coordSys_

coordSystem::cylindrical coordSys_

protected

Definition at line 405 of file rotorDiskSource.H.

◆ Rcyl_

autoPtr<tensorField> Rcyl_

protected

Definition at line 408 of file rotorDiskSource.H.

◆ rMax_

scalar rMax_

protected

Definition at line 411 of file rotorDiskSource.H.

◆ trim_

autoPtr<trimModel> trim_

protected

Definition at line 414 of file rotorDiskSource.H.

◆ blade_

bladeModel blade_

protected

Definition at line 417 of file rotorDiskSource.H.

◆ profiles_

profileModelList profiles_

protected

Definition at line 420 of file rotorDiskSource.H.

The documentation for this class was generated from the following files:

src/fvOptions/sources/derived/rotorDiskSource/rotorDiskSource.H
src/fvOptions/sources/derived/rotorDiskSource/rotorDiskSource.C
src/fvOptions/sources/derived/rotorDiskSource/rotorDiskSourceI.H
src/fvOptions/sources/derived/rotorDiskSource/rotorDiskSourceTemplates.C

Classes

Public Types

Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ geometryModeType

◆ inletFlowType

Constructor & Destructor Documentation

◆ rotorDiskSource() [1/2]

◆ rotorDiskSource() [2/2]

◆ ~rotorDiskSource()

Member Function Documentation

◆ checkData()

◆ setFaceArea()

◆ createCoordinateSystem()

◆ constructGeometry()

◆ inflowVelocity()

◆ writeField()

◆ TypeName()

◆ operator=()

◆ rhoRef()

◆ omega()

◆ x()

◆ coordSys()

◆ calculate()

◆ addSup() [1/2]

◆ addSup() [2/2]

◆ read()

Member Data Documentation

◆ geometryModeTypeNames_

◆ inletFlowTypeNames_

◆ rhoRef_

◆ omega_

◆ nBlades_

◆ inletFlow_

◆ inletVelocity_

◆ tipEffect_

◆ flap_

◆ x_

◆ Rcone_

◆ area_

◆ coordSys_

◆ Rcyl_

◆ rMax_

◆ trim_

◆ blade_

◆ profiles_
