Applies sources on velocity field (i.e. U) within a specified region to enable actuator disk models with radial thrust distribution for aero/hydro thrust loading of horizontal axis turbines on surrounding flow field in terms of energy conversion processes. More...

Inheritance diagram for radialActuationDiskSource:

[legend]

Collaboration diagram for radialActuationDiskSource:

[legend]

Public Member Functions
	TypeName ("radialActuationDiskSource")

	radialActuationDiskSource (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh)

	radialActuationDiskSource (const radialActuationDiskSource &)=delete

void	operator= (const radialActuationDiskSource &)=delete

virtual	~radialActuationDiskSource ()=default

virtual void	addSup (fvMatrix< vector > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &rho, fvMatrix< vector > &eqn, const label fieldi)

virtual bool	read (const dictionary &dict)

Public Member Functions inherited from actuationDiskSource
	TypeName ("actuationDiskSource")

	actuationDiskSource ()=delete

	actuationDiskSource (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh)

	actuationDiskSource (const actuationDiskSource &)=delete

void	operator= (const actuationDiskSource &)=delete

virtual	~actuationDiskSource ()=default

const vector &	diskDir () const

scalar	diskArea () const

virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< vector > &eqn, const label fieldi)

Public Member Functions inherited from cellSetOption
	TypeName ("cellSetOption")

	cellSetOption (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh)

virtual	~cellSetOption ()=default

scalar	timeStart () const noexcept

scalar	duration () const noexcept

bool	inTimeLimits (const scalar timeValue) const

selectionModeType	selectionMode () const noexcept

bool	useSubMesh () const noexcept

const word &	cellSetName () const noexcept

scalar	V () const noexcept

const labelList &	cells () const noexcept

scalar	timeStart (scalar val) noexcept

scalar	duration (scalar val) noexcept

virtual bool	isActive ()

Public Member Functions inherited from option
	TypeName ("option")

	declareRunTimeSelectionTable (autoPtr, option, dictionary,(const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh),(name, modelType, dict, mesh))

	option (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh)

autoPtr< option >	clone () const

virtual	~option ()=default

const word &	name () const noexcept

const fvMesh &	mesh () const noexcept

const dictionary &	coeffs () const noexcept

bool	active () const noexcept

void	setApplied (const label fieldi)

bool	active (const bool on) noexcept

virtual label	applyToField (const word &fieldName) const

virtual void	checkApplied () const

virtual void	addSup (fvMatrix< scalar > &eqn, const label fieldi)

virtual void	addSup (fvMatrix< symmTensor > &eqn, const label fieldi)

virtual void	addSup (fvMatrix< sphericalTensor > &eqn, const label fieldi)

virtual void	addSup (fvMatrix< tensor > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &rho, fvMatrix< scalar > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &rho, fvMatrix< symmTensor > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &rho, fvMatrix< sphericalTensor > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &rho, fvMatrix< tensor > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< scalar > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< symmTensor > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< sphericalTensor > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< tensor > &eqn, const label fieldi)

virtual void	constrain (fvMatrix< scalar > &eqn, const label fieldi)

virtual void	constrain (fvMatrix< vector > &eqn, const label fieldi)

virtual void	constrain (fvMatrix< sphericalTensor > &eqn, const label fieldi)

virtual void	constrain (fvMatrix< symmTensor > &eqn, const label fieldi)

virtual void	constrain (fvMatrix< tensor > &eqn, const label fieldi)

virtual void	correct (volScalarField &field)

virtual void	correct (volVectorField &field)

virtual void	correct (volSphericalTensorField &field)

virtual void	correct (volSymmTensorField &field)

virtual void	correct (volTensorField &field)

virtual void	postProcessSens (scalarField &sensField, const word &fieldName=word::null, const word &designVariablesName=word::null)

virtual void	postProcessSens (vectorField &sensField, const word &fieldName=word::null, const word &designVariablesName=word::null)

virtual void	postProcessSens (tensorField &sensField, const word &fieldName=word::null, const word &designVariablesName=word::null)

virtual void	writeHeader (Ostream &) const

virtual void	writeFooter (Ostream &) const

virtual void	writeData (Ostream &) const

Public Member Functions inherited from writeFile
	writeFile (const objectRegistry &obr, const fileName &prefix, const word &name="undefined", const bool writeToFile=true)

	writeFile (const objectRegistry &obr, const fileName &prefix, const word &name, const dictionary &dict, const bool writeToFile=true)

	writeFile (const writeFile &wf)

virtual	~writeFile ()=default

virtual OFstream &	file ()

virtual bool	writeToFile () const

virtual bool	canWriteHeader () const

virtual label	charWidth () const

virtual void	writeCommented (Ostream &os, const string &str) const

virtual void	writeTabbed (Ostream &os, const string &str) const

virtual void	writeHeader (Ostream &os, const string &str) const

virtual void	writeCurrentTime (Ostream &os) const

virtual void	writeBreak (Ostream &os) const

template<class Type >
void	writeHeaderValue (Ostream &os, const string &property, const Type &value) const

Additional Inherited Members
Public Types inherited from cellSetOption
enum	selectionModeType { smAll, smCellSet, smCellZone, smPoints }

Static Public Member Functions inherited from option
static autoPtr< option >	New (const word &name, const dictionary &dict, const fvMesh &mesh)

Public Attributes inherited from option
bool	log

Static Public Attributes inherited from cellSetOption
static const Enum< selectionModeType >	selectionModeTypeNames_

Static Public Attributes inherited from writeFile
static label	addChars = 8

Protected Types inherited from actuationDiskSource
enum	forceMethodType { FROUDE, VARIABLE_SCALING }

enum	monitorMethodType { POINTS, CELLSET }

Protected Member Functions inherited from actuationDiskSource
virtual void	writeFileHeader (Ostream &os)

Protected Member Functions inherited from cellSetOption
void	setSelection (const dictionary &dict)

void	setCellSelection ()

void	setVol ()

Protected Member Functions inherited from option
void	resetApplied ()

Protected Member Functions inherited from writeFile
void	initStream (Ostream &os) const

fileName	baseFileDir () const

fileName	baseTimeDir () const

virtual autoPtr< OFstream >	createFile (const word &name, scalar timeValue) const

virtual autoPtr< OFstream >	createFile (const word &name) const

virtual void	resetFile (const word &name)

Omanip< int >	valueWidth (const label offset=0) const

void	operator= (const writeFile &)=delete

Protected Attributes inherited from actuationDiskSource
enum forceMethodType	forceMethod_

enum monitorMethodType	monitorMethod_

label	sink_

scalar	writeFileStart_

scalar	writeFileEnd_

scalar	diskArea_

vector	diskDir_

autoPtr< Function1< scalar > >	UvsCpPtr_

autoPtr< Function1< scalar > >	UvsCtPtr_

labelList	monitorCells_

Protected Attributes inherited from cellSetOption
scalar	timeStart_

scalar	duration_

selectionModeType	selectionMode_

word	cellSetName_

List< point >	points_

labelList	cells_

scalar	V_

Protected Attributes inherited from option
const word	name_

const word	modelType_

const fvMesh &	mesh_

dictionary	dict_

dictionary	coeffs_

wordList	fieldNames_

List< bool >	applied_

bool	active_

Protected Attributes inherited from writeFile
const objectRegistry &	fileObr_

const fileName	prefix_

word	fileName_

autoPtr< OFstream >	filePtr_

label	writePrecision_

bool	writeToFile_

bool	updateHeader_

bool	writtenHeader_

bool	useUserTime_

scalar	startTime_

Static Protected Attributes inherited from actuationDiskSource
static const Enum< forceMethodType >	forceMethodTypeNames

static const Enum< monitorMethodType >	monitorMethodTypeNames

Detailed Description

Applies sources on velocity field (i.e. U) within a specified region to enable actuator disk models with radial thrust distribution for aero/hydro thrust loading of horizontal axis turbines on surrounding flow field in terms of energy conversion processes.

Sources applied to:

  U         | Velocity    [m/s]

Required fields:

  U         | Velocity    [m/s]

Thrust, which is computed by actuationDiskSource.H is distributed as a function of actuator disk radius through a given forth order polynomial function:

$T(r) = T (C_0 + C_1 r^2 + C_2 r^4)$

where

	=	Thrust magnitude computed by actuationDiskSource setup
	=	Thrust magnitude as a function of "r"
	=	Local actuator disk radius
	=	Polynomial coefficients

Usage

Minimal example by using constant/fvOptions:

radialActuationDiskSource1
{
    // Mandatory entries (unmodifiable)
    type            radialActuationDiskSource;

    // Mandatory entries (runtime modifiable)
    coeffs          (0.1 0.5 0.01);

    // Mandatory/Optional (inherited) entries
    ...
}

where the entries mean:

Property	Description	Type	Reqd	Dflt
`type`	Type name: radialActuationDiskSource	word	yes	-
`coeffs`	Radial distribution function coefficients	vector	yes	-

The inherited entries are elaborated in:

Note

radialActuationDiskSource computes only Froude force computation method of actuationDiskSource.

Source files

Definition at line 150 of file radialActuationDiskSource.H.

Constructor & Destructor Documentation

◆ radialActuationDiskSource() [1/2]

radialActuationDiskSource	(	const word &	name,
		const word &	modelType,
		const dictionary &	dict,
		const fvMesh &	mesh
	)

Definition at line 40 of file radialActuationDiskSource.C.

References Foam::endl(), and Foam::Info.

Here is the call graph for this function:

◆ radialActuationDiskSource() [2/2]

radialActuationDiskSource ( const radialActuationDiskSource & )

delete

◆ ~radialActuationDiskSource()

virtual ~radialActuationDiskSource ( )

virtualdefault

Member Function Documentation

◆ TypeName()

TypeName ( "radialActuationDiskSource" )

◆ operator=()

void operator= ( const radialActuationDiskSource & )

delete

◆ addSup() [1/2]

void addSup	(	fvMatrix< vector > &	eqn,
		const label	fieldi
	)

virtual

Reimplemented from actuationDiskSource.

Definition at line 57 of file radialActuationDiskSource.C.

References fvMatrix::psi(), fvMatrix::source(), and U.

Here is the call graph for this function:

◆ addSup() [2/2]

void addSup	(	const volScalarField &	rho,
		fvMatrix< vector > &	eqn,
		const label	fieldi
	)

virtual

Reimplemented from actuationDiskSource.

Definition at line 81 of file radialActuationDiskSource.C.

References fvMatrix::psi(), rho, fvMatrix::source(), and U.

Here is the call graph for this function:

◆ read()

bool read ( const dictionary & dict )

virtual

Reimplemented from actuationDiskSource.

Definition at line 105 of file radialActuationDiskSource.C.

References option::coeffs_, dict, actuationDiskSource::read(), and dictionary::readEntry().

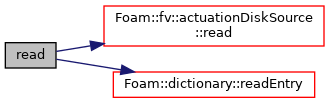

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/fvOptions/sources/derived/radialActuationDiskSource/radialActuationDiskSource.H
src/fvOptions/sources/derived/radialActuationDiskSource/radialActuationDiskSource.C
