Evolves an electrical potential equation. More...

Inheritance diagram for jouleHeatingSource:

Collaboration diagram for jouleHeatingSource:

Public Member Functions
	TypeName ("jouleHeatingSource")

	jouleHeatingSource (const word &sourceName, const word &modelType, const dictionary &dict, const fvMesh &mesh)

	jouleHeatingSource (const jouleHeatingSource &)=delete

void	operator= (const jouleHeatingSource &)=delete

virtual	~jouleHeatingSource ()=default

virtual void	addSup (const volScalarField &rho, fvMatrix< scalar > &eqn, const label fieldi)

virtual bool	read (const dictionary &dict)

Public Member Functions inherited from option
	TypeName ("option")

	declareRunTimeSelectionTable (autoPtr, option, dictionary,(const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh),(name, modelType, dict, mesh))

	option (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh)

autoPtr< option >	clone () const

virtual	~option ()=default

const word &	name () const noexcept

const fvMesh &	mesh () const noexcept

const dictionary &	coeffs () const noexcept

bool	active () const noexcept

void	setApplied (const label fieldi)

bool	active (const bool on) noexcept

virtual bool	isActive ()

virtual label	applyToField (const word &fieldName) const

virtual void	checkApplied () const

virtual void	addSup (fvMatrix< scalar > &eqn, const label fieldi)

virtual void	addSup (fvMatrix< vector > &eqn, const label fieldi)

virtual void	addSup (fvMatrix< symmTensor > &eqn, const label fieldi)

virtual void	addSup (fvMatrix< sphericalTensor > &eqn, const label fieldi)

virtual void	addSup (fvMatrix< tensor > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &rho, fvMatrix< vector > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &rho, fvMatrix< symmTensor > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &rho, fvMatrix< sphericalTensor > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &rho, fvMatrix< tensor > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< scalar > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< vector > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< symmTensor > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< sphericalTensor > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< tensor > &eqn, const label fieldi)

virtual void	constrain (fvMatrix< scalar > &eqn, const label fieldi)

virtual void	constrain (fvMatrix< vector > &eqn, const label fieldi)

virtual void	constrain (fvMatrix< sphericalTensor > &eqn, const label fieldi)

virtual void	constrain (fvMatrix< symmTensor > &eqn, const label fieldi)

virtual void	constrain (fvMatrix< tensor > &eqn, const label fieldi)

virtual void	correct (volScalarField &field)

virtual void	correct (volVectorField &field)

virtual void	correct (volSphericalTensorField &field)

virtual void	correct (volSymmTensorField &field)

virtual void	correct (volTensorField &field)

virtual void	postProcessSens (scalarField &sensField, const word &fieldName=word::null, const word &designVariablesName=word::null)

virtual void	postProcessSens (vectorField &sensField, const word &fieldName=word::null, const word &designVariablesName=word::null)

virtual void	postProcessSens (tensorField &sensField, const word &fieldName=word::null, const word &designVariablesName=word::null)

virtual void	writeHeader (Ostream &) const

virtual void	writeFooter (Ostream &) const

virtual void	writeData (Ostream &) const

Additional Inherited Members
Static Public Member Functions inherited from option
static autoPtr< option >	New (const word &name, const dictionary &dict, const fvMesh &mesh)

Public Attributes inherited from option
bool	log

Protected Member Functions inherited from option
void	resetApplied ()

Protected Attributes inherited from option
const word	name_

const word	modelType_

const fvMesh &	mesh_

dictionary	dict_

dictionary	coeffs_

wordList	fieldNames_

List< bool >	applied_

bool	active_

Detailed Description

Evolves an electrical potential equation.

$\grad \left( \sigma \grad V \right)$

where $ V $ is electrical potential and $\sigma$ is the electrical current.

To provide a Joule heating contribution according to:

Differential form of Joule heating - power per unit volume:

$\frac{d(P)}{d(V)} = J \cdot E$

where $ J $ is the current density and $ E $ the electric field. If no magnetic field is present:

$J = \sigma E$

The electric field given by

$E = \grad V$

Therefore:

$\frac{d(P)}{d(V)} = J \cdot E = (sigma E) \cdot E = (sigma \grad V) \cdot \grad V$

Usage

Minimal example by using constant/fvOptions:

jouleHeatingSource1
{
    // Mandatory entries (unmodifiable)
    type                 jouleHeatingSource;

    // Mandatory entries (runtime modifiable)
    anisotropicElectricalConductivity true;

    // Optional entries (runtime modifiable)
    T       <Tname>;

    // Conditional mandatory entries (runtime modifiable)

        // when anisotropicElectricalConductivity=true
        coordinateSystem
        {
            origin  (0 0 0);
            e1      (1 0 0);
            e3      (0 0 1);
        }

    // Conditional optional entries (runtime modifiable)

        // when anisotropicElectricalConductivity=false
        // Specify the conductivity as a function of temperature
        // If not supplied, this will be read from the time directory
        sigma           table
        (
            (273        1e5)
            (1000       1e5)
        );

        // when anisotropicElectricalConductivity=true
        sigma           (31900 63800 127600);
        //sigma           table
        //(
        //    (0      (0 0 0))
        //    (1000   (127600 127600 127600))
        //);

    // Mandatory/Optional (inherited) entries
    ...
}

where the entries mean:

Property	Description	Type	Reqd	Dflt
`type`	Type name: jouleHeatingSource	word	yes	-
`anisotropicElectricalConductivity`	Flag to indicate that if the electrical conductivity is anisotropic	bool	yes	-
`T`	Name of operand temperature field	word	no	T
`sigma`	Electrical conductivity as a function of temperature	table	no	-
`coordinateSystem`	User-specified coordinate system	coordSystem	no	-

The inherited entries are elaborated in:

fvOption.H

Note

anisotropicElectricalConductivity=true enables anisotropic (vectorial) electrical conductivity.
anisotropicElectricalConductivity=false enables isotropic (scalar) electrical conductivity.
The electrical conductivity can be specified using either:

If the sigma entry is present the electrical conductivity is specified as a function of temperature using a Function1 type.
If not present the sigma field will be read from file.
If the anisotropicElectricalConductivity flag is set to true, sigma should be specified as a vector quantity.

See also

Source files

Definition at line 213 of file jouleHeatingSource.H.

Constructor & Destructor Documentation

◆ jouleHeatingSource() [1/2]

jouleHeatingSource	(	const word &	sourceName,
		const word &	modelType,
		const dictionary &	dict,
		const fvMesh &	mesh
	)

Definition at line 98 of file jouleHeatingSource.C.

References dict, basicThermo::dictName, Foam::read(), and option::resetApplied().

Here is the call graph for this function:

◆ jouleHeatingSource() [2/2]

jouleHeatingSource ( const jouleHeatingSource & )

delete

◆ ~jouleHeatingSource()

virtual ~jouleHeatingSource ( )

virtualdefault

Member Function Documentation

◆ TypeName()

TypeName ( "jouleHeatingSource" )

◆ operator=()

void operator= ( const jouleHeatingSource & )

delete

◆ addSup()

void addSup	(	const volScalarField &	rho,
		fvMatrix< scalar > &	eqn,
		const label	fieldi
	)

virtual

Reimplemented from option.

Definition at line 141 of file jouleHeatingSource.C.

References DebugInfo, Foam::endl(), Foam::fvc::grad(), Foam::fvm::laplacian(), Foam::name(), fvMatrix::psi(), fvMatrix::relax(), sigma(), and fvMatrix::solve().

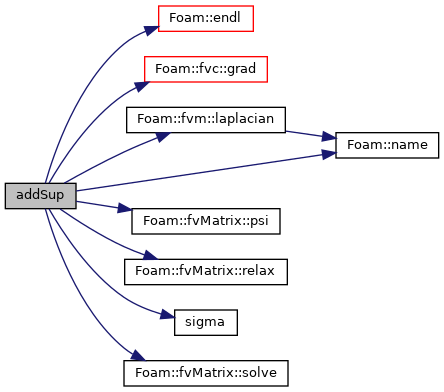

Here is the call graph for this function:

◆ read()

bool read ( const dictionary & dict )

virtual

Reimplemented from option.

Definition at line 197 of file jouleHeatingSource.C.

References dict, Foam::endl(), Foam::Info, coordinateSystem::New(), and option::read().

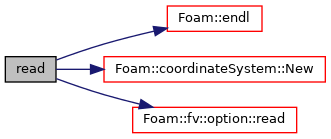

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/fvOptions/sources/derived/jouleHeatingSource/jouleHeatingSource.H
src/fvOptions/sources/derived/jouleHeatingSource/jouleHeatingSource.C
src/fvOptions/sources/derived/jouleHeatingSource/jouleHeatingSourceTemplates.C
