Intermediate class for handling inter-region heat exchanges. More...

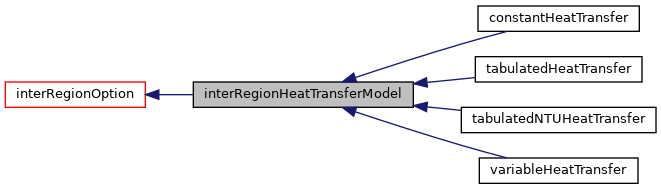

Inheritance diagram for interRegionHeatTransferModel:

[legend]

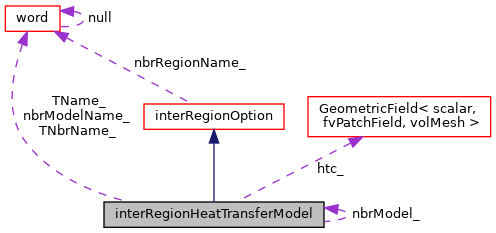

Collaboration diagram for interRegionHeatTransferModel:

[legend]

Public Member Functions
	TypeName ("interRegionHeatTransferModel")

	interRegionHeatTransferModel (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh)

virtual	~interRegionHeatTransferModel ()=default

const word &	nbrRegionName () const

const meshToMesh &	meshInterp () const

const volScalarField &	htc () const

const interRegionHeatTransferModel &	nbrModel () const

interRegionHeatTransferModel &	nbrModel ()

virtual void	addSup (fvMatrix< scalar > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &rho, fvMatrix< scalar > &eqn, const label fieldi)

virtual void	calculateHtc ()=0

virtual bool	read (const dictionary &dict)

template<class Type >
Foam::tmp< Foam::Field< Type > >	interpolate (const interRegionHeatTransferModel &nbrModel, const Field< Type > &field) const

template<class Type >
Foam::tmp< Foam::Field< Type > >	interpolate (const Field< Type > &field) const

Public Member Functions inherited from interRegionOption
	TypeName ("interRegionOption")

	interRegionOption (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh)

	interRegionOption (const interRegionOption &)=delete

void	operator= (const interRegionOption &)=delete

virtual	~interRegionOption ()=default

const word &	nbrRegionName () const

const meshToMesh &	meshInterp () const

Public Member Functions inherited from option
	TypeName ("option")

	declareRunTimeSelectionTable (autoPtr, option, dictionary,(const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh),(name, modelType, dict, mesh))

	option (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh)

autoPtr< option >	clone () const

virtual	~option ()=default

const word &	name () const noexcept

const fvMesh &	mesh () const noexcept

const dictionary &	coeffs () const noexcept

bool	active () const noexcept

void	setApplied (const label fieldi)

bool	active (const bool on) noexcept

virtual bool	isActive ()

virtual label	applyToField (const word &fieldName) const

virtual void	checkApplied () const

virtual void	addSup (fvMatrix< vector > &eqn, const label fieldi)

virtual void	addSup (fvMatrix< symmTensor > &eqn, const label fieldi)

virtual void	addSup (fvMatrix< sphericalTensor > &eqn, const label fieldi)

virtual void	addSup (fvMatrix< tensor > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &rho, fvMatrix< vector > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &rho, fvMatrix< symmTensor > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &rho, fvMatrix< sphericalTensor > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &rho, fvMatrix< tensor > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< scalar > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< vector > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< symmTensor > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< sphericalTensor > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< tensor > &eqn, const label fieldi)

virtual void	constrain (fvMatrix< scalar > &eqn, const label fieldi)

virtual void	constrain (fvMatrix< vector > &eqn, const label fieldi)

virtual void	constrain (fvMatrix< sphericalTensor > &eqn, const label fieldi)

virtual void	constrain (fvMatrix< symmTensor > &eqn, const label fieldi)

virtual void	constrain (fvMatrix< tensor > &eqn, const label fieldi)

virtual void	correct (volScalarField &field)

virtual void	correct (volVectorField &field)

virtual void	correct (volSphericalTensorField &field)

virtual void	correct (volSymmTensorField &field)

virtual void	correct (volTensorField &field)

virtual void	postProcessSens (scalarField &sensField, const word &fieldName=word::null, const word &designVariablesName=word::null)

virtual void	postProcessSens (vectorField &sensField, const word &fieldName=word::null, const word &designVariablesName=word::null)

virtual void	postProcessSens (tensorField &sensField, const word &fieldName=word::null, const word &designVariablesName=word::null)

virtual void	writeHeader (Ostream &) const

virtual void	writeFooter (Ostream &) const

virtual void	writeData (Ostream &) const

Protected Member Functions
void	setNbrModel ()

void	correct ()

template<class Type >
tmp< Field< Type > >	interpolate (const interRegionHeatTransferModel &nbrModel, const Field< Type > &field) const

template<class Type >
tmp< Field< Type > >	interpolate (const Field< Type > &field) const

template<class Type >
void	interpolate (const interRegionHeatTransferModel &nbrModel, const Field< Type > &field, Field< Type > &result) const

template<class Type >
void	interpolate (const Field< Type > &field, Field< Type > &result) const

Protected Member Functions inherited from interRegionOption
void	setMapper ()

Protected Member Functions inherited from option
void	resetApplied ()

Protected Attributes
word	nbrModelName_

interRegionHeatTransferModel *	nbrModel_

bool	firstIter_

bool	semiImplicit_

label	timeIndex_

volScalarField	htc_

word	TName_

word	TNbrName_

Protected Attributes inherited from interRegionOption
bool	master_

word	nbrRegionName_

autoPtr< meshToMesh >	meshInterpPtr_

Protected Attributes inherited from option
const word	name_

const word	modelType_

const fvMesh &	mesh_

dictionary	dict_

dictionary	coeffs_

wordList	fieldNames_

List< bool >	applied_

bool	active_

Additional Inherited Members
Static Public Member Functions inherited from option
static autoPtr< option >	New (const word &name, const dictionary &dict, const fvMesh &mesh)

Public Attributes inherited from option
bool	log

Detailed Description

Intermediate class for handling inter-region heat exchanges.

The derived classes must provide the heat transfer coefficients (htc) which is used as follows in the energy equation.

$-htc*Tmapped + Sp(htc, T)$

Usage

Minimal example by using constant/fvOptions:

<userDefinedName1>
{
    // Mandatory/Optional (inherited) entries
    ...

    // Mandatory entries (unmodifiable)
    fields          (<field1> <field2> ... <fieldN>);
    nbrModel        <nbrModelName>;
    semiImplicit    true;

    // Optional entries (unmodifiable)
    T               <Tname>;
    Tnbr            <TnbrName>;

    // Mandatory/Optional (derived) entries
    ...
}

where the entries mean:

Property	Description	Type	Reqd	Dflt
`nbrModel`	Name of the model in the neighbour mesh	word	yes	-
`fields`	Names of operand fields	wordList	yes	-
`semiImplicit`	Flag to activate semi-implicit coupling	bool	yes	-
`T`	Name of operand temperature field	word	no	T
`Tnbr`	Name of operand neighbour temperature field	word	no	T

The inherited entries are elaborated in:

interRegionOption.H

See also

Source files

Definition at line 138 of file interRegionHeatTransferModel.H.

Constructor & Destructor Documentation

◆ interRegionHeatTransferModel()

interRegionHeatTransferModel	(	const word &	name,
		const word &	modelType,
		const dictionary &	dict,
		const fvMesh &	mesh
	)

Definition at line 104 of file interRegionHeatTransferModel.C.

References option::resetApplied().

Here is the call graph for this function:

◆ ~interRegionHeatTransferModel()

virtual ~interRegionHeatTransferModel ( )

virtualdefault

Member Function Documentation

◆ setNbrModel()

void setNbrModel ( )

protected

Definition at line 42 of file interRegionHeatTransferModel.C.

References Foam::exit(), Foam::FatalError, FatalErrorInFunction, interRegionHeatTransferModel::firstIter_, forAll, fvOptions, objectRegistry::lookupObject(), option::mesh_, option::name(), interRegionHeatTransferModel::nbrModel_, interRegionHeatTransferModel::nbrModelName_, interRegionOption::nbrRegionName_, Foam::nl, interRegionHeatTransferModel::setNbrModel(), and fvMesh::time().

Referenced by interRegionHeatTransferModel::setNbrModel().

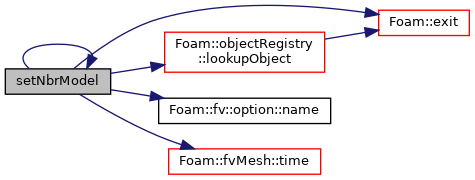

Here is the call graph for this function:

Here is the caller graph for this function:

◆ correct()

void correct ( )

protected

Definition at line 83 of file interRegionHeatTransferModel.C.

References Foam::interpolate().

Here is the call graph for this function:

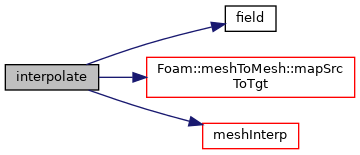

◆ interpolate() [1/6]

tmp<Field<Type> > interpolate	(	const interRegionHeatTransferModel &	nbrModel,
		const Field< Type > &	field
	)		const

protected

Referenced by variableHeatTransfer::calculateHtc().

Here is the caller graph for this function:

◆ interpolate() [2/6]

tmp<Field<Type> > interpolate ( const Field< Type > & field ) const

protected

◆ interpolate() [3/6]

void interpolate	(	const interRegionHeatTransferModel &	nbrModel,
		const Field< Type > &	field,
		Field< Type > &	result
	)		const

protected

Definition at line 53 of file interRegionHeatTransferModelTemplates.C.

References field(), meshToMesh::mapSrcToTgt(), and interRegionHeatTransferModel::meshInterp().

Here is the call graph for this function:

◆ interpolate() [4/6]

void interpolate	(	const Field< Type > &	field,
		Field< Type > &	result
	)		const

protected

Definition at line 72 of file interRegionHeatTransferModelTemplates.C.

References field(), and Foam::fac::interpolate().

Here is the call graph for this function:

◆ TypeName()

TypeName ( "interRegionHeatTransferModel" )

◆ nbrRegionName()

const Foam::word & nbrRegionName ( ) const

inline

Definition at line 25 of file interRegionHeatTransferModelI.H.

References interRegionOption::nbrRegionName_.

Referenced by variableHeatTransfer::calculateHtc().

Here is the caller graph for this function:

◆ meshInterp()

const Foam::meshToMesh & meshInterp ( ) const

inline

Definition at line 32 of file interRegionHeatTransferModelI.H.

References Foam::abort(), Foam::FatalError, and FatalErrorInFunction.

Referenced by interRegionHeatTransferModel::interpolate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ htc()

const Foam::volScalarField & htc ( ) const

inline

Definition at line 46 of file interRegionHeatTransferModelI.H.

◆ nbrModel() [1/2]

Foam::fv::interRegionHeatTransferModel & nbrModel ( ) const

inline

Definition at line 53 of file interRegionHeatTransferModelI.H.

References Foam::abort(), Foam::FatalError, and FatalErrorInFunction.

Here is the call graph for this function:

◆ nbrModel() [2/2]

interRegionHeatTransferModel& nbrModel ( )

inline

◆ addSup() [1/2]

void addSup	(	fvMatrix< scalar > &	eqn,
		const label	fieldi
	)

virtual

Reimplemented from option.

Definition at line 152 of file interRegionHeatTransferModel.C.

References correct(), Foam::expressions::patchExpr::debug, basicThermo::dictName, Foam::dimEnergy, Foam::dimMass, Foam::dimTemperature, Foam::fvc::domainIntegrate(), Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, he, Foam::Info, Foam::interpolate(), objectRegistry::lookupObject(), tmp::New(), IOobject::NO_READ, IOobject::NO_WRITE, fvMatrix::psi(), GeometricField::ref(), Foam::fvm::Sp(), Foam::T(), Foam::type(), dimensioned::value(), and Ostream::write().

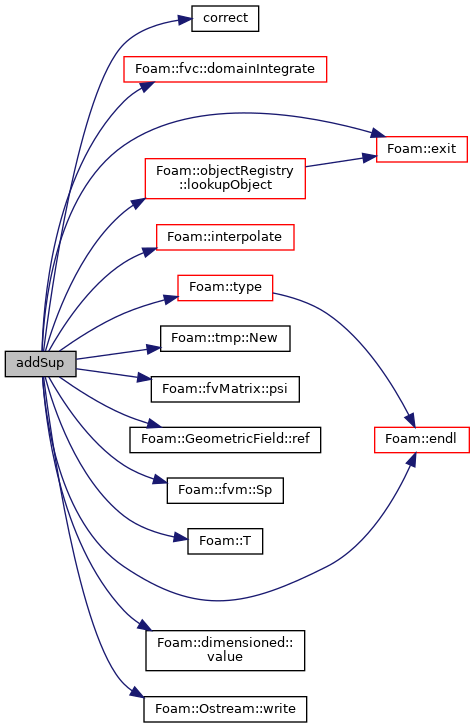

Here is the call graph for this function:

◆ addSup() [2/2]

void addSup	(	const volScalarField &	rho,
		fvMatrix< scalar > &	eqn,
		const label	fieldi
	)

virtual

Reimplemented from option.

Definition at line 247 of file interRegionHeatTransferModel.C.

◆ calculateHtc()

virtual void calculateHtc ( )

pure virtual

Implemented in tabulatedNTUHeatTransfer, variableHeatTransfer, tabulatedHeatTransfer, and constantHeatTransfer.

◆ read()

bool read ( const dictionary & dict )

virtual

Reimplemented from interRegionOption.

Reimplemented in tabulatedNTUHeatTransfer, variableHeatTransfer, tabulatedHeatTransfer, and constantHeatTransfer.

Definition at line 257 of file interRegionHeatTransferModel.C.

References dict, and interRegionOption::read().

Referenced by constantHeatTransfer::read(), tabulatedHeatTransfer::read(), and variableHeatTransfer::read().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ interpolate() [5/6]

Foam::tmp<Foam::Field<Type> > interpolate	(	const interRegionHeatTransferModel &	nbrModel,
		const Field< Type > &	field
	)		const

Definition at line 24 of file interRegionHeatTransferModelTemplates.C.

References field(), meshToMesh::mapSrcToTgt(), and interRegionHeatTransferModel::meshInterp().

Here is the call graph for this function:

◆ interpolate() [6/6]

Foam::tmp<Foam::Field<Type> > interpolate ( const Field< Type > & field ) const

Definition at line 43 of file interRegionHeatTransferModelTemplates.C.

References field(), and Foam::fac::interpolate().

Here is the call graph for this function:

Member Data Documentation

◆ nbrModelName_

word nbrModelName_

protected

Definition at line 147 of file interRegionHeatTransferModel.H.

Referenced by interRegionHeatTransferModel::setNbrModel().

◆ nbrModel_

interRegionHeatTransferModel* nbrModel_

protected

Definition at line 150 of file interRegionHeatTransferModel.H.

Referenced by interRegionHeatTransferModel::setNbrModel().

◆ firstIter_

bool firstIter_

protected

Definition at line 153 of file interRegionHeatTransferModel.H.

Referenced by interRegionHeatTransferModel::setNbrModel().

◆ semiImplicit_

bool semiImplicit_

protected

Definition at line 156 of file interRegionHeatTransferModel.H.

◆ timeIndex_

label timeIndex_

protected

Definition at line 159 of file interRegionHeatTransferModel.H.

◆ htc_

volScalarField htc_

protected

Definition at line 162 of file interRegionHeatTransferModel.H.

Referenced by variableHeatTransfer::calculateHtc().

◆ TName_

word TName_

protected

Definition at line 165 of file interRegionHeatTransferModel.H.

◆ TNbrName_

word TNbrName_

protected

Definition at line 168 of file interRegionHeatTransferModel.H.

The documentation for this class was generated from the following files:

src/fvOptions/sources/interRegion/interRegionHeatTransfer/interRegionHeatTransferModel/interRegionHeatTransferModel.H
src/fvOptions/sources/interRegion/interRegionHeatTransfer/interRegionHeatTransferModel/interRegionHeatTransferModel.C
src/fvOptions/sources/interRegion/interRegionHeatTransfer/interRegionHeatTransferModel/interRegionHeatTransferModelI.H
src/fvOptions/sources/interRegion/interRegionHeatTransfer/interRegionHeatTransferModel/interRegionHeatTransferModelTemplates.C

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ interRegionHeatTransferModel()

◆ ~interRegionHeatTransferModel()

Member Function Documentation

◆ setNbrModel()

◆ correct()

◆ interpolate() [1/6]

◆ interpolate() [2/6]

◆ interpolate() [3/6]

◆ interpolate() [4/6]

◆ TypeName()

◆ nbrRegionName()

◆ meshInterp()

◆ htc()

◆ nbrModel() [1/2]

◆ nbrModel() [2/2]

◆ addSup() [1/2]

◆ addSup() [2/2]

◆ calculateHtc()

◆ read()

◆ interpolate() [5/6]

◆ interpolate() [6/6]

Member Data Documentation

◆ nbrModelName_

◆ nbrModel_

◆ firstIter_

◆ semiImplicit_

◆ timeIndex_

◆ htc_

◆ TName_

◆ TNbrName_
