Applies an explicit pressure gradient source in such a way to deflect the flow towards an specific direction (flowDir). Alternatively add an extra pressure drop in the flowDir direction using a model. More...

Inheritance diagram for directionalPressureGradientExplicitSource:

[legend]

Collaboration diagram for directionalPressureGradientExplicitSource:

[legend]

Public Types
enum	pressureDropModel { pVolumetricFlowRateTable, pConstant, pDarcyForchheimer }

Public Types inherited from cellSetOption
enum	selectionModeType { smAll, smCellSet, smCellZone, smPoints }

Public Member Functions
	TypeName ("directionalPressureGradientExplicitSource")

	directionalPressureGradientExplicitSource (const word &sourceName, const word &modelType, const dictionary &dict, const fvMesh &mesh)

	directionalPressureGradientExplicitSource (const directionalPressureGradientExplicitSource &)=delete

void	operator= (const directionalPressureGradientExplicitSource &)=delete

virtual	~directionalPressureGradientExplicitSource ()=default

virtual void	correct (volVectorField &U)

virtual void	addSup (fvMatrix< vector > &eqn, const label fieldI)

virtual void	addSup (const volScalarField &rho, fvMatrix< vector > &eqn, const label fieldI)

virtual void	constrain (fvMatrix< vector > &eqn, const label fieldI)

virtual void	writeData (Ostream &os) const

virtual bool	read (const dictionary &dict)

Public Member Functions inherited from cellSetOption
	TypeName ("cellSetOption")

	cellSetOption (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh)

virtual	~cellSetOption ()=default

scalar	timeStart () const noexcept

scalar	duration () const noexcept

bool	inTimeLimits (const scalar timeValue) const

selectionModeType	selectionMode () const noexcept

bool	useSubMesh () const noexcept

const word &	cellSetName () const noexcept

scalar	V () const noexcept

const labelList &	cells () const noexcept

scalar	timeStart (scalar val) noexcept

scalar	duration (scalar val) noexcept

virtual bool	isActive ()

Public Member Functions inherited from option
	TypeName ("option")

	declareRunTimeSelectionTable (autoPtr, option, dictionary,(const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh),(name, modelType, dict, mesh))

	option (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh)

autoPtr< option >	clone () const

virtual	~option ()=default

const word &	name () const noexcept

const fvMesh &	mesh () const noexcept

const dictionary &	coeffs () const noexcept

bool	active () const noexcept

void	setApplied (const label fieldi)

bool	active (const bool on) noexcept

virtual label	applyToField (const word &fieldName) const

virtual void	checkApplied () const

virtual void	addSup (fvMatrix< scalar > &eqn, const label fieldi)

virtual void	addSup (fvMatrix< symmTensor > &eqn, const label fieldi)

virtual void	addSup (fvMatrix< sphericalTensor > &eqn, const label fieldi)

virtual void	addSup (fvMatrix< tensor > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &rho, fvMatrix< scalar > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &rho, fvMatrix< symmTensor > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &rho, fvMatrix< sphericalTensor > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &rho, fvMatrix< tensor > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< scalar > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< vector > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< symmTensor > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< sphericalTensor > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< tensor > &eqn, const label fieldi)

virtual void	constrain (fvMatrix< scalar > &eqn, const label fieldi)

virtual void	constrain (fvMatrix< sphericalTensor > &eqn, const label fieldi)

virtual void	constrain (fvMatrix< symmTensor > &eqn, const label fieldi)

virtual void	constrain (fvMatrix< tensor > &eqn, const label fieldi)

virtual void	correct (volScalarField &field)

virtual void	correct (volSphericalTensorField &field)

virtual void	correct (volSymmTensorField &field)

virtual void	correct (volTensorField &field)

virtual void	postProcessSens (scalarField &sensField, const word &fieldName=word::null, const word &designVariablesName=word::null)

virtual void	postProcessSens (vectorField &sensField, const word &fieldName=word::null, const word &designVariablesName=word::null)

virtual void	postProcessSens (tensorField &sensField, const word &fieldName=word::null, const word &designVariablesName=word::null)

virtual void	writeHeader (Ostream &) const

virtual void	writeFooter (Ostream &) const

Additional Inherited Members
Static Public Member Functions inherited from option
static autoPtr< option >	New (const word &name, const dictionary &dict, const fvMesh &mesh)

Public Attributes inherited from option
bool	log

Static Public Attributes inherited from cellSetOption
static const Enum< selectionModeType >	selectionModeTypeNames_

Protected Member Functions inherited from cellSetOption
void	setSelection (const dictionary &dict)

void	setCellSelection ()

void	setVol ()

Protected Member Functions inherited from option
void	resetApplied ()

Protected Attributes inherited from cellSetOption
scalar	timeStart_

scalar	duration_

selectionModeType	selectionMode_

word	cellSetName_

List< point >	points_

labelList	cells_

scalar	V_

Protected Attributes inherited from option
const word	name_

const word	modelType_

const fvMesh &	mesh_

dictionary	dict_

dictionary	coeffs_

wordList	fieldNames_

List< bool >	applied_

bool	active_

Detailed Description

Applies an explicit pressure gradient source in such a way to deflect the flow towards an specific direction (flowDir). Alternatively add an extra pressure drop in the flowDir direction using a model.

Usage

Minimal example by using constant/fvOptions:

directionalPressureGradientExplicitSource1
{
    // Mandatory entries (unmodifiable)
    type            directionalPressureGradientExplicitSource;

    // Mandatory entries (unmodifiable)
    model       <modelName>;
    fields      (<fieldName>);

    // Mandatory entries (runtime modifiable)
    flowDir     (1 1 0);
    faceZone    <faceZoneName>;

    // Conditional mandatory entries (unmodifiable)

        // when <timePath>/uniform/<name>Properties file exists
        gradient    <vectorField>; // reading from the aforementioned file

        // when model=DarcyForchheimer
        // deltaP = (D*mu + 0.5*rho*magUn)*magUn*length
        D           5e7;
        I           0;
        length      1e-3;

        // when model=constant
        pressureDrop    40;

        // when model=volumetricFlowRateTable
        outOfBounds     clamp;
        fileName        "volFlowRateTable";

    // Optional entries (runtime modifiable)
    relaxationFactor    0.3;

    // Mandatory/Optional (inherited) entries
    ...
}

where the entries mean:

Property	Description	Type	Reqd	Dflt
`type`	Type name: directionalPressureGradientExplicitSource	word	yes	-
`model`	Pressure drop model [Pa]	word	yes	-
`fields`	Name of operand field	word	yes	-
`gradient`	Initial pressure gradient field	vectorField	cndtnl	-
`flowDir`	Deflection flow direction	vector	yes	-
`faceZone`	Name of upstream faceZone	word	yes	-
`relaxationFactor`	Relaxation factor for flow deflection	scalar	no	0.3
`D`	Darcy pressure loss coefficient	scalar	cndtnl	-
`I`	Inertia pressure lost coefficient	scalar	cndtnl	-
`length`	Porous media length	scalar	cndtnl	-
`presssureDrop`	Constant pressure drop	scalar	cndtnl	-
`fileName`	Interpolation table for volumetric flow rate	interpolationTable	cndtnl	-

Options for the model entry:

      volumetricFlowRateTable | Pressure-gradient file
      constant                | Constant pressure drop
      DarcyForchheimer        | Darcy-Forchheimer model

The inherited entries are elaborated in:

Note

In order to obtain the upwind velocities this function loops over the slaves cells of the faceZone specified in the dictionary, on the other hand, the cellZone to which this source term is applied should be composed of the master cells and they should be 'downwind' the faceZone.

Source files

Definition at line 218 of file directionalPressureGradientExplicitSource.H.

Member Enumeration Documentation

◆ pressureDropModel

enum pressureDropModel

Enumerator
pVolumetricFlowRateTable
pConstant
pDarcyForchheimer

Definition at line 227 of file directionalPressureGradientExplicitSource.H.

Constructor & Destructor Documentation

◆ directionalPressureGradientExplicitSource() [1/2]

directionalPressureGradientExplicitSource	(	const word &	sourceName,
		const word &	modelType,
		const dictionary &	dict,
		const fvMesh &	mesh
	)

Definition at line 150 of file directionalPressureGradientExplicitSource.C.

References Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, IOstream::good(), Foam::Info, Foam::name(), Foam::nl, propsDict(), option::resetApplied(), and Foam::type().

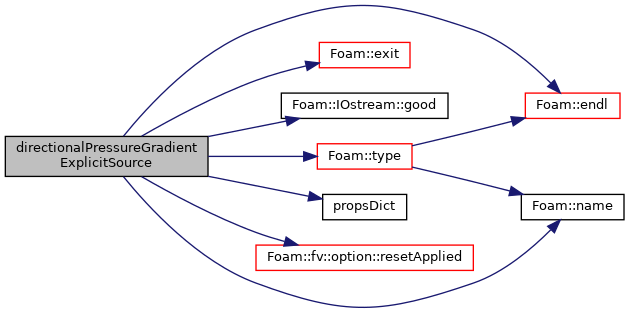

Here is the call graph for this function:

◆ directionalPressureGradientExplicitSource() [2/2]

directionalPressureGradientExplicitSource ( const directionalPressureGradientExplicitSource & )

delete

◆ ~directionalPressureGradientExplicitSource()

virtual ~directionalPressureGradientExplicitSource ( )

virtualdefault

Member Function Documentation

◆ TypeName()

TypeName ( "directionalPressureGradientExplicitSource" )

◆ operator=()

void operator= ( const directionalPressureGradientExplicitSource & )

delete

◆ correct()

void correct ( volVectorField & U )

virtual

Reimplemented from option.

Definition at line 243 of file directionalPressureGradientExplicitSource.C.

References cellId, fvPatchField::coupled(), D, Foam::expressions::patchExpr::debug, Foam::dimArea, Foam::dimVelocity, Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, faceZone::flipMap(), forAll, Foam::gSum(), Foam::gSumProd(), Foam::Info, Foam::mag(), faceZone::masterCells(), mesh, Foam::constant::physicoChemical::mu, nu, polyBoundaryMesh::patchID(), fvPatchField::patchNeighbourField(), phi, turbulenceModel::propertiesName, rAU, Foam::reduce(), rho, Foam::rotationTensor(), faceZone::slaveCells(), U, and Foam::Zero.

Here is the call graph for this function:

◆ addSup() [1/2]

void addSup	(	fvMatrix< vector > &	eqn,
		const label	fieldI
	)

virtual

Reimplemented from option.

Definition at line 447 of file directionalPressureGradientExplicitSource.C.

References fvMatrix::dimensions(), Foam::dimVolume, IOobject::NO_READ, IOobject::NO_WRITE, Su, and Foam::Zero.

Here is the call graph for this function:

◆ addSup() [2/2]

void addSup	(	const volScalarField &	rho,
		fvMatrix< vector > &	eqn,
		const label	fieldI
	)

virtual

Reimplemented from option.

Definition at line 473 of file directionalPressureGradientExplicitSource.C.

◆ constrain()

void constrain	(	fvMatrix< vector > &	eqn,
		const label	fieldI
	)

virtual

Reimplemented from option.

Definition at line 484 of file directionalPressureGradientExplicitSource.C.

References fvMatrix::A(), IOobject::NO_READ, IOobject::NO_WRITE, and Foam::Zero.

Here is the call graph for this function:

◆ writeData()

void writeData ( Ostream & os ) const

virtual

Reimplemented from option.

Definition at line 518 of file directionalPressureGradientExplicitSource.C.

References NotImplemented.

◆ read()

bool read ( const dictionary & dict )

virtual

Reimplemented from cellSetOption.

Definition at line 527 of file directionalPressureGradientExplicitSource.C.

References dict, dictionary::getOrDefault(), and dictionary::readEntry().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/fvOptions/sources/derived/directionalPressureGradientExplicitSource/directionalPressureGradientExplicitSource.H
src/fvOptions/sources/derived/directionalPressureGradientExplicitSource/directionalPressureGradientExplicitSource.C
