Applies sources on velocity (i.e. U) within a specified region to enable actuator disk models for aero/hydro thrust loading of horizontal axis turbines on surrounding flow field in terms of energy conversion processes. More...

Inheritance diagram for actuationDiskSource:

[legend]

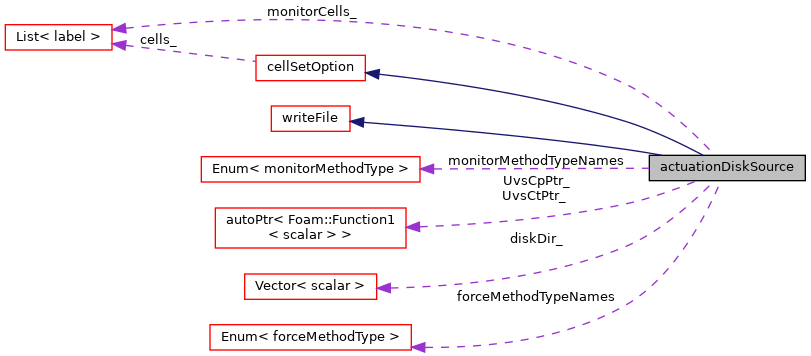

Collaboration diagram for actuationDiskSource:

[legend]

Public Member Functions
	TypeName ("actuationDiskSource")

	actuationDiskSource ()=delete

	actuationDiskSource (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh)

	actuationDiskSource (const actuationDiskSource &)=delete

void	operator= (const actuationDiskSource &)=delete

virtual	~actuationDiskSource ()=default

const vector &	diskDir () const

scalar	diskArea () const

virtual void	addSup (fvMatrix< vector > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &rho, fvMatrix< vector > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< vector > &eqn, const label fieldi)

virtual bool	read (const dictionary &dict)

Public Member Functions inherited from cellSetOption
	TypeName ("cellSetOption")

	cellSetOption (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh)

virtual	~cellSetOption ()=default

scalar	timeStart () const noexcept

scalar	duration () const noexcept

bool	inTimeLimits (const scalar timeValue) const

selectionModeType	selectionMode () const noexcept

bool	useSubMesh () const noexcept

const word &	cellSetName () const noexcept

scalar	V () const noexcept

const labelList &	cells () const noexcept

scalar	timeStart (scalar val) noexcept

scalar	duration (scalar val) noexcept

virtual bool	isActive ()

Public Member Functions inherited from option
	TypeName ("option")

	declareRunTimeSelectionTable (autoPtr, option, dictionary,(const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh),(name, modelType, dict, mesh))

	option (const word &name, const word &modelType, const dictionary &dict, const fvMesh &mesh)

autoPtr< option >	clone () const

virtual	~option ()=default

const word &	name () const noexcept

const fvMesh &	mesh () const noexcept

const dictionary &	coeffs () const noexcept

bool	active () const noexcept

void	setApplied (const label fieldi)

bool	active (const bool on) noexcept

virtual label	applyToField (const word &fieldName) const

virtual void	checkApplied () const

virtual void	addSup (fvMatrix< scalar > &eqn, const label fieldi)

virtual void	addSup (fvMatrix< symmTensor > &eqn, const label fieldi)

virtual void	addSup (fvMatrix< sphericalTensor > &eqn, const label fieldi)

virtual void	addSup (fvMatrix< tensor > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &rho, fvMatrix< scalar > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &rho, fvMatrix< symmTensor > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &rho, fvMatrix< sphericalTensor > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &rho, fvMatrix< tensor > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< scalar > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< symmTensor > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< sphericalTensor > &eqn, const label fieldi)

virtual void	addSup (const volScalarField &alpha, const volScalarField &rho, fvMatrix< tensor > &eqn, const label fieldi)

virtual void	constrain (fvMatrix< scalar > &eqn, const label fieldi)

virtual void	constrain (fvMatrix< vector > &eqn, const label fieldi)

virtual void	constrain (fvMatrix< sphericalTensor > &eqn, const label fieldi)

virtual void	constrain (fvMatrix< symmTensor > &eqn, const label fieldi)

virtual void	constrain (fvMatrix< tensor > &eqn, const label fieldi)

virtual void	correct (volScalarField &field)

virtual void	correct (volVectorField &field)

virtual void	correct (volSphericalTensorField &field)

virtual void	correct (volSymmTensorField &field)

virtual void	correct (volTensorField &field)

virtual void	postProcessSens (scalarField &sensField, const word &fieldName=word::null, const word &designVariablesName=word::null)

virtual void	postProcessSens (vectorField &sensField, const word &fieldName=word::null, const word &designVariablesName=word::null)

virtual void	postProcessSens (tensorField &sensField, const word &fieldName=word::null, const word &designVariablesName=word::null)

virtual void	writeHeader (Ostream &) const

virtual void	writeFooter (Ostream &) const

virtual void	writeData (Ostream &) const

Public Member Functions inherited from writeFile
	writeFile (const objectRegistry &obr, const fileName &prefix, const word &name="undefined", const bool writeToFile=true)

	writeFile (const objectRegistry &obr, const fileName &prefix, const word &name, const dictionary &dict, const bool writeToFile=true)

	writeFile (const writeFile &wf)

virtual	~writeFile ()=default

virtual OFstream &	file ()

virtual bool	writeToFile () const

virtual bool	canWriteHeader () const

virtual label	charWidth () const

virtual void	writeCommented (Ostream &os, const string &str) const

virtual void	writeTabbed (Ostream &os, const string &str) const

virtual void	writeHeader (Ostream &os, const string &str) const

virtual void	writeCurrentTime (Ostream &os) const

virtual void	writeBreak (Ostream &os) const

template<class Type >
void	writeHeaderValue (Ostream &os, const string &property, const Type &value) const

Protected Types
enum	forceMethodType { FROUDE, VARIABLE_SCALING }

enum	monitorMethodType { POINTS, CELLSET }

Protected Member Functions
virtual void	writeFileHeader (Ostream &os)

Protected Member Functions inherited from cellSetOption
void	setSelection (const dictionary &dict)

void	setCellSelection ()

void	setVol ()

Protected Member Functions inherited from option
void	resetApplied ()

Protected Member Functions inherited from writeFile
void	initStream (Ostream &os) const

fileName	baseFileDir () const

fileName	baseTimeDir () const

virtual autoPtr< OFstream >	createFile (const word &name, scalar timeValue) const

virtual autoPtr< OFstream >	createFile (const word &name) const

virtual void	resetFile (const word &name)

Omanip< int >	valueWidth (const label offset=0) const

void	operator= (const writeFile &)=delete

Protected Attributes
enum forceMethodType	forceMethod_

enum monitorMethodType	monitorMethod_

label	sink_

scalar	writeFileStart_

scalar	writeFileEnd_

scalar	diskArea_

vector	diskDir_

autoPtr< Function1< scalar > >	UvsCpPtr_

autoPtr< Function1< scalar > >	UvsCtPtr_

labelList	monitorCells_

Protected Attributes inherited from cellSetOption
scalar	timeStart_

scalar	duration_

selectionModeType	selectionMode_

word	cellSetName_

List< point >	points_

labelList	cells_

scalar	V_

Protected Attributes inherited from option
const word	name_

const word	modelType_

const fvMesh &	mesh_

dictionary	dict_

dictionary	coeffs_

wordList	fieldNames_

List< bool >	applied_

bool	active_

Protected Attributes inherited from writeFile
const objectRegistry &	fileObr_

const fileName	prefix_

word	fileName_

autoPtr< OFstream >	filePtr_

label	writePrecision_

bool	writeToFile_

bool	updateHeader_

bool	writtenHeader_

bool	useUserTime_

scalar	startTime_

Static Protected Attributes
static const Enum< forceMethodType >	forceMethodTypeNames

static const Enum< monitorMethodType >	monitorMethodTypeNames

Additional Inherited Members
Public Types inherited from cellSetOption
enum	selectionModeType { smAll, smCellSet, smCellZone, smPoints }

Static Public Member Functions inherited from option
static autoPtr< option >	New (const word &name, const dictionary &dict, const fvMesh &mesh)

Public Attributes inherited from option
bool	log

Static Public Attributes inherited from cellSetOption
static const Enum< selectionModeType >	selectionModeTypeNames_

Static Public Attributes inherited from writeFile
static label	addChars = 8

Detailed Description

Applies sources on velocity (i.e. U) within a specified region to enable actuator disk models for aero/hydro thrust loading of horizontal axis turbines on surrounding flow field in terms of energy conversion processes.

Available options for force computations:

  Froude          | Froude's one-dimensional ideal actuator disk method
  variableScaling | Variable-scaling actuator disk method

The expressions for Froude method:

$T = 2 \rho A | \vec{U_o} \cdot \vec{n} |^2 a (1-a)$

with

$a = 1 - \frac{C_p}{C_T}$

where

	=	Thrust magnitude
$\rho$	=	Monitored incoming fluid density
	=	Actuator disk planar surface area
$\vec{U_o}$	=	Incoming velocity spatial-averaged on monitored region
$\vec{n}$	=	Surface-normal vector of the actuator disk pointing downstream
	=	Axial induction factor
	=	Power coefficient
	=	Thrust coefficient

The expressions for variableScaling method:

$T = 0.5 \rho A | \vec{U_m} \cdot \vec{n} |^2 C_T^*$

with

$C_T^* = C_T \left( \frac{ |\vec{U_{ref}}| }{ |\vec{U_m}| } \right)^2$

where

	=	Thrust magnitude
$\rho$	=	Monitored incoming fluid density
	=	Actuator disk planar surface area
$\vec{U_m}$	=	Incoming velocity spatial-averaged on actuator disk
$\vec{n}$	=	Surface-normal vector of the actuator disk pointing downstream
$\vec{U_{ref}}$	=	Incoming velocity spatial-averaged on monitored region
	=	Thrust coefficient
	=	Calibrated thrust coefficient

Reference

        Froude's one-dimensional ideal actuator disk (tags:F,BJSB):
            Froude, R. E. (1889).
            On the part played in propulsion by differences of fluid pressure.
            Trans. Inst. Naval Architects, 30, 390.

            Burton, T., Jenkins, N., Sharpe, D., & Bossanyi, E. (2011).
            Wind energy handbook, 2nd edition.
            Chichester, the United Kingdom. John Wiley & Sons.
            Print ISBN:978-0-470-69975-1
            DOI:10.1002/9781119992714

        Variable-scaling method (tags:LSRMKT,LS):
            van der Laan, M. P., Sørensen, N. N., Réthoré, P. E.,
            Mann, J., Kelly, M. C., & Troldborg, N. (2015).
            The k‐ε‐fP model applied to double wind turbine
            wakes using different actuator disk force methods.
            Wind Energy, 18(12), 2223-2240.
            DOI:10.1002/we.1816

            van der Laan, M. P., Sørensen, N. N., Réthoré, P. E., Mann, J.,
            Kelly, M. C., Troldborg, N., Hansen, K. S., & Murcia, J. P. (2015).
            The k‐ε‐fP model applied to wind farms.
            Wind Energy, 18(12), 2065-2084.
            DOI:10.1002/we.1804

Sources applied to:

      U         | Velocity    [m/s]

Required fields:

      U         | Velocity    [m/s]

Usage

Minimal example by using constant/fvOptions:

actuationDiskSource1
{
    // Mandatory entries (unmodifiable)
    type            actuationDiskSource;

    // Mandatory entries (runtime modifiable)
    diskArea        40.0;
    diskDir         (1 0 0);
    Cp              <Function1>;
    Ct              <Function1>;

    // Conditional optional entries (unmodifiable)
    monitorMethod   <points|cellSet>;
    monitorCoeffs
    {
        // Option-1
        points
        (
            (p1x p1y p1z)
            (p2x p2y p2z)
            ...
        );

        // Option-2
        cellSet     <monitorCellSet>;
    }

    // Optional entries (unmodifiable)
    variant         <forceMethod>;

    // Optional entries (runtime modifiable)
    sink            true;
    writeFileStart  0;
    writeFileEnd    100;

    // Mandatory/Optional (inherited) entries
    ...
}

where the entries mean:

Property	Description	Type	Reqd	Dflt
`type`	Type name: actuationDiskSource	word	yes	-
`diskArea`	Actuator disk planar surface area	scalar	yes	-
`diskDir`	Surface-normal vector of the actuator disk pointing downstream	vector	yes	-
`Cp`	Power coefficient	Function1	yes	-
`Ct`	Thrust coefficient	Function1	yes	-
`monitorMethod`	Type of incoming velocity monitoring method - see below	word	no	points
`variant`	Type of the force computation method - see below	word	no	Froude
`sink`	Flag for body forces to act as a source (false) or a sink (true)	bool	no	true
`writeFileStart`	Start time for file output	scalar	no	0
`writeFileEnd`	End time for file output	scalar	no	VGREAT

The inherited entries are elaborated in:

Options for the monitorMethod entry:

      points  | Monitor incoming velocity field at a given set of points
      cellSet | Monitor incoming velocity field at a given cellSet

Options for the variant entry:

      Froude          | Froude's one-dimensional ideal actuator disk method
      variableScaling | Variable-scaling actuator disk method

Source files

Definition at line 361 of file actuationDiskSource.H.

Member Enumeration Documentation

◆ forceMethodType

enum forceMethodType

protected

Enumerator
FROUDE	"Froude's ideal actuator disk method"
VARIABLE_SCALING	"Variable-scaling actuator disk method"

Definition at line 371 of file actuationDiskSource.H.

◆ monitorMethodType

enum monitorMethodType

protected

Enumerator
POINTS	"A set of points"
CELLSET	"A cellSet"

Definition at line 381 of file actuationDiskSource.H.

Constructor & Destructor Documentation

◆ actuationDiskSource() [1/3]

actuationDiskSource ( )

delete

◆ actuationDiskSource() [2/3]

actuationDiskSource	(	const word &	name,
		const word &	modelType,
		const dictionary &	dict,
		const fvMesh &	mesh
	)

Definition at line 158 of file actuationDiskSource.C.

References Foam::endl(), Foam::Info, Foam::name(), and option::resetApplied().

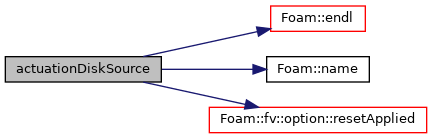

Here is the call graph for this function:

◆ actuationDiskSource() [3/3]

actuationDiskSource ( const actuationDiskSource & )

delete

◆ ~actuationDiskSource()

virtual ~actuationDiskSource ( )

virtualdefault

Member Function Documentation

◆ writeFileHeader()

void writeFileHeader ( Ostream & os )

protectedvirtual

Definition at line 63 of file actuationDiskSource.C.

References Foam::endl(), actuationDiskSource::forceMethod_, os(), and Foam::writeHeader().

Here is the call graph for this function:

◆ TypeName()

TypeName ( "actuationDiskSource" )

◆ operator=()

void operator= ( const actuationDiskSource & )

delete

◆ diskDir()

const vector& diskDir ( ) const

inline

Definition at line 501 of file actuationDiskSource.H.

References actuationDiskSource::diskDir_.

◆ diskArea()

scalar diskArea ( ) const

inline

Definition at line 507 of file actuationDiskSource.H.

References actuationDiskSource::diskArea_.

◆ addSup() [1/3]

void addSup	(	fvMatrix< vector > &	eqn,
		const label	fieldi
	)

virtual

Reimplemented from option.

Reimplemented in radialActuationDiskSource.

Definition at line 231 of file actuationDiskSource.C.

◆ addSup() [2/3]

void addSup	(	const volScalarField &	rho,
		fvMatrix< vector > &	eqn,
		const label	fieldi
	)

virtual

Reimplemented from option.

Reimplemented in radialActuationDiskSource.

Definition at line 244 of file actuationDiskSource.C.

References rho.

◆ addSup() [3/3]

void addSup	(	const volScalarField &	alpha,
		const volScalarField &	rho,
		fvMatrix< vector > &	eqn,
		const label	fieldi
	)

virtual

Reimplemented from option.

Definition at line 258 of file actuationDiskSource.C.

References Foam::constant::atomic::alpha, and rho.

◆ read()

bool read ( const dictionary & dict )

virtual

Reimplemented from cellSetOption.

Reimplemented in radialActuationDiskSource.

Definition at line 272 of file actuationDiskSource.C.

References dict, Foam::exit(), Foam::FatalIOError, FatalIOErrorInFunction, Foam::mag(), Foam::blockMeshTools::read(), and cellSetOption::read().

Referenced by radialActuationDiskSource::read().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ forceMethodTypeNames

const Foam::Enum< Foam::fv::actuationDiskSource::forceMethodType > forceMethodTypeNames

staticprotected

Definition at line 378 of file actuationDiskSource.H.

◆ monitorMethodTypeNames

const Foam::Enum< Foam::fv::actuationDiskSource::monitorMethodType > monitorMethodTypeNames

staticprotected

Definition at line 388 of file actuationDiskSource.H.

◆ forceMethod_

enum forceMethodType forceMethod_

protected

Definition at line 394 of file actuationDiskSource.H.

Referenced by actuationDiskSource::writeFileHeader().

◆ monitorMethod_

enum monitorMethodType monitorMethod_

protected

Definition at line 397 of file actuationDiskSource.H.

◆ sink_

label sink_

protected

Definition at line 400 of file actuationDiskSource.H.

◆ writeFileStart_

scalar writeFileStart_

protected

Definition at line 403 of file actuationDiskSource.H.

◆ writeFileEnd_

scalar writeFileEnd_

protected

Definition at line 406 of file actuationDiskSource.H.

◆ diskArea_

scalar diskArea_

protected

Definition at line 409 of file actuationDiskSource.H.

Referenced by actuationDiskSource::diskArea().

◆ diskDir_

vector diskDir_

protected

Definition at line 412 of file actuationDiskSource.H.

Referenced by actuationDiskSource::diskDir().

◆ UvsCpPtr_

autoPtr<Function1<scalar> > UvsCpPtr_

protected

Definition at line 415 of file actuationDiskSource.H.

◆ UvsCtPtr_

autoPtr<Function1<scalar> > UvsCtPtr_

protected

Definition at line 418 of file actuationDiskSource.H.

◆ monitorCells_

labelList monitorCells_

protected

Definition at line 421 of file actuationDiskSource.H.

The documentation for this class was generated from the following files:

src/fvOptions/sources/derived/actuationDiskSource/actuationDiskSource.H
src/fvOptions/sources/derived/actuationDiskSource/actuationDiskSource.C
src/fvOptions/sources/derived/actuationDiskSource/actuationDiskSourceTemplates.C

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Static Protected Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ forceMethodType

◆ monitorMethodType

Constructor & Destructor Documentation

◆ actuationDiskSource() [1/3]

◆ actuationDiskSource() [2/3]

◆ actuationDiskSource() [3/3]

◆ ~actuationDiskSource()

Member Function Documentation

◆ writeFileHeader()

◆ TypeName()

◆ operator=()

◆ diskDir()

◆ diskArea()

◆ addSup() [1/3]

◆ addSup() [2/3]

◆ addSup() [3/3]

◆ read()

Member Data Documentation

◆ forceMethodTypeNames

◆ monitorMethodTypeNames

◆ forceMethod_

◆ monitorMethod_

◆ sink_

◆ writeFileStart_

◆ writeFileEnd_

◆ diskArea_

◆ diskDir_

◆ UvsCpPtr_

◆ UvsCtPtr_

◆ monitorCells_
