turbulenceFields Class Reference

Computes various turbulence-related quantities that are not typically output during calculations, and stores/writes them on the mesh database for further manipulation. More...

Inheritance diagram for turbulenceFields:

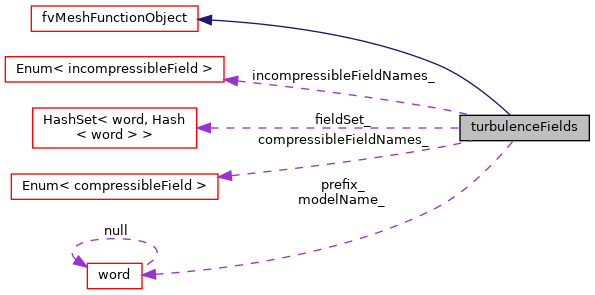

Collaboration diagram for turbulenceFields:

Public Types
enum	compressibleField {   cfK, cfEpsilon, cfOmega, cfNuTilda,   cfMut, cfMuEff, cfAlphat, cfAlphaEff,   cfR, cfDevRhoReff, cfL, cfI }
enum	incompressibleField {   ifK, ifEpsilon, ifOmega, ifNuTilda,   ifNut, ifNuEff, ifR, ifDevReff,   ifL, ifI }

Public Member Functions
	TypeName ("turbulenceFields")
	turbulenceFields (const word &name, const Time &runTime, const dictionary &dict)
	turbulenceFields (const turbulenceFields &)=delete
void	operator= (const turbulenceFields &)=delete
virtual	~turbulenceFields ()=default
virtual bool	read (const dictionary &)
virtual bool	execute ()
virtual bool	write ()
template<class Model >
Foam::tmp< Foam::volScalarField >	nuTilda (const Model &model) const
template<class Model >
Foam::tmp< Foam::volScalarField >	L (const Model &model) const
template<class Model >
Foam::tmp< Foam::volScalarField >	I (const Model &model) const
Public Member Functions inherited from fvMeshFunctionObject
	TypeName ("fvMeshFunctionObject")
	fvMeshFunctionObject (const word &name, const Time &runTime, const dictionary &dict)
	fvMeshFunctionObject (const word &name, const objectRegistry &obr, const dictionary &dict)
virtual	~fvMeshFunctionObject ()=default
Public Member Functions inherited from regionFunctionObject
	TypeName ("regionFunctionObject")
	regionFunctionObject (const word &name, const Time &runTime, const dictionary &dict)
	regionFunctionObject (const word &name, const objectRegistry &obr, const dictionary &dict)
virtual	~regionFunctionObject ()=default
template<class ObjectType >
const ObjectType *	lookupObjectPtr (const word &fieldName) const
template<class ObjectType >
ObjectType *	lookupObjectRefPtr (const word &fieldName) const
Public Member Functions inherited from stateFunctionObject
	stateFunctionObject (const word &name, const Time &runTime)
virtual	~stateFunctionObject ()=default
dictionary &	propertyDict ()
bool	foundProperty (const word &entryName) const
void	clearTrigger ()
label	getTrigger () const
bool	setTrigger (const label triggeri, bool increaseOnly=true)
bool	getDict (const word &entryName, dictionary &dict) const
bool	getObjectDict (const word &objectName, const word &entryName, dictionary &dict) const
template<class Type >
Type	getProperty (const word &entryName, const Type &defaultValue=Type(Zero)) const
template<class Type >
bool	getProperty (const word &entryName, Type &value) const
template<class Type >
void	setProperty (const word &entryName, const Type &value)
template<class Type >
Type	getObjectProperty (const word &objectName, const word &entryName, const Type &defaultValue=Type(Zero)) const
template<class Type >
bool	getObjectProperty (const word &objectName, const word &entryName, Type &value) const
template<class Type >
void	setObjectProperty (const word &objectName, const word &entryName, const Type &value)
template<class Type >
void	setResult (const word &entryName, const Type &value)
template<class Type >
void	setObjectResult (const word &objectName, const word &entryName, const Type &value)
template<class Type >
Type	getResult (const word &entryName, const Type &defaultValue=Type(Zero)) const
template<class Type >
Type	getObjectResult (const word &objectName, const word &entryName, const Type &defaultValue=Type(Zero)) const
template<class Type >
bool	getObjectResult (const word &objectName, const word &entryName, Type &value) const
word	resultType (const word &entryName) const
word	objectResultType (const word &objectName, const word &entryName) const
wordList	objectResultEntries () const
wordList	objectResultEntries (const word &objectName) const
void	writeResultEntries (Ostream &os) const
void	writeResultEntries (const word &objectName, Ostream &os) const
void	writeAllResultEntries (Ostream &os) const
Public Member Functions inherited from timeFunctionObject
	timeFunctionObject (const word &name, const Time &runTime)
virtual	~timeFunctionObject ()=default
const Time &	time () const
objectRegistry &	storedObjects ()
const objectRegistry &	storedObjects () const
Public Member Functions inherited from functionObject
	declareRunTimeSelectionTable (autoPtr, functionObject, dictionary,(const word &name, const Time &runTime, const dictionary &dict),(name, runTime, dict))
	functionObject (const word &name, const bool withNamePrefix=defaultUseNamePrefix)
autoPtr< functionObject >	clone () const
virtual	~functionObject ()=default
virtual const word &	type () const =0
const word &	name () const noexcept
bool	useNamePrefix () const noexcept
bool	useNamePrefix (bool on) noexcept
virtual bool	execute (const label subIndex)
virtual bool	end ()
virtual bool	adjustTimeStep ()
virtual bool	filesModified () const
virtual void	updateMesh (const mapPolyMesh &mpm)
virtual void	movePoints (const polyMesh &mesh)

Static Public Attributes
static const Enum< compressibleField >	compressibleFieldNames_
static const Enum< incompressibleField >	incompressibleFieldNames_
static const word	modelName_
Static Public Attributes inherited from functionObject
static int	debug
static bool	postProcess
static bool	defaultUseNamePrefix
static word	outputPrefix

Protected Member Functions
void	initialise ()
bool	compressible ()
template<class Type >
void	processField (const word &fieldName, const tmp< GeometricField< Type, fvPatchField, volMesh >> &tvalue)
template<class Model >
tmp< volScalarField >	nuTilda (const Model &model) const
template<class Model >
tmp< volScalarField >	L (const Model &model) const
template<class Model >
tmp< volScalarField >	I (const Model &model) const
Protected Member Functions inherited from fvMeshFunctionObject
	fvMeshFunctionObject (const fvMeshFunctionObject &)=delete
void	operator= (const fvMeshFunctionObject &)=delete
Protected Member Functions inherited from regionFunctionObject
virtual const objectRegistry &	obr () const
template<class ObjectType >
bool	foundObject (const word &fieldName) const
template<class ObjectType >
const ObjectType *	cfindObject (const word &fieldName) const
template<class ObjectType >
const ObjectType *	findObject (const word &fieldName) const
template<class ObjectType >
ObjectType *	findObject (const word &fieldName)
template<class ObjectType >
ObjectType *	getObjectPtr (const word &fieldName) const
template<class ObjectType >
const ObjectType &	lookupObject (const word &fieldName) const
template<class ObjectType >
ObjectType &	lookupObjectRef (const word &fieldName) const
template<class ObjectType >
bool	store (word &fieldName, const tmp< ObjectType > &tfield, bool cacheable=false)
template<class ObjectType >
bool	storeInDb (const word &fieldName, const tmp< ObjectType > &tfield, const objectRegistry &obr)
bool	writeObject (const word &fieldName)
bool	clearObject (const word &fieldName)
void	clearObjects (const wordList &objNames)
	regionFunctionObject (const regionFunctionObject &)=delete
void	operator= (const regionFunctionObject &)=delete
Protected Member Functions inherited from stateFunctionObject
const functionObjects::properties &	stateDict () const
functionObjects::properties &	stateDict ()
	stateFunctionObject (const stateFunctionObject &)=delete
void	operator= (const stateFunctionObject &)=delete
Protected Member Functions inherited from timeFunctionObject
void	clearOutputObjects (const wordList &objNames)
	timeFunctionObject (const timeFunctionObject &)=delete
void	operator= (const timeFunctionObject &)=delete
Protected Member Functions inherited from functionObject
word	scopedName (const word &name) const

Protected Attributes
bool	initialised_
word	prefix_
wordHashSet	fieldSet_
Protected Attributes inherited from fvMeshFunctionObject
const fvMesh &	mesh_
Protected Attributes inherited from regionFunctionObject
word	subRegistryName_
const objectRegistry &	obr_
const objectRegistry *	obrPtr_
Protected Attributes inherited from timeFunctionObject
const Time &	time_

Additional Inherited Members
Static Public Member Functions inherited from functionObject
static autoPtr< functionObject >	New (const word &name, const Time &runTime, const dictionary &dict)
Public Attributes inherited from functionObject
bool	log

Detailed Description

Computes various turbulence-related quantities that are not typically output during calculations, and stores/writes them on the mesh database for further manipulation.

Fields are stored as copies of the original with a user-defined prefix e.g. a prefix of turbulenceModel yields the following for field R:

  turbulenceModel:R

Operands:

Operand	Type	Location
input	-	-
output file	-	-
output field	vol<Type>Field	$FOAM_CASE/<time>/<outField>

where <Type>=Scalar/SymmTensor.

References:

        Estimation expressions for L (tag:P), Eq. 10.37:
            Pope, S. B. (2000).
            Turbulent flows.
            Cambridge, UK: Cambridge Univ. Press
            DOI:10.1017/CBO9780511840531

Usage

Minimal example by using system/controlDict.functions:

turbulenceFields1
{
    // Mandatory entries (unmodifiable)
    type        turbulenceFields;
    libs        (fieldFunctionObjects);

    // Mandatory entries (runtime modifiable)

        // Either of the below
        // Option-1
        fields      (R devRhoReff);

        // Option-2
        field       R;

    // Optional entries (runtime modifiable)
    prefix          <word>;

    // Inherited entries
    ...
}

where the entries mean:

Property	Description	Type	Reqd	Deflt
type	Type name: turbulenceFields	word	yes	-
libs	Library name: fieldFunctionObjects	word	yes	-
fields	Names of fields to store (see below)	wordList	yes	-
field	Name of a field to store (see below)	word	yes	-
prefix	Name of output-field prefix	word	no	turbulenceProperties

where fields can include:

      k           | turbulent kinetic energy
      epsilon     | turbulent kinetic energy dissipation rate
      omega       | specific dissipation rate
      nuTilda     | modified turbulent viscosity
      nut         | turbulent viscosity (incompressible)
      nuEff       | effective turbulent viscosity (incompressible)
      mut         | turbulent viscosity (compressible)
      muEff       | effective turbulent viscosity (compressible)
      alphat      | turbulence thermal diffusivity (compressible)
      alphaEff    | effective turbulence thermal diffusivity (compressible)
      R           | Reynolds stress tensor
      devReff     | deviatoric part of the effective Reynolds stress
      devRhoReff  | divergence of the Reynolds stress
      L           | integral-length scale / mixing-length scale
      I           | turbulence intensity

The inherited entries are elaborated in:

• functionObject.H

Minimal example by using the postProcess utility:

        <solver> -postProcess -func turbulenceFields

Note

• Multiphase applications are not supported.
• The governing expression of nuTilda is an approximation based on a dimensional analysis.

See also

• Foam::functionObject
• Foam::functionObjects::fvMeshFunctionObject
• ExtendedCodeGuide::functionObjects::field::turbulenceFields

Source files

• turbulenceFields.H
• turbulenceFields.C
• turbulenceFieldsTemplates.C

Definition at line 210 of file turbulenceFields.H.

Member Enumeration Documentation

compressibleField

enum compressibleField

Enumerator
cfK	"Turbulent kinetic energy"
cfEpsilon	"Turbulent kinetic energy dissipation rate"
cfOmega	"Specific dissipation rate"
cfNuTilda	"Modified turbulent viscosity"
cfMut	"Turbulent dynamic viscosity"
cfMuEff	"Effective turbulent dynamic viscosity"
cfAlphat	"Turbulence thermal diffusivity"
cfAlphaEff	"Effective turbulence thermal diffusivity"
cfR	"Reynolds stress tensor"
cfDevRhoReff	"Divergence of the Reynolds stress"
cfL	"Integral-length/Mixing-length scale"
cfI	"Turbulence intensity"

Definition at line 219 of file turbulenceFields.H.

incompressibleField

enum incompressibleField

Enumerator
ifK	"Turbulent kinetic energy"
ifEpsilon	"Turbulent kinetic energy dissipation rate"
ifOmega	"Specific dissipation rate"
ifNuTilda	"Modified turbulent viscosity"
ifNut	"Turbulent viscosity"
ifNuEff	"Effective turbulent viscosity"
ifR	"Reynolds stress tensor"
ifDevReff	"Deviatoric part of the effective Reynolds stress"
ifL	"Integral-length/Mixing-length scale"
ifI	"Turbulence intensity"

Definition at line 239 of file turbulenceFields.H.

Constructor & Destructor Documentation

turbulenceFields() [1/2]

turbulenceFields	(	const word &	name,
		const Time &	runTime,
		const dictionary &	dict
	)

Definition at line 129 of file turbulenceFields.C.

References dict, and Foam::read().

Here is the call graph for this function:

turbulenceFields() [2/2]

turbulenceFields ( const turbulenceFields &  )

delete

~turbulenceFields()

virtual ~turbulenceFields ( )

virtualdefault

Member Function Documentation

initialise()

void initialise ( )

protected

Definition at line 86 of file turbulenceFields.C.

References Foam::endl(), f(), turbulenceFields::fieldSet_, objectRegistry::found(), turbulenceFields::initialised_, Foam::nl, regionFunctionObject::obr_, turbulenceFields::prefix_, IOobject::scopedName(), HashSet::unset(), and WarningInFunction.

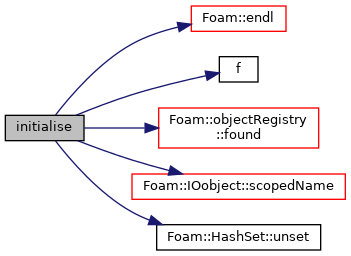

Here is the call graph for this function:

compressible()

bool compressible ( )

protected

Definition at line 107 of file turbulenceFields.C.

References Foam::exit(), Foam::FatalError, and FatalErrorInFunction.

Here is the call graph for this function:

processField()

void processField ( const word &  fieldName, const tmp< GeometricField< Type, fvPatchField, volMesh >> &  tvalue  )

protected

Definition at line 28 of file turbulenceFieldsTemplates.C.

nuTilda() [1/2]

tmp<volScalarField> nuTilda ( const Model &  model ) const

protected

L() [1/2]

tmp<volScalarField> L ( const Model &  model ) const

protected

I() [1/2]

tmp<volScalarField> I ( const Model &  model ) const

protected

TypeName()

TypeName

(

"turbulenceFields"

)

operator=()

void operator= ( const turbulenceFields &  )

delete

read()

bool read ( const dictionary &  dict )

virtual

Reimplemented from regionFunctionObject.

Definition at line 146 of file turbulenceFields.C.

References dict, Foam::endl(), f(), Foam::Info, Foam::name(), Foam::nl, regionFunctionObject::read(), IOobject::scopedName(), and Foam::type().

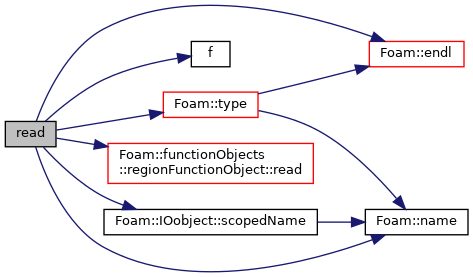

Here is the call graph for this function:

execute()

bool execute ( )

virtual

Implements functionObject.

Definition at line 185 of file turbulenceFields.C.

References Foam::abort(), compressible, f(), Foam::FatalError, FatalErrorInFunction, Foam::I, and L().

Here is the call graph for this function:

write()

bool write ( )

virtual

Implements functionObject.

Definition at line 343 of file turbulenceFields.C.

References Foam::endl(), f(), Foam::Info, and IOobject::scopedName().

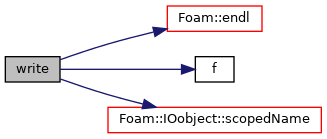

Here is the call graph for this function:

nuTilda() [2/2]

Foam::tmp<Foam::volScalarField> nuTilda

(

const Model &

model

)

const

Definition at line 67 of file turbulenceFieldsTemplates.C.

References Foam::dimless, Foam::dimTime, and Foam::New().

Here is the call graph for this function:

L() [2/2]

Foam::tmp<Foam::volScalarField> L

(

const Model &

model

)

const

Definition at line 84 of file turbulenceFieldsTemplates.C.

References Foam::dimTime, Foam::dimVelocity, Foam::New(), Foam::pow(), and Foam::sqr().

Here is the call graph for this function:

I() [2/2]

Foam::tmp<Foam::volScalarField> I

(

const Model &

model

)

const

Definition at line 103 of file turbulenceFieldsTemplates.C.

References Foam::dimVelocity, Foam::mag(), Foam::max(), Foam::New(), and Foam::sqrt().

Here is the call graph for this function:

Member Data Documentation

compressibleFieldNames_

const Foam::Enum< Foam::functionObjects::turbulenceFields::compressibleField > compressibleFieldNames_

static

Definition at line 236 of file turbulenceFields.H.

incompressibleFieldNames_

const Foam::Enum< Foam::functionObjects::turbulenceFields::incompressibleField > incompressibleFieldNames_

static

Definition at line 254 of file turbulenceFields.H.

modelName_

const Foam::word modelName_

static

Definition at line 257 of file turbulenceFields.H.

initialised_

bool initialised_

protected

Definition at line 265 of file turbulenceFields.H.

Referenced by turbulenceFields::initialise().

prefix_

word prefix_

protected

Definition at line 268 of file turbulenceFields.H.

Referenced by turbulenceFields::initialise().

fieldSet_

wordHashSet fieldSet_

protected

Definition at line 271 of file turbulenceFields.H.

Referenced by turbulenceFields::initialise().

---

The documentation for this class was generated from the following files:

• src/functionObjects/field/turbulenceFields/turbulenceFields.H
• src/functionObjects/field/turbulenceFields/turbulenceFields.C
• src/functionObjects/field/turbulenceFields/turbulenceFieldsTemplates.C
