Computes the heat transfer coefficient [W/(m2 K)] as a volScalarField for a given set of patches. More...

Inheritance diagram for heatTransferCoeff:

Collaboration diagram for heatTransferCoeff:

Public Member Functions
	TypeName ("heatTransferCoeff")

	heatTransferCoeff ()=delete

	heatTransferCoeff (const word &name, const Time &runTime, const dictionary &dict)

	heatTransferCoeff (const heatTransferCoeff &)=delete

void	operator= (const heatTransferCoeff &)=delete

virtual	~heatTransferCoeff ()=default

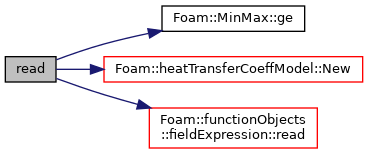

virtual bool	read (const dictionary &dict)

Public Member Functions inherited from fieldExpression
	TypeName ("fieldExpression")

	fieldExpression (const word &name, const Time &runTime, const dictionary &dict, const word &fieldName=word::null, const word &resultName=word::null)

	fieldExpression (const fieldExpression &)=delete

void	operator= (const fieldExpression &)=delete

virtual	~fieldExpression ()=default

virtual bool	execute ()

virtual bool	write ()

virtual bool	clear ()

Public Member Functions inherited from fvMeshFunctionObject
	TypeName ("fvMeshFunctionObject")

	fvMeshFunctionObject (const word &name, const Time &runTime, const dictionary &dict)

	fvMeshFunctionObject (const word &name, const objectRegistry &obr, const dictionary &dict)

virtual	~fvMeshFunctionObject ()=default

Public Member Functions inherited from regionFunctionObject
	TypeName ("regionFunctionObject")

	regionFunctionObject (const word &name, const Time &runTime, const dictionary &dict)

	regionFunctionObject (const word &name, const objectRegistry &obr, const dictionary &dict)

virtual	~regionFunctionObject ()=default

template<class ObjectType >
const ObjectType *	lookupObjectPtr (const word &fieldName) const

template<class ObjectType >
ObjectType *	lookupObjectRefPtr (const word &fieldName) const

Public Member Functions inherited from stateFunctionObject
	stateFunctionObject (const word &name, const Time &runTime)

virtual	~stateFunctionObject ()=default

dictionary &	propertyDict ()

bool	foundProperty (const word &entryName) const

void	clearTrigger ()

label	getTrigger () const

bool	setTrigger (const label triggeri, bool increaseOnly=true)

bool	getDict (const word &entryName, dictionary &dict) const

bool	getObjectDict (const word &objectName, const word &entryName, dictionary &dict) const

template<class Type >
Type	getProperty (const word &entryName, const Type &defaultValue=Type(Zero)) const

template<class Type >
bool	getProperty (const word &entryName, Type &value) const

template<class Type >
void	setProperty (const word &entryName, const Type &value)

template<class Type >
Type	getObjectProperty (const word &objectName, const word &entryName, const Type &defaultValue=Type(Zero)) const

template<class Type >
bool	getObjectProperty (const word &objectName, const word &entryName, Type &value) const

template<class Type >
void	setObjectProperty (const word &objectName, const word &entryName, const Type &value)

template<class Type >
void	setResult (const word &entryName, const Type &value)

template<class Type >
void	setObjectResult (const word &objectName, const word &entryName, const Type &value)

template<class Type >
Type	getResult (const word &entryName, const Type &defaultValue=Type(Zero)) const

template<class Type >
Type	getObjectResult (const word &objectName, const word &entryName, const Type &defaultValue=Type(Zero)) const

template<class Type >
bool	getObjectResult (const word &objectName, const word &entryName, Type &value) const

word	resultType (const word &entryName) const

word	objectResultType (const word &objectName, const word &entryName) const

wordList	objectResultEntries () const

wordList	objectResultEntries (const word &objectName) const

void	writeResultEntries (Ostream &os) const

void	writeResultEntries (const word &objectName, Ostream &os) const

void	writeAllResultEntries (Ostream &os) const

Public Member Functions inherited from timeFunctionObject
	timeFunctionObject (const word &name, const Time &runTime)

virtual	~timeFunctionObject ()=default

const Time &	time () const

objectRegistry &	storedObjects ()

const objectRegistry &	storedObjects () const

Public Member Functions inherited from functionObject
	declareRunTimeSelectionTable (autoPtr, functionObject, dictionary,(const word &name, const Time &runTime, const dictionary &dict),(name, runTime, dict))

	functionObject (const word &name, const bool withNamePrefix=defaultUseNamePrefix)

autoPtr< functionObject >	clone () const

virtual	~functionObject ()=default

virtual const word &	type () const =0

const word &	name () const noexcept

bool	useNamePrefix () const noexcept

bool	useNamePrefix (bool on) noexcept

virtual bool	execute (const label subIndex)

virtual bool	end ()

virtual bool	adjustTimeStep ()

virtual bool	filesModified () const

virtual void	updateMesh (const mapPolyMesh &mpm)

virtual void	movePoints (const polyMesh &mesh)

Protected Member Functions
virtual bool	calc ()

Protected Member Functions inherited from fieldExpression
void	setResultName (const word &typeName, const word &defaultArg)

template<class Type >
bool	foundObject (const word &name, const bool verbose=true) const

Protected Member Functions inherited from fvMeshFunctionObject
	fvMeshFunctionObject (const fvMeshFunctionObject &)=delete

void	operator= (const fvMeshFunctionObject &)=delete

Protected Member Functions inherited from regionFunctionObject
virtual const objectRegistry &	obr () const

template<class ObjectType >
bool	foundObject (const word &fieldName) const

template<class ObjectType >
const ObjectType *	cfindObject (const word &fieldName) const

template<class ObjectType >
const ObjectType *	findObject (const word &fieldName) const

template<class ObjectType >
ObjectType *	findObject (const word &fieldName)

template<class ObjectType >
ObjectType *	getObjectPtr (const word &fieldName) const

template<class ObjectType >
const ObjectType &	lookupObject (const word &fieldName) const

template<class ObjectType >
ObjectType &	lookupObjectRef (const word &fieldName) const

template<class ObjectType >
bool	store (word &fieldName, const tmp< ObjectType > &tfield, bool cacheable=false)

template<class ObjectType >
bool	storeInDb (const word &fieldName, const tmp< ObjectType > &tfield, const objectRegistry &obr)

bool	writeObject (const word &fieldName)

bool	clearObject (const word &fieldName)

void	clearObjects (const wordList &objNames)

	regionFunctionObject (const regionFunctionObject &)=delete

void	operator= (const regionFunctionObject &)=delete

Protected Member Functions inherited from stateFunctionObject
const functionObjects::properties &	stateDict () const

functionObjects::properties &	stateDict ()

	stateFunctionObject (const stateFunctionObject &)=delete

void	operator= (const stateFunctionObject &)=delete

Protected Member Functions inherited from timeFunctionObject
void	clearOutputObjects (const wordList &objNames)

	timeFunctionObject (const timeFunctionObject &)=delete

void	operator= (const timeFunctionObject &)=delete

Protected Member Functions inherited from functionObject
word	scopedName (const word &name) const

Additional Inherited Members
Static Public Member Functions inherited from functionObject
static autoPtr< functionObject >	New (const word &name, const Time &runTime, const dictionary &dict)

Public Attributes inherited from functionObject
bool	log

Static Public Attributes inherited from functionObject
static int	debug

static bool	postProcess

static bool	defaultUseNamePrefix

static word	outputPrefix

Protected Attributes inherited from fieldExpression
word	fieldName_

word	resultName_

autoPtr< Detail::zoneSubSet >	zoneSubSetPtr_

Protected Attributes inherited from fvMeshFunctionObject
const fvMesh &	mesh_

Protected Attributes inherited from regionFunctionObject
word	subRegistryName_

const objectRegistry &	obr_

const objectRegistry *	obrPtr_

Protected Attributes inherited from timeFunctionObject
const Time &	time_

Detailed Description

Computes the heat transfer coefficient [W/(m2 K)] as a volScalarField for a given set of patches.

Optionally, the Nusselt number (i.e. the ratio of convective to conductive heat transfer at a boundary in a fluid) can be output:

$Nu = \frac{h L}{\kappa}$

where

	=	Nusselt number
	=	Convective heat transfer coefficient of the flow
	=	Characteristic length that defines the scale of the physical system
$\kappa$	=	Thermal conductivity of the fluid

Operands:

Operand	Type	Location
`input`	-	-
`output` file	-	-
`output` field	volScalarField	$FOAM_CASE/<time>/<outField>

Usage

Minimal example by using system/controlDict.functions:

heatTransferCoeff1
{
    // Mandatory entries (unmodifiable)
    type        heatTransferCoeff;
    libs        (fieldFunctionObjects);

    // Mandatory (inherited) entries (runtime modifiable)
    field       <field>;
    patches     (<patch1> <patch2> ... <patchN>);
    htcModel    <htcModel>;

    // Optional entries (runtime modifable)
    qr          <qrName>;
    L           1.0;
    kappa       1.0;

    // Conditional mandatory and optional
    // entries based on selected <htcModel> (runtime modifiable)
    ...

    // Optional (inherited) entries
    ...
}

where the entries mean:

Property	Description	Type	Reqd	Dflt
`type`	Type name: heatTransferCoeff	word	yes	-
`libs`	Library name: fieldFunctionObjects	word	yes	-
`field`	Name of the operand field	word	yes	-
`patches`	Names of operand patches	wordRes	yes	-
`htcModel`	Heat transfer coefficient model - see below	word	yes	-
`qr`	Name of radiative heat flux	word	no	qr
`L`	Characteristic length that defines the scale of the physical system	scalar	no	1
`kappa`	Thermal conductivity of fluid	scalar	no	1

The inherited entries are elaborated in:

Options for the htcModel entry:

      ReynoldsAnalogy           | Reynold's analogy
      localReferenceTemperature | Local reference temperature
      fixedReferenceTemperature | Specified reference temperature

Usage by the postProcess utility is not available.
