Public Member Functions | List of all members
electricPotential Class Reference
FunctionObjects » Solver function objects

Computes the steady-state equation of charge conservation to obtain the electric potential by strictly assuming a quasi-static electrostatic field for single-phase and multiphase applications. More...

Inheritance diagram for electricPotential:
Inheritance graph
[legend]
Collaboration diagram for electricPotential:
Collaboration graph
[legend]

Public Member Functions

 TypeName ("electricPotential")

 electricPotential (const word &name, const Time &runTime, const dictionary &dict)

virtual ~electricPotential ()=default

virtual bool read (const dictionary &dict)

virtual bool execute ()

virtual bool write ()

- Public Member Functions inherited from fvMeshFunctionObject
 TypeName ("fvMeshFunctionObject")

 fvMeshFunctionObject (const word &name, const Time &runTime, const dictionary &dict)

 fvMeshFunctionObject (const word &name, const objectRegistry &obr, const dictionary &dict)

virtual ~fvMeshFunctionObject ()=default

- Public Member Functions inherited from regionFunctionObject
 TypeName ("regionFunctionObject")

 regionFunctionObject (const word &name, const Time &runTime, const dictionary &dict)

 regionFunctionObject (const word &name, const objectRegistry &obr, const dictionary &dict)

virtual ~regionFunctionObject ()=default

template<class ObjectType >
const ObjectType * lookupObjectPtr (const word &fieldName) const

template<class ObjectType >
ObjectType * lookupObjectRefPtr (const word &fieldName) const

- Public Member Functions inherited from stateFunctionObject
 stateFunctionObject (const word &name, const Time &runTime)

virtual ~stateFunctionObject ()=default

dictionary & propertyDict ()

bool foundProperty (const word &entryName) const

void clearTrigger ()

label getTrigger () const

bool setTrigger (const label triggeri, bool increaseOnly=true)

bool getDict (const word &entryName, dictionary &dict) const

bool getObjectDict (const word &objectName, const word &entryName, dictionary &dict) const

template<class Type >
Type getProperty (const word &entryName, const Type &defaultValue=Type(Zero)) const

template<class Type >
bool getProperty (const word &entryName, Type &value) const

template<class Type >
void setProperty (const word &entryName, const Type &value)

template<class Type >
Type getObjectProperty (const word &objectName, const word &entryName, const Type &defaultValue=Type(Zero)) const

template<class Type >
bool getObjectProperty (const word &objectName, const word &entryName, Type &value) const

template<class Type >
void setObjectProperty (const word &objectName, const word &entryName, const Type &value)

template<class Type >
void setResult (const word &entryName, const Type &value)

template<class Type >
void setObjectResult (const word &objectName, const word &entryName, const Type &value)

template<class Type >
Type getResult (const word &entryName, const Type &defaultValue=Type(Zero)) const

template<class Type >
Type getObjectResult (const word &objectName, const word &entryName, const Type &defaultValue=Type(Zero)) const

template<class Type >
bool getObjectResult (const word &objectName, const word &entryName, Type &value) const

word resultType (const word &entryName) const

word objectResultType (const word &objectName, const word &entryName) const

wordList objectResultEntries () const

wordList objectResultEntries (const word &objectName) const

void writeResultEntries (Ostream &os) const

void writeResultEntries (const word &objectName, Ostream &os) const

void writeAllResultEntries (Ostream &os) const

- Public Member Functions inherited from timeFunctionObject
 timeFunctionObject (const word &name, const Time &runTime)

virtual ~timeFunctionObject ()=default

const Time & time () const

objectRegistry & storedObjects ()

const objectRegistry & storedObjects () const

- Public Member Functions inherited from functionObject
 declareRunTimeSelectionTable (autoPtr, functionObject, dictionary,(const word &name, const Time &runTime, const dictionary &dict),(name, runTime, dict))

 functionObject (const word &name, const bool withNamePrefix=defaultUseNamePrefix)

autoPtr< functionObject > clone () const

virtual ~functionObject ()=default

virtual const word & type () const =0

const word & name () const noexcept

bool useNamePrefix () const noexcept

bool useNamePrefix (bool on) noexcept

virtual bool execute (const label subIndex)

virtual bool end ()

virtual bool adjustTimeStep ()

virtual bool filesModified () const

virtual void updateMesh (const mapPolyMesh &mpm)

virtual void movePoints (const polyMesh &mesh)


Additional Inherited Members

- Static Public Member Functions inherited from functionObject
static autoPtr< functionObject > New (const word &name, const Time &runTime, const dictionary &dict)

- Public Attributes inherited from functionObject
bool log

- Static Public Attributes inherited from functionObject
static int debug

static bool postProcess

static bool defaultUseNamePrefix

static word outputPrefix

- Protected Member Functions inherited from fvMeshFunctionObject
 fvMeshFunctionObject (const fvMeshFunctionObject &)=delete

void operator= (const fvMeshFunctionObject &)=delete

- Protected Member Functions inherited from regionFunctionObject
virtual const objectRegistry & obr () const

template<class ObjectType >
bool foundObject (const word &fieldName) const

template<class ObjectType >
const ObjectType * cfindObject (const word &fieldName) const

template<class ObjectType >
const ObjectType * findObject (const word &fieldName) const

template<class ObjectType >
ObjectType * findObject (const word &fieldName)

template<class ObjectType >
ObjectType * getObjectPtr (const word &fieldName) const

template<class ObjectType >
const ObjectType & lookupObject (const word &fieldName) const

template<class ObjectType >
ObjectType & lookupObjectRef (const word &fieldName) const

template<class ObjectType >
bool store (word &fieldName, const tmp< ObjectType > &tfield, bool cacheable=false)

template<class ObjectType >
bool storeInDb (const word &fieldName, const tmp< ObjectType > &tfield, const objectRegistry &obr)

bool writeObject (const word &fieldName)

bool clearObject (const word &fieldName)

void clearObjects (const wordList &objNames)

 regionFunctionObject (const regionFunctionObject &)=delete

void operator= (const regionFunctionObject &)=delete

- Protected Member Functions inherited from stateFunctionObject
const functionObjects::properties & stateDict () const

functionObjects::properties & stateDict ()

 stateFunctionObject (const stateFunctionObject &)=delete

void operator= (const stateFunctionObject &)=delete

- Protected Member Functions inherited from timeFunctionObject
void clearOutputObjects (const wordList &objNames)

 timeFunctionObject (const timeFunctionObject &)=delete

void operator= (const timeFunctionObject &)=delete

- Protected Member Functions inherited from functionObject
word scopedName (const word &name) const

- Protected Attributes inherited from fvMeshFunctionObject
const fvMesh & mesh_

- Protected Attributes inherited from regionFunctionObject
word subRegistryName_

const objectRegistry & obr_

const objectRegistry * obrPtr_

- Protected Attributes inherited from timeFunctionObject
const Time & time_


Detailed Description

Computes the steady-state equation of charge conservation to obtain the electric potential by strictly assuming a quasi-static electrostatic field for single-phase and multiphase applications.

The steady-state equation of the charge conservation:

\[ \nabla \cdot \left( \sigma \nabla V \right) = 0 \]

where

$ V $ = Electric potential [volt = kg m^2/(A s^3)]
$ \sigma $ = Isotropic conductivity of mixture [S/m = A^2 s^3/(kg m^3)]

Optionally, electric field, current density and free-charge density fields can be written out by using the following equations:

\[ \vec{E} = - \nabla V \]

\[ \vec{J} = \sigma \vec{E} = - \sigma \nabla V \]

\[ \rho_E = \nabla \cdot \left(\epsilon_m \vec{E} \right) = \nabla \cdot \left(\epsilon_0 \epsilon_r \vec{E} \right) \]

where

$ \vec{E} $ = Electric field [m kg/(s^3 A)]
$ \vec{J} $ = Current density [A/m^2]
$ \rho_E $ = Volume charge density [C/m^3 = A s/m^3]
$ \epsilon_m $ = Isotropic permittivity of mixture [F/m = A^2 s^4/(kg m^3)]
$ \epsilon_0 $ = Isotropic vacuum permittivity [F/m = A^2 s^4/(kg m^3)]
$ \epsilon_r $ = Isotropic relative permittivity of mixture [-]

For multiphase applications, sigma and epsilonr are blended (to consider their interface values) by using the simple weighted arithmetic mean interpolation, for example:

\[ \sigma = \alpha_1 \sigma_1 + \alpha_2 \sigma_2 = \alpha_1 \sigma_1 + (1 - \alpha_1) \sigma_2 \]

Usage
Minimal example by using system/controlDict.functions:
electricPotential1
{
    // Mandatory entries
    type            electricPotential;
    libs            (solverFunctionObjects);

    // Conditional entries

        // Option-1: single-phase
        sigma       <scalar>;
        epsilonr    <scalar>;

        // Option-2: multiphase
        phases
        {
            alpha.air
            {
                sigma       <scalar>;
                epsilonr    <scalar>;
            }
            alpha.water
            {
                sigma       <scalar>;
                epsilonr    <scalar>;
            }
            alpha.mercury
            {
                sigma       <scalar>;
                epsilonr    <scalar>;
            }
            ...
        }

    // Optional entries
    nCorr                 <label>;
    writeDerivedFields    <bool>;
    fieldName             <word>;

    // Inherited entries
    ...
}

where the entries mean:

Property Description Type Reqd Deflt
type Type name: electricPotential word yes -
libs Library name: solverFunctionObjects word yes -
sigma Isotropic electrical conductivity of phase scalar yes -
epsilonr Isotropic relative permittivity of phase scalar no -
nCorr Number of corrector iterations label no 1
writeDerivedFields Flag to write extra fields bool no false
fieldName Name of operand field word no electricPotential:V

The inherited entries are elaborated in:

Fields written out when the writeDerivedFields entry is true:

Operand Type Location
Electric field volVectorField <time>/electricPotential:E
Current density volVectorField <time>/electricPotential:J
Charge density volScalarField <time>/electricPotential:rho
Source files

Definition at line 266 of file electricPotential.H.

Constructor & Destructor Documentation

◆ electricPotential()

electricPotential ( const word &  name,
const Time &  runTime,
const dictionary &  dict
)

Definition at line 155 of file electricPotential.C.

References GeometricField::correctBoundaryConditions(), dict, and Foam::read().

Here is the call graph for this function:

◆ ~electricPotential()

virtual ~electricPotential ( )
virtualdefault

Member Function Documentation

◆ TypeName()

TypeName ( "electricPotential"  )

◆ read()

bool read ( const dictionary &  dict)
virtual

Reimplemented from regionFunctionObject.

Definition at line 215 of file electricPotential.C.

References dict, Foam::dimCurrent, Foam::dimLength, Foam::dimless, Foam::dimMass, Foam::dimTime, Foam::endl(), Foam::exit(), Foam::FatalIOError, FatalIOErrorInFunction, forAll, MinMax::ge(), dictionary::getCheck(), Foam::glTF::key(), Log, Foam::name(), Foam::nl, phasei, Foam::pow3(), regionFunctionObject::read(), Foam::sqr(), and Foam::type().

Here is the call graph for this function:

◆ execute()

bool execute ( )
virtual

Implements functionObject.

Definition at line 305 of file electricPotential.C.

References Foam::endl(), Foam::fvm::laplacian(), Log, Foam::name(), fvMatrix::relax(), sigma(), fvMatrix::solve(), and Foam::type().

Here is the call graph for this function:

◆ write()

bool write ( )
virtual

Implements functionObject.

Definition at line 332 of file electricPotential.C.

References Foam::fvc::div(), Foam::endl(), Foam::fvc::grad(), Log, Foam::name(), tmp::New(), Foam::nl, IOobject::NO_READ, IOobject::NO_WRITE, IOobject::scopedName(), sigma(), Foam::tab, Foam::type(), and Ostream::write().

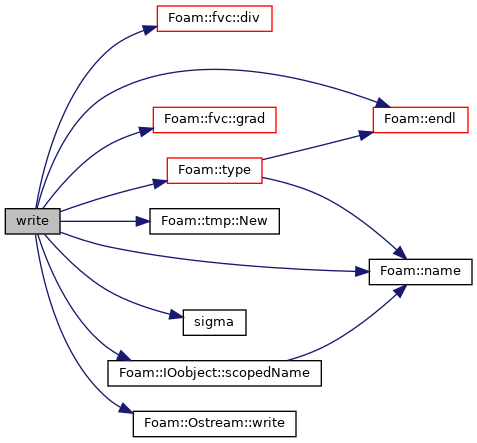

Here is the call graph for this function:
The documentation for this class was generated from the following files:
