comfort Class Reference

Calculates the thermal comfort quantities predicted mean vote (PMV), predicted percentage of dissatisfaction (PPD) and the draught rate (DR) based on DIN ISO EN 7730:2005. More...

Inheritance diagram for comfort:
Inheritance graph
[legend]
Collaboration diagram for comfort:
Collaboration graph
[legend]

Public Member Functions

 TypeName ("comfort")

 comfort (const word &name, const Time &runTime, const dictionary &dict)

virtual ~comfort ()=default

virtual bool read (const dictionary &)

virtual bool execute ()

virtual bool write ()

- Public Member Functions inherited from fvMeshFunctionObject
 TypeName ("fvMeshFunctionObject")

 fvMeshFunctionObject (const word &name, const Time &runTime, const dictionary &dict)

 fvMeshFunctionObject (const word &name, const objectRegistry &obr, const dictionary &dict)

virtual ~fvMeshFunctionObject ()=default

- Public Member Functions inherited from regionFunctionObject
 TypeName ("regionFunctionObject")

 regionFunctionObject (const word &name, const Time &runTime, const dictionary &dict)

 regionFunctionObject (const word &name, const objectRegistry &obr, const dictionary &dict)

virtual ~regionFunctionObject ()=default

template<class ObjectType >
const ObjectType * lookupObjectPtr (const word &fieldName) const

template<class ObjectType >
ObjectType * lookupObjectRefPtr (const word &fieldName) const

- Public Member Functions inherited from stateFunctionObject
 stateFunctionObject (const word &name, const Time &runTime)

virtual ~stateFunctionObject ()=default

dictionary & propertyDict ()

bool foundProperty (const word &entryName) const

void clearTrigger ()

label getTrigger () const

bool setTrigger (const label triggeri, bool increaseOnly=true)

bool getDict (const word &entryName, dictionary &dict) const

bool getObjectDict (const word &objectName, const word &entryName, dictionary &dict) const

template<class Type >
Type getProperty (const word &entryName, const Type &defaultValue=Type(Zero)) const

template<class Type >
bool getProperty (const word &entryName, Type &value) const

template<class Type >
void setProperty (const word &entryName, const Type &value)

template<class Type >
Type getObjectProperty (const word &objectName, const word &entryName, const Type &defaultValue=Type(Zero)) const

template<class Type >
bool getObjectProperty (const word &objectName, const word &entryName, Type &value) const

template<class Type >
void setObjectProperty (const word &objectName, const word &entryName, const Type &value)

template<class Type >
void setResult (const word &entryName, const Type &value)

template<class Type >
void setObjectResult (const word &objectName, const word &entryName, const Type &value)

template<class Type >
Type getResult (const word &entryName, const Type &defaultValue=Type(Zero)) const

template<class Type >
Type getObjectResult (const word &objectName, const word &entryName, const Type &defaultValue=Type(Zero)) const

template<class Type >
bool getObjectResult (const word &objectName, const word &entryName, Type &value) const

word resultType (const word &entryName) const

word objectResultType (const word &objectName, const word &entryName) const

wordList objectResultEntries () const

wordList objectResultEntries (const word &objectName) const

void writeResultEntries (Ostream &os) const

void writeResultEntries (const word &objectName, Ostream &os) const

void writeAllResultEntries (Ostream &os) const

- Public Member Functions inherited from timeFunctionObject
 timeFunctionObject (const word &name, const Time &runTime)

virtual ~timeFunctionObject ()=default

const Time & time () const

objectRegistry & storedObjects ()

const objectRegistry & storedObjects () const

- Public Member Functions inherited from functionObject
 declareRunTimeSelectionTable (autoPtr, functionObject, dictionary,(const word &name, const Time &runTime, const dictionary &dict),(name, runTime, dict))

 functionObject (const word &name, const bool withNamePrefix=defaultUseNamePrefix)

autoPtr< functionObject > clone () const

virtual ~functionObject ()=default

virtual const word & type () const =0

const word & name () const noexcept

bool useNamePrefix () const noexcept

bool useNamePrefix (bool on) noexcept

virtual bool execute (const label subIndex)

virtual bool end ()

virtual bool adjustTimeStep ()

virtual bool filesModified () const

virtual void updateMesh (const mapPolyMesh &mpm)

virtual void movePoints (const polyMesh &mesh)


Additional Inherited Members

- Static Public Member Functions inherited from functionObject
static autoPtr< functionObject > New (const word &name, const Time &runTime, const dictionary &dict)

- Public Attributes inherited from functionObject
bool log

- Static Public Attributes inherited from functionObject
static int debug

static bool postProcess

static bool defaultUseNamePrefix

static word outputPrefix

- Protected Member Functions inherited from fvMeshFunctionObject
 fvMeshFunctionObject (const fvMeshFunctionObject &)=delete

void operator= (const fvMeshFunctionObject &)=delete

- Protected Member Functions inherited from regionFunctionObject
virtual const objectRegistry & obr () const

template<class ObjectType >
bool foundObject (const word &fieldName) const

template<class ObjectType >
const ObjectType * cfindObject (const word &fieldName) const

template<class ObjectType >
const ObjectType * findObject (const word &fieldName) const

template<class ObjectType >
ObjectType * findObject (const word &fieldName)

template<class ObjectType >
ObjectType * getObjectPtr (const word &fieldName) const

template<class ObjectType >
const ObjectType & lookupObject (const word &fieldName) const

template<class ObjectType >
ObjectType & lookupObjectRef (const word &fieldName) const

template<class ObjectType >
bool store (word &fieldName, const tmp< ObjectType > &tfield, bool cacheable=false)

template<class ObjectType >
bool storeInDb (const word &fieldName, const tmp< ObjectType > &tfield, const objectRegistry &obr)

bool writeObject (const word &fieldName)

bool clearObject (const word &fieldName)

void clearObjects (const wordList &objNames)

 regionFunctionObject (const regionFunctionObject &)=delete

void operator= (const regionFunctionObject &)=delete

- Protected Member Functions inherited from stateFunctionObject
const functionObjects::properties & stateDict () const

functionObjects::properties & stateDict ()

 stateFunctionObject (const stateFunctionObject &)=delete

void operator= (const stateFunctionObject &)=delete

- Protected Member Functions inherited from timeFunctionObject
void clearOutputObjects (const wordList &objNames)

 timeFunctionObject (const timeFunctionObject &)=delete

void operator= (const timeFunctionObject &)=delete

- Protected Member Functions inherited from functionObject
word scopedName (const word &name) const

- Protected Attributes inherited from fvMeshFunctionObject
const fvMesh & mesh_

- Protected Attributes inherited from regionFunctionObject
word subRegistryName_

const objectRegistry & obr_

const objectRegistry * obrPtr_

- Protected Attributes inherited from timeFunctionObject
const Time & time_


Detailed Description

Calculates the thermal comfort quantities predicted mean vote (PMV), predicted percentage of dissatisfaction (PPD) and the draught rate (DR) based on DIN ISO EN 7730:2005.

The draught rate is defined for velocities between 0 m/s and 0.5 m/s. Values larger than 0.5 m/s will be set to 0.5 m/s. Furthermore, the draught rate is defined between 20 degC and 26 degC. A temperature limitation is not implemented. The draught rate is mainly used for HVAC analysis in rooms.

Usage
Minimal example by using system/controlDict.functions:
comfort1
{
    // Mandatory entries
    type            comfort;
    libs            (fieldFunctionObjects);

    // Optional entries
    clothing        <scalar>;
    metabolicRate   <scalar>;
    extWork         <scalar>;
    Trad            <scalar>;
    relHumidity     <scalar>;
    pSat            <scalar>;
    tolerance       <scalar>;
    maxClothIter    <int>;
    meanVelocity    <bool>;

    // Inherited entries
    ...
}

where the entries mean:

Property Description Type Reqd Deflt
type Type name: comfort word yes -
libs Library name: fieldFunctionObjects word yes -
clothing The insulation value of the cloth scalar no 0
metabolicRate The metabolic rate scalar no 0.8
extWork The external work scalar no 0
Trad Radiation temperature scalar no 0
relHumidity Relative humidity of the air scalar no 0.5
pSat Saturation pressure of water scalar no -1
tolerance Residual control for the cloth temperature scalar no 1e-4
maxClothIter Maximum number of iterations int no 100
meanVelocity Flag to use a constant mean velocity in the whole domain bool no false

The inherited entries are elaborated in:

Predicted Mean Vote (PMV) evaluation
+ 3 hot
+ 2 warm
+ 1 slightly warm
+ 0 neutral
- 1 slightly cool
- 2 cool
- 3 cold
Draught rate based on 7730 category
0 - 10 I - fine
10 - 20 II - okay
20 - 30 III - intermedian
> 30 bad - commonly too high
See also
Source files

Definition at line 240 of file comfort.H.

Constructor & Destructor Documentation

◆ comfort()

comfort ( const word &  name,
const Time &  runTime,
const dictionary &  dict
)

Definition at line 233 of file comfort.C.

References dict, and Foam::read().

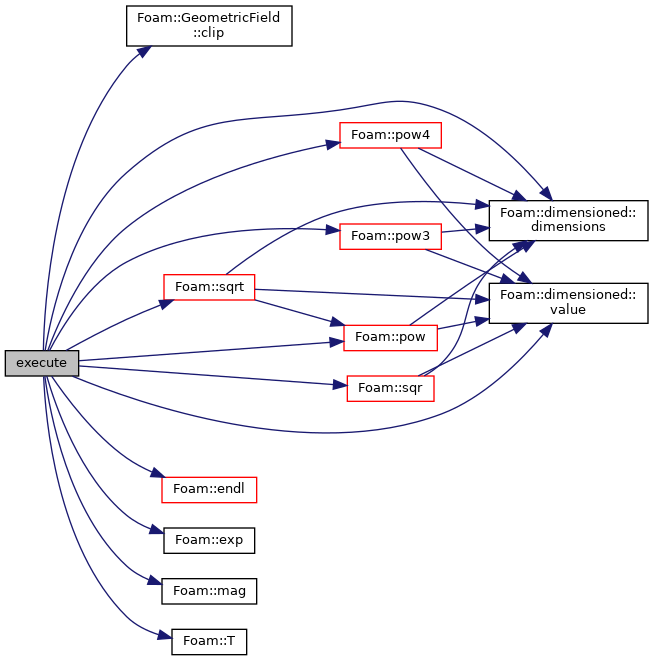

Here is the call graph for this function:

◆ ~comfort()

virtual ~comfort ( )
virtualdefault

Member Function Documentation

◆ TypeName()

TypeName ( "comfort"  )

◆ read()

bool read ( const dictionary &  dict)
virtual

Reimplemented from regionFunctionObject.

Definition at line 259 of file comfort.C.

References dict, Foam::constant::electromagnetic::e, regionFunctionObject::read(), and dimensioned::value().

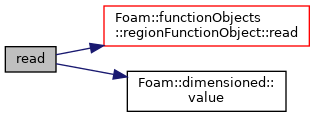

Here is the call graph for this function:

◆ execute()

bool execute ( )
virtual

Implements functionObject.

Definition at line 299 of file comfort.C.

References GeometricField::clip(), dimensioned::dimensions(), Foam::dimLength, Foam::dimless, Foam::dimMass, Foam::dimPressure, Foam::dimTemperature, Foam::dimTime, Foam::dimVelocity, Foam::constant::electromagnetic::e, Foam::endl(), Foam::exp(), Foam::Info, k, Foam::mag(), Foam::pow(), Foam::pow3(), Foam::pow4(), Foam::sqr(), Foam::sqrt(), Foam::T(), and dimensioned::value().

Here is the call graph for this function:

◆ write()

bool write ( )
virtual

Implements functionObject.

Definition at line 462 of file comfort.C.

The documentation for this class was generated from the following files:
