fixedMultiPhaseHeatFluxFvPatchScalarField Class Reference

Calculates a wall temperature that produces the specified overall wall heat flux across all the phases in an Eulerian multi-phase simulation. More...

Inheritance diagram for fixedMultiPhaseHeatFluxFvPatchScalarField:

Collaboration diagram for fixedMultiPhaseHeatFluxFvPatchScalarField:

Public Member Functions
	TypeName ("fixedMultiPhaseHeatFlux")
	fixedMultiPhaseHeatFluxFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &)
	fixedMultiPhaseHeatFluxFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
	fixedMultiPhaseHeatFluxFvPatchScalarField (const fixedMultiPhaseHeatFluxFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fvPatchFieldMapper &)
	fixedMultiPhaseHeatFluxFvPatchScalarField (const fixedMultiPhaseHeatFluxFvPatchScalarField &)
virtual tmp< fvPatchScalarField >	clone () const
	fixedMultiPhaseHeatFluxFvPatchScalarField (const fixedMultiPhaseHeatFluxFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)
virtual tmp< fvPatchScalarField >	clone (const DimensionedField< scalar, volMesh > &iF) const
virtual void	autoMap (const fvPatchFieldMapper &)
virtual void	rmap (const fvPatchScalarField &, const labelList &)
virtual void	updateCoeffs ()
virtual void	write (Ostream &) const

Detailed Description

Calculates a wall temperature that produces the specified overall wall heat flux across all the phases in an Eulerian multi-phase simulation.

Intended to be used with copiedFixedValue to ensure that phase wall temperature are consistent:

• Set fixedMultiPhaseHeatFlux boundary for one of the phases
• Use copiedFixedValue for all the other phases.

Usage

Example of the boundary condition specification:

<patchName>
{
    // Mandatory entries
    type            fixedMultiPhaseHeatFlux;
    q               <scalarField>;

    // Optional entries
    relax           <scalar>;
    Tmin            <scalar>;

    // Inherited entries
    ...
}

where the entries mean:

Property	Description	Type	Reqd	Deflt
type	Type name: fixedMultiPhaseHeatFlux	word	yes	-
q	Heat power [W] or flux [W/m2]	scalarField	yes	-
relax	Relaxation factor	scalar	no	1.0
Tmin	Minimum temperature limit [K]	scalar	no	273.0

The inherited entries are elaborated in:

• fixedValueFvPatchFields.H

See also

Foam::fixedValueFvPatchField

Source files

• fixedMultiPhaseHeatFluxFvPatchScalarField.H
• fixedMultiPhaseHeatFluxFvPatchScalarField.C

Definition at line 117 of file fixedMultiPhaseHeatFluxFvPatchScalarField.H.

Constructor & Destructor Documentation

fixedMultiPhaseHeatFluxFvPatchScalarField() [1/5]

fixedMultiPhaseHeatFluxFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF
	)

Definition at line 35 of file fixedMultiPhaseHeatFluxFvPatchScalarField.C.

Referenced by fixedMultiPhaseHeatFluxFvPatchScalarField::clone().

Here is the caller graph for this function:

fixedMultiPhaseHeatFluxFvPatchScalarField() [2/5]

fixedMultiPhaseHeatFluxFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const dictionary &	dict
	)

Definition at line 49 of file fixedMultiPhaseHeatFluxFvPatchScalarField.C.

fixedMultiPhaseHeatFluxFvPatchScalarField() [3/5]

fixedMultiPhaseHeatFluxFvPatchScalarField	(	const fixedMultiPhaseHeatFluxFvPatchScalarField &	psf,
		const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const fvPatchFieldMapper &	mapper
	)

Definition at line 64 of file fixedMultiPhaseHeatFluxFvPatchScalarField.C.

fixedMultiPhaseHeatFluxFvPatchScalarField() [4/5]

fixedMultiPhaseHeatFluxFvPatchScalarField

(

const fixedMultiPhaseHeatFluxFvPatchScalarField &

psf

)

Definition at line 80 of file fixedMultiPhaseHeatFluxFvPatchScalarField.C.

fixedMultiPhaseHeatFluxFvPatchScalarField() [5/5]

fixedMultiPhaseHeatFluxFvPatchScalarField	(	const fixedMultiPhaseHeatFluxFvPatchScalarField &	psf,
		const DimensionedField< scalar, volMesh > &	iF
	)

Definition at line 93 of file fixedMultiPhaseHeatFluxFvPatchScalarField.C.

Member Function Documentation

TypeName()

TypeName

(

"fixedMultiPhaseHeatFlux"

)

clone() [1/2]

virtual tmp<fvPatchScalarField> clone ( ) const

inlinevirtual

Definition at line 174 of file fixedMultiPhaseHeatFluxFvPatchScalarField.H.

References fixedMultiPhaseHeatFluxFvPatchScalarField::fixedMultiPhaseHeatFluxFvPatchScalarField().

Here is the call graph for this function:

clone() [2/2]

virtual tmp<fvPatchScalarField> clone ( const DimensionedField< scalar, volMesh > &  iF ) const

inlinevirtual

Definition at line 191 of file fixedMultiPhaseHeatFluxFvPatchScalarField.H.

References fixedMultiPhaseHeatFluxFvPatchScalarField::fixedMultiPhaseHeatFluxFvPatchScalarField().

Here is the call graph for this function:

autoMap()

void autoMap ( const fvPatchFieldMapper &  m )

virtual

Definition at line 165 of file fixedMultiPhaseHeatFluxFvPatchScalarField.C.

rmap()

void rmap ( const fvPatchScalarField &  ptf, const labelList &  addr  )

virtual

Definition at line 175 of file fixedMultiPhaseHeatFluxFvPatchScalarField.C.

updateCoeffs()

void updateCoeffs ( )

virtual

Definition at line 108 of file fixedMultiPhaseHeatFluxFvPatchScalarField.C.

References A, Foam::constant::atomic::alpha, B, GeometricField::boundaryField(), Foam::expressions::patchExpr::debug, Foam::endl(), fluid, forAll, Foam::gMax(), Foam::gMin(), Foam::gSum(), Foam::Info, kappaEff, Foam::max(), phase::name(), Foam::operator==(), Foam::foamVersion::patch, phasei, Foam::T(), and Foam::Zero.

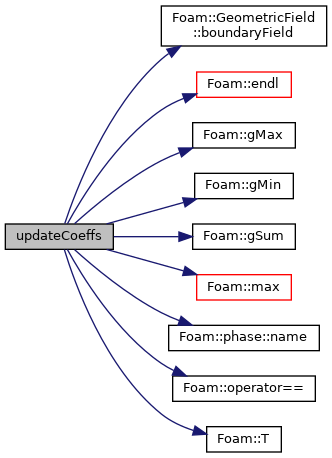

Here is the call graph for this function:

write()

void write ( Ostream &  os ) const

virtual

Definition at line 189 of file fixedMultiPhaseHeatFluxFvPatchScalarField.C.

References os(), fvPatchField::write(), and Ostream::writeEntry().

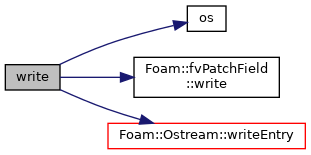

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/phaseSystemModels/reactingEuler/multiphaseSystem/derivedFvPatchFields/fixedMultiPhaseHeatFlux/fixedMultiPhaseHeatFluxFvPatchScalarField.H
• src/phaseSystemModels/reactingEuler/multiphaseSystem/derivedFvPatchFields/fixedMultiPhaseHeatFlux/fixedMultiPhaseHeatFluxFvPatchScalarField.C
