STARCDMeshReader Class Reference

Read PROSTAR vrt/cel/bnd files. The protected data in meshReader are filled. More...

Inheritance diagram for STARCDMeshReader:

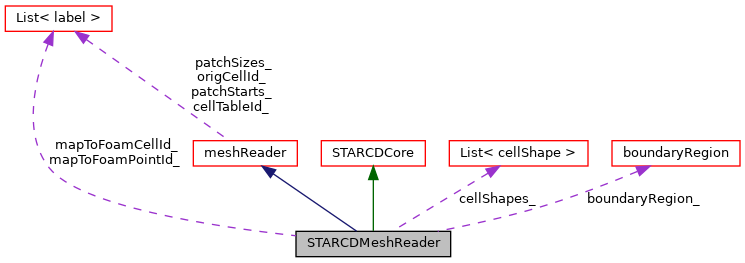

Collaboration diagram for STARCDMeshReader:

Public Member Functions
	STARCDMeshReader (const fileName &prefix, const objectRegistry &registry, const scalar scaleFactor=1.0, const bool keepSolids=false)
virtual	~STARCDMeshReader ()=default
Public Member Functions inherited from meshReader
	meshReader (const fileName &, const scalar scaling=1.0)
virtual	~meshReader ()=default
virtual autoPtr< polyMesh >	mesh (const objectRegistry &)
void	writeAux (const objectRegistry &) const
void	writeMesh (const polyMesh &, IOstreamOption streamOpt=IOstreamOption(IOstreamOption::BINARY)) const

Protected Member Functions
virtual bool	readGeometry (const scalar scaleFactor=1.0)
label	readPoints (const fileName &, const scalar scaleFactor)
virtual void	readCells (const fileName &)
void	cullPoints ()
void	readBoundary (const fileName &)
void	readAux (const objectRegistry &)
Protected Member Functions inherited from STARCDCore
	STARCDCore ()=default

Protected Attributes
cellShapeList	cellShapes_
labelList	mapToFoamPointId_
labelList	mapToFoamCellId_
boundaryRegion	boundaryRegion_
Protected Attributes inherited from meshReader
fileName	geometryFile_
scalar	scaleFactor_
pointField	points_
labelList	origCellId_
List< List< cellFaceIdentifier > >	boundaryIds_
wordList	patchTypes_
wordList	patchNames_
wordList	patchPhysicalTypes_
labelList	patchStarts_
labelList	patchSizes_
label	nInternalFaces_
faceList	meshFaces_
faceListList	cellFaces_
faceList	baffleFaces_
labelList	cellTableId_
cellTable	cellTable_

Additional Inherited Members
Static Public Member Functions inherited from meshReader
static void	warnDuplicates (const word &context, const wordList &)
Protected Types inherited from STARCDCore
enum	fileHeader { HEADER_CEL, HEADER_VRT, HEADER_BND }
enum	fileExt { CEL_FILE, VRT_FILE, BND_FILE, INP_FILE }
enum	matlType {   starcdFluidType = 1, starcdSolidType = 2, starcdBaffleType = 3, starcdShellType = 4,   starcdLineType = 5, starcdPointType = 6 }
enum	shapeType {   starcdPoint = 1, starcdLine = 2, starcdShell = 3, starcdHex = 11,   starcdPrism = 12, starcdTet = 13, starcdPyr = 14, starcdPoly = 255 }
Static Protected Member Functions inherited from STARCDCore
static bool	readHeader (IFstream &is, const enum fileHeader header)
static void	writeHeader (Ostream &os, const enum fileHeader header)
static fileName	starFileName (const fileName &baseName, const enum fileExt ext)
static void	removeFiles (const fileName &baseName)
static label	readPoints (IFstream &is, List< point > &points, List< label > &ids)
static void	writePoints (Ostream &os, const UList< point > &points, const scalar scaleFactor=1.0)
Static Protected Attributes inherited from STARCDCore
static const Map< FixedList< int, 6 > >	starToFoamFaceAddr
static const Map< FixedList< int, 6 > >	foamToStarFaceAddr
static const char *const	defaultBoundaryName
static const char *const	defaultSolidBoundaryName

Detailed Description

Read PROSTAR vrt/cel/bnd files. The protected data in meshReader are filled.

Starting with PROSTAR version 4, the files have become easier to read.

• vertices are space-delimited.
• the cell format is logical.
• trimmed and degenerate cells are saved as polyhedral.
• the boundaries corresponds to cells and their faces.

Notes

• Shell entries are read, yet ignored.

Source files

• STARCDMeshReader.H
• STARCDMeshReader.C

Definition at line 64 of file STARCDMeshReader.H.

Constructor & Destructor Documentation

STARCDMeshReader()

STARCDMeshReader	(	const fileName &	prefix,
		const objectRegistry &	registry,
		const scalar	scaleFactor = 1.0,
		const bool	keepSolids = false
	)

Definition at line 1029 of file STARCDMeshReader.C.

~STARCDMeshReader()

virtual ~STARCDMeshReader ( )

virtualdefault

Member Function Documentation

readGeometry()

bool readGeometry ( const scalar  scaleFactor = 1.0 )

protectedvirtual

Implements meshReader.

Definition at line 1005 of file STARCDMeshReader.C.

References STARCDCore::BND_FILE, STARCDCore::CEL_FILE, and STARCDCore::VRT_FILE.

readPoints()

Foam::label readPoints ( const fileName &  inputName, const scalar  scaleFactor  )

protected

Definition at line 78 of file STARCDMeshReader.C.

References Foam::abort(), Foam::endl(), Foam::FatalError, FatalErrorInFunction, IOstream::good(), Foam::Info, token::isLabel(), token::labelToken(), Foam::max(), Foam::nl, nPoints, ISstream::read(), x, and y.

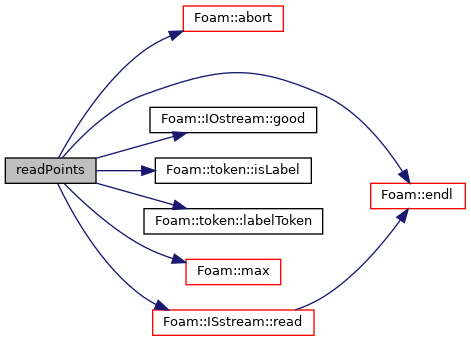

Here is the call graph for this function:

readCells()

void readCells ( const fileName &  inputName )

protectedvirtual

Definition at line 210 of file STARCDMeshReader.C.

References Foam::abort(), meshReader::baffleFaces_, meshReader::cellFaces_, STARCDMeshReader::cellShapes_, meshReader::cellTable_, meshReader::cellTableId_, List::clear(), Foam::endl(), f(), Foam::FatalError, FatalErrorInFunction, IOstream::good(), STARCDCore::HEADER_CEL, cellModel::HEX, Foam::Info, token::isLabel(), token::labelToken(), STARCDMeshReader::mapToFoamCellId_, STARCDMeshReader::mapToFoamPointId_, Foam::max(), n, Foam::nl, meshReader::origCellId_, cellModel::PRISM, cellModel::ptr(), cellModel::PYR, ISstream::read(), STARCDCore::readHeader(), Foam::readToNewline(), cellModel::ref(), cellTable::setMaterial(), cellTable::setName(), List::setSize(), STARCDCore::starcdBaffleType, STARCDCore::starcdFluidType, STARCDCore::starcdHex, STARCDCore::starcdPoly, STARCDCore::starcdPrism, STARCDCore::starcdPyr, STARCDCore::starcdShellType, STARCDCore::starcdSolidType, STARCDCore::starcdTet, cellModel::TET, and cellModel::UNKNOWN.

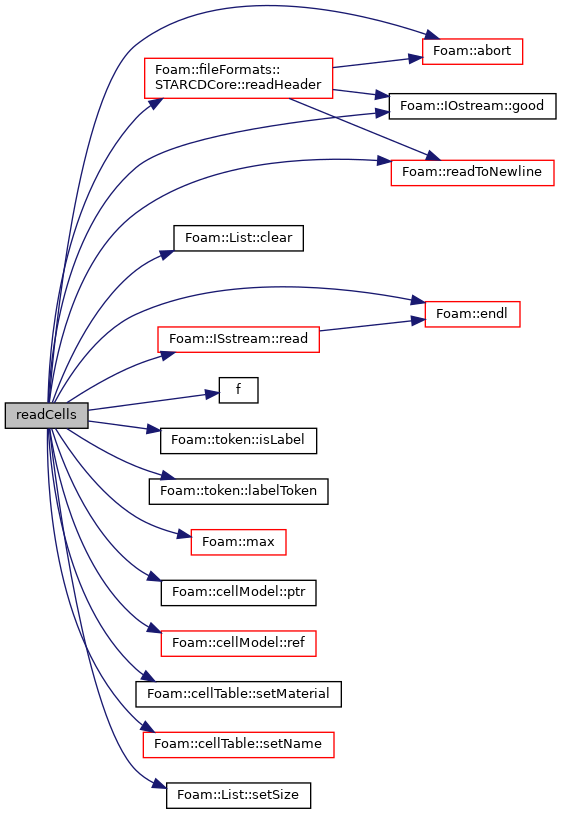

Here is the call graph for this function:

cullPoints()

void cullPoints ( )

protected

Definition at line 946 of file STARCDMeshReader.C.

References Foam::endl(), f(), forAll, Foam::Info, Foam::inplaceRenumber(), Foam::inplaceReorder(), and nPoints.

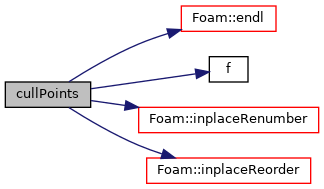

Here is the call graph for this function:

readBoundary()

void readBoundary ( const fileName &  inputName )

protected

Definition at line 601 of file STARCDMeshReader.C.

References cellId, dict, Foam::endl(), forAll, IOstream::good(), STARCDCore::HEADER_BND, cellModel::HEX, Foam::identity(), cellModel::index(), Foam::Info, Foam::stringOps::inplaceLower(), Foam::inplaceReorder(), token::isLabel(), Foam::max(), Foam::name(), nPatches, cellModel::PRISM, cellModel::PYR, ISstream::read(), cellModel::ref(), List::setSize(), Foam::sortedOrder(), STARCDCore::starcdHex, STARCDCore::starcdPrism, STARCDCore::starcdPyr, STARCDCore::starcdTet, STARCDCore::starToFoamFaceAddr, cellModel::TET, and Foam::Zero.

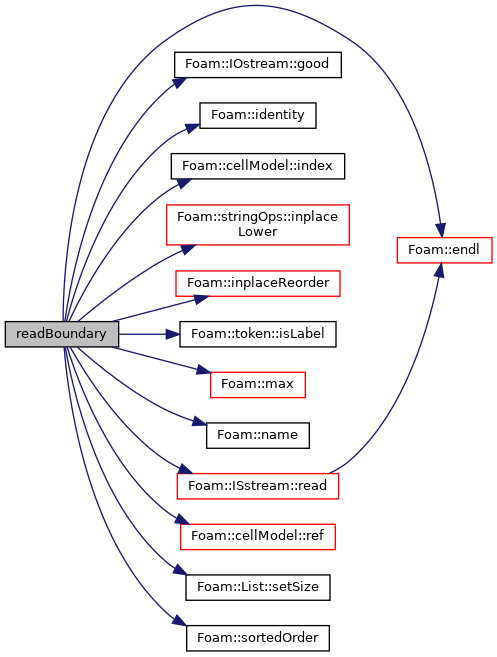

Here is the call graph for this function:

readAux()

void readAux ( const objectRegistry &  registry )

protected

Definition at line 55 of file STARCDMeshReader.C.

Member Data Documentation

cellShapes_

cellShapeList cellShapes_

protected

Definition at line 80 of file STARCDMeshReader.H.

Referenced by STARCDMeshReader::readCells().

mapToFoamPointId_

labelList mapToFoamPointId_

protected

Definition at line 83 of file STARCDMeshReader.H.

Referenced by STARCDMeshReader::readCells().

mapToFoamCellId_

labelList mapToFoamCellId_

protected

Definition at line 86 of file STARCDMeshReader.H.

Referenced by STARCDMeshReader::readCells().

boundaryRegion_

boundaryRegion boundaryRegion_

protected

Definition at line 89 of file STARCDMeshReader.H.

---

The documentation for this class was generated from the following files:

• src/conversion/starcd/STARCDMeshReader.H
• src/conversion/starcd/STARCDMeshReader.C
