faceCoupleInfo Class Reference

Container for information needed to couple to meshes. When constructed from two meshes and a geometric tolerance finds the corresponding boundary faces. More...

Public Member Functions
	ClassName ("faceCoupleInfo")
	faceCoupleInfo (const polyMesh &mesh0, const polyMesh &mesh1, const scalar absTol, const bool perfectMatch)
	faceCoupleInfo (const polyMesh &masterMesh, const labelList &masterAddressing, const polyMesh &slaveMesh, const labelList &slaveAddressing, const scalar absTol, const bool perfectMatch, const bool orderedFaces, const bool patchDivision)
	~faceCoupleInfo ()=default
const indirectPrimitivePatch &	masterPatch () const
const indirectPrimitivePatch &	slavePatch () const
const primitiveFacePatch &	cutFaces () const
const pointField &	cutPoints () const
const labelList &	cutToMasterFaces () const
const labelList &	masterToCutPoints () const
const labelList &	cutToSlaveFaces () const
const labelList &	slaveToCutPoints () const
const edgeLookup &	cutEdgeToPoints () const
template<template< class > class FaceList>
Foam::pointField	calcFaceCentres (const FaceList< face > &faces, const pointField &points, const label start, const label size)
template<template< class > class FaceList>
Foam::pointField	calcFacePointAverages (const FaceList< face > &faces, const pointField &points, const label start, const label size)

Static Public Member Functions
static labelList	faceLabels (const polyPatch &)
static Map< label >	makeMap (const labelList &)
static Map< labelList >	makeMap (const labelListList &)

Detailed Description

Container for information needed to couple to meshes. When constructed from two meshes and a geometric tolerance finds the corresponding boundary faces.

The information it keeps is the set of faces&points (cutFaces, cutPoints) that should replace a set of faces on the master (masterPatch) and a set of faces on the slave (slavePatch)

Uses same tolerance to match faces and points on matched faces since they both originate from the same points and the tolerance usually comes from writing these points with limited precision (6 by default)

1. Perfect match:
   • one-to-one match for faces and points.
   • the cut is always the 'most connected' of the master and slave so multiple master or slave points might point to the same cut point.

e.g. master:

    +--+
    |  |
    |  |
    +--+
        +--+
        |  |
        |  |
        +--+
slave:
        +--+
        |  |
        |  |
        +--+
    +--+
    |  |
    |  |
    +--+

adding both together creates a singly connected 2x2 cavity so suddenly the duplicate master points and the duplicate slave points all become a single cut point.

1. Subdivision match:
   • Can be constructed from slave being subdivision of master with the polyPatch constructor.
   • Does not include above shared-point detection!

Notes on multiple slave faces per master:

As long as

• all master edges are present in slave
• slave can have extra edges/points/faces BUT all subfaces have to have at least one point on a maste face.

So master:
+-------+
|       |
|       |
|       |
|       |
|       |
|       |
|       |
+-------+

slave:
+---+---+
|\  |  /|
| \ | / |
|  \|/  |
+---+---+
|  /|\  |
| / | \ |
|/  |  \|
+---+---+
is ok.

For this kind of matching the order is:

• match cutpoint to masterpoint
• find those cutEdges that align with a master edge. This gives two sets of cut edges: those that have a master equivalent ('border edges') and those that don't ('internal edges'). The border edges now divide the cutFaces into regions with the same masterFace correspondence.
• find cutFaces that are fully determined by the border edges they use.
• all cutFaces that are connected through an internal edge have the same master face.

Note: matching refined faces onto master is a bit dodgy and will probably only work for unwarped faces. Also it will fail if e.g. face is split into 3x3 since then middle face has no point/edge in common with master. (problem is in face matching (findSlavesCoveringMaster), probably point/edge matching might just work)

Source files

• faceCoupleInfo.H
• faceCoupleInfo.C

Definition at line 156 of file faceCoupleInfo.H.

Constructor & Destructor Documentation

faceCoupleInfo() [1/2]

faceCoupleInfo	(	const polyMesh &	mesh0,
		const polyMesh &	mesh1,
		const scalar	absTol,
		const bool	perfectMatch
	)

Definition at line 1910 of file faceCoupleInfo.C.

References Foam::expressions::patchExpr::debug, polyMesh::faces(), and polyMesh::points().

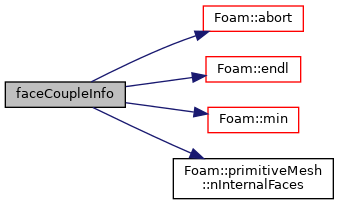

Here is the call graph for this function:

faceCoupleInfo() [2/2]

faceCoupleInfo	(	const polyMesh &	masterMesh,
		const labelList &	masterAddressing,
		const polyMesh &	slaveMesh,
		const labelList &	slaveAddressing,
		const scalar	absTol,
		const bool	perfectMatch,
		const bool	orderedFaces,
		const bool	patchDivision
	)

Definition at line 1998 of file faceCoupleInfo.C.

References Foam::abort(), Foam::expressions::patchExpr::debug, Foam::endl(), Foam::FatalError, FatalErrorInFunction, Foam::min(), primitiveMesh::nInternalFaces(), and Foam::nl.

Here is the call graph for this function:

~faceCoupleInfo()

~faceCoupleInfo ( )

default

Member Function Documentation

ClassName()

ClassName

(

"faceCoupleInfo"

)

faceLabels()

Foam::labelList faceLabels ( const polyPatch &  pp )

static

Definition at line 2086 of file faceCoupleInfo.C.

References forAll, and polyPatch::start().

Here is the call graph for this function:

makeMap() [1/2]

Foam::Map< Foam::label > makeMap ( const labelList &  lst )

static

Definition at line 2100 of file faceCoupleInfo.C.

References forAll.

makeMap() [2/2]

Foam::Map< Foam::labelList > makeMap ( const labelListList &  lst )

static

Definition at line 2116 of file faceCoupleInfo.C.

References forAll.

masterPatch()

const indirectPrimitivePatch& masterPatch ( ) const

inline

Definition at line 451 of file faceCoupleInfo.H.

slavePatch()

const indirectPrimitivePatch& slavePatch ( ) const

inline

Definition at line 457 of file faceCoupleInfo.H.

cutFaces()

const primitiveFacePatch& cutFaces ( ) const

inline

Definition at line 463 of file faceCoupleInfo.H.

Referenced by polyMeshAdder::add().

Here is the caller graph for this function:

cutPoints()

const pointField& cutPoints ( ) const

inline

Definition at line 469 of file faceCoupleInfo.H.

cutToMasterFaces()

const labelList& cutToMasterFaces ( ) const

inline

Definition at line 480 of file faceCoupleInfo.H.

masterToCutPoints()

const labelList& masterToCutPoints ( ) const

inline

Definition at line 484 of file faceCoupleInfo.H.

cutToSlaveFaces()

const labelList& cutToSlaveFaces ( ) const

inline

Definition at line 489 of file faceCoupleInfo.H.

slaveToCutPoints()

const labelList& slaveToCutPoints ( ) const

inline

Definition at line 493 of file faceCoupleInfo.H.

cutEdgeToPoints()

const edgeLookup& cutEdgeToPoints ( ) const

inline

Definition at line 500 of file faceCoupleInfo.H.

calcFaceCentres()

Foam::pointField calcFaceCentres	(	const FaceList< face > &	faces,
		const pointField &	points,
		const label	start,
		const label	size
	)

Definition at line 28 of file faceCoupleInfoTemplates.C.

References forAll, and points.

calcFacePointAverages()

Foam::pointField calcFacePointAverages	(	const FaceList< face > &	faces,
		const pointField &	points,
		const label	start,
		const label	size
	)

Definition at line 49 of file faceCoupleInfoTemplates.C.

References forAll, points, and Foam::Zero.

---

The documentation for this class was generated from the following files:

• src/dynamicMesh/polyMeshAdder/faceCoupleInfo.H
• src/dynamicMesh/polyMeshAdder/faceCoupleInfo.C
• src/dynamicMesh/polyMeshAdder/faceCoupleInfoTemplates.C
