Applies a heat flux condition for a specified faMesh region to temperature on an external wall for compressible flows in one of three modes: More...

Inheritance diagram for externalHeatFluxSource:

[legend]

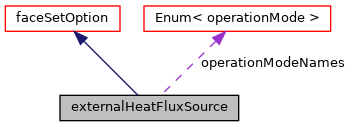

Collaboration diagram for externalHeatFluxSource:

[legend]

Public Types
enum	operationMode { fixedPower, fixedHeatFlux, fixedHeatTransferCoeff }

Public Types inherited from faceSetOption
enum	selectionModeType { smAll, smVolFaceZone }

Public Member Functions
	TypeName ("externalHeatFluxSource")

	externalHeatFluxSource (const word &sourceName, const word &modelType, const dictionary &dict, const fvPatch &patch)

	externalHeatFluxSource (const externalHeatFluxSource &)=delete

void	operator= (const externalHeatFluxSource &)=delete

virtual	~externalHeatFluxSource ()=default

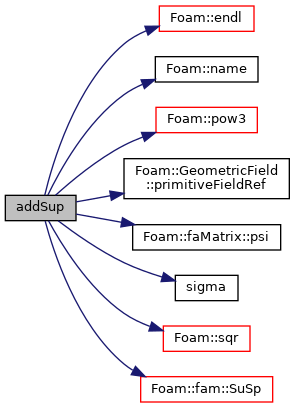

virtual void	addSup (const areaScalarField &h, const areaScalarField &rho, faMatrix< scalar > &eqn, const label fieldi)

virtual bool	read (const dictionary &dict)

Public Member Functions inherited from faceSetOption
	TypeName ("faceSetOption")

	faceSetOption (const word &name, const word &modelType, const dictionary &dict, const fvPatch &patch)

virtual	~faceSetOption ()=default

scalar	timeStart () const noexcept

scalar	duration () const noexcept

bool	inTimeLimits (const scalar timeValue) const

selectionModeType	selectionMode () const noexcept

bool	useSubMesh () const noexcept

const word &	faceSetName () const noexcept

scalar	A () const noexcept

const labelList &	faces () const noexcept

scalar	timeStart (scalar val) noexcept

scalar	duration (scalar val) noexcept

virtual bool	isActive ()

Public Member Functions inherited from option
	TypeName ("option")

	declareRunTimeSelectionTable (autoPtr, option, dictionary,(const word &name, const word &modelType, const dictionary &dict, const fvPatch &patch),(name, modelType, dict, patch))

	option (const word &name, const word &modelType, const dictionary &dict, const fvPatch &patch)

autoPtr< option >	clone () const

virtual	~option ()=default

const word &	name () const noexcept

const fvMesh &	mesh () const noexcept

const fvPatch &	patch () const noexcept

const dictionary &	coeffs () const noexcept

bool	active () const noexcept

void	setApplied (const label fieldi)

const word &	regionName () const noexcept

const faMesh &	regionMesh () const

const volSurfaceMapping &	vsm () const

bool	active (const bool on) noexcept

virtual label	applyToField (const word &fieldName) const

virtual void	checkApplied () const

virtual void	addSup (const areaScalarField &h, faMatrix< scalar > &eqn, const label fieldi)

virtual void	addSup (const areaScalarField &h, faMatrix< vector > &eqn, const label fieldi)

virtual void	addSup (const areaScalarField &h, faMatrix< symmTensor > &eqn, const label fieldi)

virtual void	addSup (const areaScalarField &h, faMatrix< sphericalTensor > &eqn, const label fieldi)

virtual void	addSup (const areaScalarField &h, faMatrix< tensor > &eqn, const label fieldi)

virtual void	addSup (const areaScalarField &h, const areaScalarField &rho, faMatrix< vector > &eqn, const label fieldi)

virtual void	addSup (const areaScalarField &h, const areaScalarField &rho, faMatrix< symmTensor > &eqn, const label fieldi)

virtual void	addSup (const areaScalarField &h, const areaScalarField &rho, faMatrix< sphericalTensor > &eqn, const label fieldi)

virtual void	addSup (const areaScalarField &h, const areaScalarField &rho, faMatrix< tensor > &eqn, const label fieldi)

virtual void	constrain (faMatrix< scalar > &eqn, const label fieldi)

virtual void	constrain (faMatrix< vector > &eqn, const label fieldi)

virtual void	constrain (faMatrix< sphericalTensor > &eqn, const label fieldi)

virtual void	constrain (faMatrix< symmTensor > &eqn, const label fieldi)

virtual void	constrain (faMatrix< tensor > &eqn, const label fieldi)

virtual void	correct (areaScalarField &field)

virtual void	correct (areaVectorField &field)

virtual void	correct (areaSphericalTensorField &field)

virtual void	correct (areaSymmTensorField &field)

virtual void	correct (areaTensorField &field)

virtual void	writeHeader (Ostream &) const

virtual void	writeFooter (Ostream &) const

virtual void	writeData (Ostream &) const

Static Public Attributes
static const Enum< operationMode >	operationModeNames

Static Public Attributes inherited from faceSetOption
static const Enum< selectionModeType >	selectionModeTypeNames_

Additional Inherited Members
Static Public Member Functions inherited from option
static autoPtr< option >	New (const word &name, const dictionary &dict, const fvPatch &patch)

Public Attributes inherited from option
bool	log

Protected Member Functions inherited from faceSetOption
void	setSelection (const dictionary &dict)

void	setFaceSelection ()

void	setArea ()

Protected Member Functions inherited from option
void	resetApplied ()

Protected Attributes inherited from faceSetOption
scalar	timeStart_

scalar	duration_

selectionModeType	selectionMode_

word	faceSetName_

labelList	faces_

scalar	A_

Protected Attributes inherited from option
const word	name_

const word	modelType_

const fvMesh &	mesh_

const fvPatch &	patch_

dictionary	dict_

dictionary	coeffs_

wordList	fieldNames_

List< bool >	applied_

word	regionName_

Detailed Description

Applies a heat flux condition for a specified faMesh region to temperature on an external wall for compressible flows in one of three modes:

fixed power: supply Q
fixed heat flux: supply q
fixed heat transfer coefficient: supply h and Ta

where

	=	Power [W]
	=	Heat flux [W/m^2]
	=	Heat transfer coefficient [W/m^2/K]
	=	Ambient temperature [K]

The ambient temperature Ta is specified as a Foam::Function1 of time but uniform in space.

Usage

Minimal example by using constant/faOptions:

externalHeatFluxSource1
{
    // Mandatory entries (unmodifiable)
    type            externalHeatFluxSource;

    // Mandatory entries (runtime modifiable)
    mode            <mode>;

    // Optional entries (runtime modifiable)
    T               <Tname>;
    emissivity      0;

    // Conditional mandatory entries (runtime modifiable)

        // when mode=power
        Q           1.0;

        // when mode=flux
        q           1.0;

        // when mode=coefficient
        h           1.0;
        Ta          <Function1>;

    // Mandatory/Optional (inherited) entries
    ...
}

where the entries mean:

Property	Description	Type	Reqd	Dflt
`type`	Type name: externalHeatFluxSource	word	yes	-
`mode`	Mode of heat flux condition	word	yes	-
`T`	Name of operand temperature field	word	no	T
`emissivity`	Surface emissivity for radiative flux to ambient	scalar	no	0
`Q`	Fixed heat power [W]	scalar	cndtnl	-
`q`	Fixed heat flux [W/m2]	scalar	cndtnl	-
`h`	Heat transfer coefficient [W/m^2/K]	scalar	cndtnl	-
`Ta`	Ambient temperature [K]	Function1	cndtnl	-

The inherited entries are elaborated in:

Options for the mode entry:

      power       | Use fixed power (supply Q)
      flux        | Use fixed heat flux (supply q)
      coefficient | Use fixes heat transfer coefficient (supply h and T)

See also
