faPatch Class Reference

Finite area patch class. Used for 2-D non-Euclidian finite area method. More...

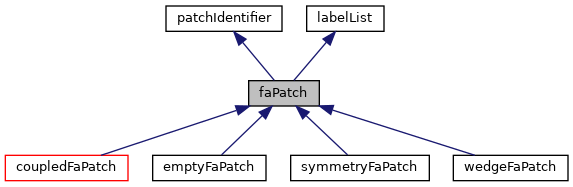

Inheritance diagram for faPatch:

Collaboration diagram for faPatch:

Public Types
typedef faBoundaryMesh	BoundaryMesh
Public Types inherited from List
typedef SubList< T >	subList

Public Member Functions
	TypeName ("patch")
	declareRunTimeSelectionTable (autoPtr, faPatch, dictionary,(const word &name, const dictionary &dict, const label index, const faBoundaryMesh &bm),(name, dict, index, bm))
	faPatch (const word &name, const labelList &edgeLabels, const label index, const faBoundaryMesh &bm, const label ngbPolyPatchIndex)
	faPatch (const word &name, const dictionary &dict, const label index, const faBoundaryMesh &bm)
	faPatch (const faPatch &, const faBoundaryMesh &)
virtual autoPtr< faPatch >	clone (const faBoundaryMesh &bm, const labelList &edgeLabels, const label index, const label ngbPolyPatchIndex) const
virtual	~faPatch ()

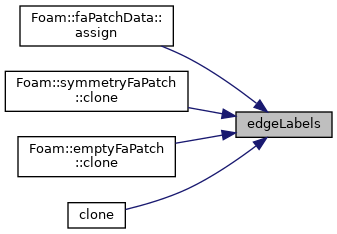

const labelList &	edgeLabels () const noexcept
void	edgeLabels (const UList< label > &newEdgeLabels)
label	nPoints () const
label	nEdges () const noexcept
label	ngbPolyPatchIndex () const noexcept
const faBoundaryMesh &	boundaryMesh () const noexcept
virtual bool	coupled () const
label	start () const
virtual label	size () const
label	whichEdge (const label l) const
template<class T >
List< T >::subList	patchSlice (const List< T > &l) const

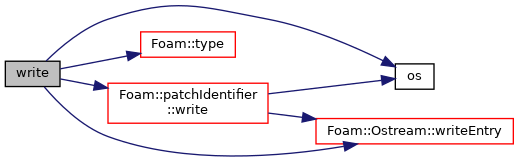

virtual void	write (Ostream &) const

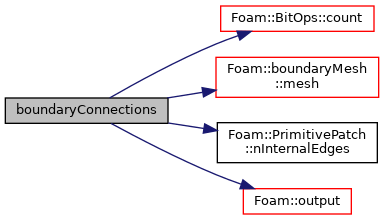

List< labelPair >	boundaryConnections () const
labelList	boundaryProcs () const
List< labelPair >	boundaryProcSizes () const
const labelList &	pointLabels () const
const labelListList &	pointEdges () const

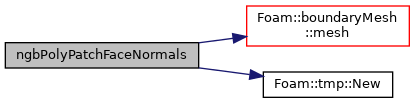

tmp< vectorField >	ngbPolyPatchFaceNormals () const
tmp< vectorField >	ngbPolyPatchPointNormals () const
const labelUList &	edgeFaces () const
const vectorField &	edgeCentres () const
const vectorField &	edgeLengths () const
const scalarField &	magEdgeLengths () const
tmp< vectorField >	edgeNormals () const
tmp< vectorField >	edgeFaceCentres () const
virtual tmp< vectorField >	delta () const
virtual void	makeWeights (scalarField &) const
const scalarField &	weights () const
virtual void	makeDeltaCoeffs (scalarField &) const
void	makeCorrectionVectors (vectorField &) const
const scalarField &	deltaCoeffs () const
void	resetEdges (const UList< label > &newEdges)
void	resetEdges (labelList &&newEdges)
template<class Type >
tmp< Field< Type > >	patchInternalField (const UList< Type > &) const
template<class Type >
tmp< Foam::Field< Type > >	patchInternalField (const UList< Type > &f, const labelUList &edgeFaces) const
template<class GeometricField , class Type >
const GeometricField::Patch &	patchField (const GeometricField &) const
template<class GeometricField , class Type >
const GeometricField::Patch &	lookupPatchField (const word &name, const GeometricField *=nullptr, const Type *=nullptr) const
template<class Type >
Foam::tmp< Foam::Field< Type > >	patchInternalField (const UList< Type > &f) const
template<class Type >
Foam::tmp< Foam::Field< Type > >	patchInternalField (const UList< Type > &f, const labelUList &edgeFaces) const
Public Member Functions inherited from patchIdentifier
	patchIdentifier (const patchIdentifier &)=default
patchIdentifier &	operator= (const patchIdentifier &)=default
virtual	~patchIdentifier ()=default
	patchIdentifier ()
	patchIdentifier (const word &name, const label index)
	patchIdentifier (const word &name, const label index, const word &physicalType, const wordList &inGroups=wordList())
	patchIdentifier (const word &name, const dictionary &dict, const label index)
	patchIdentifier (const patchIdentifier &ident, const label index)
const word &	name () const noexcept
word &	name () noexcept
label	index () const noexcept
label &	index () noexcept
const word &	physicalType () const noexcept
word &	physicalType () noexcept
const wordList &	inGroups () const noexcept
wordList &	inGroups () noexcept
bool	inGroup (const word &name) const
void	write (Ostream &os) const
Public Member Functions inherited from List
constexpr	List () noexcept
	List (const label len)
	List (const label len, const T &val)
	List (const label len, const Foam::zero)
	List (const Foam::one, const T &val)
	List (const Foam::one, T &&val)
	List (const Foam::one, const Foam::zero)
	List (const List< T > &a)
	List (const UList< T > &a)
	List (List< T > &a, bool reuse)
	List (const UList< T > &list, const labelUList &indices)
template<unsigned N>
	List (const UList< T > &list, const FixedList< label, N > &indices)
template<unsigned N>
	List (const FixedList< T, N > &list)
	List (const PtrList< T > &list)
	List (const SLList< T > &list)
template<class Addr >
	List (const IndirectListBase< T, Addr > &list)
	List (std::initializer_list< T > list)
	List (List< T > &&list)
template<int SizeMin>
	List (DynamicList< T, SizeMin > &&list)
	List (SortableList< T > &&list)
	List (SLList< T > &&list)
	List (Istream &is)
autoPtr< List< T > >	clone () const
	~List ()
void	clear ()
void	resize (const label len)
void	resize (const label len, const T &val)
void	resize_nocopy (const label len)
void	setSize (const label n)
void	setSize (const label n, const T &val)
void	append (const T &val)
void	append (T &&val)
void	append (const UList< T > &list)
template<class Addr >
void	append (const IndirectListBase< T, Addr > &list)
label	appendUniq (const T &val)
void	transfer (List< T > &list)
template<int SizeMin>
void	transfer (DynamicList< T, SizeMin > &list)
void	transfer (SortableList< T > &list)
T &	newElmt (const label i)
void	operator= (const UList< T > &a)
void	operator= (const List< T > &list)
void	operator= (const SLList< T > &list)
template<class Addr >
void	operator= (const IndirectListBase< T, Addr > &list)
template<unsigned N>
void	operator= (const FixedList< T, N > &list)
void	operator= (std::initializer_list< T > list)
void	operator= (const T &val)
void	operator= (const Foam::zero)
void	operator= (List< T > &&list)
template<int SizeMin>
void	operator= (DynamicList< T, SizeMin > &&list)
void	operator= (SortableList< T > &&list)
void	operator= (SLList< T > &&list)
Istream &	readList (Istream &is)
void	shallowCopy (const UList< T > &)=delete
template<class TypeT = T>
std::enable_if< std::is_same< bool, TypeT >::value, bool >::type	set (const label i, bool val=true)
template<class T >
	List (const label len)
template<class T >
	List (const label len, const T &val)
template<class T >
	List (const label len, const Foam::zero)
template<class T >
	List (const Foam::one, const T &val)
template<class T >
	List (const Foam::one, T &&val)
template<class T >
	List (const Foam::one, const Foam::zero)
template<class T >
	List (const UList< T > &a)
template<class T >
	List (const List< T > &a)
template<class T >
	List (List< T > &a, bool reuse)
template<class T >
	List (const UList< T > &list, const labelUList &indices)
template<class T >
	List (const PtrList< T > &list)
template<class T >
	List (const SLList< T > &list)
template<class T >
	List (std::initializer_list< T > list)
template<class T >
	List (List< T > &&list)
template<class T >
	List (SortableList< T > &&list)
template<class T >
	List (SLList< T > &&list)
template<class T >
void	transfer (List< T > &list)
template<class T >
void	transfer (SortableList< T > &list)
template<class T >
void	operator= (const UList< T > &a)
template<class T >
void	operator= (const List< T > &list)
template<class T >
void	operator= (const SLList< T > &list)
template<class T >
void	operator= (std::initializer_list< T > list)
template<class T >
void	operator= (List< T > &&list)
template<class T >
void	operator= (SortableList< T > &&list)
template<class T >
void	operator= (SLList< T > &&list)
Istream &	readList (Istream &is)
template<class T >
constexpr	List () noexcept
void	resize (const label newLen)
template<class T >
void	append (const T &val)
template<class T >
void	append (T &&val)
template<class T >
void	append (const UList< T > &list)
template<class T >
void	operator= (const T &val)
template<class T >
void	operator= (const Foam::zero)
template<class T >
	List (Istream &is)
Istream &	readList (Istream &is)

Static Public Member Functions
static autoPtr< faPatch >	New (const word &name, const dictionary &dict, const label index, const faBoundaryMesh &bm)
Static Public Member Functions inherited from patchIdentifier
static word	defaultName (const label n=-1)
Static Public Member Functions inherited from List
static const List< T > &	null ()

Protected Member Functions
void	calcPointLabels () const
void	calcPointEdges () const
virtual void	initGeometry ()
virtual void	calcGeometry ()
virtual void	initMovePoints (const pointField &)

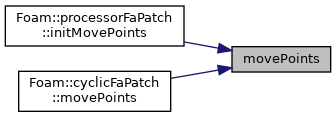

virtual void	movePoints (const pointField &)
virtual void	initUpdateMesh ()
virtual void	updateMesh ()

Friends
class	faBoundaryMesh
Ostream &	operator<< (Ostream &, const faPatch &)

Detailed Description

Finite area patch class. Used for 2-D non-Euclidian finite area method.

Author Zeljko Tukovic, FMENA Hrvoje Jasak, Wikki Ltd.

Source files

• faPatch.H
• faPatch.C
• faPatchNew.C
• faPatchTemplates.C
• faPatchFaMeshTemplates.C

Definition at line 65 of file faPatch.H.

Member Typedef Documentation

BoundaryMesh

typedef faBoundaryMesh BoundaryMesh

Definition at line 139 of file faPatch.H.

Constructor & Destructor Documentation

faPatch() [1/3]

faPatch	(	const word &	name,
		const labelList &	edgeLabels,
		const label	index,
		const faBoundaryMesh &	bm,
		const label	ngbPolyPatchIndex
	)

Definition at line 55 of file faPatch.C.

faPatch() [2/3]

faPatch	(	const word &	name,
		const dictionary &	dict,
		const label	index,
		const faBoundaryMesh &	bm
	)

Definition at line 74 of file faPatch.C.

faPatch() [3/3]

faPatch	(	const faPatch &	p,
		const faBoundaryMesh &	bm
	)

Definition at line 91 of file faPatch.C.

~faPatch()

~faPatch ( )

virtual

Definition at line 105 of file faPatch.C.

Member Function Documentation

calcPointLabels()

void calcPointLabels ( ) const

protected

const labelList& edgePoints = *pointLabelsPtr_;

// Cannot use invertManyToMany - we have non-local edge numbering

// Intermediate storage for pointEdges. // Points on the boundary will normally connect 1 or 2 edges only. List<DynamicList<label,2>> dynPointEdges(edgePoints.size());

forAll(edges, edgei) { const edge& e = edges[edgei];

dynPointEdges[markedPoints[e.first()]].append(edgei); dynPointEdges[markedPoints[e.second()]].append(edgei); }

// Flatten to regular list pointEdgesPtr_ = new labelListList(edgePoints.size()); auto& pEdges = *pointEdgesPtr_;

forAll(pEdges, pointi) { pEdges[pointi] = std::move(dynPointEdges[pointi]); }

Definition at line 217 of file faPatch.C.

References DynamicList::append(), Foam::constant::electromagnetic::e, HashSet::insert(), and mesh.

Here is the call graph for this function:

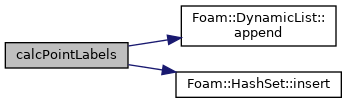

calcPointEdges()

void calcPointEdges ( ) const

protected

Definition at line 274 of file faPatch.C.

References List::append(), Foam::constant::electromagnetic::e, forAll, mesh, and pointLabels().

Here is the call graph for this function:

initGeometry()

virtual void initGeometry ( )

inlineprotectedvirtual

Reimplemented in coupledFaPatch, cyclicFaPatch, and processorFaPatch.

Definition at line 114 of file faPatch.H.

Referenced by cyclicFaPatch::initGeometry().

Here is the caller graph for this function:

calcGeometry()

virtual void calcGeometry ( )

inlineprotectedvirtual

Reimplemented in coupledFaPatch, cyclicFaPatch, and processorFaPatch.

Definition at line 118 of file faPatch.H.

Referenced by cyclicFaPatch::calcGeometry().

Here is the caller graph for this function:

initMovePoints()

virtual void initMovePoints ( const pointField &  )

inlineprotectedvirtual

Reimplemented in coupledFaPatch, cyclicFaPatch, and processorFaPatch.

Definition at line 122 of file faPatch.H.

Referenced by cyclicFaPatch::initMovePoints().

Here is the caller graph for this function:

movePoints()

void movePoints ( const pointField &  points )

protectedvirtual

Reimplemented in coupledFaPatch, cyclicFaPatch, and processorFaPatch.

Definition at line 456 of file faPatch.C.

Referenced by processorFaPatch::initMovePoints(), and cyclicFaPatch::movePoints().

Here is the caller graph for this function:

initUpdateMesh()

virtual void initUpdateMesh ( )

inlineprotectedvirtual

Reimplemented in processorFaPatch.

Definition at line 129 of file faPatch.H.

Referenced by processorFaPatch::initUpdateMesh().

Here is the caller graph for this function:

updateMesh()

virtual void updateMesh ( )

inlineprotectedvirtual

Reimplemented in processorFaPatch.

Definition at line 133 of file faPatch.H.

Referenced by processorFaPatch::updateMesh().

Here is the caller graph for this function:

TypeName()

TypeName

(

"patch"

)

declareRunTimeSelectionTable()

declareRunTimeSelectionTable	(	autoPtr	,
		faPatch	,
		dictionary	,
		(const word &name, const dictionary &dict, const label index, const faBoundaryMesh &bm)	,
		(name, dict, index, bm)
	)

clone()

virtual autoPtr<faPatch> clone ( const faBoundaryMesh &  bm, const labelList &  edgeLabels, const label  index, const label  ngbPolyPatchIndex  ) const

inlinevirtual

Reimplemented in emptyFaPatch, and symmetryFaPatch.

Definition at line 188 of file faPatch.H.

References faPatch::edgeLabels(), patchIdentifier::index(), patchIdentifier::name(), autoPtr::New(), and faPatch::ngbPolyPatchIndex().

Here is the call graph for this function:

New()

Foam::autoPtr< Foam::faPatch > New ( const word &  name, const dictionary &  dict, const label  index, const faBoundaryMesh &  bm  )

static

Definition at line 28 of file faPatchNew.C.

References DebugInFunction, dict, Foam::endl(), Foam::exit(), Foam::FatalIOError, FatalIOErrorInLookup, and Foam::name().

Here is the call graph for this function:

edgeLabels() [1/2]

const labelList& edgeLabels ( ) const

inlinenoexcept

Definition at line 221 of file faPatch.H.

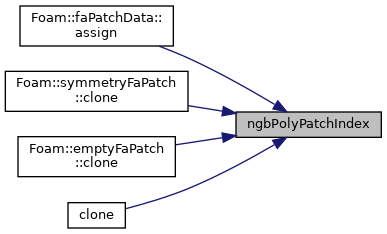

Referenced by faPatchData::assign(), symmetryFaPatch::clone(), emptyFaPatch::clone(), and faPatch::clone().

Here is the caller graph for this function:

edgeLabels() [2/2]

void edgeLabels

(

const UList< label > &

newEdgeLabels

)

nPoints()

label nPoints ( ) const

inline

Definition at line 230 of file faPatch.H.

References faPatch::pointLabels().

Here is the call graph for this function:

nEdges()

label nEdges ( ) const

inlinenoexcept

Definition at line 236 of file faPatch.H.

ngbPolyPatchIndex()

label ngbPolyPatchIndex ( ) const

inlinenoexcept

Definition at line 242 of file faPatch.H.

Referenced by faPatchData::assign(), symmetryFaPatch::clone(), emptyFaPatch::clone(), and faPatch::clone().

Here is the caller graph for this function:

boundaryMesh()

const Foam::faBoundaryMesh & boundaryMesh ( ) const

noexcept

Definition at line 113 of file faPatch.C.

coupled()

virtual bool coupled ( ) const

inlinevirtual

Reimplemented in processorFaPatch, and coupledFaPatch.

Definition at line 251 of file faPatch.H.

start()

Foam::label start

(

)

const

Definition at line 119 of file faPatch.C.

References boundaryMesh::mesh().

Referenced by faPatch::patchSlice(), and faPatch::whichEdge().

Here is the call graph for this function:

Here is the caller graph for this function:

size()

virtual label size ( ) const

inlinevirtual

Reimplemented in emptyFaPatch.

Definition at line 260 of file faPatch.H.

Referenced by faMeshDecomposition::decomposeMesh(), processorFaPatch::interfaceSize(), faPatch::patchSlice(), and faPatchMapper::size().

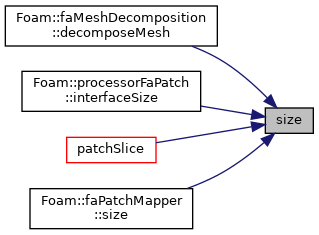

Here is the caller graph for this function:

whichEdge()

label whichEdge ( const label  l ) const

inline

Definition at line 266 of file faPatch.H.

References faPatch::start().

Here is the call graph for this function:

patchSlice()

List<T>::subList patchSlice ( const List< T > &  l ) const

inline

Definition at line 273 of file faPatch.H.

References faPatch::size(), and faPatch::start().

Referenced by faFieldDecomposer::reset().

Here is the call graph for this function:

Here is the caller graph for this function:

write()

void write ( Ostream &  os ) const

virtual

Reimplemented in processorFaPatch.

Definition at line 474 of file faPatch.C.

References os(), Foam::type(), patchIdentifier::write(), and Ostream::writeEntry().

Referenced by processorFaPatch::write().

Here is the call graph for this function:

Here is the caller graph for this function:

boundaryConnections()

Foam::List< Foam::labelPair > boundaryConnections

(

)

const

Definition at line 125 of file faPatch.C.

References Foam::BitOps::count(), boundaryMesh::mesh(), PrimitivePatch< FaceList, PointField >::nInternalEdges(), and Foam::output().

Here is the call graph for this function:

boundaryProcs()

Foam::labelList boundaryProcs

(

)

const

Definition at line 145 of file faPatch.C.

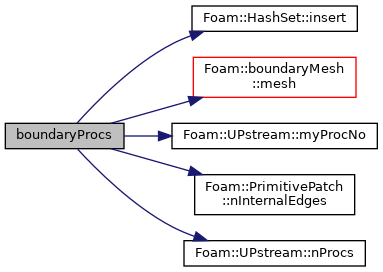

References HashSet::insert(), boundaryMesh::mesh(), UPstream::myProcNo(), PrimitivePatch< FaceList, PointField >::nInternalEdges(), and UPstream::nProcs().

Here is the call graph for this function:

boundaryProcSizes()

Foam::List< Foam::labelPair > boundaryProcSizes

(

)

const

Definition at line 165 of file faPatch.C.

References Foam::BitOps::count(), boundaryMesh::mesh(), UPstream::myProcNo(), PrimitivePatch< FaceList, PointField >::nInternalEdges(), UPstream::nProcs(), and Foam::output().

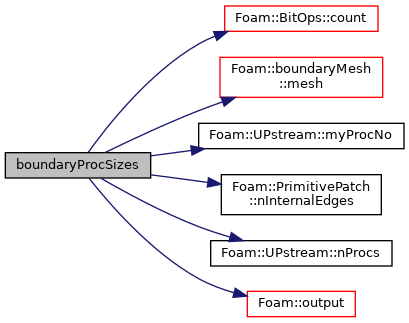

Here is the call graph for this function:

pointLabels()

const Foam::labelList & pointLabels

(

)

const

Definition at line 195 of file faPatch.C.

Referenced by faPatch::nPoints(), and faGlobalMeshData::updateMesh().

Here is the caller graph for this function:

pointEdges()

const Foam::labelListList & pointEdges

(

)

const

Definition at line 206 of file faPatch.C.

ngbPolyPatchFaceNormals()

Foam::tmp< Foam::vectorField > ngbPolyPatchFaceNormals

(

)

const

Definition at line 305 of file faPatch.C.

References boundaryMesh::mesh(), and tmp::New().

Here is the call graph for this function:

ngbPolyPatchPointNormals()

Foam::tmp< Foam::vectorField > ngbPolyPatchPointNormals

(

)

const

Definition at line 316 of file faPatch.C.

References faceNormals(), forAll, mesh, n, tmp::New(), and Foam::Zero.

Here is the call graph for this function:

edgeFaces()

const Foam::labelUList & edgeFaces

(

)

const

Definition at line 351 of file faPatch.C.

References mesh.

Referenced by contactAngleForce::correct(), faMeshDecomposition::decomposeMesh(), and coupledFaPatch::faceCells().

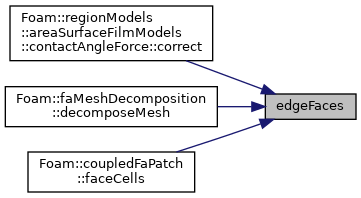

Here is the caller graph for this function:

edgeCentres()

const Foam::vectorField & edgeCentres

(

)

const

Definition at line 365 of file faPatch.C.

References boundaryMesh::mesh().

Here is the call graph for this function:

edgeLengths()

const Foam::vectorField & edgeLengths

(

)

const

Definition at line 371 of file faPatch.C.

References boundaryMesh::mesh().

Here is the call graph for this function:

magEdgeLengths()

const Foam::scalarField & magEdgeLengths

(

)

const

Definition at line 377 of file faPatch.C.

References boundaryMesh::mesh().

Here is the call graph for this function:

edgeNormals()

Foam::tmp< Foam::vectorField > edgeNormals

(

)

const

Definition at line 383 of file faPatch.C.

References n, and tmp::New().

Here is the call graph for this function:

edgeFaceCentres()

Foam::tmp< Foam::vectorField > edgeFaceCentres

(

)

const

Definition at line 396 of file faPatch.C.

References forAll, boundaryMesh::mesh(), and tmp::New().

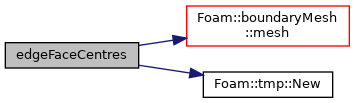

Here is the call graph for this function:

delta()

Foam::tmp< Foam::vectorField > delta ( ) const

virtual

Reimplemented in coupledFaPatch, processorFaPatch, and cyclicFaPatch.

Definition at line 416 of file faPatch.C.

Referenced by cyclicFaPatch::delta(), processorFaPatch::delta(), cyclicFaPatch::makeDeltaCoeffs(), processorFaPatch::makeDeltaCoeffs(), cyclicFaPatch::makeWeights(), and processorFaPatch::makeWeights().

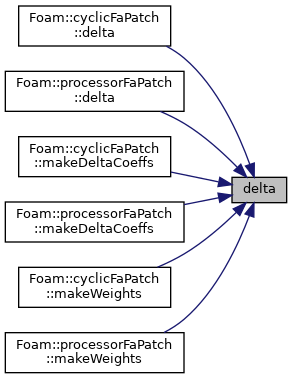

Here is the caller graph for this function:

makeWeights()

void makeWeights ( scalarField &  w ) const

virtual

Reimplemented in coupledFaPatch, processorFaPatch, and cyclicFaPatch.

Definition at line 444 of file faPatch.C.

weights()

const Foam::scalarField & weights

(

)

const

Definition at line 450 of file faPatch.C.

References boundaryMesh::mesh().

Here is the call graph for this function:

makeDeltaCoeffs()

void makeDeltaCoeffs ( scalarField &  dc ) const

virtual

Reimplemented in coupledFaPatch, processorFaPatch, and cyclicFaPatch.

Definition at line 422 of file faPatch.C.

References delta.

makeCorrectionVectors()

void makeCorrectionVectors

(

vectorField &

k

)

const

Definition at line 428 of file faPatch.C.

References delta, k, and Foam::mag().

Here is the call graph for this function:

deltaCoeffs()

const Foam::scalarField & deltaCoeffs

(

)

const

Definition at line 438 of file faPatch.C.

References boundaryMesh::mesh().

Here is the call graph for this function:

resetEdges() [1/2]

void resetEdges

(

const UList< label > &

newEdges

)

Definition at line 460 of file faPatch.C.

resetEdges() [2/2]

void resetEdges

(

labelList &&

newEdges

)

Definition at line 467 of file faPatch.C.

patchInternalField() [1/4]

tmp<Field<Type> > patchInternalField

(

const UList< Type > &

)

const

patchInternalField() [2/4]

tmp<Foam::Field<Type> > patchInternalField	(	const UList< Type > &	f,
		const labelUList &	edgeFaces
	)		const

patchField()

const GeometricField::Patch & patchField

(

const GeometricField &

gf

)

const

Definition at line 57 of file faPatchTemplates.C.

References GeometricField::boundaryField().

Here is the call graph for this function:

lookupPatchField()

const GeometricField::Patch & lookupPatchField	(	const word &	name,
		const GeometricField *	= nullptr,
		const Type *	= nullptr
	)		const

Definition at line 28 of file faPatchFaMeshTemplates.C.

References mesh, and Foam::name().

Here is the call graph for this function:

patchInternalField() [3/4]

Foam::tmp<Foam::Field<Type> > patchInternalField

(

const UList< Type > &

f

)

const

Definition at line 28 of file faPatchTemplates.C.

References f().

Here is the call graph for this function:

patchInternalField() [4/4]

Foam::tmp<Foam::Field<Type> > patchInternalField	(	const UList< Type > &	f,
		const labelUList &	edgeFaces
	)		const

Definition at line 38 of file faPatchTemplates.C.

References f(), forAll, and Foam::New().

Here is the call graph for this function:

Friends And Related Function Documentation

faBoundaryMesh

friend class faBoundaryMesh

friend

Definition at line 105 of file faPatch.H.

operator<<

Ostream& operator<< ( Ostream &  , const faPatch &    )

friend

---

The documentation for this class was generated from the following files:

• src/finiteArea/faMesh/faPatches/faPatch/faPatch.H
• src/finiteArea/faMesh/faPatches/faPatch/faPatch.C
• src/finiteArea/faMesh/faPatches/faPatch/faPatchFaMeshTemplates.C
• src/finiteArea/faMesh/faPatches/faPatch/faPatchNew.C
• src/finiteArea/faMesh/faPatches/faPatch/faPatchTemplates.C
