offsetSurface Class Reference

Extrudes by interpolating points from one surface to the other. Surfaces have to be topologically identical i.e. one has to be an offsetted version of the other. More...

Inheritance diagram for offsetSurface:

Collaboration diagram for offsetSurface:

Public Member Functions
	TypeName ("offsetSurface")
	offsetSurface (const dictionary &dict)
virtual	~offsetSurface ()
point	operator() (const point &surfacePoint, const vector &surfaceNormal, const label layer) const
Public Member Functions inherited from extrudeModel
	TypeName ("extrudeModel")
	declareRunTimeSelectionTable (autoPtr, extrudeModel, dictionary,(const dictionary &dict),(dict))
	extrudeModel (const word &modelType, const dictionary &dict)
virtual	~extrudeModel ()=default
label	nLayers () const
scalar	expansionRatio () const
scalar	sumThickness (const label layer) const

Additional Inherited Members
Static Public Member Functions inherited from extrudeModel
static autoPtr< extrudeModel >	New (const dictionary &dict)
Protected Member Functions inherited from extrudeModel
	extrudeModel (const extrudeModel &)=delete
void	operator= (const extrudeModel &)=delete
Protected Attributes inherited from extrudeModel
label	nLayers_
const scalar	expansionRatio_
const dictionary &	coeffDict_

Detailed Description

Extrudes by interpolating points from one surface to the other. Surfaces have to be topologically identical i.e. one has to be an offsetted version of the other.

The offsetSurfaceCoeffs dictionary entries

Property	Description	Required	Default
baseSurface	Base surface file name	yes
offsetSurface	Offset surface file name	yes
project	Project onto offsetted surface	no	false

Definition at line 79 of file offsetSurface.H.

Constructor & Destructor Documentation

offsetSurface()

offsetSurface ( const dictionary &  dict )

explicit

Definition at line 44 of file offsetSurface.C.

References Foam::constant::physicoChemical::b, extrudeModel::coeffDict_, dict, Foam::endl(), Foam::exit(), string::expand(), Foam::FatalIOError, FatalIOErrorInFunction, dictionary::get(), PrimitivePatch< FaceList, PointField >::nEdges(), and PrimitivePatch< FaceList, PointField >::nPoints().

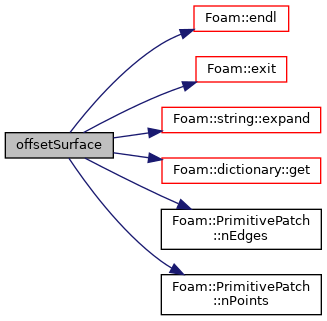

Here is the call graph for this function:

~offsetSurface()

~offsetSurface ( )

virtual

Definition at line 85 of file offsetSurface.C.

Member Function Documentation

TypeName()

TypeName

(

"offsetSurface"

)

operator()()

point operator() ( const point &  surfacePoint, const vector &  surfaceNormal, const label  layer  ) const

virtual

Implements extrudeModel.

Definition at line 92 of file offsetSurface.C.

References triangle::a(), triangle::b(), triangle::c(), PrimitivePatch< FaceList, PointField >::points(), triangle::pointToBarycentric(), and samples().

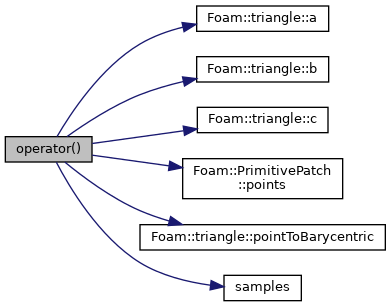

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/mesh/extrudeModel/offsetSurface/offsetSurface.H
• src/mesh/extrudeModel/offsetSurface/offsetSurface.C
