Encapsulates the logic for coordinating between OpenFOAM and an external application. More...

Inheritance diagram for externalFileCoupler:

Collaboration diagram for externalFileCoupler:

Public Types
enum	runState { NONE, MASTER, SLAVE, DONE }

Public Member Functions
	TypeName ("externalFileCoupler")

	externalFileCoupler ()

	externalFileCoupler (const fileName &commsDir)

	externalFileCoupler (const dictionary &dict)

virtual	~externalFileCoupler ()

bool	initialized () const

bool	slaveFirst () const

const fileName &	commDirectory () const

fileName	resolveFile (const word &file) const

fileName	lockFile () const

bool	readDict (const dictionary &dict)

enum Time::stopAtControls	useMaster (const bool wait=false) const

enum Time::stopAtControls	useSlave (const bool wait=false) const

enum Time::stopAtControls	waitForMaster () const

enum Time::stopAtControls	waitForSlave () const

virtual void	readDataMaster ()

virtual void	readDataSlave ()

virtual void	writeDataMaster () const

virtual void	writeDataSlave () const

virtual void	removeDataMaster () const

virtual void	removeDataSlave () const

void	shutdown () const

void	removeDirectory () const

Static Public Attributes
static word	lockName = "OpenFOAM"

Detailed Description

Encapsulates the logic for coordinating between OpenFOAM and an external application.

This class provides a simple interface for explicit coupling with an external application using plain text files located in the user-specified communications directory. These files are to be read/written on the master processor only.

The explicit coupling follows a master/slave model in which OpenFOAM is the 'master' and the external application is the 'slave'. The readiness to exchange information in either direction is handled by a lock file (ie, OpenFOAM.lock). If the lock file is present, the slave (external application) should wait for the master (OpenFOAM) to complete.

When the master is finished its tasks and has prepared data for the slave, the lock file is removed, instructing the external source to take control of the program execution.

When the slave has completed its tasks, it will reinstate the lock file.

Example of the communication specification:

communication
{
    commsDir        "<case>/comms";
    waitInterval    1;
    timeOut         100;
    initByExternal  no;
    statusDone      done;
}

A typical coupling loop would look like this (on the master-side):

    initialize - master takes control
    writeDataMaster() - write data for slave
    useSlave()
    waitForSlave()
    removeDataMaster() - cleanup old data from master [optional?]
    readDataMaster() - read data from slave
    useMaster()

On the slave-side:

    waitForMaster()
    readDataSlave()  - read data from master
    writeDataSlave() - write data for master
    useMaster()

Note that since the waitForSlave() method not only waits for the lock file to be reinstated but also does a simple check of its contents, it can also serve to communicate some control from the slave to the master.

Source files

Definition at line 103 of file externalFileCoupler.H.

Member Enumeration Documentation

◆ runState

enum runState

Enumerator
NONE	Not initialized.
MASTER	The master (OpenFOAM) is in charge.
SLAVE	The slave (external program) is in charge.
DONE	Finished.

Definition at line 110 of file externalFileCoupler.H.

Constructor & Destructor Documentation

◆ externalFileCoupler() [1/3]

externalFileCoupler ( )

Definition at line 88 of file externalFileCoupler.C.

References fileName::clean(), and string::expand().

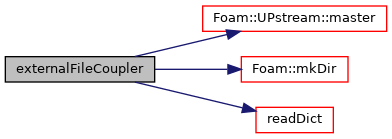

Here is the call graph for this function:

◆ externalFileCoupler() [2/3]

externalFileCoupler ( const fileName & commsDir )

Definition at line 103 of file externalFileCoupler.C.

References fileName::clean(), string::expand(), UPstream::master(), and Foam::mkDir().

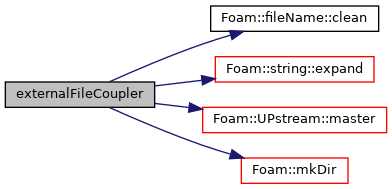

Here is the call graph for this function:

◆ externalFileCoupler() [3/3]

externalFileCoupler ( const dictionary & dict )

Definition at line 123 of file externalFileCoupler.C.

References dict, UPstream::master(), Foam::mkDir(), and externalFileCoupler::readDict().

Here is the call graph for this function:

◆ ~externalFileCoupler()

~externalFileCoupler ( )

virtual

Definition at line 138 of file externalFileCoupler.C.

Member Function Documentation

◆ TypeName()

TypeName ( "externalFileCoupler" )

◆ initialized()

bool initialized ( ) const

inline

Definition at line 23 of file externalFileCouplerI.H.

References externalFileCoupler::NONE.

◆ slaveFirst()

bool slaveFirst ( ) const

inline

Definition at line 29 of file externalFileCouplerI.H.

◆ commDirectory()

const Foam::fileName & commDirectory ( ) const

inline

Definition at line 35 of file externalFileCouplerI.H.

◆ resolveFile()

Foam::fileName resolveFile ( const word & file ) const

inline

Definition at line 42 of file externalFileCouplerI.H.

◆ lockFile()

Foam::fileName lockFile ( ) const

inline

Definition at line 50 of file externalFileCouplerI.H.

◆ readDict()

bool readDict ( const dictionary & dict )

Definition at line 146 of file externalFileCoupler.C.

References dict, Foam::endl(), dictionary::getOrDefault(), Foam::Info, Foam::log(), Foam::nl, dictionary::readEntry(), and Foam::type().

Referenced by externalFileCoupler::externalFileCoupler(), and externalCoupled::read().

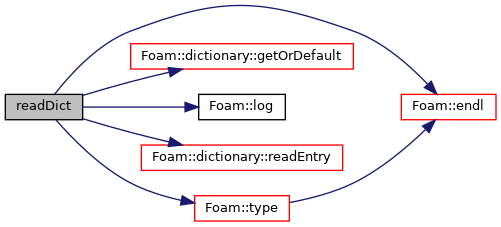

Here is the call graph for this function:

Here is the caller graph for this function:

◆ useMaster()

enum Foam::Time::stopAtControls useMaster ( const bool wait = false ) const

Definition at line 179 of file externalFileCoupler.C.

References Foam::endl(), Foam::isFile(), Log, UPstream::master(), Foam::mkDir(), os(), and Foam::type().

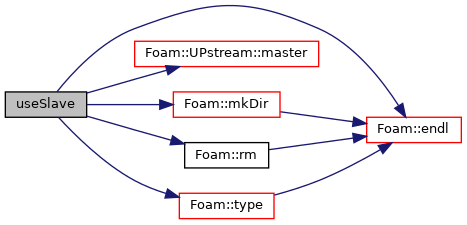

Here is the call graph for this function:

◆ useSlave()

enum Foam::Time::stopAtControls useSlave ( const bool wait = false ) const

Definition at line 215 of file externalFileCoupler.C.

References Foam::endl(), Log, UPstream::master(), Foam::mkDir(), Foam::rm(), and Foam::type().

Here is the call graph for this function:

◆ waitForMaster()

enum Foam::Time::stopAtControls waitForMaster ( ) const

Definition at line 243 of file externalFileCoupler.C.

References Foam::getStopAction(), Foam::highResLastModified(), UPstream::master(), Pstream::scatter(), and Foam::sleep().

Here is the call graph for this function:

◆ waitForSlave()

enum Foam::Time::stopAtControls waitForSlave ( ) const

Definition at line 287 of file externalFileCoupler.C.

References Foam::abort(), Foam::endl(), Foam::FatalError, FatalErrorInFunction, Foam::getStopAction(), Foam::isFile(), Log, UPstream::master(), Pstream::scatter(), Foam::sleep(), and Foam::type().

Here is the call graph for this function:

◆ readDataMaster()

void readDataMaster ( )

virtual

Reimplemented in externalCoupled.

Definition at line 330 of file externalFileCoupler.C.

◆ readDataSlave()

void readDataSlave ( )

virtual

Definition at line 334 of file externalFileCoupler.C.

◆ writeDataMaster()

void writeDataMaster ( ) const

virtual

Reimplemented in externalCoupled.

Definition at line 338 of file externalFileCoupler.C.

◆ writeDataSlave()

void writeDataSlave ( ) const

virtual

Definition at line 342 of file externalFileCoupler.C.

◆ removeDataMaster()

void removeDataMaster ( ) const

virtual

Reimplemented in externalCoupled.

Definition at line 346 of file externalFileCoupler.C.

◆ removeDataSlave()

void removeDataSlave ( ) const

virtual

Reimplemented in externalCoupled.

Definition at line 350 of file externalFileCoupler.C.

◆ shutdown()

void shutdown ( ) const

Definition at line 354 of file externalFileCoupler.C.

References Foam::endl(), Foam::isDir(), Log, UPstream::master(), Foam::nl, os(), and Foam::type().

Here is the call graph for this function:
