Description of feature edges and points. More...

Inheritance diagram for extendedEdgeMesh:

[legend]

Collaboration diagram for extendedEdgeMesh:

[legend]

Public Types
enum	pointStatus { CONVEX, CONCAVE, MIXED, NONFEATURE }

enum	edgeStatus { EXTERNAL, INTERNAL, FLAT, OPEN, MULTIPLE, NONE }

enum	sideVolumeType { INSIDE = 0, OUTSIDE = 1, BOTH = 2, NEITHER = 3 }

Public Types inherited from GeoMesh< faMesh >
typedef faMesh	Mesh

typedef faMesh ::BoundaryMesh	BoundaryMesh

Public Member Functions
	TypeName ("extendedEdgeMesh")

	extendedEdgeMesh ()

	extendedEdgeMesh (const extendedEdgeMesh &fem)

	extendedEdgeMesh (const fileName &name)

	extendedEdgeMesh (const fileName &name, const word &fileType)

	extendedEdgeMesh (Istream &is)

	extendedEdgeMesh (const pointField &points, const edgeList &edges)

	extendedEdgeMesh (pointField &&points, edgeList &&edges)

	extendedEdgeMesh (const surfaceFeatures &sFeat, const boolList &surfBaffleRegions)

	extendedEdgeMesh (const PrimitivePatch< faceList, pointField > &surf, const labelUList &featureEdges, const labelUList &regionFeatureEdges, const labelUList &featurePoints)

	extendedEdgeMesh (const pointField &pts, const edgeList &eds, label concaveStart, label mixedStart, label nonFeatureStart, label internalStart, label flatStart, label openStart, label multipleStart, const vectorField &normals, const List< sideVolumeType > &normalVolumeTypes, const vectorField &edgeDirections, const labelListList &normalDirections, const labelListList &edgeNormals, const labelListList &featurePointNormals, const labelListList &featurePointEdges, const labelList &regionEdges)

	declareRunTimeSelectionTable (autoPtr, extendedEdgeMesh, fileExtension,(const fileName &name),(name))

	~extendedEdgeMesh ()=default

void	nearestFeaturePoint (const point &sample, scalar searchDistSqr, pointIndexHit &info) const

void	nearestFeatureEdge (const point &sample, scalar searchDistSqr, pointIndexHit &info) const

void	nearestFeatureEdge (const pointField &samples, const scalarField &searchDistSqr, List< pointIndexHit > &info) const

void	nearestFeatureEdgeByType (const point &sample, const scalarField &searchDistSqr, List< pointIndexHit > &info) const

void	allNearestFeaturePoints (const point &sample, scalar searchRadiusSqr, List< pointIndexHit > &info) const

void	allNearestFeatureEdges (const point &sample, const scalar searchRadiusSqr, List< pointIndexHit > &info) const

label	convexStart () const

label	concaveStart () const

label	mixedStart () const

label	nonFeatureStart () const

label	externalStart () const

label	internalStart () const

label	flatStart () const

label	openStart () const

label	multipleStart () const

bool	featurePoint (label ptI) const

const vectorField &	normals () const

const List< sideVolumeType > &	normalVolumeTypes () const

const vectorField &	edgeDirections () const

const labelListList &	normalDirections () const

vector	edgeDirection (label edgeI, label ptI) const

const labelListList &	edgeNormals () const

vectorField	edgeNormals (const labelList &edgeNormIs) const

vectorField	edgeNormals (label edgeI) const

const labelListList &	featurePointNormals () const

vectorField	featurePointNormals (label ptI) const

const labelListList &	featurePointEdges () const

const labelList &	regionEdges () const

pointStatus	getPointStatus (label ptI) const

edgeStatus	getEdgeStatus (label edgeI) const

PackedList< 2 >	edgeBaffles (label edgeI) const

const indexedOctree< treeDataPoint > &	pointTree () const

const indexedOctree< treeDataEdge > &	edgeTree () const

const PtrList< indexedOctree< treeDataEdge > > &	edgeTreesByType () const

void	transfer (extendedEdgeMesh &mesh)

virtual void	clear ()

void	add (const extendedEdgeMesh &fem)

void	flipNormals ()

void	autoMap (const pointField &subPoints, const edgeList &subEdges, const labelList &pointMap, const labelList &edgeMap)

void	trim (const searchableSurface &surf, const volumeType volType, labelList &pointMap, labelList &edgeMap)

void	setFromStatus (const List< extendedEdgeMesh::pointStatus > &pointStat, const List< extendedEdgeMesh::edgeStatus > &edgeStat, labelList &sortedToOriginalPoint, labelList &sortedToOriginalEdge)

bool	mergePointsAndSort (const scalar mergeDist, labelList &pointMap, labelList &edgeMap)

bool	read (const fileName &name, const word &ext)

virtual bool	read (const fileName &name)

void	writeObj (const fileName &prefix) const

virtual void	writeStats (Ostream &os) const

Public Member Functions inherited from edgeMesh
	edgeMesh (const faMesh &mesh)

label	size () const

const edgeVectorField &	C () const

	TypeName ("edgeMesh")

	edgeMesh ()

	edgeMesh (const edgeMesh &em)

	edgeMesh (edgeMesh &&em)

	edgeMesh (const pointField &points, const edgeList &edges)

	edgeMesh (pointField &&pointLst, edgeList &&edgeLst)

	edgeMesh (const fileName &name)

	edgeMesh (const fileName &name, const word &fileType)

	declareRunTimeSelectionTable (autoPtr, edgeMesh, fileExtension,(const fileName &name),(name))

virtual	~edgeMesh ()=default

	declareMemberFunctionSelectionTable (void, edgeMesh, write, fileExtension,(const fileName &name, const edgeMesh &mesh, IOstreamOption streamOpt, const dictionary &options),(name, mesh, streamOpt, options))

void	transfer (edgeMesh &mesh)

bool	read (const fileName &name, const word &fileType)

const pointField &	points () const noexcept

const edgeList &	edges () const noexcept

const labelListList &	pointEdges () const

label	regions (labelList &edgeRegion) const

virtual void	scalePoints (const scalar scaleFactor)

virtual void	mergePoints (const scalar mergeDist)

virtual void	mergeEdges ()

virtual void	write (const fileName &name, IOstreamOption streamOpt=IOstreamOption(), const dictionary &options=dictionary::null) const

virtual void	write (const fileName &name, const word &fileType, IOstreamOption streamOpt=IOstreamOption(), const dictionary &options=dictionary::null) const

void	operator= (const edgeMesh &rhs)

void	operator= (edgeMesh &&rhs)

Public Member Functions inherited from GeoMesh< faMesh >
	GeoMesh (const faMesh &mesh)

bool	hasDb () const

const objectRegistry &	thisDb () const

const faMesh &	operator() () const

Static Public Member Functions
static wordHashSet	readTypes ()

static wordHashSet	writeTypes ()

static bool	canReadType (const word &fileType, bool verbose=false)

static bool	canWriteType (const word &fileType, bool verbose=false)

static bool	canRead (const fileName &name, bool verbose=false)

static autoPtr< extendedEdgeMesh >	New (const fileName &name, const word &fileType)

static autoPtr< extendedEdgeMesh >	New (const fileName &name)

static edgeStatus	classifyEdge (const List< vector > &norms, const labelList &edNorms, const vector &fC0tofC1)

static void	sortedOrder (const List< extendedEdgeMesh::pointStatus > &pointStat, const List< extendedEdgeMesh::edgeStatus > &edgeStat, labelList &sortedToOriginalPoint, labelList &sortedToOriginalEdge, label &pointConcaveStart, label &pointMixedStart, label &pointNonFeatStart, label &edgeInternalStart, label &edgeFlatStart, label &edgeOpenStart, label &edgeMultipleStart)

Static Public Member Functions inherited from edgeMesh
static label	size (const Mesh &mesh)

static wordHashSet	readTypes ()

static wordHashSet	writeTypes ()

static bool	canReadType (const word &fileType, bool verbose=false)

static bool	canWriteType (const word &fileType, bool verbose=false)

static bool	canRead (const fileName &name, bool verbose=false)

static autoPtr< edgeMesh >	New (const fileName &name, const word &fileType)

static autoPtr< edgeMesh >	New (const fileName &name)

static void	write (const fileName &name, const edgeMesh &mesh, IOstreamOption streamOpt=IOstreamOption(), const dictionary &options=dictionary::null)

static void	write (const fileName &name, const word &fileType, const edgeMesh &mesh, IOstreamOption streamOpt=IOstreamOption(), const dictionary &options=dictionary::null)

Static Public Attributes
static const Enum< pointStatus >	pointStatusNames_

static const Enum< edgeStatus >	edgeStatusNames_

static const Enum< sideVolumeType >	sideVolumeTypeNames_

static scalar	cosNormalAngleTol_

static constexpr label	nPointTypes = 4

static constexpr label	nEdgeTypes = 5

Protected Member Functions
	extendedEdgeMesh (class one::minus)

pointStatus	classifyFeaturePoint (label ptI) const

void	cut (const searchableSurface &, labelList &pMap, labelList &eMap, labelList &pointsFromEdge, labelList &oldEdge, labelList &surfTri)

void	select (const searchableSurface &surf, const volumeType volType, labelList &pMap, labelList &eMap)

template<class Patch >
void	sortPointsAndEdges (const Patch &, const labelUList &featureEdges, const labelUList &regionFeatureEdges, const labelUList &feaurePoints)

Protected Member Functions inherited from edgeMesh
pointField &	storedPoints () noexcept

edgeList &	storedEdges () noexcept

Protected Attributes
label	concaveStart_

label	mixedStart_

label	nonFeatureStart_

label	internalStart_

label	flatStart_

label	openStart_

label	multipleStart_

vectorField	normals_

List< sideVolumeType >	normalVolumeTypes_

vectorField	edgeDirections_

labelListList	normalDirections_

labelListList	edgeNormals_

labelListList	featurePointNormals_

labelListList	featurePointEdges_

labelList	regionEdges_

unique_ptr< indexedOctree< treeDataPoint > >	pointTree_

unique_ptr< indexedOctree< treeDataEdge > >	edgeTree_

PtrList< indexedOctree< treeDataEdge > >	edgeTreesByType_

Protected Attributes inherited from GeoMesh< faMesh >
const faMesh &	mesh_

Static Protected Attributes
static label	convexStart_ = 0

static label	externalStart_ = 0

Friends
Istream &	operator>> (Istream &is, sideVolumeType &vt)

Ostream &	operator<< (Ostream &os, const sideVolumeType &vt)

Ostream &	operator<< (Ostream &, const extendedEdgeMesh &)

Istream &	operator>> (Istream &, extendedEdgeMesh &)

Detailed Description

Description of feature edges and points.

Feature points are a sorted subset at the start of the overall points list: 0 .. concaveStart_-1 : convex points (w.r.t normals) concaveStart_ .. mixedStart_-1 : concave points mixedStart_ .. nonFeatureStart_-1 : mixed internal/external points nonFeatureStart_ .. size-1 : non-feature points

Feature edges are the edgeList of the edgeMesh and are sorted: 0 .. internalStart_-1 : external edges (convex w.r.t normals) internalStart_ .. flatStart_-1 : internal edges (concave) flatStart_ .. openStart_-1 : flat edges (neither concave or convex) can arise from region interfaces on flat surfaces openStart_ .. multipleStart_-1 : open edges (e.g. from baffle surfaces) multipleStart_ .. size-1 : multiply connected edges

The edge direction and feature edge and feature point adjacent normals are stored.

Source files

Definition at line 81 of file extendedEdgeMesh.H.

Member Enumeration Documentation

◆ pointStatus

enum pointStatus

Enumerator
CONVEX	Fully convex point (w.r.t normals)
CONCAVE	Fully concave point.
MIXED	A point surrounded by both convex and concave edges.
NONFEATURE	Not a feature point.

Definition at line 90 of file extendedEdgeMesh.H.

◆ edgeStatus

enum edgeStatus

Enumerator
EXTERNAL	"Convex" edge
INTERNAL	"Concave" edge
FLAT	Neither concave or convex, on a flat surface.
OPEN	Only connected to a single face.
MULTIPLE	Multiply connected (connected to more than two faces)
NONE	Unclassified (consistency with surfaceFeatures)

Definition at line 100 of file extendedEdgeMesh.H.

◆ sideVolumeType

enum sideVolumeType

Enumerator
INSIDE	mesh inside
OUTSIDE	mesh outside
BOTH	e.g. a baffle
NEITHER	not sure when this may be used

Definition at line 113 of file extendedEdgeMesh.H.

Constructor & Destructor Documentation

◆ extendedEdgeMesh() [1/11]

extendedEdgeMesh ( class one::minus )

explicitprotected

Definition at line 394 of file extendedEdgeMesh.C.

◆ extendedEdgeMesh() [2/11]

extendedEdgeMesh ( )

Definition at line 370 of file extendedEdgeMesh.C.

◆ extendedEdgeMesh() [3/11]

extendedEdgeMesh ( const extendedEdgeMesh & fem )

explicit

Definition at line 418 of file extendedEdgeMesh.C.

◆ extendedEdgeMesh() [4/11]

extendedEdgeMesh ( const fileName & name )

explicit

Definition at line 610 of file extendedEdgeMesh.C.

References Foam::name(), and extendedEdgeMesh::read().

Here is the call graph for this function:

◆ extendedEdgeMesh() [5/11]

extendedEdgeMesh	(	const fileName &	name,
		const word &	fileType
	)

Definition at line 599 of file extendedEdgeMesh.C.

References Foam::name(), and Foam::read().

Here is the call graph for this function:

◆ extendedEdgeMesh() [6/11]

extendedEdgeMesh ( Istream & is )

explicit

Definition at line 442 of file extendedEdgeMesh.C.

◆ extendedEdgeMesh() [7/11]

extendedEdgeMesh	(	const pointField &	points,
		const edgeList &	edges
	)

Definition at line 449 of file extendedEdgeMesh.C.

References points.

◆ extendedEdgeMesh() [8/11]

extendedEdgeMesh	(	pointField &&	points,
		edgeList &&	edges
	)

Definition at line 462 of file extendedEdgeMesh.C.

References points, and extendedEdgeMesh::transfer().

Here is the call graph for this function:

◆ extendedEdgeMesh() [9/11]

extendedEdgeMesh	(	const surfaceFeatures &	sFeat,
		const boolList &	surfBaffleRegions
	)

Definition at line 475 of file extendedEdgeMesh.C.

◆ extendedEdgeMesh() [10/11]

extendedEdgeMesh	(	const PrimitivePatch< faceList, pointField > &	surf,
		const labelUList &	featureEdges,
		const labelUList &	regionFeatureEdges,
		const labelUList &	featurePoints
	)

Definition at line 536 of file extendedEdgeMesh.C.

◆ extendedEdgeMesh() [11/11]

extendedEdgeMesh	(	const pointField &	pts,
		const edgeList &	eds,
		label	concaveStart,
		label	mixedStart,
		label	nonFeatureStart,
		label	internalStart,
		label	flatStart,
		label	openStart,
		label	multipleStart,
		const vectorField &	normals,
		const List< sideVolumeType > &	normalVolumeTypes,
		const vectorField &	edgeDirections,
		const labelListList &	normalDirections,
		const labelListList &	edgeNormals,
		const labelListList &	featurePointNormals,
		const labelListList &	featurePointEdges,
		const labelList &	regionEdges
	)

Definition at line 556 of file extendedEdgeMesh.C.

◆ ~extendedEdgeMesh()

~extendedEdgeMesh ( )

default

Member Function Documentation

◆ TypeName()

TypeName ( "extendedEdgeMesh" )

◆ classifyFeaturePoint()

Foam::extendedEdgeMesh::pointStatus classifyFeaturePoint ( label ptI ) const

protected

Definition at line 145 of file extendedEdgeMesh.C.

References forAll.

◆ cut()

void cut	(	const searchableSurface &	surf,
		labelList &	pMap,
		labelList &	eMap,
		labelList &	pointsFromEdge,
		labelList &	oldEdge,
		labelList &	surfTri
	)

protected

Definition at line 189 of file extendedEdgeMesh.C.

References Foam::DelaunayMeshTools::allPoints(), DynamicList::append(), DynamicField::append(), DynamicList::capacity(), DynamicField::capacity(), Foam::constant::electromagnetic::e, stdFoam::end(), searchableSurface::findLineAll(), forAll, Foam::identity(), points, DynamicList::setCapacity(), DynamicField::setCapacity(), and List::transfer().

Here is the call graph for this function:

◆ select()

void select	(	const searchableSurface &	surf,
		const volumeType	volType,
		labelList &	pMap,
		labelList &	eMap
	)

protected

Definition at line 291 of file extendedEdgeMesh.C.

References Foam::constant::electromagnetic::e, forAll, searchableSurface::getVolumeType(), Foam::identity(), volumeType::INSIDE, Foam::labelMax, volumeType::OUTSIDE, points, and List::setSize().

Here is the call graph for this function:

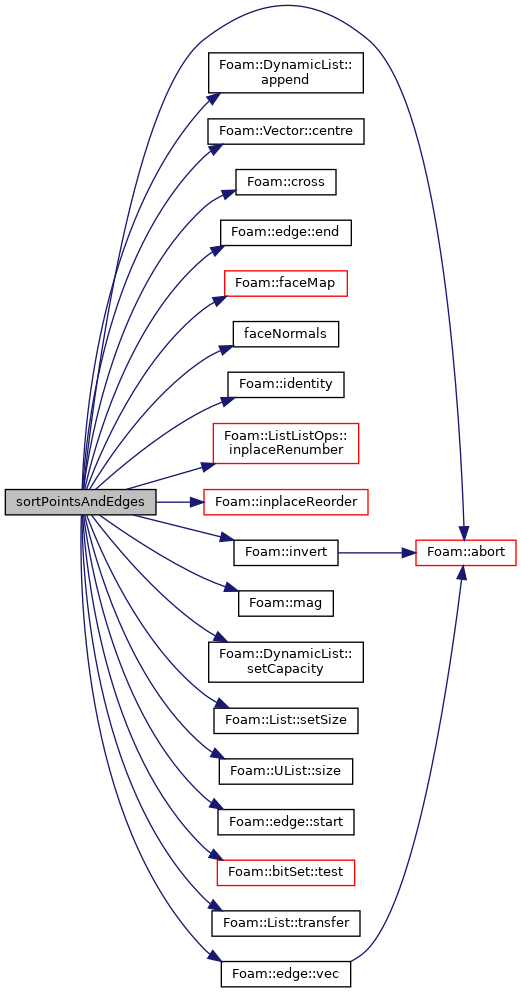

◆ sortPointsAndEdges()

void sortPointsAndEdges	(	const Patch &	surf,
		const labelUList &	featureEdges,
		const labelUList &	regionFeatureEdges,
		const labelUList &	feaurePoints
	)

protected

Definition at line 33 of file extendedEdgeMeshTemplates.C.

References Foam::abort(), DynamicList::append(), Vector< Cmpt >::centre(), Foam::cross(), edge::end(), Foam::faceMap(), faceNormals(), Foam::FatalError, FatalErrorInFunction, forAll, Foam::identity(), Foam::ListListOps::inplaceRenumber(), Foam::inplaceReorder(), Foam::invert(), k, Foam::mag(), Foam::nl, points, DynamicList::setCapacity(), List::setSize(), UList::size(), edge::start(), bitSet::test(), List::transfer(), edge::vec(), and Foam::Zero.

Here is the call graph for this function:

◆ readTypes()

Foam::wordHashSet readTypes ( )

static

Definition at line 94 of file extendedEdgeMesh.C.

◆ writeTypes()

Foam::wordHashSet writeTypes ( )

static

Definition at line 100 of file extendedEdgeMesh.C.

◆ canReadType()

bool canReadType	(	const word &	fileType,
		bool	verbose = `false`
	)

static

Definition at line 106 of file extendedEdgeMesh.C.

◆ canWriteType()

bool canWriteType	(	const word &	fileType,
		bool	verbose = `false`
	)

static

Definition at line 118 of file extendedEdgeMesh.C.

◆ canRead()

bool canRead	(	const fileName &	name,
		bool	verbose = `false`
	)

static

Definition at line 130 of file extendedEdgeMesh.C.

References word::ext(), word::lessExt(), and Foam::name().

Here is the call graph for this function:

◆ declareRunTimeSelectionTable()

declareRunTimeSelectionTable	(	autoPtr	,
		extendedEdgeMesh	,
		fileExtension	,
		(const fileName &name)	,
		(name)
	)

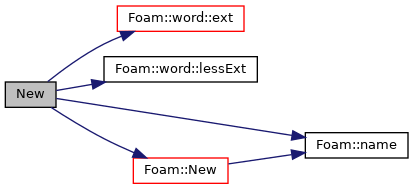

◆ New() [1/2]

Foam::autoPtr< Foam::extendedEdgeMesh > New	(	const fileName &	name,
		const word &	fileType
	)

static

Definition at line 35 of file extendedEdgeMeshNew.C.

References Foam::exit(), Foam::FatalError, FatalErrorInFunction, Foam::flatOutput(), Foam::name(), and Foam::nl.

Here is the call graph for this function:

◆ New() [2/2]

Foam::autoPtr< Foam::extendedEdgeMesh > New ( const fileName & name )

static

Definition at line 57 of file extendedEdgeMeshNew.C.

References word::ext(), word::lessExt(), Foam::name(), and Foam::New().

Here is the call graph for this function:

◆ nearestFeaturePoint()

void nearestFeaturePoint	(	const point &	sample,
		scalar	searchDistSqr,
		pointIndexHit &	info
	)		const

Definition at line 646 of file extendedEdgeMesh.C.

◆ nearestFeatureEdge() [1/2]

void nearestFeatureEdge	(	const point &	sample,
		scalar	searchDistSqr,
		pointIndexHit &	info
	)		const

Definition at line 661 of file extendedEdgeMesh.C.

◆ nearestFeatureEdge() [2/2]

void nearestFeatureEdge	(	const pointField &	samples,
		const scalarField &	searchDistSqr,
		List< pointIndexHit > &	info
	)		const

Definition at line 676 of file extendedEdgeMesh.C.

References forAll, samples(), and List::setSize().

Here is the call graph for this function:

◆ nearestFeatureEdgeByType()

void nearestFeatureEdgeByType	(	const point &	sample,
		const scalarField &	searchDistSqr,
		List< pointIndexHit > &	info
	)		const

Definition at line 697 of file extendedEdgeMesh.C.

References forAll, and List::setSize().

Here is the call graph for this function:

◆ allNearestFeaturePoints()

void allNearestFeaturePoints	(	const point &	sample,
		scalar	searchRadiusSqr,
		List< pointIndexHit > &	info
	)		const

Definition at line 733 of file extendedEdgeMesh.C.

References DynamicList::append(), forAll, points, and List::transfer().

Referenced by Foam::edgeMeshTools::featureProximity().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ allNearestFeatureEdges()

void allNearestFeatureEdges	(	const point &	sample,
		const scalar	searchRadiusSqr,
		List< pointIndexHit > &	info
	)		const

Definition at line 764 of file extendedEdgeMesh.C.

References DynamicList::append(), Foam::constant::electromagnetic::e, forAll, PointHit< PointType >::hit(), points, PointHit< PointType >::rawPoint(), List::setSize(), and List::transfer().

Referenced by Foam::edgeMeshTools::featureProximity().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ convexStart()

Foam::label convexStart ( ) const

inline

Definition at line 23 of file extendedEdgeMeshI.H.

References extendedEdgeMesh::convexStart_.

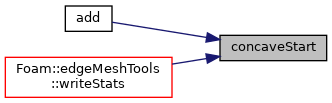

◆ concaveStart()

Foam::label concaveStart ( ) const

inline

Definition at line 29 of file extendedEdgeMeshI.H.

Referenced by extendedEdgeMesh::add(), and Foam::edgeMeshTools::writeStats().

Here is the caller graph for this function:

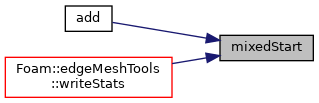

◆ mixedStart()

Foam::label mixedStart ( ) const

inline

Definition at line 35 of file extendedEdgeMeshI.H.

Referenced by extendedEdgeMesh::add(), and Foam::edgeMeshTools::writeStats().

Here is the caller graph for this function:

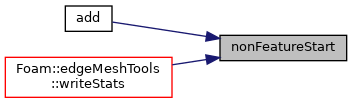

◆ nonFeatureStart()

Foam::label nonFeatureStart ( ) const

inline

Definition at line 41 of file extendedEdgeMeshI.H.

Referenced by extendedEdgeMesh::add(), and Foam::edgeMeshTools::writeStats().

Here is the caller graph for this function:

◆ externalStart()

Foam::label externalStart ( ) const

inline

Definition at line 47 of file extendedEdgeMeshI.H.

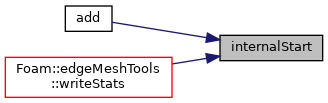

◆ internalStart()

Foam::label internalStart ( ) const

inline

Definition at line 53 of file extendedEdgeMeshI.H.

Referenced by extendedEdgeMesh::add(), and Foam::edgeMeshTools::writeStats().

Here is the caller graph for this function:

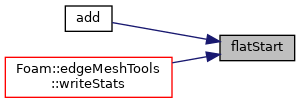

◆ flatStart()

Foam::label flatStart ( ) const

inline

Definition at line 59 of file extendedEdgeMeshI.H.

Referenced by extendedEdgeMesh::add(), and Foam::edgeMeshTools::writeStats().

Here is the caller graph for this function:

◆ openStart()

Foam::label openStart ( ) const

inline

Definition at line 65 of file extendedEdgeMeshI.H.

Referenced by extendedEdgeMesh::add(), and Foam::edgeMeshTools::writeStats().

Here is the caller graph for this function:

◆ multipleStart()

Foam::label multipleStart ( ) const

inline

Definition at line 71 of file extendedEdgeMeshI.H.

Referenced by extendedEdgeMesh::add(), and Foam::edgeMeshTools::writeStats().

Here is the caller graph for this function:

◆ featurePoint()

bool featurePoint ( label ptI ) const

inline

Definition at line 77 of file extendedEdgeMeshI.H.

◆ normals()

const Foam::vectorField & normals ( ) const

inline

Definition at line 83 of file extendedEdgeMeshI.H.

Referenced by extendedEdgeMesh::add().

Here is the caller graph for this function:

◆ normalVolumeTypes()

const Foam::List< Foam::extendedEdgeMesh::sideVolumeType > & normalVolumeTypes ( ) const

inline

Definition at line 90 of file extendedEdgeMeshI.H.

◆ edgeDirections()

const Foam::vectorField & edgeDirections ( ) const

inline

Definition at line 96 of file extendedEdgeMeshI.H.

Referenced by extendedEdgeMesh::add().

Here is the caller graph for this function:

◆ normalDirections()

const Foam::labelListList & normalDirections ( ) const

inline

Definition at line 104 of file extendedEdgeMeshI.H.

◆ edgeDirection()

Foam::vector edgeDirection	(	label	edgeI,
		label	ptI
	)		const

inline

Definition at line 111 of file extendedEdgeMeshI.H.

References Foam::constant::electromagnetic::e, Foam::exit(), Foam::FatalError, FatalErrorInFunction, and Foam::Zero.

Here is the call graph for this function:

◆ edgeNormals() [1/3]

const Foam::labelListList & edgeNormals ( ) const

inline

Definition at line 139 of file extendedEdgeMeshI.H.

Referenced by extendedEdgeMesh::add().

Here is the caller graph for this function:

◆ edgeNormals() [2/3]

Foam::vectorField edgeNormals ( const labelList & edgeNormIs ) const

inline

Definition at line 147 of file extendedEdgeMeshI.H.

References forAll.

◆ edgeNormals() [3/3]

Foam::vectorField edgeNormals ( label edgeI ) const

inline

Definition at line 162 of file extendedEdgeMeshI.H.

◆ featurePointNormals() [1/2]

const Foam::labelListList & featurePointNormals ( ) const

inline

Definition at line 170 of file extendedEdgeMeshI.H.

Referenced by extendedEdgeMesh::add().

Here is the caller graph for this function:

◆ featurePointNormals() [2/2]

Foam::vectorField featurePointNormals ( label ptI ) const

inline

Definition at line 177 of file extendedEdgeMeshI.H.

References Foam::endl(), forAll, and WarningInFunction.

Here is the call graph for this function:

◆ featurePointEdges()

const Foam::labelListList & featurePointEdges ( ) const

inline

Definition at line 205 of file extendedEdgeMeshI.H.

◆ regionEdges()

const Foam::labelList & regionEdges ( ) const

inline

Definition at line 211 of file extendedEdgeMeshI.H.

Referenced by extendedEdgeMesh::add(), and refinementFeatures::regionEdgeTrees().

Here is the caller graph for this function:

◆ getPointStatus()

Foam::extendedEdgeMesh::pointStatus getPointStatus ( label ptI ) const

inline

Definition at line 218 of file extendedEdgeMeshI.H.

◆ getEdgeStatus()

Foam::extendedEdgeMesh::edgeStatus getEdgeStatus ( label edgeI ) const

inline

Definition at line 238 of file extendedEdgeMeshI.H.

◆ edgeBaffles()

Foam::PackedList< 2 > edgeBaffles ( label edgeI ) const

inline

Definition at line 262 of file extendedEdgeMeshI.H.

References DynamicList::append().

Here is the call graph for this function:

◆ pointTree()

const Foam::indexedOctree< Foam::treeDataPoint > & pointTree ( ) const

Definition at line 820 of file extendedEdgeMesh.C.

References Foam::constant::electromagnetic::e, Foam::identity(), boundBox::max(), boundBox::min(), points, rndGen, and VectorSpace< Vector< scalar >, scalar, 3 >::uniform().

Here is the call graph for this function:

◆ edgeTree()

const Foam::indexedOctree< Foam::treeDataEdge > & edgeTree ( ) const

Definition at line 860 of file extendedEdgeMesh.C.

References Foam::constant::electromagnetic::e, Foam::identity(), boundBox::max(), boundBox::min(), points, rndGen, and VectorSpace< Vector< scalar >, scalar, 3 >::uniform().

Here is the call graph for this function:

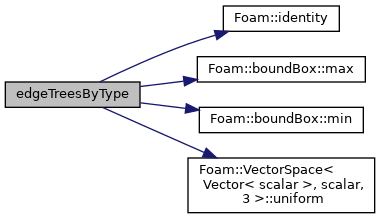

◆ edgeTreesByType()

const Foam::PtrList< Foam::indexedOctree< Foam::treeDataEdge > > & edgeTreesByType ( ) const

Definition at line 902 of file extendedEdgeMesh.C.

References Foam::constant::electromagnetic::e, forAll, Foam::identity(), boundBox::max(), boundBox::min(), points, rndGen, and VectorSpace< Vector< scalar >, scalar, 3 >::uniform().

Here is the call graph for this function:

◆ transfer()

void transfer ( extendedEdgeMesh & mesh )

Definition at line 967 of file extendedEdgeMesh.C.

References objectRegistry::clear(), mesh, edgeMesh::transfer(), and HashTable::transfer().

Referenced by extendedEdgeMesh::extendedEdgeMesh().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ clear()

void clear ( )

virtual

Reimplemented from edgeMesh.

Definition at line 999 of file extendedEdgeMesh.C.

References edgeMesh::clear().

Here is the call graph for this function:

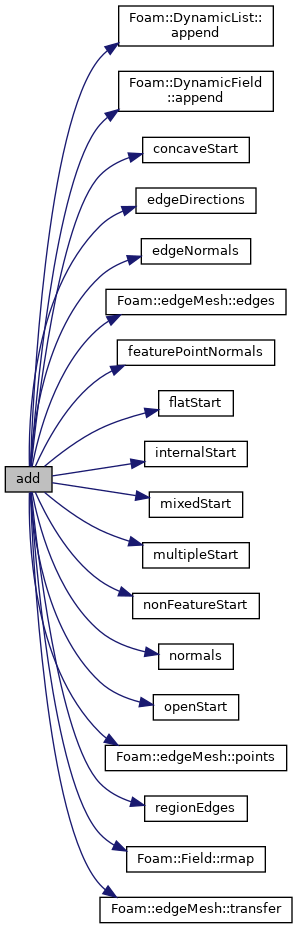

◆ add()

void add ( const extendedEdgeMesh & fem )

◆ flipNormals()

void flipNormals ( )

Definition at line 1293 of file extendedEdgeMesh.C.

References Foam::constant::electromagnetic::e, forAll, Foam::identity(), newPointi, points, Field::rmap(), and edgeMesh::transfer().

Here is the call graph for this function:

◆ autoMap()

void autoMap	(	const pointField &	subPoints,
		const edgeList &	subEdges,
		const labelList &	pointMap,
		const labelList &	edgeMap
	)

Definition at line 1405 of file extendedEdgeMesh.C.

References DynamicList::append(), forAll, bitSet::set(), List::setSize(), bitSet::test(), and List::transfer().

Here is the call graph for this function:

◆ trim()

void trim	(	const searchableSurface &	surf,
		const volumeType	volType,
		labelList &	pointMap,
		labelList &	edgeMap
	)

Definition at line 1645 of file extendedEdgeMesh.C.

References forAll, and points.

◆ setFromStatus()

void setFromStatus	(	const List< extendedEdgeMesh::pointStatus > &	pointStat,
		const List< extendedEdgeMesh::edgeStatus > &	edgeStat,
		labelList &	sortedToOriginalPoint,
		labelList &	sortedToOriginalEdge
	)

Definition at line 1728 of file extendedEdgeMesh.C.

References forAll, Foam::inplaceRenumber(), points, and Foam::sortedOrder().

Here is the call graph for this function:

◆ mergePointsAndSort()

bool mergePointsAndSort	(	const scalar	mergeDist,
		labelList &	pointMap,
		labelList &	edgeMap
	)

Definition at line 1796 of file extendedEdgeMesh.C.

References forAll, Foam::identity(), Foam::mergePoints(), nPoints, points, List::setSize(), and Foam::Zero.

Here is the call graph for this function:

◆ read() [1/2]

bool read	(	const fileName &	name,
		const word &	ext
	)

Definition at line 634 of file extendedEdgeMesh.C.

References Foam::name(), and Foam::New().

Referenced by extendedEdgeMesh::extendedEdgeMesh().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ read() [2/2]

bool read ( const fileName & name )

virtual

Reimplemented from edgeMesh.

Reimplemented in extendedEdgeMeshFormat.

Definition at line 620 of file extendedEdgeMesh.C.

References word::ext(), fileName::ext(), word::lessExt(), Foam::name(), and Foam::read().

Here is the call graph for this function:

◆ writeObj()

void writeObj ( const fileName & prefix ) const

Definition at line 1884 of file extendedEdgeMesh.C.

References Foam::constant::electromagnetic::e, Foam::endl(), forAll, Foam::Info, OFstream::name(), Foam::nl, points, OBJstream::write(), and edgeMesh::write().

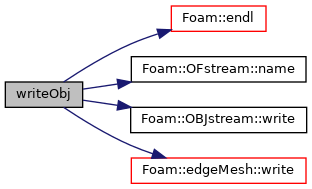

Here is the call graph for this function:

◆ writeStats()

void writeStats ( Ostream & os ) const

virtual

Reimplemented from edgeMesh.

Definition at line 2039 of file extendedEdgeMesh.C.

References Foam::decrIndent(), Foam::incrIndent(), Foam::indent(), Foam::nl, os(), points, Foam::setw(), and edgeMesh::writeStats().

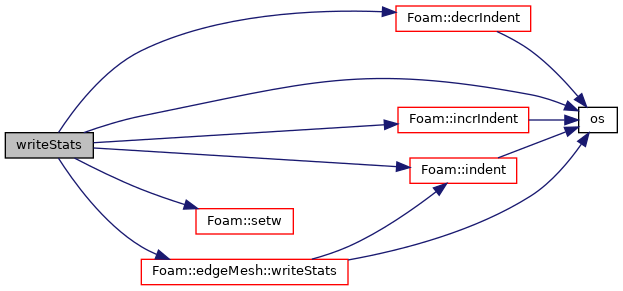

Here is the call graph for this function:

◆ classifyEdge()

Foam::extendedEdgeMesh::edgeStatus classifyEdge	(	const List< vector > &	norms,
		const labelList &	edNorms,
		const vector &	fC0tofC1
	)

static

Definition at line 2091 of file extendedEdgeMesh.C.

◆ sortedOrder()

void sortedOrder	(	const List< extendedEdgeMesh::pointStatus > &	pointStat,
		const List< extendedEdgeMesh::edgeStatus > &	edgeStat,
		labelList &	sortedToOriginalPoint,
		labelList &	sortedToOriginalEdge,
		label &	pointConcaveStart,
		label &	pointMixedStart,
		label &	pointNonFeatStart,
		label &	edgeInternalStart,
		label &	edgeFlatStart,
		label &	edgeOpenStart,
		label &	edgeMultipleStart
	)

static

Definition at line 2132 of file extendedEdgeMesh.C.

References extendedEdgeMesh::CONCAVE, extendedEdgeMesh::CONVEX, Foam::exit(), extendedEdgeMesh::EXTERNAL, Foam::FatalError, FatalErrorInFunction, extendedEdgeMesh::FLAT, forAll, extendedEdgeMesh::INTERNAL, extendedEdgeMesh::MIXED, extendedEdgeMesh::MULTIPLE, extendedEdgeMesh::NONE, extendedEdgeMesh::NONFEATURE, extendedEdgeMesh::OPEN, and List::setSize().

Here is the call graph for this function:

Friends And Related Function Documentation

◆ operator>> [1/2]

Istream& operator>>	(	Istream &	is,
		sideVolumeType &	vt
	)

friend

◆ operator<< [1/2]

Ostream& operator<<	(	Ostream &	os,
		const sideVolumeType &	vt
	)

friend

◆ operator<< [2/2]

Ostream& operator<<	(	Ostream &	,
		const extendedEdgeMesh &
	)

friend

◆ operator>> [2/2]

Istream& operator>>	(	Istream &	,
		extendedEdgeMesh &
	)

friend

Member Data Documentation

◆ pointStatusNames_

const Foam::Enum< Foam::extendedEdgeMesh::pointStatus > pointStatusNames_

static

Definition at line 98 of file extendedEdgeMesh.H.

◆ edgeStatusNames_

const Foam::Enum< Foam::extendedEdgeMesh::edgeStatus > edgeStatusNames_

static

Definition at line 110 of file extendedEdgeMesh.H.

◆ sideVolumeTypeNames_

const Foam::Enum< Foam::extendedEdgeMesh::sideVolumeType > sideVolumeTypeNames_

static

Definition at line 121 of file extendedEdgeMesh.H.

Referenced by searchablePlateFeatures::searchablePlateFeatures().

◆ cosNormalAngleTol_

Foam::scalar cosNormalAngleTol_

static

Initial value:

=

Foam::cos(degToRad(0.1))

Definition at line 124 of file extendedEdgeMesh.H.

◆ convexStart_

Foam::label convexStart_ = 0

staticprotected

Definition at line 132 of file extendedEdgeMesh.H.

Referenced by extendedEdgeMesh::convexStart().

◆ externalStart_

Foam::label externalStart_ = 0

staticprotected

Definition at line 135 of file extendedEdgeMesh.H.

◆ concaveStart_

label concaveStart_

protected

Definition at line 141 of file extendedEdgeMesh.H.

Referenced by Foam::operator<<(), and Foam::operator>>().

◆ mixedStart_

label mixedStart_

protected

Definition at line 144 of file extendedEdgeMesh.H.

Referenced by Foam::operator<<(), and Foam::operator>>().

◆ nonFeatureStart_

label nonFeatureStart_

protected

Definition at line 147 of file extendedEdgeMesh.H.

Referenced by Foam::operator<<(), and Foam::operator>>().

◆ internalStart_

label internalStart_

protected

Definition at line 150 of file extendedEdgeMesh.H.

Referenced by Foam::operator<<(), and Foam::operator>>().

◆ flatStart_

label flatStart_

protected

Definition at line 153 of file extendedEdgeMesh.H.

Referenced by Foam::operator<<(), and Foam::operator>>().

◆ openStart_

label openStart_

protected

Definition at line 156 of file extendedEdgeMesh.H.

Referenced by Foam::operator<<(), and Foam::operator>>().

◆ multipleStart_

label multipleStart_

protected

Definition at line 159 of file extendedEdgeMesh.H.

Referenced by Foam::operator<<(), and Foam::operator>>().

◆ normals_

vectorField normals_

protected

Definition at line 163 of file extendedEdgeMesh.H.

Referenced by Foam::operator<<(), and Foam::operator>>().

◆ normalVolumeTypes_

List<sideVolumeType> normalVolumeTypes_

protected

Definition at line 166 of file extendedEdgeMesh.H.

Referenced by Foam::operator<<(), and Foam::operator>>().

◆ edgeDirections_

vectorField edgeDirections_

protected

Definition at line 169 of file extendedEdgeMesh.H.

Referenced by extendedFeatureEdgeMesh::extendedFeatureEdgeMesh().

◆ normalDirections_

labelListList normalDirections_

protected

Definition at line 174 of file extendedEdgeMesh.H.

Referenced by Foam::operator<<(), and Foam::operator>>().

◆ edgeNormals_

labelListList edgeNormals_

protected

Definition at line 177 of file extendedEdgeMesh.H.

Referenced by Foam::operator<<(), and Foam::operator>>().

◆ featurePointNormals_

labelListList featurePointNormals_

protected

Definition at line 181 of file extendedEdgeMesh.H.

Referenced by Foam::operator<<(), and Foam::operator>>().

◆ featurePointEdges_

labelListList featurePointEdges_

protected

Definition at line 185 of file extendedEdgeMesh.H.

Referenced by Foam::operator<<(), and Foam::operator>>().

◆ regionEdges_

labelList regionEdges_

protected

Definition at line 188 of file extendedEdgeMesh.H.

Referenced by Foam::operator<<(), and Foam::operator>>().

◆ pointTree_

unique_ptr<indexedOctree<treeDataPoint> > pointTree_

mutableprotected

Definition at line 191 of file extendedEdgeMesh.H.

◆ edgeTree_

unique_ptr<indexedOctree<treeDataEdge> > edgeTree_

mutableprotected

Definition at line 194 of file extendedEdgeMesh.H.

◆ edgeTreesByType_

PtrList<indexedOctree<treeDataEdge> > edgeTreesByType_

mutableprotected

Definition at line 197 of file extendedEdgeMesh.H.

◆ nPointTypes

constexpr label nPointTypes = 4

staticconstexpr

Definition at line 247 of file extendedEdgeMesh.H.

◆ nEdgeTypes

constexpr label nEdgeTypes = 5

staticconstexpr

Definition at line 250 of file extendedEdgeMesh.H.

The documentation for this class was generated from the following files:

src/meshTools/edgeMesh/extendedEdgeMesh/extendedEdgeMesh.H
src/meshTools/edgeMesh/extendedEdgeMesh/extendedEdgeMesh.C
src/meshTools/edgeMesh/extendedEdgeMesh/extendedEdgeMeshI.H
src/meshTools/edgeMesh/extendedEdgeMesh/extendedEdgeMeshNew.C
src/meshTools/edgeMesh/extendedEdgeMesh/extendedEdgeMeshTemplates.C

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Static Protected Attributes

Friends

Detailed Description

Member Enumeration Documentation

◆ pointStatus

◆ edgeStatus

◆ sideVolumeType

Constructor & Destructor Documentation

◆ extendedEdgeMesh() [1/11]

◆ extendedEdgeMesh() [2/11]

◆ extendedEdgeMesh() [3/11]

◆ extendedEdgeMesh() [4/11]

◆ extendedEdgeMesh() [5/11]

◆ extendedEdgeMesh() [6/11]

◆ extendedEdgeMesh() [7/11]

◆ extendedEdgeMesh() [8/11]

◆ extendedEdgeMesh() [9/11]

◆ extendedEdgeMesh() [10/11]

◆ extendedEdgeMesh() [11/11]

◆ ~extendedEdgeMesh()

Member Function Documentation

◆ TypeName()

◆ classifyFeaturePoint()

◆ cut()

◆ select()

◆ sortPointsAndEdges()

◆ readTypes()

◆ writeTypes()

◆ canReadType()

◆ canWriteType()

◆ canRead()

◆ declareRunTimeSelectionTable()

◆ New() [1/2]

◆ New() [2/2]

◆ nearestFeaturePoint()

◆ nearestFeatureEdge() [1/2]

◆ nearestFeatureEdge() [2/2]

◆ nearestFeatureEdgeByType()

◆ allNearestFeaturePoints()

◆ allNearestFeatureEdges()

◆ convexStart()

◆ concaveStart()

◆ mixedStart()

◆ nonFeatureStart()

◆ externalStart()

◆ internalStart()

◆ flatStart()

◆ openStart()

◆ multipleStart()

◆ featurePoint()

◆ normals()

◆ normalVolumeTypes()

◆ edgeDirections()

◆ normalDirections()

◆ edgeDirection()

◆ edgeNormals() [1/3]

◆ edgeNormals() [2/3]

◆ edgeNormals() [3/3]

◆ featurePointNormals() [1/2]

◆ featurePointNormals() [2/2]

◆ featurePointEdges()

◆ regionEdges()

◆ getPointStatus()

◆ getEdgeStatus()

◆ edgeBaffles()

◆ pointTree()

◆ edgeTree()

◆ edgeTreesByType()

◆ transfer()

◆ clear()

◆ add()

◆ flipNormals()

◆ autoMap()

◆ trim()
