edgeSurface Class Reference

Description of surface in form of 'cloud of edges'. More...

Public Member Functions
	ClassName ("edgeSurface")
	edgeSurface (const triSurface &surf, const bool isFirstSurface, const surfaceIntersection &inter)
const pointField &	points () const
label	nSurfacePoints () const
const edgeList &	edges () const
label	nSurfaceEdges () const
bool	isSurfaceEdge (const label edgeI) const
label	parentEdge (const label edgeI) const
const labelListList &	faceEdges () const
const labelListList &	pointEdges () const
void	addIntersectionEdges (const label facei, const edgeList &)

Detailed Description

Description of surface in form of 'cloud of edges'.

The 'cloud of edges':

• points
• edges
• faceEdges
• parentEdge (edge on surface this edge originates from) and nothing more.

(pointEdges constructed from above data)

Constructed from triSurface and surfaceIntersection. (uses localPoints of surface of course)

Used to easily insert cuts and split faces.

Note

• points with surface (local)points first, intersection points last
• edges with (split) surface edges first, intersection edges last.

Source files

• edgeSurface.H
• edgeSurface.C

Definition at line 71 of file edgeSurface.H.

Constructor & Destructor Documentation

edgeSurface()

edgeSurface	(	const triSurface &	surf,
		const bool	isFirstSurface,
		const surfaceIntersection &	inter
	)

Definition at line 108 of file edgeSurface.C.

References List::append(), DynamicList::append(), surfaceIntersection::cutEdges(), surfaceIntersection::cutPoints(), Foam::expressions::patchExpr::debug, Foam::constant::electromagnetic::e, surfaceIntersection::edgeCuts(), PrimitivePatch< FaceList, PointField >::edgeFaces(), PrimitivePatch< FaceList, PointField >::edges(), Foam::endl(), surfaceIntersection::facePairToEdgeId(), forAll, forAllConstIters(), PrimitivePatch< FaceList, PointField >::localPoints(), Foam::name(), PrimitivePatch< FaceList, PointField >::nEdges(), Foam::Pout, OBJstream::write(), and Foam::writeObjEdges().

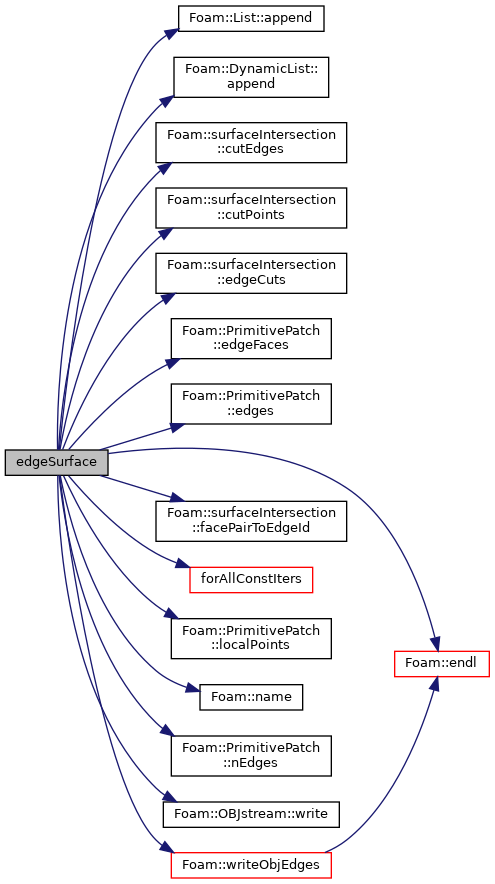

Here is the call graph for this function:

Member Function Documentation

ClassName()

ClassName

(

"edgeSurface"

)

points()

const pointField& points ( ) const

inline

Definition at line 122 of file edgeSurface.H.

Referenced by intersectedSurface::intersectedSurface().

Here is the caller graph for this function:

nSurfacePoints()

label nSurfacePoints ( ) const

inline

Definition at line 127 of file edgeSurface.H.

Referenced by intersectedSurface::intersectedSurface().

Here is the caller graph for this function:

edges()

const edgeList& edges ( ) const

inline

Definition at line 132 of file edgeSurface.H.

Referenced by intersectedSurface::intersectedSurface().

Here is the caller graph for this function:

nSurfaceEdges()

label nSurfaceEdges ( ) const

inline

Definition at line 137 of file edgeSurface.H.

Referenced by intersectedSurface::intersectedSurface().

Here is the caller graph for this function:

isSurfaceEdge()

bool isSurfaceEdge ( const label  edgeI ) const

inline

Definition at line 142 of file edgeSurface.H.

parentEdge()

label parentEdge ( const label  edgeI ) const

inline

Definition at line 149 of file edgeSurface.H.

References Foam::abort(), Foam::FatalError, and FatalErrorInFunction.

Here is the call graph for this function:

faceEdges()

const labelListList& faceEdges ( ) const

inline

Definition at line 166 of file edgeSurface.H.

Referenced by intersectedSurface::intersectedSurface().

Here is the caller graph for this function:

pointEdges()

const labelListList& pointEdges ( ) const

inline

Definition at line 172 of file edgeSurface.H.

addIntersectionEdges()

void addIntersectionEdges	(	const label	facei,
		const edgeList &	additionalEdges
	)

Definition at line 309 of file edgeSurface.C.

References Foam::expressions::patchExpr::debug, Foam::constant::electromagnetic::e, Foam::endl(), forAll, Foam::Pout, and List::setSize().

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/meshTools/triSurface/booleanOps/intersectedSurface/edgeSurface.H
• src/meshTools/triSurface/booleanOps/intersectedSurface/edgeSurface.C
