createShellMesh Class Reference

Creates mesh by extruding a patch. More...

Public Member Functions
	ClassName ("createShellMesh")
	createShellMesh (const primitiveFacePatch &patch, const faceList &pointRegions, const labelList &regionPoints)
const labelList &	cellToFaceMap () const
const labelList &	faceToFaceMap () const
const labelList &	faceToEdgeMap () const
const labelList &	pointToPointMap () const
void	setRefinement (const pointField &firstLayerThickness, const scalar expansionRatio, const label nLayers, const labelList &topPatchID, const labelList &bottomPatchID, const labelListList &extrudeEdgePatches, polyTopoChange &meshMod)
void	updateMesh (const mapPolyMesh &)

Static Public Member Functions
static void	calcPointRegions (const globalMeshData &globalData, const primitiveFacePatch &patch, const bitSet &nonManifoldEdge, const bool syncNonCollocated, faceList &pointGlobalRegions, faceList &pointLocalRegions, labelList &localToGlobalRegion)

Detailed Description

Creates mesh by extruding a patch.

Source files

• createShellMesh.H
• createShellMesh.C

Extrudes into thickness direction.

• bottom faces originate from reversed original faces (have turning index)
• top faces originate from original faces (no turning index)

Definition at line 57 of file createShellMesh.H.

Constructor & Destructor Documentation

createShellMesh()

createShellMesh	(	const primitiveFacePatch &	patch,
		const faceList &	pointRegions,
		const labelList &	regionPoints
	)

Definition at line 419 of file createShellMesh.C.

References Foam::exit(), Foam::FatalError, and FatalErrorInFunction.

Here is the call graph for this function:

Member Function Documentation

ClassName()

ClassName

(

"createShellMesh"

)

cellToFaceMap()

const labelList& cellToFaceMap ( ) const

inline

Definition at line 126 of file createShellMesh.H.

faceToFaceMap()

const labelList& faceToFaceMap ( ) const

inline

Definition at line 137 of file createShellMesh.H.

faceToEdgeMap()

const labelList& faceToEdgeMap ( ) const

inline

Definition at line 143 of file createShellMesh.H.

pointToPointMap()

const labelList& pointToPointMap ( ) const

inline

Definition at line 149 of file createShellMesh.H.

calcPointRegions()

void calcPointRegions ( const globalMeshData &  globalData, const primitiveFacePatch &  patch, const bitSet &  nonManifoldEdge, const bool  syncNonCollocated, faceList &  pointGlobalRegions, faceList &  pointLocalRegions, labelList &  localToGlobalRegion  )

static

Definition at line 150 of file createShellMesh.C.

References DynamicList::append(), DynamicList::clear(), globalMeshData::coupledPatch(), Foam::constant::electromagnetic::e, f(), forAll, Foam::labelMax, globalIndex::localSize(), PatchTools::matchEdges(), Foam::foamVersion::patch, Foam::returnReduce(), bitSet::set(), List::setSize(), globalIndex::toGlobal(), and List::transfer().

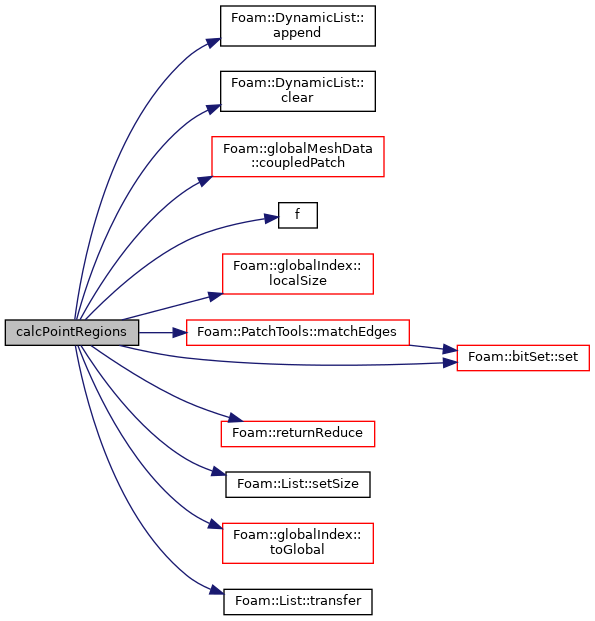

Here is the call graph for this function:

setRefinement()

void setRefinement	(	const pointField &	firstLayerThickness,
		const scalar	expansionRatio,
		const label	nLayers,
		const labelList &	topPatchID,
		const labelList &	bottomPatchID,
		const labelListList &	extrudeEdgePatches,
		polyTopoChange &	meshMod
	)

Definition at line 442 of file createShellMesh.C.

References polyTopoChange::addCell(), polyTopoChange::addFace(), polyTopoChange::addPoint(), DynamicList::append(), Foam::constant::electromagnetic::e, Foam::exit(), f(), Foam::FatalError, FatalErrorInFunction, face::flip(), and forAll.

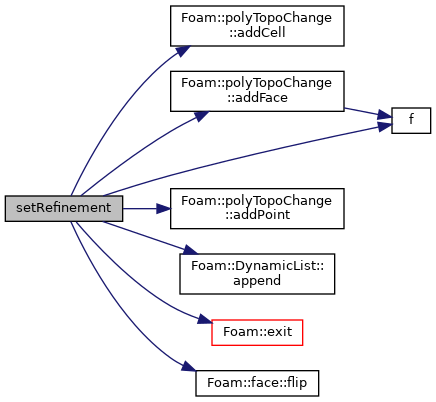

Here is the call graph for this function:

updateMesh()

void updateMesh

(

const mapPolyMesh &

map

)

Definition at line 902 of file createShellMesh.C.

References Foam::inplaceReorder(), mapPolyMesh::reverseCellMap(), mapPolyMesh::reverseFaceMap(), and mapPolyMesh::reversePointMap().

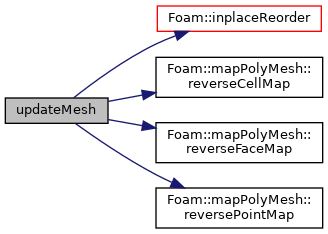

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/dynamicMesh/createShellMesh/createShellMesh.H
• src/dynamicMesh/createShellMesh/createShellMesh.C
