Mixed boundary condition for temperature and radiation heat transfer to be used for in multiregion cases. Optional thin thermal layer resistances can be specified through thicknessLayers and kappaLayers entries. More...

Inheritance diagram for turbulentTemperatureRadCoupledMixedFvPatchScalarField:

[legend]

Collaboration diagram for turbulentTemperatureRadCoupledMixedFvPatchScalarField:

[legend]

Public Member Functions
	TypeName ("compressible::turbulentTemperatureRadCoupledMixed")

	turbulentTemperatureRadCoupledMixedFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &)

	turbulentTemperatureRadCoupledMixedFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)

	turbulentTemperatureRadCoupledMixedFvPatchScalarField (const turbulentTemperatureRadCoupledMixedFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fvPatchFieldMapper &)

	turbulentTemperatureRadCoupledMixedFvPatchScalarField (const turbulentTemperatureRadCoupledMixedFvPatchScalarField &)

virtual tmp< fvPatchScalarField >	clone () const

	turbulentTemperatureRadCoupledMixedFvPatchScalarField (const turbulentTemperatureRadCoupledMixedFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)

virtual tmp< fvPatchScalarField >	clone (const DimensionedField< scalar, volMesh > &iF) const

virtual void	autoMap (const fvPatchFieldMapper &)

virtual void	rmap (const fvPatchField< scalar > &, const labelList &)

virtual tmp< scalarField >	kappa (const scalarField &Tp) const

virtual void	updateCoeffs ()

virtual void	manipulateMatrix (fvMatrix< scalar > &m, const label iMatrix, const direction cmpt)

virtual void	write (Ostream &os) const

Public Member Functions inherited from temperatureCoupledBase
	temperatureCoupledBase (const fvPatch &patch, const word &calculationMethod, const word &kappaName, const word &alphaAniName, const word &alphaName)

	temperatureCoupledBase (const fvPatch &patch, const dictionary &dict)

	temperatureCoupledBase (const fvPatch &patch, const temperatureCoupledBase &base)

	temperatureCoupledBase (const temperatureCoupledBase &)

virtual	~temperatureCoupledBase ()=default

word	KMethod () const

const word &	kappaName () const

const word &	alphaName () const

virtual tmp< scalarField >	alpha (const scalarField &Tp) const

void	write (Ostream &os) const

Public Member Functions inherited from mappedPatchFieldBase< scalar >
	mappedPatchFieldBase (const mappedPatchBase &mapper, const fvPatchField< scalar > &patchField, const word &fieldName, const bool setAverage, const scalar average, const word &interpolationScheme)

	mappedPatchFieldBase (const mappedPatchBase &mapper, const fvPatchField< scalar > &patchField, const dictionary &dict)

	mappedPatchFieldBase (const mappedPatchBase &mapper, const fvPatchField< scalar > &patchField, const dictionary &dict, const Field< scalar > &fld)

	mappedPatchFieldBase (const mappedPatchBase &mapper, const fvPatchField< scalar > &patchField)

	mappedPatchFieldBase (const mappedPatchFieldBase< scalar > &mapper)

	mappedPatchFieldBase (const mappedPatchBase &mapper, const fvPatchField< scalar > &patchField, const mappedPatchFieldBase< scalar > &base)

virtual	~mappedPatchFieldBase ()=default

const GeometricField< T, fvPatchField, volMesh > &	sampleField (const word &fieldName) const

const GeometricField< scalar, fvPatchField, volMesh > &	sampleField () const

const Foam::GeometricField< Type2, Foam::fvPatchField, Foam::volMesh > &	sampleField (const word &fieldName) const

virtual tmp< Field< scalar > >	mappedField () const

virtual tmp< Field< scalar > >	mappedInternalField () const

virtual tmp< scalarField >	mappedWeightField () const

virtual void	mappedWeightField (const word &weightFieldName, tmp< scalarField > &thisWeights, tmp< scalarField > &nbrWeights) const

void	distribute (const word &fieldName, Field< T > &newValues) const

Additional Inherited Members
Public Types inherited from temperatureCoupledBase
enum	KMethodType { mtFluidThermo, mtSolidThermo, mtDirectionalSolidThermo, mtLookup, mtFunction }

Static Public Member Functions inherited from mappedPatchFieldBase< scalar >
static const mappedPatchBase &	mapper (const fvPatch &p, const DimensionedField< scalar, volMesh > &iF)

Protected Member Functions inherited from mappedPatchFieldBase< scalar >
void	initRetrieveField (const objectRegistry &obr, const word &region, const word &patch, const labelListList &map, const word &fieldName, const Field< T > &fld) const

void	initRetrieveField (const word &fieldName, const Field< T > &fld) const

bool	storeAndRetrieveField (const word &fieldName, const label myComm, const labelListList &subMap, const label constructSize, const labelListList &constructMap, const labelListList &address, const scalarListList &weights, Field< T > &fld) const

void	storeField (const objectRegistry &obr, const word &region, const word &patch, const label myComm, const labelListList &procToMap, const word &fieldName, const Field< T > &fld) const

bool	retrieveField (const bool allowUnset, const objectRegistry &obr, const word &region, const word &patch, const label myComm, const labelListList &procToMap, const word &fieldName, Field< T > &fld) const

Protected Attributes inherited from temperatureCoupledBase
const fvPatch &	patch_

const KMethodType	method_

const word	kappaName_

const word	alphaAniName_

const word	alphaName_

autoPtr< PatchFunction1< scalar > >	kappaFunction1_

autoPtr< PatchFunction1< scalar > >	alphaFunction1_

Protected Attributes inherited from mappedPatchFieldBase< scalar >
const mappedPatchBase &	mapper_

const fvPatchField< scalar > &	patchField_

word	fieldName_

const bool	setAverage_

const scalar	average_

word	interpolationScheme_

Static Protected Attributes inherited from temperatureCoupledBase
static const Enum< KMethodType >	KMethodTypeNames_

Detailed Description

Mixed boundary condition for temperature and radiation heat transfer to be used for in multiregion cases. Optional thin thermal layer resistances can be specified through thicknessLayers and kappaLayers entries.

The thermal conductivity kappa can either be retrieved from various possible sources, as detailed in the class temperatureCoupledBase.

Usage

Property	Description	Required	Default value
`Tnbr`	name of the field	no	T
`qrNbr`	name of the radiative flux in the nbr region	no	none
`qr`	name of the radiative flux in this region	no	none
`thicknessLayers`	list of thicknesses per layer [m]	no
`kappaLayers`	list of thermal conductivites per layer [W/m/K]	no
`thicknessLayer`	single thickness of layer [m]	no
`kappaLayer`	corresponding thermal conductivity [W/m/K]	no
`kappaMethod`	inherited from temperatureCoupledBase	inherited
`kappa`	inherited from temperatureCoupledBase	inherited
`thermalInertia`	Add thermal inertia to wall node	no	false

Example of the boundary condition specification:

    <patchName>
    {
        type            compressible::turbulentTemperatureRadCoupledMixed;
        Tnbr            T;
        qrNbr           qr; // or none. Name of qr field on neighbour region
        qr              qr; // or none. Name of qr field on local region
        thicknessLayers (0.1 0.2 0.3 0.4);
        kappaLayers     (1 2 3 4);
        thermalInertia  false/true;
        kappaMethod     lookup;
        kappa           kappa;
        value           uniform 300;
    }

Needs to be on underlying mapped(Wall)FvPatch.

See also: Foam::temperatureCoupledBase

Source files

Definition at line 150 of file turbulentTemperatureRadCoupledMixedFvPatchScalarField.H.

Constructor & Destructor Documentation

◆ turbulentTemperatureRadCoupledMixedFvPatchScalarField() [1/5]

turbulentTemperatureRadCoupledMixedFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF
	)

Definition at line 41 of file turbulentTemperatureRadCoupledMixedFvPatchScalarField.C.

◆ turbulentTemperatureRadCoupledMixedFvPatchScalarField() [2/5]

turbulentTemperatureRadCoupledMixedFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const dictionary &	dict
	)

Definition at line 102 of file turbulentTemperatureRadCoupledMixedFvPatchScalarField.C.

References dict, Foam::exit(), Foam::FatalError, FatalErrorInFunction, PatchFunction1::NewIfPresent(), fvPatchField::operator=(), p, and Foam::foamVersion::patch.

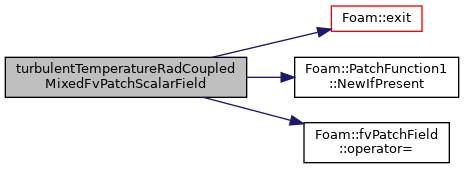

Here is the call graph for this function:

◆ turbulentTemperatureRadCoupledMixedFvPatchScalarField() [3/5]

turbulentTemperatureRadCoupledMixedFvPatchScalarField	(	const turbulentTemperatureRadCoupledMixedFvPatchScalarField &	psf,
		const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const fvPatchFieldMapper &	mapper
	)

Definition at line 74 of file turbulentTemperatureRadCoupledMixedFvPatchScalarField.C.

◆ turbulentTemperatureRadCoupledMixedFvPatchScalarField() [4/5]

turbulentTemperatureRadCoupledMixedFvPatchScalarField ( const turbulentTemperatureRadCoupledMixedFvPatchScalarField & psf )

Definition at line 252 of file turbulentTemperatureRadCoupledMixedFvPatchScalarField.C.

◆ turbulentTemperatureRadCoupledMixedFvPatchScalarField() [5/5]

turbulentTemperatureRadCoupledMixedFvPatchScalarField	(	const turbulentTemperatureRadCoupledMixedFvPatchScalarField &	psf,
		const DimensionedField< scalar, volMesh > &	iF
	)

Definition at line 226 of file turbulentTemperatureRadCoupledMixedFvPatchScalarField.C.

Member Function Documentation

◆ TypeName()

TypeName ( "compressible::turbulentTemperatureRadCoupledMixed" )

◆ clone() [1/2]

virtual tmp<fvPatchScalarField> clone ( ) const

inlinevirtual

Reimplemented in thermalBaffleFvPatchScalarField.

Definition at line 243 of file turbulentTemperatureRadCoupledMixedFvPatchScalarField.H.

◆ clone() [2/2]

virtual tmp<fvPatchScalarField> clone ( const DimensionedField< scalar, volMesh > & iF ) const

inlinevirtual

Reimplemented in thermalBaffleFvPatchScalarField.

Definition at line 263 of file turbulentTemperatureRadCoupledMixedFvPatchScalarField.H.

◆ autoMap()

void autoMap ( const fvPatchFieldMapper & mapper )

virtual

Implements temperatureCoupledBase.

Definition at line 278 of file turbulentTemperatureRadCoupledMixedFvPatchScalarField.C.

References temperatureCoupledBase::autoMap().

Here is the call graph for this function:

◆ rmap()

void rmap	(	const fvPatchField< scalar > &	ptf,
		const labelList &	addr
	)

virtual

Implements temperatureCoupledBase.

Definition at line 294 of file turbulentTemperatureRadCoupledMixedFvPatchScalarField.C.

References Foam::refCast(), and temperatureCoupledBase::rmap().

Here is the call graph for this function:

◆ kappa()

tmp< Foam::scalarField > kappa ( const scalarField & Tp ) const

virtual

Reimplemented from temperatureCoupledBase.

Definition at line 319 of file turbulentTemperatureRadCoupledMixedFvPatchScalarField.C.

References forAll, temperatureCoupledBase::kappa(), and Foam::foamVersion::patch.

Referenced by turbulentTemperatureRadCoupledMixedFvPatchScalarField::updateCoeffs().

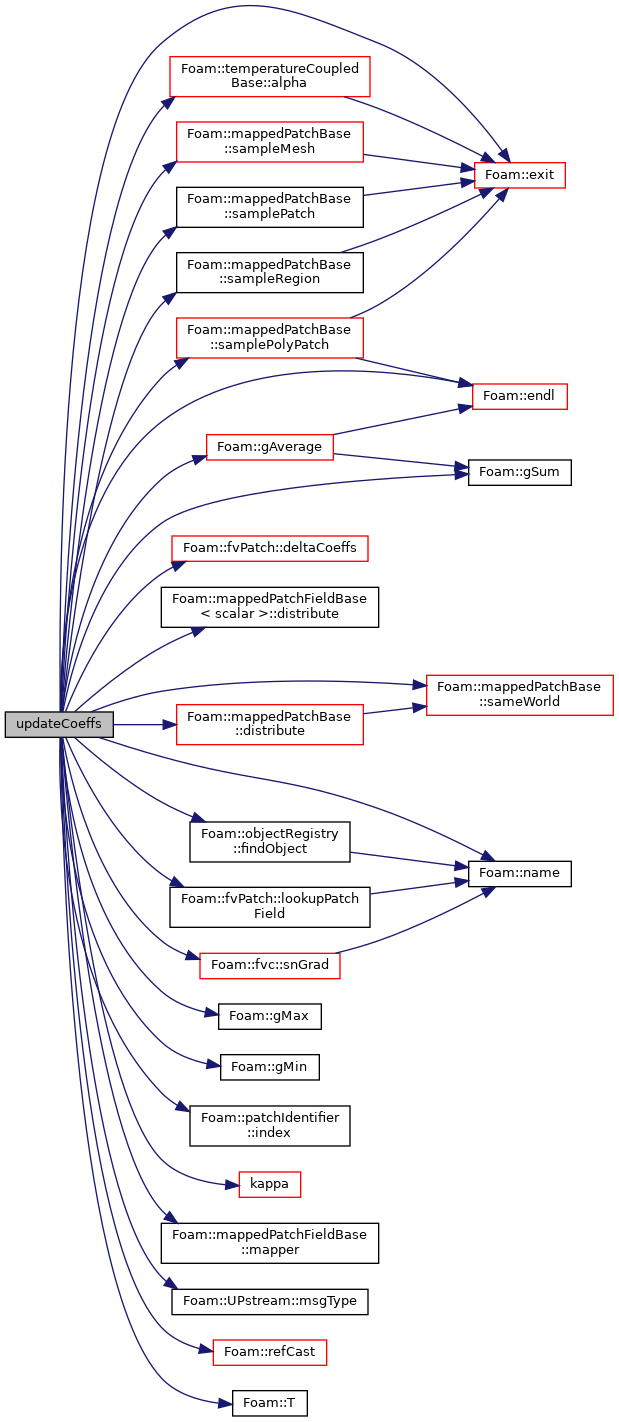

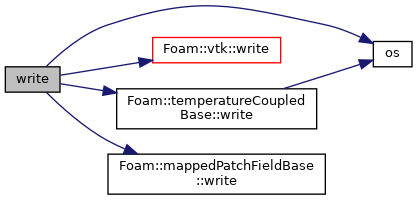

Here is the call graph for this function:

Here is the caller graph for this function:

◆ updateCoeffs()

void updateCoeffs ( )

virtual

Reimplemented in thermalBaffleFvPatchScalarField.

Definition at line 359 of file turbulentTemperatureRadCoupledMixedFvPatchScalarField.C.

References temperatureCoupledBase::alpha(), Foam::constant::universal::c, Foam::expressions::patchExpr::debug, fvPatch::deltaCoeffs(), basicThermo::dictName, mappedPatchFieldBase< scalar >::distribute(), mappedPatchBase::distribute(), Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, objectRegistry::findObject(), Foam::gAverage(), Foam::gMax(), Foam::gMin(), Foam::gSum(), patchIdentifier::index(), Foam::Info, turbulentTemperatureRadCoupledMixedFvPatchScalarField::kappa(), fvPatch::lookupPatchField(), mappedPatchFieldBase< Type >::mapper(), mesh, UPstream::msgType(), Foam::name(), Foam::foamVersion::patch, Foam::refCast(), mappedPatchBase::sameWorld(), mappedPatchBase::sampleMesh(), mappedPatchBase::samplePatch(), mappedPatchBase::samplePolyPatch(), mappedPatchBase::sampleRegion(), Foam::fvc::snGrad(), Foam::T(), and Foam::Zero.

Referenced by thermalBaffleFvPatchScalarField::updateCoeffs().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ manipulateMatrix()

void manipulateMatrix	(	fvMatrix< scalar > &	m,
		const label	iMatrix,
		const direction	cmpt
	)

virtual

Definition at line 574 of file turbulentTemperatureRadCoupledMixedFvPatchScalarField.C.

References Foam::abort(), Foam::FatalError, and FatalErrorInFunction.

Here is the call graph for this function:

◆ write()

void write ( Ostream & os ) const

virtual

Reimplemented from mappedPatchFieldBase< scalar >.

Reimplemented in thermalBaffleFvPatchScalarField.

Definition at line 719 of file turbulentTemperatureRadCoupledMixedFvPatchScalarField.C.

References os(), Foam::vtk::write(), temperatureCoupledBase::write(), and mappedPatchFieldBase< Type >::write().

Referenced by thermalBaffleFvPatchScalarField::write().

Here is the call graph for this function:

Here is the caller graph for this function:

The documentation for this class was generated from the following files:
