turbulentTemperatureCoupledBaffleMixedFvPatchScalarField Class Reference

Mixed boundary condition for temperature, to be used for heat-transfer on back-to-back baffles. Optional thin thermal layer resistances can be specified through thicknessLayers and kappaLayers entries. More...

Inheritance diagram for turbulentTemperatureCoupledBaffleMixedFvPatchScalarField:

Collaboration diagram for turbulentTemperatureCoupledBaffleMixedFvPatchScalarField:

Public Member Functions
	TypeName ("compressible::turbulentTemperatureCoupledBaffleMixed")
	turbulentTemperatureCoupledBaffleMixedFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &)
	turbulentTemperatureCoupledBaffleMixedFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
	turbulentTemperatureCoupledBaffleMixedFvPatchScalarField (const turbulentTemperatureCoupledBaffleMixedFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fvPatchFieldMapper &)
	turbulentTemperatureCoupledBaffleMixedFvPatchScalarField (const turbulentTemperatureCoupledBaffleMixedFvPatchScalarField &)
virtual tmp< fvPatchScalarField >	clone () const
	turbulentTemperatureCoupledBaffleMixedFvPatchScalarField (const turbulentTemperatureCoupledBaffleMixedFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)
virtual tmp< fvPatchScalarField >	clone (const DimensionedField< scalar, volMesh > &iF) const
virtual void	autoMap (const fvPatchFieldMapper &)
virtual void	rmap (const fvPatchField< scalar > &, const labelList &)
virtual tmp< scalarField >	kappa (const scalarField &Tp) const
virtual void	updateCoeffs ()
virtual void	manipulateMatrix (fvMatrix< scalar > &m, const label iMatrix, const direction cmpt)
virtual void	write (Ostream &os) const
Public Member Functions inherited from temperatureCoupledBase
	temperatureCoupledBase (const fvPatch &patch, const word &calculationMethod, const word &kappaName, const word &alphaAniName, const word &alphaName)
	temperatureCoupledBase (const fvPatch &patch, const dictionary &dict)
	temperatureCoupledBase (const fvPatch &patch, const temperatureCoupledBase &base)
	temperatureCoupledBase (const temperatureCoupledBase &)
virtual	~temperatureCoupledBase ()=default
word	KMethod () const
const word &	kappaName () const
const word &	alphaName () const
virtual tmp< scalarField >	alpha (const scalarField &Tp) const
void	write (Ostream &os) const
Public Member Functions inherited from mappedPatchFieldBase< scalar >
	mappedPatchFieldBase (const mappedPatchBase &mapper, const fvPatchField< scalar > &patchField, const word &fieldName, const bool setAverage, const scalar average, const word &interpolationScheme)
	mappedPatchFieldBase (const mappedPatchBase &mapper, const fvPatchField< scalar > &patchField, const dictionary &dict)
	mappedPatchFieldBase (const mappedPatchBase &mapper, const fvPatchField< scalar > &patchField, const dictionary &dict, const Field< scalar > &fld)
	mappedPatchFieldBase (const mappedPatchBase &mapper, const fvPatchField< scalar > &patchField)
	mappedPatchFieldBase (const mappedPatchFieldBase< scalar > &mapper)
	mappedPatchFieldBase (const mappedPatchBase &mapper, const fvPatchField< scalar > &patchField, const mappedPatchFieldBase< scalar > &base)
virtual	~mappedPatchFieldBase ()=default
const GeometricField< T, fvPatchField, volMesh > &	sampleField (const word &fieldName) const
const GeometricField< scalar, fvPatchField, volMesh > &	sampleField () const
const Foam::GeometricField< Type2, Foam::fvPatchField, Foam::volMesh > &	sampleField (const word &fieldName) const
virtual tmp< Field< scalar > >	mappedField () const
virtual tmp< Field< scalar > >	mappedInternalField () const
virtual tmp< scalarField >	mappedWeightField () const
virtual void	mappedWeightField (const word &weightFieldName, tmp< scalarField > &thisWeights, tmp< scalarField > &nbrWeights) const
void	distribute (const word &fieldName, Field< T > &newValues) const

Additional Inherited Members
Public Types inherited from temperatureCoupledBase
enum	KMethodType {   mtFluidThermo, mtSolidThermo, mtDirectionalSolidThermo, mtLookup,   mtFunction }
Static Public Member Functions inherited from mappedPatchFieldBase< scalar >
static const mappedPatchBase &	mapper (const fvPatch &p, const DimensionedField< scalar, volMesh > &iF)
Protected Member Functions inherited from mappedPatchFieldBase< scalar >
void	initRetrieveField (const objectRegistry &obr, const word &region, const word &patch, const labelListList &map, const word &fieldName, const Field< T > &fld) const
void	initRetrieveField (const word &fieldName, const Field< T > &fld) const
bool	storeAndRetrieveField (const word &fieldName, const label myComm, const labelListList &subMap, const label constructSize, const labelListList &constructMap, const labelListList &address, const scalarListList &weights, Field< T > &fld) const
void	storeField (const objectRegistry &obr, const word &region, const word &patch, const label myComm, const labelListList &procToMap, const word &fieldName, const Field< T > &fld) const
bool	retrieveField (const bool allowUnset, const objectRegistry &obr, const word &region, const word &patch, const label myComm, const labelListList &procToMap, const word &fieldName, Field< T > &fld) const
Protected Attributes inherited from temperatureCoupledBase
const fvPatch &	patch_
const KMethodType	method_
const word	kappaName_
const word	alphaAniName_
const word	alphaName_
autoPtr< PatchFunction1< scalar > >	kappaFunction1_
autoPtr< PatchFunction1< scalar > >	alphaFunction1_
Protected Attributes inherited from mappedPatchFieldBase< scalar >
const mappedPatchBase &	mapper_
const fvPatchField< scalar > &	patchField_
word	fieldName_
const bool	setAverage_
const scalar	average_
word	interpolationScheme_
Static Protected Attributes inherited from temperatureCoupledBase
static const Enum< KMethodType >	KMethodTypeNames_

Detailed Description

Mixed boundary condition for temperature, to be used for heat-transfer on back-to-back baffles. Optional thin thermal layer resistances can be specified through thicknessLayers and kappaLayers entries.

Specifies gradient and temperature such that the equations are the same on both sides:

• refGradient = zero gradient
• refValue = neighbour value
• mixFraction = nbrKDelta / (nbrKDelta + myKDelta())

where KDelta is heat-transfer coefficient K * deltaCoeffs

The thermal conductivity kappa can either be retrieved from various possible sources, as detailed in the class temperatureCoupledBase.

Usage

Property	Description	Required	Default value
Tnbr	name of the field	no	T
thicknessLayers	list of thicknesses per layer [m]	no
kappaLayers	list of thermal conductivities per layer [W/m/K]	no
thicknessLayer	single thickness of layer [m]	no
kappaLayer	corresponding thermal conductivity [W/m/K]	no
kappaMethod	inherited from temperatureCoupledBase	inherited
kappa	inherited from temperatureCoupledBase	inherited

Example of the boundary condition specification:

    <patchName>
    {
        type            compressible::turbulentTemperatureCoupledBaffleMixed;
        Tnbr            T;
        thicknessLayers (0.1 0.2 0.3 0.4);
        kappaLayers     (1 2 3 4);
        kappaMethod     lookup;
        kappa           kappa;
        value           uniform 300;
    }

Needs to be on underlying mapped(Wall)FvPatch.

See also

Foam::temperatureCoupledBase

Source files

• turbulentTemperatureCoupledBaffleMixedFvPatchScalarField.H
• turbulentTemperatureCoupledBaffleMixedFvPatchScalarField.C

Definition at line 136 of file turbulentTemperatureCoupledBaffleMixedFvPatchScalarField.H.

Constructor & Destructor Documentation

turbulentTemperatureCoupledBaffleMixedFvPatchScalarField() [1/5]

turbulentTemperatureCoupledBaffleMixedFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF
	)

Definition at line 39 of file turbulentTemperatureCoupledBaffleMixedFvPatchScalarField.C.

turbulentTemperatureCoupledBaffleMixedFvPatchScalarField() [2/5]

turbulentTemperatureCoupledBaffleMixedFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const dictionary &	dict
	)

// Store patch value as initial guess when running in database mode mappedPatchFieldBase<scalar>::initRetrieveField ( this->internalField().name(), *this ); mappedPatchFieldBase<scalar>::initRetrieveField ( this->internalField().name() + "_weights", this->patch().deltaCoeffs() );

Definition at line 93 of file turbulentTemperatureCoupledBaffleMixedFvPatchScalarField.C.

References dict, Foam::endl(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, PatchFunction1::NewIfPresent(), fvPatchField::operator=(), p, Foam::foamVersion::patch, and WarningInFunction.

Here is the call graph for this function:

turbulentTemperatureCoupledBaffleMixedFvPatchScalarField() [3/5]

turbulentTemperatureCoupledBaffleMixedFvPatchScalarField	(	const turbulentTemperatureCoupledBaffleMixedFvPatchScalarField &	ptf,
		const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const fvPatchFieldMapper &	mapper
	)

Definition at line 68 of file turbulentTemperatureCoupledBaffleMixedFvPatchScalarField.C.

turbulentTemperatureCoupledBaffleMixedFvPatchScalarField() [4/5]

turbulentTemperatureCoupledBaffleMixedFvPatchScalarField

(

const turbulentTemperatureCoupledBaffleMixedFvPatchScalarField &

wtcsf

)

Definition at line 204 of file turbulentTemperatureCoupledBaffleMixedFvPatchScalarField.C.

turbulentTemperatureCoupledBaffleMixedFvPatchScalarField() [5/5]

turbulentTemperatureCoupledBaffleMixedFvPatchScalarField	(	const turbulentTemperatureCoupledBaffleMixedFvPatchScalarField &	wtcsf,
		const DimensionedField< scalar, volMesh > &	iF
	)

Definition at line 181 of file turbulentTemperatureCoupledBaffleMixedFvPatchScalarField.C.

Member Function Documentation

TypeName()

TypeName

(

"compressible::turbulentTemperatureCoupledBaffleMixed"

)

clone() [1/2]

virtual tmp<fvPatchScalarField> clone ( ) const

inlinevirtual

Definition at line 208 of file turbulentTemperatureCoupledBaffleMixedFvPatchScalarField.H.

clone() [2/2]

virtual tmp<fvPatchScalarField> clone ( const DimensionedField< scalar, volMesh > &  iF ) const

inlinevirtual

Definition at line 228 of file turbulentTemperatureCoupledBaffleMixedFvPatchScalarField.H.

autoMap()

void autoMap ( const fvPatchFieldMapper &  mapper )

virtual

Implements temperatureCoupledBase.

Definition at line 227 of file turbulentTemperatureCoupledBaffleMixedFvPatchScalarField.C.

References temperatureCoupledBase::autoMap().

Here is the call graph for this function:

rmap()

void rmap ( const fvPatchField< scalar > &  ptf, const labelList &  addr  )

virtual

Implements temperatureCoupledBase.

Definition at line 243 of file turbulentTemperatureCoupledBaffleMixedFvPatchScalarField.C.

References Foam::refCast(), and temperatureCoupledBase::rmap().

Here is the call graph for this function:

kappa()

tmp< Foam::scalarField > kappa ( const scalarField &  Tp ) const

virtual

Reimplemented from temperatureCoupledBase.

Definition at line 268 of file turbulentTemperatureCoupledBaffleMixedFvPatchScalarField.C.

References forAll, temperatureCoupledBase::kappa(), and Foam::foamVersion::patch.

Referenced by turbulentTemperatureCoupledBaffleMixedFvPatchScalarField::updateCoeffs().

Here is the call graph for this function:

Here is the caller graph for this function:

updateCoeffs()

void updateCoeffs ( )

virtual

Definition at line 308 of file turbulentTemperatureCoupledBaffleMixedFvPatchScalarField.C.

References Foam::expressions::patchExpr::debug, mappedPatchFieldBase< scalar >::distribute(), Foam::endl(), Foam::gAverage(), Foam::gMax(), Foam::gMin(), Foam::gSum(), patchIdentifier::index(), Foam::Info, turbulentTemperatureCoupledBaffleMixedFvPatchScalarField::kappa(), mappedPatchFieldBase< Type >::mapper(), UPstream::msgType(), Foam::name(), Foam::foamVersion::patch, tmp::ref(), Foam::refCast(), mappedPatchBase::sameWorld(), mappedPatchBase::sampleMesh(), mappedPatchBase::samplePatch(), mappedPatchBase::samplePolyPatch(), mappedPatchBase::sampleRegion(), and Foam::fvc::snGrad().

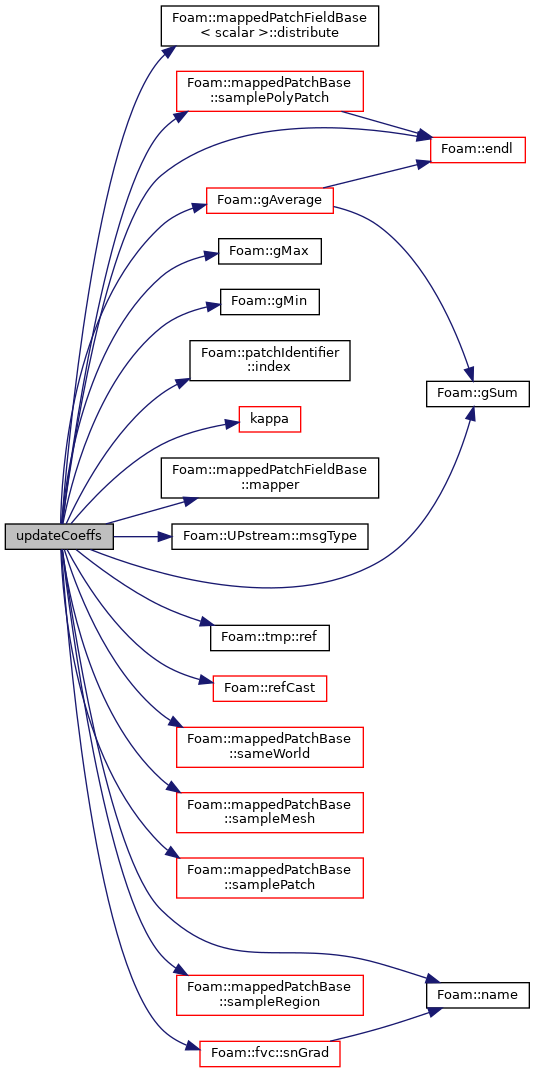

Here is the call graph for this function:

manipulateMatrix()

void manipulateMatrix ( fvMatrix< scalar > &  m, const label  iMatrix, const direction  cmpt  )

virtual

Definition at line 415 of file turbulentTemperatureCoupledBaffleMixedFvPatchScalarField.C.

References Foam::abort(), Foam::FatalError, and FatalErrorInFunction.

Here is the call graph for this function:

write()

void write ( Ostream &  os ) const

virtual

Reimplemented from mappedPatchFieldBase< scalar >.

Definition at line 462 of file turbulentTemperatureCoupledBaffleMixedFvPatchScalarField.C.

References os(), Foam::vtk::write(), temperatureCoupledBase::write(), and mappedPatchFieldBase< Type >::write().

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/TurbulenceModels/compressible/turbulentFluidThermoModels/derivedFvPatchFields/turbulentTemperatureCoupledBaffleMixed/turbulentTemperatureCoupledBaffleMixedFvPatchScalarField.H
• src/TurbulenceModels/compressible/turbulentFluidThermoModels/derivedFvPatchFields/turbulentTemperatureCoupledBaffleMixed/turbulentTemperatureCoupledBaffleMixedFvPatchScalarField.C
