convectiveHeatTransferFvPatchScalarField Class Reference

This boundary condition provides a convective heat transfer coefficient condition. More...

Inheritance diagram for convectiveHeatTransferFvPatchScalarField:

Collaboration diagram for convectiveHeatTransferFvPatchScalarField:

Public Member Functions
	TypeName ("convectiveHeatTransfer")
	convectiveHeatTransferFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &)
	convectiveHeatTransferFvPatchScalarField (const fvPatch &, const DimensionedField< scalar, volMesh > &, const dictionary &)
	convectiveHeatTransferFvPatchScalarField (const convectiveHeatTransferFvPatchScalarField &, const fvPatch &, const DimensionedField< scalar, volMesh > &, const fvPatchFieldMapper &)
	convectiveHeatTransferFvPatchScalarField (const convectiveHeatTransferFvPatchScalarField &)
virtual tmp< fvPatchScalarField >	clone () const
	convectiveHeatTransferFvPatchScalarField (const convectiveHeatTransferFvPatchScalarField &, const DimensionedField< scalar, volMesh > &)
virtual tmp< fvPatchScalarField >	clone (const DimensionedField< scalar, volMesh > &iF) const
virtual void	updateCoeffs ()
virtual void	write (Ostream &) const

Protected Attributes
const scalar	L_

Detailed Description

This boundary condition provides a convective heat transfer coefficient condition.

if Re > 500000

else

where

	=	patch convective heat transfer coefficient
	=	Reynolds number
	=	Prandtl number
	=	thermal conductivity
	=	length scale

Usage

Property	Description	Required	Default value
L	Length scale [m]	yes

Example of the boundary condition specification:

    <patchName>
    {
        type            convectiveHeatTransfer;
        L               0.1;
    }

See also

Foam::fixedValueFvPatchField

Source files

• convectiveHeatTransferFvPatchScalarField.H
• convectiveHeatTransferFvPatchScalarField.C

Definition at line 119 of file convectiveHeatTransferFvPatchScalarField.H.

Constructor & Destructor Documentation

convectiveHeatTransferFvPatchScalarField() [1/5]

convectiveHeatTransferFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF
	)

Definition at line 37 of file convectiveHeatTransferFvPatchScalarField.C.

Referenced by convectiveHeatTransferFvPatchScalarField::clone().

Here is the caller graph for this function:

convectiveHeatTransferFvPatchScalarField() [2/5]

convectiveHeatTransferFvPatchScalarField	(	const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const dictionary &	dict
	)

Definition at line 63 of file convectiveHeatTransferFvPatchScalarField.C.

convectiveHeatTransferFvPatchScalarField() [3/5]

convectiveHeatTransferFvPatchScalarField	(	const convectiveHeatTransferFvPatchScalarField &	ptf,
		const fvPatch &	p,
		const DimensionedField< scalar, volMesh > &	iF,
		const fvPatchFieldMapper &	mapper
	)

Definition at line 49 of file convectiveHeatTransferFvPatchScalarField.C.

convectiveHeatTransferFvPatchScalarField() [4/5]

convectiveHeatTransferFvPatchScalarField

(

const convectiveHeatTransferFvPatchScalarField &

htcpsf

)

Definition at line 76 of file convectiveHeatTransferFvPatchScalarField.C.

convectiveHeatTransferFvPatchScalarField() [5/5]

convectiveHeatTransferFvPatchScalarField	(	const convectiveHeatTransferFvPatchScalarField &	htcpsf,
		const DimensionedField< scalar, volMesh > &	iF
	)

Definition at line 87 of file convectiveHeatTransferFvPatchScalarField.C.

Member Function Documentation

TypeName()

TypeName

(

"convectiveHeatTransfer"

)

clone() [1/2]

virtual tmp<fvPatchScalarField> clone ( ) const

inlinevirtual

Definition at line 172 of file convectiveHeatTransferFvPatchScalarField.H.

References convectiveHeatTransferFvPatchScalarField::convectiveHeatTransferFvPatchScalarField().

Here is the call graph for this function:

clone() [2/2]

virtual tmp<fvPatchScalarField> clone ( const DimensionedField< scalar, volMesh > &  iF ) const

inlinevirtual

Definition at line 189 of file convectiveHeatTransferFvPatchScalarField.H.

References convectiveHeatTransferFvPatchScalarField::convectiveHeatTransferFvPatchScalarField().

Here is the call graph for this function:

updateCoeffs()

void updateCoeffs ( )

virtual

Definition at line 99 of file convectiveHeatTransferFvPatchScalarField.C.

References ThermalDiffusivity::alphaEff(), Foam::cbrt(), forAll, Foam::constant::atomic::group, IOobject::groupName(), convectiveHeatTransferFvPatchScalarField::L_, Foam::mag(), Foam::foamVersion::patch, Foam::pow(), Pr(), Foam::Re(), and Foam::sqrt().

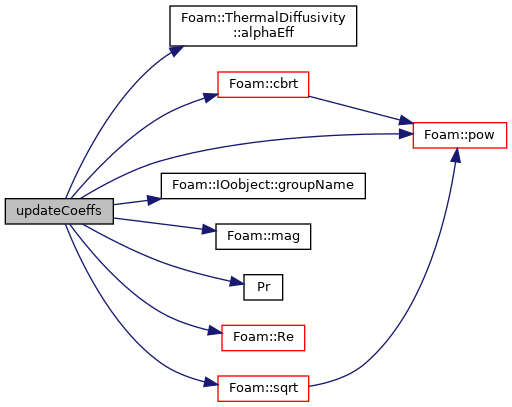

Here is the call graph for this function:

write()

void write ( Ostream &  os ) const

virtual

Definition at line 156 of file convectiveHeatTransferFvPatchScalarField.C.

References convectiveHeatTransferFvPatchScalarField::L_, os(), and fvPatchField::write().

Here is the call graph for this function:

Member Data Documentation

L_

const scalar L_

protected

Definition at line 128 of file convectiveHeatTransferFvPatchScalarField.H.

Referenced by convectiveHeatTransferFvPatchScalarField::updateCoeffs(), and convectiveHeatTransferFvPatchScalarField::write().

---

The documentation for this class was generated from the following files:

• src/TurbulenceModels/compressible/turbulentFluidThermoModels/derivedFvPatchFields/convectiveHeatTransfer/convectiveHeatTransferFvPatchScalarField.H
• src/TurbulenceModels/compressible/turbulentFluidThermoModels/derivedFvPatchFields/convectiveHeatTransfer/convectiveHeatTransferFvPatchScalarField.C
