Base class for cellshape matchers (hexMatch, prismMatch, etc.). These are classes which given a mesh and cell number find out the orientation of the cellShape and construct cell-vertex to mesh-vertex mapping and cell-face to mesh-face mapping. More...

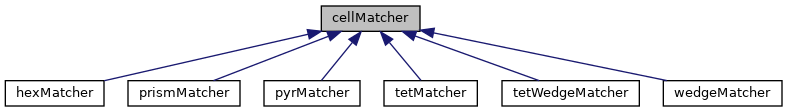

Inheritance diagram for cellMatcher:

[legend]

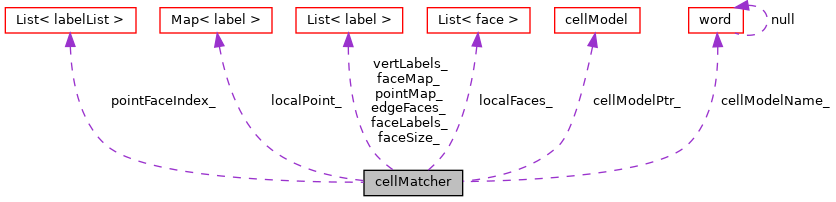

Collaboration diagram for cellMatcher:

[legend]

Public Member Functions
	cellMatcher (const label vertPerCell, const label facePerCell, const label maxVertPerFace, const word &cellModelName)

virtual	~cellMatcher ()=default

const Map< label > &	localPoint () const

const faceList &	localFaces () const

const labelList &	faceSize () const

const labelList &	pointMap () const

const labelList &	faceMap () const

const labelList &	edgeFaces () const

const labelListList &	pointFaceIndex () const

const labelList &	vertLabels () const

const labelList &	faceLabels () const

const cellModel &	model () const

void	write (Ostream &os) const

virtual label	nVertPerCell () const =0

virtual label	nFacePerCell () const =0

virtual label	nMaxVertPerFace () const =0

virtual label	faceHashValue () const =0

virtual bool	faceSizeMatch (const faceList &, const labelList &) const =0

virtual bool	matchShape (const bool checkOnly, const faceList &faces, const labelList &faceOwner, const label celli, const labelList &myFaces)=0

virtual bool	isA (const primitiveMesh &mesh, const label celli)=0

virtual bool	isA (const faceList &)=0

virtual bool	matches (const primitiveMesh &mesh, const label celli, cellShape &shape)=0

Protected Member Functions
label	calcLocalFaces (const faceList &faces, const labelList &myFaces)

void	calcEdgeAddressing (const label numVert)

void	calcPointFaceIndex ()

label	otherFace (const label numVert, const label v0, const label v1, const label localFacei) const

	cellMatcher (const cellMatcher &)=delete

cellMatcher &	operator= (const cellMatcher &)=delete

Static Protected Member Functions
static label	edgeKey (const label numVert, const label v0, const label v1)

static label	nextVert (const label, const label, const bool)

Protected Attributes
Map< label >	localPoint_

faceList	localFaces_

labelList	faceSize_

labelList	pointMap_

labelList	faceMap_

labelList	edgeFaces_

labelListList	pointFaceIndex_

labelList	vertLabels_

labelList	faceLabels_

const word	cellModelName_

const cellModel *	cellModelPtr_

Detailed Description

Base class for cellshape matchers (hexMatch, prismMatch, etc.). These are classes which given a mesh and cell number find out the orientation of the cellShape and construct cell-vertex to mesh-vertex mapping and cell-face to mesh-face mapping.

For example,

    hexMatcher hex(mesh);
    cellShape shape;
    ..
    bool isHex = hex.match(celli, shape);

Now shape is set to the correct Hex cellShape (if isHex is true)

Alternatively there is direct access to the vertex and face mapping:

    const labelList& hexVertLabels = hex.vertLabels();
    const labelList& hexFaceLabels = hex.faceLabels();

Now

hexVertLabels[n] is vertex label of hex vertex n
hexFaceLabels[n] is face label of hex vertex n

Process of cellShape recognition consists of following steps:

renumber vertices of cell to local vertex numbers
construct (local to cell) addressing edge-to-faces
construct (local to cell) addressing vertex and face to index in face
find most unique face shape (e.g. triangle for prism)
walk (following either vertices in face or jumping from face to other face) to other faces and checking face sizes.
if necessary try other rotations of this face (only necessary for wedge, tet-wedge)
if necessary try other faces which most unique face shape (never necessary for hex degenerates)

The whole calculation is done such that no lists are allocated during cell checking. E.g. localFaces_ are always sized to hold max. number of possible face vertices and a separate list is filled which holds the actusl face sizes.

For now all hex-degenerates implemented. Numbering taken from picture in demoGuide.

Source files

Definition at line 95 of file cellMatcher.H.

Constructor & Destructor Documentation

◆ cellMatcher() [1/2]

cellMatcher ( const cellMatcher & )

protecteddelete

◆ cellMatcher() [2/2]

cellMatcher	(	const label	vertPerCell,
		const label	facePerCell,
		const label	maxVertPerFace,
		const word &	cellModelName
	)

Definition at line 33 of file cellMatcher.C.

References f().

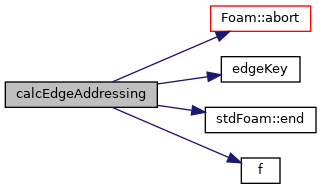

Here is the call graph for this function:

◆ ~cellMatcher()

virtual ~cellMatcher ( )

virtualdefault

Member Function Documentation

◆ edgeKey()

Foam::label edgeKey	(	const label	numVert,
		const label	v0,
		const label	v1
	)

inlinestaticprotected

Definition at line 90 of file cellMatcherI.H.

Referenced by cellMatcher::calcEdgeAddressing().

Here is the caller graph for this function:

◆ nextVert()

Foam::label nextVert	(	const label	localVertI,
		const label	size,
		const bool	rightHand
	)

inlinestaticprotected

Definition at line 102 of file cellMatcherI.H.

◆ calcLocalFaces()

Foam::label calcLocalFaces	(	const faceList &	faces,
		const labelList &	myFaces
	)

protected

Definition at line 67 of file cellMatcher.C.

References f(), forAll, and forAllConstIters().

Here is the call graph for this function:

◆ calcEdgeAddressing()

void calcEdgeAddressing ( const label numVert )

protected

Definition at line 130 of file cellMatcher.C.

References Foam::abort(), cellMatcher::edgeFaces_, cellMatcher::edgeKey(), stdFoam::end(), f(), cellMatcher::faceSize_, Foam::FatalError, FatalErrorInFunction, forAll, and cellMatcher::localFaces_.

Here is the call graph for this function:

◆ calcPointFaceIndex()

void calcPointFaceIndex ( )

protected

Definition at line 179 of file cellMatcher.C.

References f(), and forAll.

Here is the call graph for this function:

◆ otherFace()

Foam::label otherFace	(	const label	numVert,
		const label	v0,
		const label	v1,
		const label	localFacei
	)		const

protected

Definition at line 206 of file cellMatcher.C.

References Foam::abort(), Foam::FatalError, FatalErrorInFunction, and Foam::glTF::key().

Here is the call graph for this function:

◆ operator=()

cellMatcher& operator= ( const cellMatcher & )

protecteddelete

◆ localPoint()

const Foam::Map< Foam::label > & localPoint ( ) const

inline

Definition at line 23 of file cellMatcherI.H.

References cellMatcher::localPoint_.

◆ localFaces()

const Foam::faceList & localFaces ( ) const

inline

Definition at line 29 of file cellMatcherI.H.

◆ faceSize()

const Foam::labelList & faceSize ( ) const

inline

Definition at line 35 of file cellMatcherI.H.

◆ pointMap()

const Foam::labelList & pointMap ( ) const

inline

Definition at line 41 of file cellMatcherI.H.

◆ faceMap()

const Foam::labelList & faceMap ( ) const

inline

Definition at line 47 of file cellMatcherI.H.

◆ edgeFaces()

const Foam::labelList & edgeFaces ( ) const

inline

Definition at line 53 of file cellMatcherI.H.

◆ pointFaceIndex()

const Foam::labelListList & pointFaceIndex ( ) const

inline

Definition at line 59 of file cellMatcherI.H.

◆ vertLabels()

const Foam::labelList & vertLabels ( ) const

inline

Definition at line 65 of file cellMatcherI.H.

◆ faceLabels()

const Foam::labelList & faceLabels ( ) const

inline

Definition at line 71 of file cellMatcherI.H.

◆ model()

const Foam::cellModel & model ( ) const

inline

Definition at line 77 of file cellMatcherI.H.

References cellModel::ptr().

Here is the call graph for this function:

◆ write()

void write ( Foam::Ostream & os ) const

Definition at line 235 of file cellMatcher.C.

References Foam::endl(), forAll, Foam::nl, and os().

Here is the call graph for this function:

◆ nVertPerCell()

virtual label nVertPerCell ( ) const

pure virtual

Implemented in hexMatcher, pyrMatcher, tetMatcher, prismMatcher, tetWedgeMatcher, and wedgeMatcher.

◆ nFacePerCell()

virtual label nFacePerCell ( ) const

pure virtual

Implemented in hexMatcher, pyrMatcher, tetMatcher, prismMatcher, tetWedgeMatcher, and wedgeMatcher.

◆ nMaxVertPerFace()

virtual label nMaxVertPerFace ( ) const

pure virtual

Implemented in hexMatcher, pyrMatcher, tetMatcher, prismMatcher, tetWedgeMatcher, and wedgeMatcher.

◆ faceHashValue()

virtual label faceHashValue ( ) const

pure virtual

Implemented in hexMatcher, pyrMatcher, tetMatcher, prismMatcher, tetWedgeMatcher, and wedgeMatcher.

◆ faceSizeMatch()

virtual bool faceSizeMatch	(	const faceList &	,
		const labelList &
	)		const

pure virtual

Implemented in hexMatcher, pyrMatcher, tetMatcher, prismMatcher, tetWedgeMatcher, and wedgeMatcher.

◆ matchShape()

virtual bool matchShape	(	const bool	checkOnly,
		const faceList &	faces,
		const labelList &	faceOwner,
		const label	celli,
		const labelList &	myFaces
	)

pure virtual

Implemented in hexMatcher, pyrMatcher, tetMatcher, prismMatcher, tetWedgeMatcher, and wedgeMatcher.

◆ isA() [1/2]

virtual bool isA	(	const primitiveMesh &	mesh,
		const label	celli
	)

pure virtual

Implemented in hexMatcher, pyrMatcher, tetMatcher, prismMatcher, tetWedgeMatcher, and wedgeMatcher.

◆ isA() [2/2]

virtual bool isA ( const faceList & )

pure virtual

Implemented in tetMatcher, hexMatcher, pyrMatcher, prismMatcher, tetWedgeMatcher, and wedgeMatcher.

◆ matches()

virtual bool matches	(	const primitiveMesh &	mesh,
		const label	celli,
		cellShape &	shape
	)

pure virtual

Implemented in hexMatcher, pyrMatcher, tetMatcher, prismMatcher, tetWedgeMatcher, and wedgeMatcher.

Member Data Documentation

◆ localPoint_

Map<label> localPoint_

protected

Definition at line 116 of file cellMatcher.H.

Referenced by cellMatcher::localPoint().

◆ localFaces_

faceList localFaces_

protected

Definition at line 119 of file cellMatcher.H.

Referenced by cellMatcher::calcEdgeAddressing().

◆ faceSize_

labelList faceSize_

protected

Definition at line 122 of file cellMatcher.H.

Referenced by cellMatcher::calcEdgeAddressing().

◆ pointMap_

labelList pointMap_

protected

Definition at line 125 of file cellMatcher.H.

◆ faceMap_

labelList faceMap_

protected

Definition at line 128 of file cellMatcher.H.

◆ edgeFaces_

labelList edgeFaces_

protected

Definition at line 131 of file cellMatcher.H.

Referenced by cellMatcher::calcEdgeAddressing().

◆ pointFaceIndex_

labelListList pointFaceIndex_

protected

Definition at line 135 of file cellMatcher.H.

◆ vertLabels_

labelList vertLabels_

protected

Definition at line 138 of file cellMatcher.H.

◆ faceLabels_

labelList faceLabels_

protected

Definition at line 141 of file cellMatcher.H.

◆ cellModelName_

const word cellModelName_

protected

Definition at line 144 of file cellMatcher.H.

◆ cellModelPtr_

const cellModel* cellModelPtr_

mutableprotected

Definition at line 146 of file cellMatcher.H.

The documentation for this class was generated from the following files:

src/OpenFOAM/meshes/meshShapes/cellMatcher/cellMatcher.H
src/OpenFOAM/meshes/meshShapes/cellMatcher/cellMatcher.C
src/OpenFOAM/meshes/meshShapes/cellMatcher/cellMatcherI.H
