Write OpenFOAM meshes and/or results to CCM format. More...

Inheritance diagram for writer:

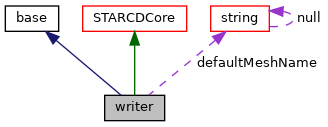

Collaboration diagram for writer:

[legend]

Public Member Functions
	writer (const fileName &file, const polyMesh &mesh, const bool backup=true)

	~writer ()

void	writeGeometry ()

void	writeSolution (const IOobjectList &objects, const fileName &remappingDictName=fileName::null)

Public Member Functions inherited from base
	base ()

	~base ()

bool	close ()

Static Public Attributes
static string	defaultMeshName = "meshExport"

Additional Inherited Members
Protected Types inherited from STARCDCore
enum	fileHeader { HEADER_CEL, HEADER_VRT, HEADER_BND }

enum	fileExt { CEL_FILE, VRT_FILE, BND_FILE, INP_FILE }

enum	matlType { starcdFluidType = 1, starcdSolidType = 2, starcdBaffleType = 3, starcdShellType = 4, starcdLineType = 5, starcdPointType = 6 }

enum	shapeType { starcdPoint = 1, starcdLine = 2, starcdShell = 3, starcdHex = 11, starcdPrism = 12, starcdTet = 13, starcdPyr = 14, starcdPoly = 255 }

Protected Member Functions inherited from base
bool	assertNoError (const char *msg) const

bool	assertNoError (const std::string &msg) const

	base (const base &)=delete

void	operator= (const base &)=delete

Protected Member Functions inherited from STARCDCore
	STARCDCore ()=default

Static Protected Member Functions inherited from base
static bool	assertNoError (int err, const char *msg)

static bool	assertNoError (int err, const std::string &msg)

Static Protected Member Functions inherited from STARCDCore
static bool	readHeader (IFstream &is, const enum fileHeader header)

static void	writeHeader (Ostream &os, const enum fileHeader header)

static fileName	starFileName (const fileName &baseName, const enum fileExt ext)

static void	removeFiles (const fileName &baseName)

static label	readPoints (IFstream &is, List< point > &points, List< label > &ids)

static void	writePoints (Ostream &os, const UList< point > &points, const scalar scaleFactor=1.0)

Protected Attributes inherited from base
std::unique_ptr< ccmGlobalState >	globalState_

Static Protected Attributes inherited from STARCDCore
static const Map< FixedList< int, 6 > >	starToFoamFaceAddr

static const Map< FixedList< int, 6 > >	foamToStarFaceAddr

static const char *const	defaultBoundaryName

static const char *const	defaultSolidBoundaryName

Detailed Description

Write OpenFOAM meshes and/or results to CCM format.

partial support for interfaces
no monitoring (internal) boundaries
does not handle Lagrangian data

Files

The constant/boundaryRegion and constant/cellTable files, which are described in ccmReader, are used to construct the CCM ProblemDescription node.

The constant/remapping file is an IOdictionary that is READ_IF_PRESENT and can be used to remap certain information. eg,

    // map OpenFOAM scalar fields to CCM output fields
    fields
    {
        tracer0
        {
            name    CONC_001;
            Label   "tracer0";
        }
        tracer1
        {
            name    CONC_002;
            Label   "tracer1";
        }
        tracer2
        {
            name    CONC_003;
            Label   "tracer2";
        }
        divPhi
        {
            name    CONC_004;
            Label   "divPhi";
        }
        // an example with units:
        p
        {
            name    P;
            Label   "Pressure";
            units   "Pa";
        }
    }

Note

This class is in development

any/all of the class names and members may change

Source files

Definition at line 115 of file ccmWriter.H.

Constructor & Destructor Documentation

◆ writer()

writer	(	const fileName &	file,
		const polyMesh &	mesh,
		const bool	backup = `true`
	)

Definition at line 285 of file ccmWriter.C.

References cellModel::HEX, cellModel::index(), cellModel::PRISM, cellModel::PYR, cellModel::ref(), and cellModel::TET.

Here is the call graph for this function:

◆ ~writer()

~writer ( )

Definition at line 369 of file ccmWriter.C.

Member Function Documentation

◆ writeGeometry()

void writeGeometry ( )

Definition at line 710 of file ccmWriterMesh.C.

◆ writeSolution()

void writeSolution	(	const IOobjectList &	objects,
		const fileName &	remappingDictName = `fileName::null`
	)

Definition at line 119 of file ccmWriterSolution.C.

References GeometricField::component(), Foam::endl(), field(), Foam::flush(), forAll, forAllConstIters(), dictionary::found(), Foam::Info, dictionary::isDict(), Foam::name(), IOobject::NO_WRITE, patches, IOobject::READ_IF_PRESENT, dictionary::readEntry(), runTime, dictionary::subDict(), timeIndex, IOobject::typeHeaderOk(), and WarningInFunction.

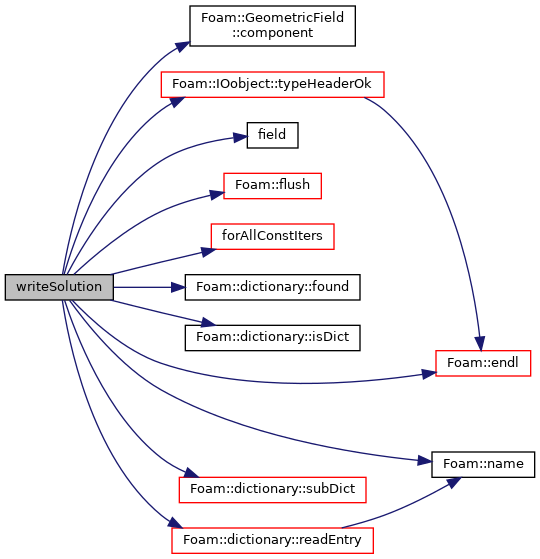

Here is the call graph for this function:

Member Data Documentation

◆ defaultMeshName

Foam::string defaultMeshName = "meshExport"

static

Definition at line 214 of file ccmWriter.H.

The documentation for this class was generated from the following files:

src/conversion/ccm/writer/ccmWriter.H
src/conversion/ccm/writer/ccmWriter.C
src/conversion/ccm/writer/ccmWriterMesh.C
src/conversion/ccm/writer/ccmWriterSolution.C
