Reads CCM files as written by PROSTAR/STARCCM. More...

Inheritance diagram for reader:

Collaboration diagram for reader:

Classes
class	options

Public Member Functions
	reader (const fileName &file, const reader::options &opts)

	~reader ()

const reader::options &	option () const

autoPtr< polyMesh >	mesh (const objectRegistry &registry, const fileName &remappingDictName=fileName::null)

bool	hasGeometry ()

bool	hasSolution ()

bool	remapMeshInfo (const objectRegistry &registry, const fileName &remappingDictName=fileName::null)

void	writeMesh (const polyMesh &mesh, IOstreamOption streamOpt=IOstreamOption(IOstreamOption::BINARY)) const

void	writeAux (const objectRegistry &registry) const

bool	readGeometry (const scalar scaleFactor=1.0)

void	printInfo () const

void	clearGeom ()

const labelList &	origCellId () const

const labelList &	origFaceId () const

const interfaceDefinitions &	interfaceDefinitionsInfo () const

const boundaryRegion &	boundaryTableInfo () const

const cellTable &	cellTableInfo () const

Map< word >	fluids () const

Map< word >	solids () const

const solutionTable &	solutions ()

const fieldTable &	fields ()

const fieldTable &	lagrangian ()

tmp< scalarField >	readField (const word &solutionName, const word &fieldName, const bool wallData=false)

Public Member Functions inherited from base
	base ()

	~base ()

bool	close ()

Static Public Member Functions
static void	warnDuplicates (const word &context, const wordList &lst)

Additional Inherited Members
Protected Types inherited from STARCDCore
enum	fileHeader { HEADER_CEL, HEADER_VRT, HEADER_BND }

enum	fileExt { CEL_FILE, VRT_FILE, BND_FILE, INP_FILE }

enum	matlType { starcdFluidType = 1, starcdSolidType = 2, starcdBaffleType = 3, starcdShellType = 4, starcdLineType = 5, starcdPointType = 6 }

enum	shapeType { starcdPoint = 1, starcdLine = 2, starcdShell = 3, starcdHex = 11, starcdPrism = 12, starcdTet = 13, starcdPyr = 14, starcdPoly = 255 }

Protected Member Functions inherited from base
bool	assertNoError (const char *msg) const

bool	assertNoError (const std::string &msg) const

	base (const base &)=delete

void	operator= (const base &)=delete

Protected Member Functions inherited from STARCDCore
	STARCDCore ()=default

Static Protected Member Functions inherited from base
static bool	assertNoError (int err, const char *msg)

static bool	assertNoError (int err, const std::string &msg)

Static Protected Member Functions inherited from STARCDCore
static bool	readHeader (IFstream &is, const enum fileHeader header)

static void	writeHeader (Ostream &os, const enum fileHeader header)

static fileName	starFileName (const fileName &baseName, const enum fileExt ext)

static void	removeFiles (const fileName &baseName)

static label	readPoints (IFstream &is, List< point > &points, List< label > &ids)

static void	writePoints (Ostream &os, const UList< point > &points, const scalar scaleFactor=1.0)

Protected Attributes inherited from base
std::unique_ptr< ccmGlobalState >	globalState_

Static Protected Attributes inherited from STARCDCore
static const Map< FixedList< int, 6 > >	starToFoamFaceAddr

static const Map< FixedList< int, 6 > >	foamToStarFaceAddr

static const char *const	defaultBoundaryName

static const char *const	defaultSolidBoundaryName

Detailed Description

Reads CCM files as written by PROSTAR/STARCCM.

arbitrary polyhedral meshs
writes interfaces (baffles) to constant/polymesh/interfaces
experimental handling of monitoring (internal) boundaries
does not handle cyclics. Use createPatch to recreate these
does patch names only if they are in the problem description
reads cell and face solution data
reads Lagrangian data

The Default_Boundary_Region (region 0) is a special region that serves two purposes:

it contains all wall and baffle boundaries that have not otherwise been assigned.
it holds the outer bounds of flow domains (fluid/porous/solid)

The CCM node Meshes/FaceBasedTopology/Cells/Interfaces holds the mapping of the corresponding mesh faces, which can be used to merge these internal boundaries.

If solid cells exist, there are three possible courses of action:

Remove all solid cells for subsequent flow calculations. This is the default.
Treat solid cells like fluid cells, but convert the corresponding Default_Boundary_Region to Default_Boundary_Solid for easier identification. This treatment is useful for visualization purposes.
Move solid cells to a separate mesh region. This would be useful for conjugate heat transfer, but is not implemented.

Files

The constant/remapping file is an IOdictionary that is READ_IF_PRESENT and can be used to remap certain information. eg,

    // rename/combine cellTable entries
    //   newName ( listOldNames );
    cellTable
    {
        fluid ( inletRegion outletRegion );
        cat1  ( CAT1 "cat1_(Back|Front|Gamma)" );
    }

    // rename boundary regions
    //   newName oldName;
    boundaryRegion
    {
        inlet_4  inlet_1;
        inlet_5  inlet_2;
        inlet_6  inlet_3;
    }

The constant/boundaryRegion file is an IOMap<dictionary> that is written. It contains the boundary type and names. eg,

    (
        0
        {
            BoundaryType    wall;
            Label           Default_Boundary_Region;
        }
        1
        {
            BoundaryType    inlet;
            Label           inlet_1;
        }
        ...

        4
        {
            BoundaryType    pressure;
            Label           outlet;
        }
    )

The constant/cellTable file is an IOMap<dictionary> that is written. It contains the cellTable information. eg,

    (
        1
        {
            Label           inletRegion;
            MaterialType    fluid;
            MaterialId      1;
        }
        2
        {
            Label           cat1;
            MaterialType    fluid;
            MaterialId      1;
            PorosityId      1;
        }
        3
        {
            Label           outletRegion;
            MaterialType    fluid;
            MaterialId      1;
        }
    )

Note

this class is still under development

any/all of the class names and members may change

Source files

Definition at line 179 of file ccmReader.H.

Constructor & Destructor Documentation

◆ reader()

reader	(	const fileName &	file,
		const reader::options &	opts
	)

Definition at line 643 of file ccmReader.C.

References base::assertNoError(), Foam::exit(), Foam::FatalError, FatalErrorInFunction, base::globalState_, Foam::isFile(), and reader::option().

Here is the call graph for this function:

◆ ~reader()

~reader ( )

Definition at line 702 of file ccmReader.C.

Member Function Documentation

◆ warnDuplicates()

void warnDuplicates	(	const word &	context,
		const wordList &	lst
	)

static

Definition at line 64 of file ccmReaderAux.C.

References Foam::endl(), HashTable::find(), forAllConstIters(), Foam::Info, HashTable::insert(), and Foam::nl.

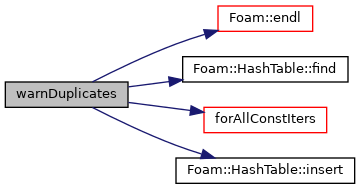

Here is the call graph for this function:

◆ option()

const Foam::ccm::reader::options & option ( ) const

Definition at line 710 of file ccmReader.C.

Referenced by reader::reader().

Here is the caller graph for this function:

◆ mesh()

Foam::autoPtr< Foam::polyMesh > mesh	(	const objectRegistry &	registry,
		const fileName &	remappingDictName = `fileName::null`
	)

Definition at line 2594 of file ccmReaderMesh.C.

References IOobject::AUTO_WRITE, polyMesh::defaultRegion, mesh, meshPtr, autoPtr::New(), and IOobject::NO_READ.

Here is the call graph for this function:

◆ hasGeometry()

bool hasGeometry ( )

Definition at line 557 of file ccmReader.C.

◆ hasSolution()

bool hasSolution ( )

Definition at line 564 of file ccmReader.C.

◆ remapMeshInfo()

bool remapMeshInfo	(	const objectRegistry &	registry,
		const fileName &	remappingDictName = `fileName::null`
	)

Definition at line 586 of file ccmReader.C.

References dictionary::isDict(), IOobject::NO_WRITE, IOobject::READ_IF_PRESENT, and dictionary::subDict().

Here is the call graph for this function:

◆ writeMesh()

void writeMesh	(	const polyMesh &	mesh,
		IOstreamOption	streamOpt = `IOstreamOption(IOstreamOption::BINARY)`
	)		const

Definition at line 572 of file ccmReader.C.

References Foam::endl(), Foam::Info, and mesh.

Here is the call graph for this function:

◆ writeAux()

void writeAux ( const objectRegistry & registry ) const

Definition at line 176 of file ccmReaderAux.C.

References IOstreamOption::ASCII, and IOstreamOption::BINARY.

◆ readGeometry()

bool readGeometry ( const scalar scaleFactor = 1.0 )

Definition at line 529 of file ccmReader.C.

◆ printInfo()

void printInfo ( ) const

Definition at line 515 of file ccmReader.C.

References Foam::endl(), Foam::Info, and Foam::nl.

Here is the call graph for this function:

◆ clearGeom()

void clearGeom ( )

Definition at line 2573 of file ccmReaderMesh.C.

◆ origCellId()

const labelList& origCellId ( ) const

inline

Definition at line 506 of file ccmReader.H.

◆ origFaceId()

const labelList& origFaceId ( ) const

inline

Definition at line 512 of file ccmReader.H.

◆ interfaceDefinitionsInfo()

const interfaceDefinitions& interfaceDefinitionsInfo ( ) const

inline

Definition at line 518 of file ccmReader.H.

◆ boundaryTableInfo()

const boundaryRegion& boundaryTableInfo ( ) const

inline

Definition at line 524 of file ccmReader.H.

◆ cellTableInfo()

const cellTable& cellTableInfo ( ) const

inline

Definition at line 530 of file ccmReader.H.

◆ fluids()

Map<word> fluids ( ) const

inline

Definition at line 536 of file ccmReader.H.

References cellTable::fluids().

Here is the call graph for this function:

◆ solids()

Map<word> solids ( ) const

inline

Definition at line 542 of file ccmReader.H.

References cellTable::solids().

Here is the call graph for this function:

◆ solutions()

const solutionTable& solutions ( )

inline

Definition at line 548 of file ccmReader.H.

◆ fields()

const fieldTable& fields ( )

inline

Definition at line 555 of file ccmReader.H.

◆ lagrangian()

const fieldTable& lagrangian ( )

inline

Definition at line 562 of file ccmReader.H.

◆ readField()

Foam::tmp< Foam::scalarField > readField	(	const word &	solutionName,
		const word &	fieldName,
		const bool	wallData = `false`
	)

Definition at line 350 of file ccmReaderSolution.C.

References cellId, forAll, n, tmp::New(), tmp::ref(), and List::setSize().

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/conversion/ccm/reader/ccmReader.H
src/conversion/ccm/reader/ccmReader.C
src/conversion/ccm/reader/ccmReaderAux.C
src/conversion/ccm/reader/ccmReaderMesh.C
src/conversion/ccm/reader/ccmReaderSolution.C
