A multi-block mesh generator. More...

Inheritance diagram for blockMesh:

Collaboration diagram for blockMesh:

Public Types
enum	mergeStrategy { DEFAULT_MERGE, MERGE_TOPOLOGY, MERGE_POINTS }

typedef PtrList< block >	blockList

Public Member Functions
	ClassName ("blockMesh")

	blockMesh (const IOdictionary &dict, const word &regionName=polyMesh::defaultRegion, mergeStrategy strategy=mergeStrategy::DEFAULT_MERGE, int verbosity=0)

	~blockMesh ()=default

const dictionary &	meshDict () const noexcept

const searchableSurfaces &	geometry () const noexcept

const blockEdgeList &	edges () const noexcept

const blockFaceList &	faces () const noexcept

bool	valid () const noexcept

wordList	patchNames () const

label	numZonedBlocks () const

bool	hasPointTransforms () const noexcept

bool	inplacePointTransforms (pointField &pts) const

tmp< pointField >	globalPosition (const pointField &localPoints) const

const pointField &	vertices () const noexcept

tmp< pointField >	vertices (bool applyTransform) const

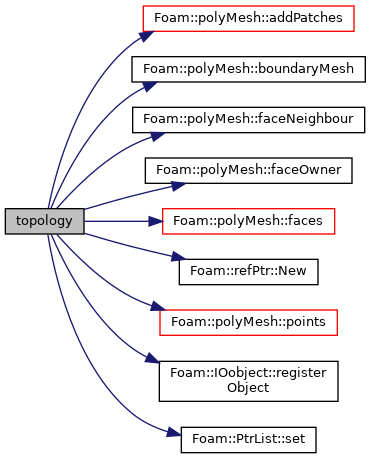

const polyMesh &	topology () const

refPtr< polyMesh >	topology (bool applyTransform) const

const pointField &	points () const

const cellShapeList &	cells () const

const faceListList &	patches () const

PtrList< dictionary >	patchDicts () const

int	verbose () const noexcept

int	verbose (const int level) noexcept

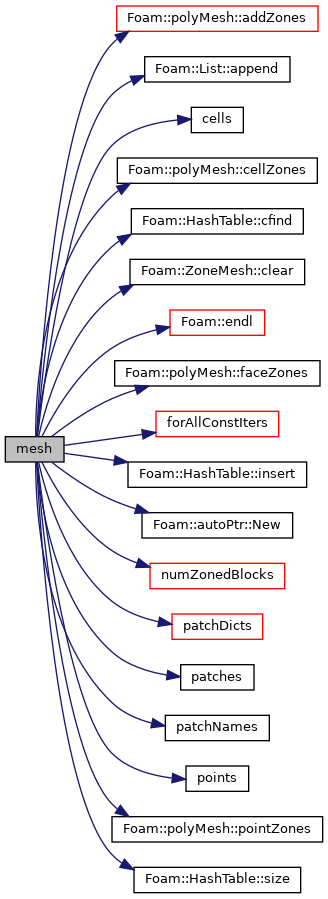

autoPtr< polyMesh >	mesh (const IOobject &io) const

scalar	scaleFactor () const

Public Member Functions inherited from PtrList< block >
constexpr	PtrList () noexcept

	PtrList (const label len)

	PtrList (const PtrList< T > &list)

	PtrList (PtrList< T > &&list)

	PtrList (UList< T * > &list)

	PtrList (const PtrList< T > &list, const CloneArg &cloneArgs)

	PtrList (PtrList< T > &list, bool reuse)

	PtrList (const SLPtrList< T > &list)

	PtrList (Istream &is, const INew &inew)

	PtrList (Istream &is)

	PtrList (PtrList< T > &list, bool reuse)

	PtrList (const SLPtrList< T > &list)

constexpr	PtrList () noexcept

	PtrList (const label len)

	PtrList (const PtrList< T > &list)

	PtrList (PtrList< T > &&list)

	PtrList (UList< T * > &list)

	PtrList (Istream &is)

	~PtrList ()

PtrList< T >	clone (Args &&... args) const

Foam::PtrList< T >	clone (Args &&... args) const

const T *	set (const label i) const

autoPtr< T >	set (const label i, T *ptr)

autoPtr< T >	set (const label i, autoPtr< T > &ptr)

autoPtr< T >	set (const label i, autoPtr< T > &&ptr)

autoPtr< T >	set (const label i, std::unique_ptr< T > &&ptr)

autoPtr< T >	set (const label i, const refPtr< T > &ptr)

autoPtr< T >	set (const label i, const tmp< T > &ptr)

void	clear ()

void	resize (const label newLen)

void	setSize (const label newLen)

void	emplace_append (Args &&... args)

void	append (T *ptr)

void	append (autoPtr< T > &ptr)

void	append (autoPtr< T > &&ptr)

void	append (std::unique_ptr< T > &&ptr)

void	append (const refPtr< T > &ptr)

void	append (const tmp< T > &ptr)

autoPtr< T >	emplace (const label i, Args &&... args)

Foam::autoPtr< T >	emplace (const label i, Args &&... args)

autoPtr< T >	release (const label i)

void	transfer (PtrList< T > &list)

void	operator= (const PtrList< T > &list)

void	operator= (PtrList< T > &&list)

Static Public Attributes
static bool	verboseOutput = true

Additional Inherited Members
Protected Member Functions inherited from PtrList< block >
void	readIstream (Istream &is, const INew &inew)

void	free ()

Detailed Description

A multi-block mesh generator.

Dictionary controls

Property	Description	Required	Default
`prescale`	Point scaling before transform	no	1.0
`scale`	Point scaling after transform	no	1.0
`transform`	Point transform (origin, rotation)	no
`vertices`		yes
`blocks`		yes
`edges`		no
`faces`		no
`boundary`	Boundary definition	no
`patches`	Alternate version for "boundary"	no
`namedBlocks`		no
`namedVertices`		no
`mergeType`	Merging "points" or "topology"	no	topology
`checkFaceCorrespondence`		no	true
`verbose`		no	true

Note: The prescale and scale can be a single scalar or a vector of values.

The vertices, cells and patches for filling the blocks are demand-driven.

Source files

Definition at line 161 of file blockMesh.H.

Member Typedef Documentation

◆ blockList

typedef PtrList<block> blockList

Definition at line 170 of file blockMesh.H.

Member Enumeration Documentation

◆ mergeStrategy

enum mergeStrategy

Enumerator
DEFAULT_MERGE	Default (TOPOLOGY), not selectable.
MERGE_TOPOLOGY	"topology" merge by block topology (default)
MERGE_POINTS	"points" merge by point geometry

Definition at line 176 of file blockMesh.H.

Constructor & Destructor Documentation

◆ blockMesh()

blockMesh	(	const IOdictionary &	dict,
		const word &	regionName = `polyMesh::defaultRegion`,
		mergeStrategy	strategy = `mergeStrategy::DEFAULT_MERGE`,
		int	verbosity = `0`
	)
