adjointWallVelocityFvPatchVectorField Class Reference

Adjoint wall velocity boundary condition. If nutUSpaldingWallFunction is employed in the flow solution, the corresponding adjoint wall function is used. Otherwise, the typical low-Re boundary condition is applied. More...

Inheritance diagram for adjointWallVelocityFvPatchVectorField:

Collaboration diagram for adjointWallVelocityFvPatchVectorField:

Public Member Functions
	TypeName ("adjointWallVelocity")
	adjointWallVelocityFvPatchVectorField (const fvPatch &, const DimensionedField< vector, volMesh > &)
	adjointWallVelocityFvPatchVectorField (const fvPatch &, const DimensionedField< vector, volMesh > &, const dictionary &)
	adjointWallVelocityFvPatchVectorField (const adjointWallVelocityFvPatchVectorField &, const fvPatch &, const DimensionedField< vector, volMesh > &, const fvPatchFieldMapper &)
virtual tmp< fvPatchVectorField >	clone () const
	adjointWallVelocityFvPatchVectorField (const adjointWallVelocityFvPatchVectorField &, const DimensionedField< vector, volMesh > &)
virtual tmp< fvPatchVectorField >	clone (const DimensionedField< vector, volMesh > &iF) const
virtual void	manipulateMatrix (fvMatrix< vector > &matrix)
virtual void	updateCoeffs ()
virtual void	write (Ostream &) const
Public Member Functions inherited from adjointBoundaryCondition< Type >
	TypeName ("adjointBoundaryCondition")
	adjointBoundaryCondition (const fvPatch &p, const DimensionedField< Type, volMesh > &iF, const word &solverName)
	adjointBoundaryCondition (const adjointBoundaryCondition< Type > &)
virtual	~adjointBoundaryCondition ()=default
const word &	objectiveManagerName () const
const word &	adjointSolverName () const
const word &	simulationType () const
void	setBoundaryContributionPtr ()
boundaryAdjointContribution &	getBoundaryAdjContribution ()
const ATCModel &	getATC () const
virtual tmp< Field< typename Foam::outerProduct< Foam::vector, Type >::type > >	dxdbMult () const

Additional Inherited Members
Protected Member Functions inherited from adjointBoundaryCondition< Type >
template<class Type2 >
tmp< Field< typename Foam::outerProduct< Foam::vector, Type2 >::type > >	computePatchGrad (word name)
bool	addATCUaGradUTerm ()
Protected Attributes inherited from adjointBoundaryCondition< Type >
const fvPatch &	patch_
word	managerName_
word	adjointSolverName_
word	simulationType_
autoPtr< boundaryAdjointContribution >	boundaryContrPtr_
autoPtr< bool >	addATCUaGradUTerm_

Detailed Description

Adjoint wall velocity boundary condition. If nutUSpaldingWallFunction is employed in the flow solution, the corresponding adjoint wall function is used. Otherwise, the typical low-Re boundary condition is applied.

Reference:

    For both the low- and high-Re variants

        Papoutsis-Kiachagias, E. M., & Giannakoglou, K. C. (2014).
        Continuous Adjoint Methods for Turbulent Flows, Applied to Shape
        and Topology Optimization: Industrial Applications.
        Archives of Computational Methods in Engineering, 23(2), 255-299.
        http://doi.org/10.1007/s11831-014-9141-9

Source files

• adjointWallVelocityFvPatchVectorField.H
• adjointWallVelocityFvPatchVectorField.C

Definition at line 64 of file adjointWallVelocityFvPatchVectorField.H.

Constructor & Destructor Documentation

adjointWallVelocityFvPatchVectorField() [1/4]

adjointWallVelocityFvPatchVectorField	(	const fvPatch &	p,
		const DimensionedField< vector, volMesh > &	iF
	)

Definition at line 32 of file adjointWallVelocityFvPatchVectorField.C.

Referenced by adjointWallVelocityFvPatchVectorField::clone().

Here is the caller graph for this function:

adjointWallVelocityFvPatchVectorField() [2/4]

adjointWallVelocityFvPatchVectorField	(	const fvPatch &	p,
		const DimensionedField< vector, volMesh > &	iF,
		const dictionary &	dict
	)

Definition at line 62 of file adjointWallVelocityFvPatchVectorField.C.

References dict, and p.

adjointWallVelocityFvPatchVectorField() [3/4]

adjointWallVelocityFvPatchVectorField	(	const adjointWallVelocityFvPatchVectorField &	ptf,
		const fvPatch &	p,
		const DimensionedField< vector, volMesh > &	iF,
		const fvPatchFieldMapper &	mapper
	)

Definition at line 46 of file adjointWallVelocityFvPatchVectorField.C.

adjointWallVelocityFvPatchVectorField() [4/4]

adjointWallVelocityFvPatchVectorField	(	const adjointWallVelocityFvPatchVectorField &	pivpvf,
		const DimensionedField< vector, volMesh > &	iF
	)

Definition at line 82 of file adjointWallVelocityFvPatchVectorField.C.

Member Function Documentation

TypeName()

TypeName

(

"adjointWallVelocity"

)

clone() [1/2]

virtual tmp<fvPatchVectorField> clone ( ) const

inlinevirtual

Reimplemented in adjointRotatingWallVelocityFvPatchVectorField.

Definition at line 111 of file adjointWallVelocityFvPatchVectorField.H.

References adjointWallVelocityFvPatchVectorField::adjointWallVelocityFvPatchVectorField().

Here is the call graph for this function:

clone() [2/2]

virtual tmp<fvPatchVectorField> clone ( const DimensionedField< vector, volMesh > &  iF ) const

inlinevirtual

Reimplemented in adjointRotatingWallVelocityFvPatchVectorField.

Definition at line 128 of file adjointWallVelocityFvPatchVectorField.H.

References adjointWallVelocityFvPatchVectorField::adjointWallVelocityFvPatchVectorField().

Here is the call graph for this function:

manipulateMatrix()

void manipulateMatrix ( fvMatrix< vector > &  matrix )

virtual

Definition at line 97 of file adjointWallVelocityFvPatchVectorField.C.

References Foam::exp(), forAll, Foam::mag(), Foam::min(), nu, Foam::foamVersion::patch, fvPatchField::patchInternalField(), fvPatchField::snGrad(), fvMatrix::source(), Foam::sqrt(), uPlus, and yPlus.

Here is the call graph for this function:

updateCoeffs()

void updateCoeffs ( )

virtual

Definition at line 159 of file adjointWallVelocityFvPatchVectorField.C.

References adjointBoundaryCondition< Type >::boundaryContrPtr_, Foam::mag(), Foam::operator==(), Foam::foamVersion::patch, fvPatchField::patchInternalField(), and Foam::Zero.

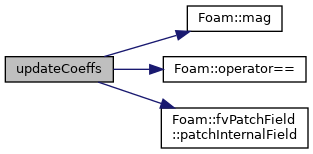

Here is the call graph for this function:

write()

void write ( Ostream &  os ) const

virtual

Reimplemented in adjointRotatingWallVelocityFvPatchVectorField.

Definition at line 214 of file adjointWallVelocityFvPatchVectorField.C.

References os(), fvPatchField::write(), and Ostream::writeEntry().

Referenced by adjointRotatingWallVelocityFvPatchVectorField::write().

Here is the call graph for this function:

Here is the caller graph for this function:

---

The documentation for this class was generated from the following files:

• src/optimisation/adjointOptimisation/adjoint/adjointBoundaryConditions/adjointWallVelocity/adjointWallVelocityFvPatchVectorField.H
• src/optimisation/adjointOptimisation/adjoint/adjointBoundaryConditions/adjointWallVelocity/adjointWallVelocityFvPatchVectorField.C
